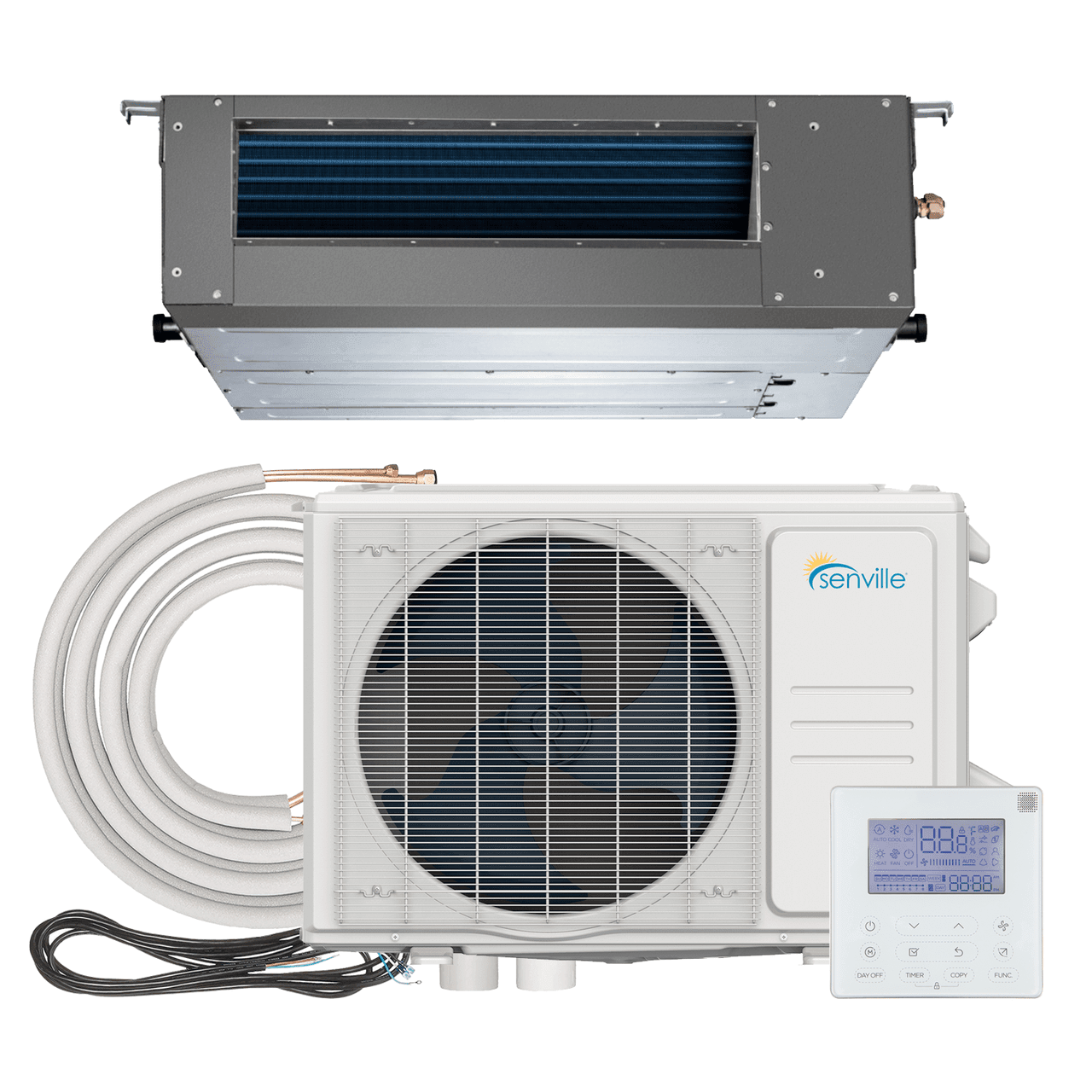

The 9000 BTU Concealed Duct Air Conditioner - Heat Pump - SENA/09HF/ID by Senville combines cutting-edge technology with top-of-the-line efficiency to bring you the ultimate climate control experience.
With a SEER rating of 23, this unit surpasses many competitors in terms of energy efficiency. Whether you're looking to cool or heat your space, this air conditioner offers a range of features including Turbo Mode, Dehumidification, and a Timer Function for added convenience.
Energy Star certified, the Senville Aura Series is designed to help you save up to 40% on your energy costs annually. Its Ultra-Inverter Technology ensures efficient heating and cooling even in temperatures as low as -22F. The system also includes diagnostics and leak detection features for peace of mind and easy maintenance.
Incorporating Inverter Technology, this ductless system is not only energy-efficient but also offers whisper-quiet operation for maximum comfort. Backed by a 10-year warranty on the compressor and a 5-year warranty on other parts, you can trust in the durability and longevity of this unit.
Designed for easy installation, the Senville air conditioner comes with a complimentary installation kit, making setup a breeze. With its high SEER rating, optimal heating and cooling capabilities, and energy-saving features, the 9000 BTU Concealed Duct Air Conditioner - Heat Pump - SENA/09HF/ID by Senville is the ideal choice for year-round climate control in your home or business.
See Features Below:
• 23 SEER (CEE Tier 3)
• With Heat Pump (Up to -30C / -22F)
• Energy Star Certified
• Whisper Technology (Ultra Quiet)
• Refrigerant Leak Detection
• Inverter Technology
• Built-In De-humidification Function
• Low Ambient Cooling (Up to -15C / 4F)
• Self-Cleaning Mode
• PTC Heat Belt and Pan
• Bucket Free Outdoor Design
• Self Diagnosis System
ENERGY STAR Certified
ETL Certified
AHRI Certified (View Certificate)
Recommended for rooms sized 100-450 sq. ft.
Specifications
| Model Number |
SENA-09HF-IDQ |
| Style |
Concealed Ducted Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) |
208/230V, 1Ph, 60Hz |
| Voltage Range |
187-253 |
| SEER |
23 |
| EER |
14 |
| Cooling (Range) |
2400~12500 |
| Input (W) |
643 |
| Rated current A |
2.94 |
| Heating (Range) |
1700~15600 |
| Input (W) |
810 |
| Rated Current (A) |
3.71 |
| HSPF4 |
12 |
| HSPF5 |
10 |
| COP W/W |
3.62 |
| Minimum Circuit Ampacity (A) |
15 |
| Max. Fuse (A) |
15 |
| Indoor Dimensions (WxDxH) (in.) |
27.56x19.92x7.87 |
| Indoor Air Flow (H/M/L) CFM |
352.94/282.35/176.47 |
| Indoor Noise Level (H/M/L) dB |
33/30.5/27 |
| Outdoor Dimensions (WxDxH) (in.) |
31.69x12.99x21.81 |
| Outdoor Noise Level dB |
54.5 |
| Outdoor Air flow (Max) CFM |
1323.5 |
| Refrigerant Type |
R410A / 41.62 Oz |
| Refrigerant Pre-charge |
25 Ft. |
| Connection Wiring |
14*4 AWG |
| Thermostat Type |
Wired Wall Remote Control |
| Warranty |
10 Years Compressor / 5 Years Parts Application Area (8 Ft Ceilings) 400 sq. ft. |
Product Manual
• Senville AURA 9000 BTU Mini Split Concealed Duct Air Conditioner - Heat Pump - SENA/09HF/ID Installation Manual
• Senville AURA 9000 BTU Mini Split Concealed Duct Air Conditioner and Heat Pump - SENA/09HF/ID Concealed Duct Installation Guide
• Senville AURA 9000 BTU Mini Split Concealed Duct Air Conditioner - Heat Pump - SENA/09HF/ID Energy Guide
