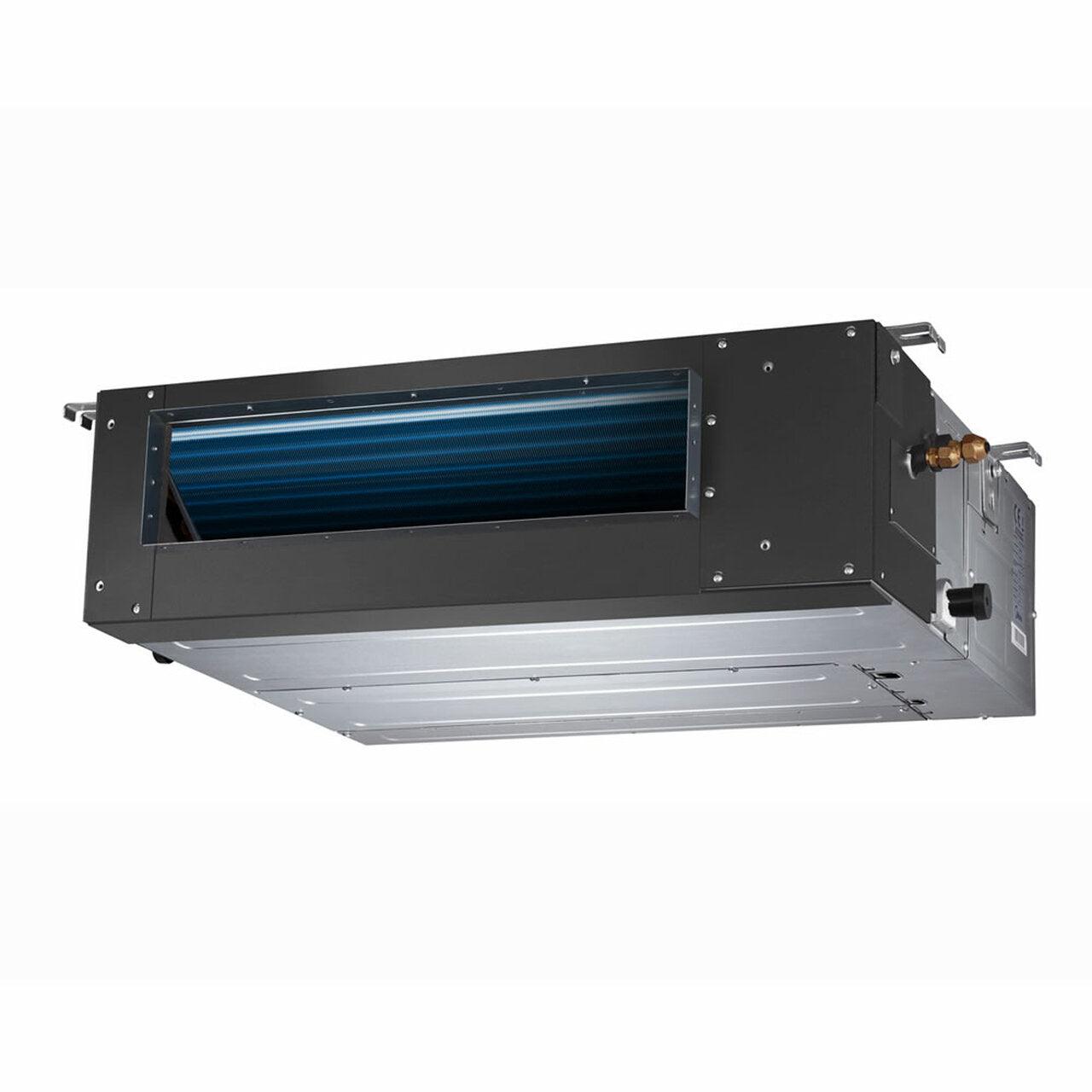

The 18000 BTU Concealed Duct Air Conditioner by Senville is a top-of-the-line unit designed to provide you with optimal climate control all year round.
With features such as SEER 19.6, 17000 BTU Cooling capacity, 18000 BTU Heat Pump, Turbo Mode, Dehumidification, and a Timer Function, this unit has everything you need to keep your space comfortable no matter the season.
Efficiency is key with this air conditioner, boasting SEER Ratings as high as 19.6, making it one of the most energy-efficient options on the market. Additionally, it is Energy Star Certified, ensuring that you save up to 40% on your energy costs annually. You can enjoy a cool and controlled environment while keeping your running costs to a minimum.
The advanced Ultra Inverter Technology allows this unit to provide both cooling and heating even in extreme temperatures as low as -22F, with up to 75% efficiency. The unit also comes equipped with diagnostics and leak detection systems to ensure proper functioning and longevity.
With Inverter Technology, this air conditioner minimizes energy costs and provides high SEER ratings for maximum efficiency. Backed by a 10-year warranty, you can trust in the quality and reliability of this unit for years to come.

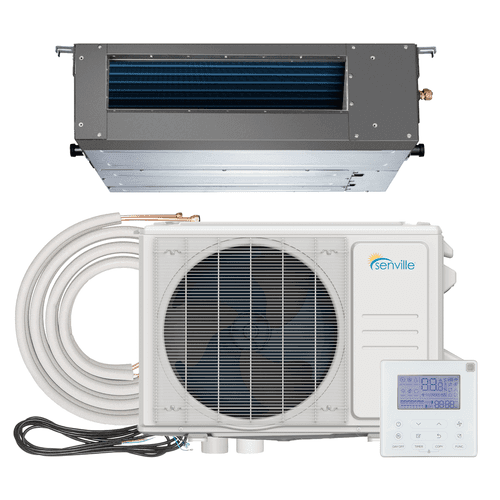

Included with the air conditioner is a complimentary installation kit, making setup easy and cost-effective. The unit comes pre-charged with refrigerant and all necessary piping for installation, eliminating any additional costs. Please note that professional installation is required for proper setup.
Experience the comfort and efficiency with the Senville 18000 BTU Concealed Duct Air Conditioner - Heat Pump. Efficient, powerful, and reliable, this unit is the perfect choice for your climate control needs.
See Features Below:
• 19.6 SEER (CEE Tier 2)
• With Heat Pump (Up to -30C / -22F)
• Energy Star Certified
• Whisper Technology (Ultra Quiet)
• Refrigerant Leak Detection
• Inverter Technology
• Built-In De-humidification Function
• Low Ambient Cooling (Up to -15C / 4F)
• Self-Cleaning Mode
•PTC Heat Belt and Pan

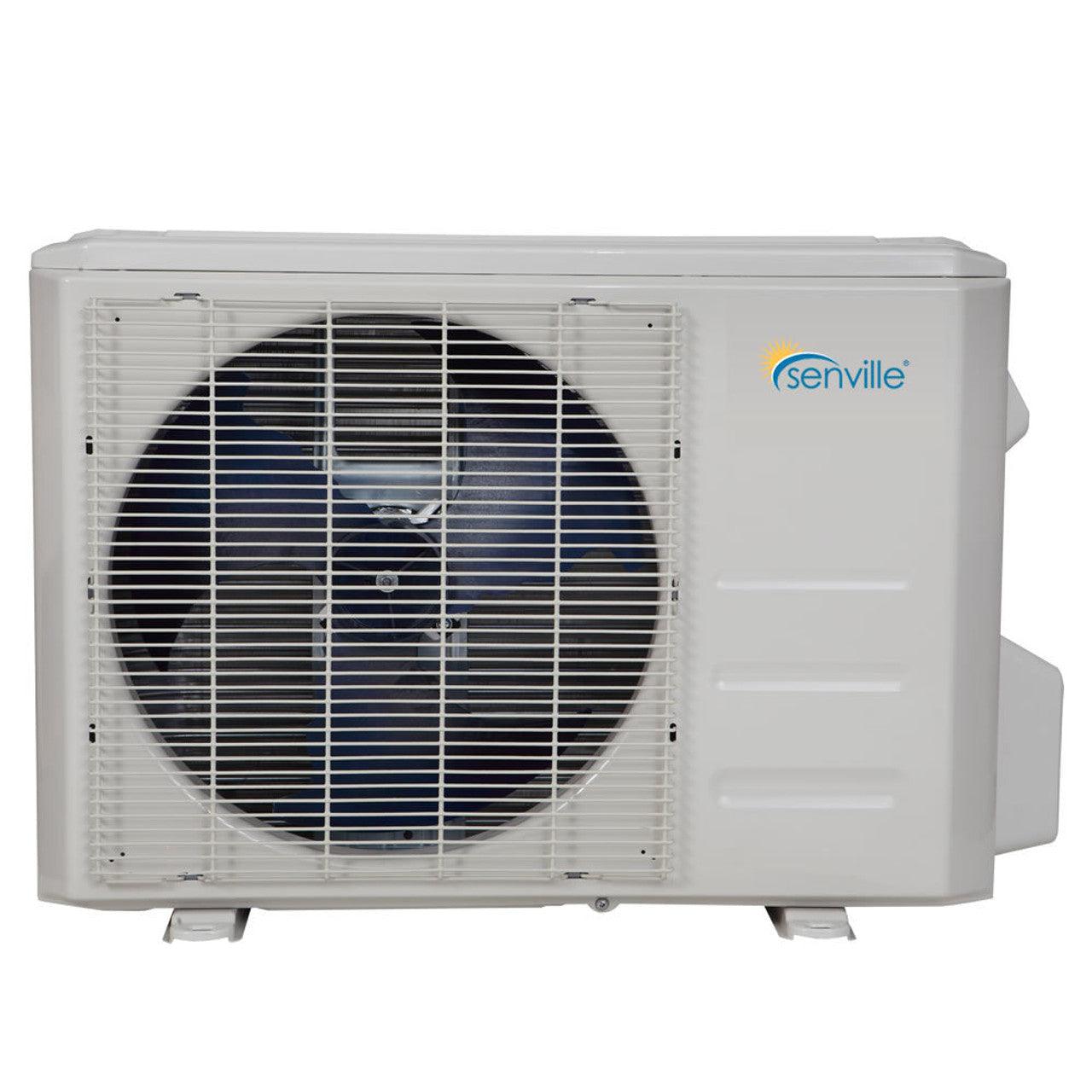

• Bucket Free Outdoor Design
• Self Diagnosis System
Specifications
| Model Number |
SENA-18HF-IDQ |
| Style |
Concealed Ducted Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) |
208/230V, 1Ph, 60Hz |
| Voltage Range |
187-253 |
| SEER |
19.6 |
| EER |
12.5 |
| Cooling (Range) |
6500~18800 |
| Input (W) |
1320 |
| Rated current A |
8.5 |
| Heating (Range) |
8900~22000 |
| Input (W) |
1900 |
| Rated Current (A) |
11.5 |
| HSPF4 |
11 |
| HSPF5 |
9 |
| COP W/W |
2.93 |
| Minimum Circuit Ampacity (A) |
16 |
| Max. Fuse (A) |
25 |
| Indoor Dimensions (WxDxH) (in.) |
34.65x28.53x8.27 |
| Indoor Air Flow (H/M/L) CFM |
529.41/450.00/370.59 |
| Indoor Noise Level (H/M/L) dB |
40/37.5/35 |
| Outdoor Dimensions (WxDxH) (in.) |
35.04x13.46x26.50 |
| Outdoor Noise Level dB |
59 |
| Outdoor Air flow (Max) CFM |
1764.7 |
| Refrigerant Type |
R410A / 65.2 Oz |
| Refrigerant Pre-charge |
25 Ft. |
| Connection Wiring |
14*4 AWG |
| Thermostat Type |
Wired Wall Remote Control |
| Warranty |
10 Years Compressor / 5 Years Parts |
| Application Area (8 Ft Ceilings) |
1100 sq. ft. |
Product Manual
• Senville AURA18000 BTU Mini Split Concealed Duct Air Conditioner - Heat Pump - SENA/18HF/ID Installation Manual
• Senville AURA 18000 BTU Mini Split Concealed Duct Air Conditioner and Heat Pump - SENA/18HF/ID Concealed Duct Installation Guide
• Senville AURA 18000 BTU Mini Split Concealed Duct Air Conditioner - Heat Pump - SENA/18HF/ID Energy Guide
