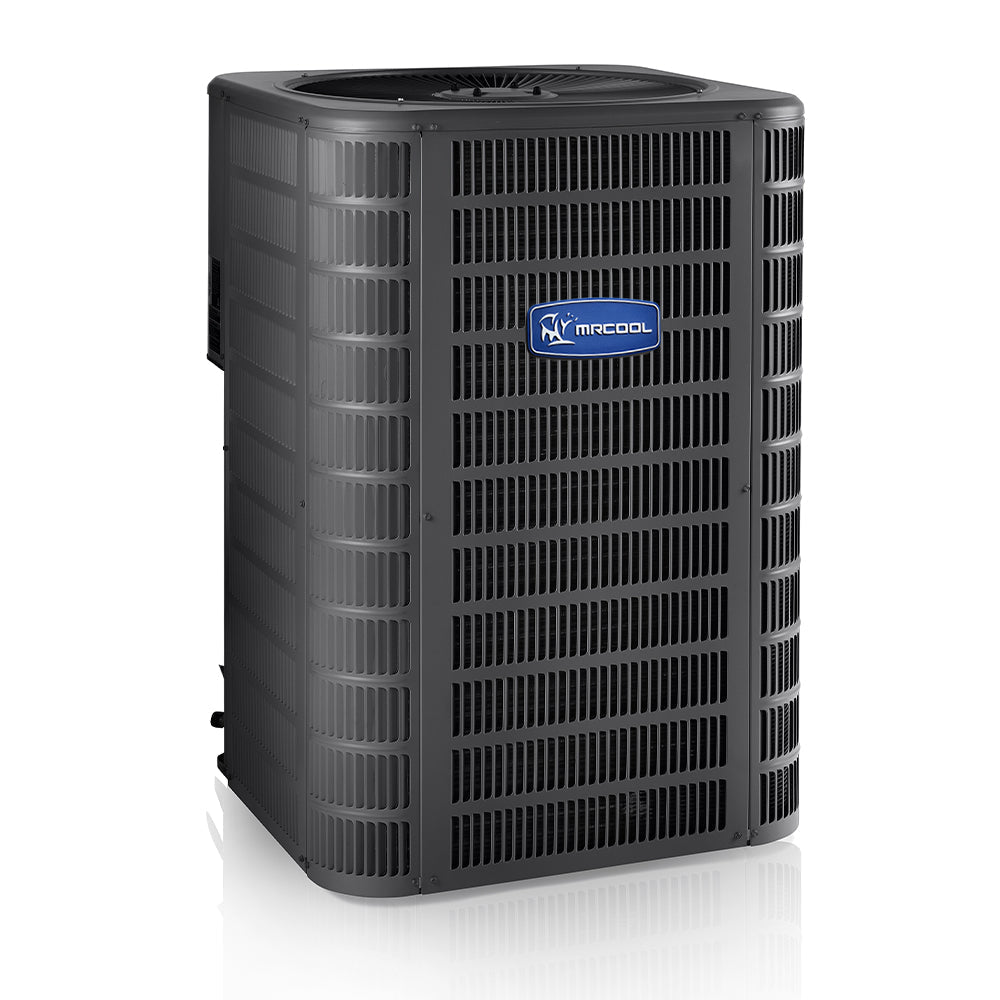

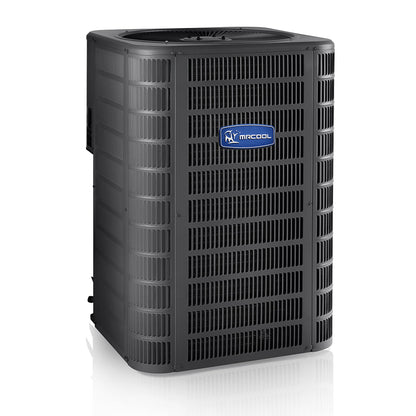

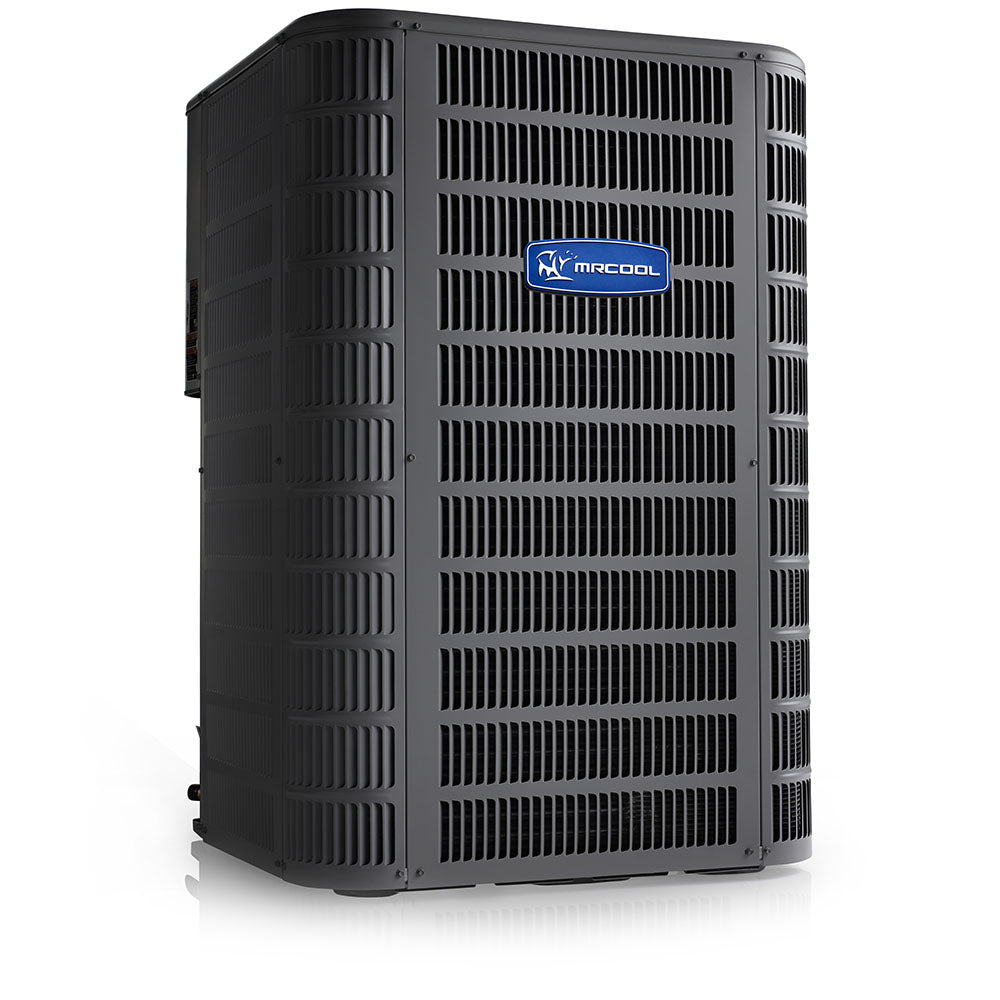

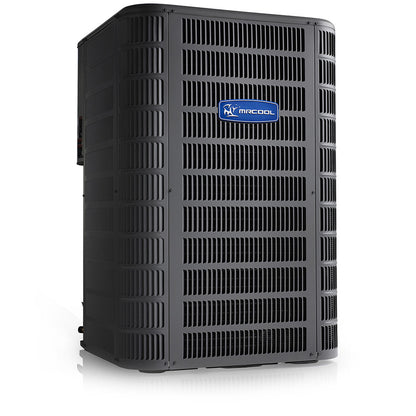

MRCOOL Heat Pump Condenser 3 Ton 15 SEER R410A 36,000 BTU 208-230V/1Ph/60Hz
MRCOOL Heat Pump Condenser 3 Ton 15 SEER R410A 36,000 BTU 208-230V/1Ph/60Hz
MRCOOL Heat Pump Condenser 3 Ton 15 SEER R410A 36,000 BTU 208-230V/1Ph/60Hz
The MRCOOL 15 SEER Heat Pump Split System works diligently to make your home a comfortable space. This product gives you total energy efficiency with it's enhanced tube-and-fin coil design, allowing you to get more bang for your buck. You can have peace-of-mind with this product due to its affordability, quality, efficiency, and comfort. Look no further for your family's next home central heating and air system.
- Louvered construction with baked polyester finish over galvanized steel to withstand bad weather
- Raised coil to prevent debris blockage
- CoolGuard advanced corrosion resistant coil

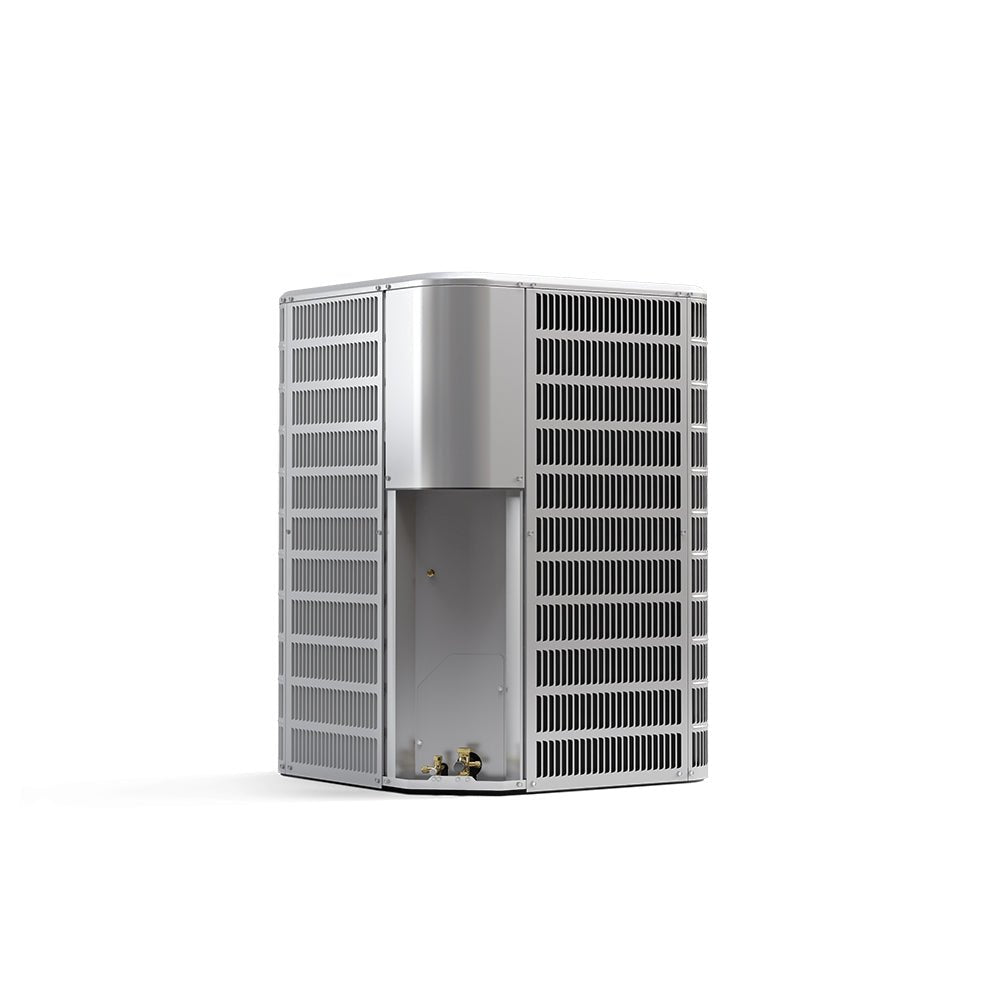

- 4-screw louver panels, corner-mounted controlsand 45-degree offset valves for easy service.
- Enhanced tube-and-fin coil design featuring high efficiency heat transfer technology
- Thread-on pressure switches for simple, quick replacement
- Charged for 15 feet of line set
- Heavy-duty compressor sound blanket forquiet operation
- Internally protected against high temperature motor overload conditions
- Ships with filter drier
- All units ETL and ETLC approved and AHRI Certified

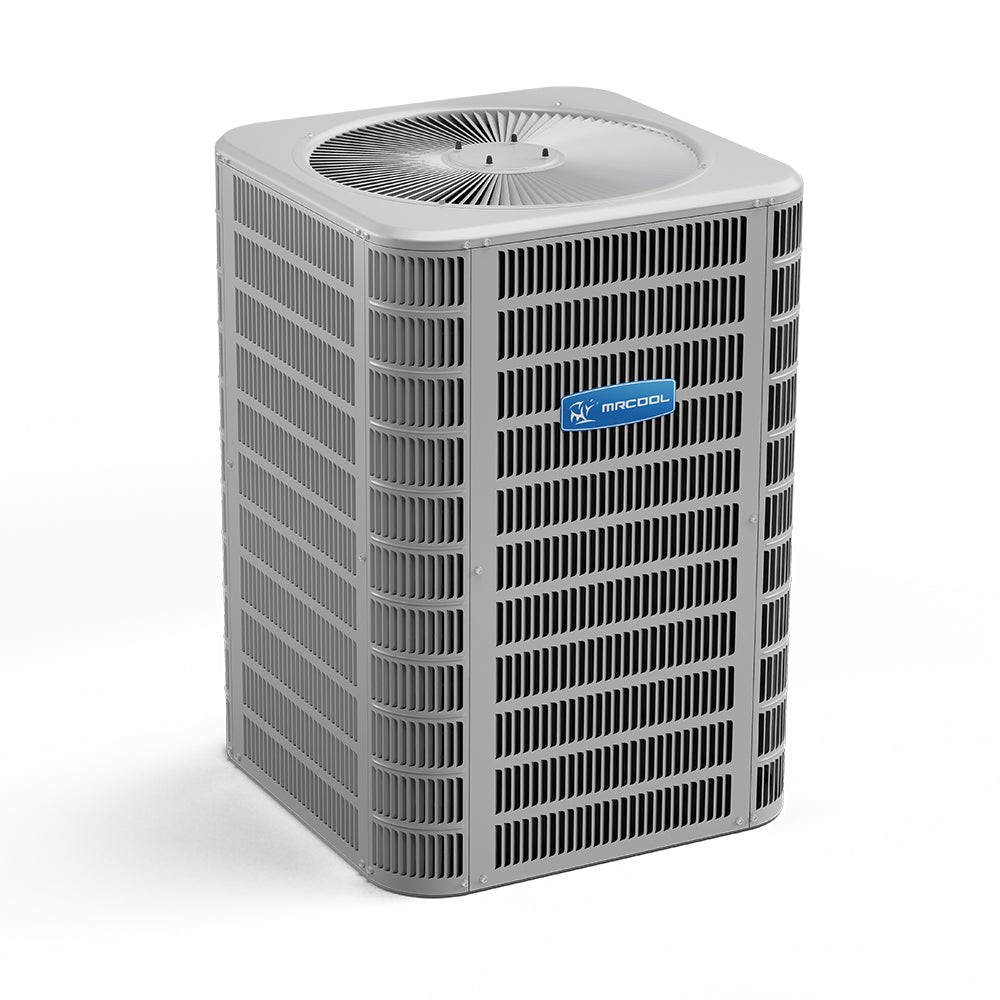

MRCOOL A/C Condenser 3 Ton 16 SEER R410A 36,000 BTU 208-230V/1Ph/60Hz
|
SEER |
15 |
|
MAX SEER |
14-15 |
|
EER |
12 |
|
COP 47 |
3.4 |
|
COP 47 PART LOAD |
2.4 |
|
HSPF |
8.2-8.5 |
|
CFM |
1200-1275 |
|
TONNAGE |
3 |
|
COOLING CAPACITY (BTU) |
34000 |
|
HEATING CAPACITY (BTU) |
33800 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
STAGE |
Single |
|
MAX FUSE BREAKER (A) |
30 |
|
MIN CIRCUIT AMPACITY (A) |
18.7 |
|
COLOR |
Gray |
|
COLOR FAMILY |
Gray |
|
RATED LOAD |
14.1 |
|
MAX COVERAGE AREA |
1500 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME (OZ) |
150 |
|
DECIBEL RATING (DBA) |
76 |
|
INVERTER |
No |
|
MIN AMBIENT COOL (F) |
55 |
|
LINE SET LENGTH |
15, 25, 35, 50 |
|
MAX LINESET LENGTH (FT) |
50 |
|
LINESET FITTING TYPE |
Sweat |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
7/8 |
|
COMPRESSOR MOTOR TYPE |
Scroll |
|
CONDENSER FAN MOTOR TYPE |
Direct Drive |
|
CONDENSER FAN MOTOR HP |
1/6 |
|
CONDENSER FAN MOTOR RPM |
825 |
|
METERING DEVICE |
TXV |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
7.5kw, 10kw, 15kw |
|
UL RECOGNIZED |
No |
|
UL LISTED |
No |
|
ETL LISTED |
Yes |
|
ETL CERTIFIED |
No |
|
LEED CERTIFIED |
No |
|
ENERGY STAR COMPLIANT |
No |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Registered 10 Year Parts Warranty |
|
BASE WARRANTY |
5 Year Parts Warranty |
|
REGISTERED PARTS WARRANTY |
Registered 10 Year Parts Warranty |
|
BASE PARTS WARRANTY |
5 Year Parts Warranty |
|
HAS BATTERIES |
No |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
RESTRICTED STATES |
No |
|
NET DEPTH (IN) |
28.25 |
|
NET HEIGHT (IN) |
33.00 |
|
NET WIDTH (IN) |
28.25 |
|
NET WEIGHT (LBS) |
202.00 |
|
GROSS DEPTH (IN) |
30.50 |
|
GROSS HEIGHT (IN) |
33.50 |
|
GROSS WIDTH (IN) |
31.00 |
