Product: MVP-48-HP-MUAH-230-00
Description

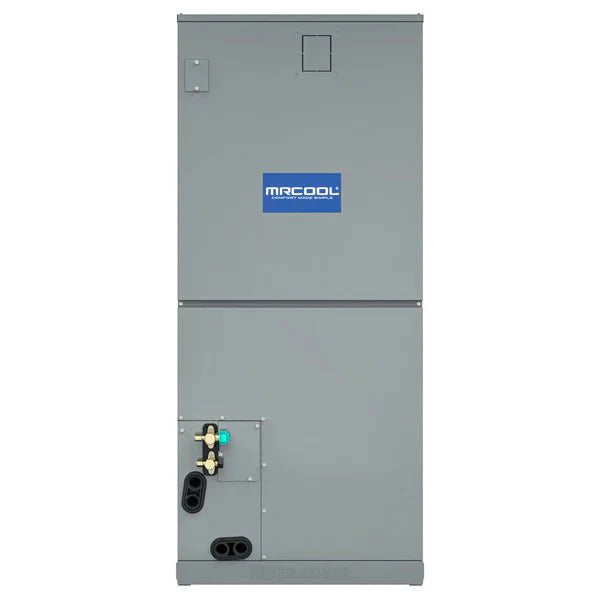

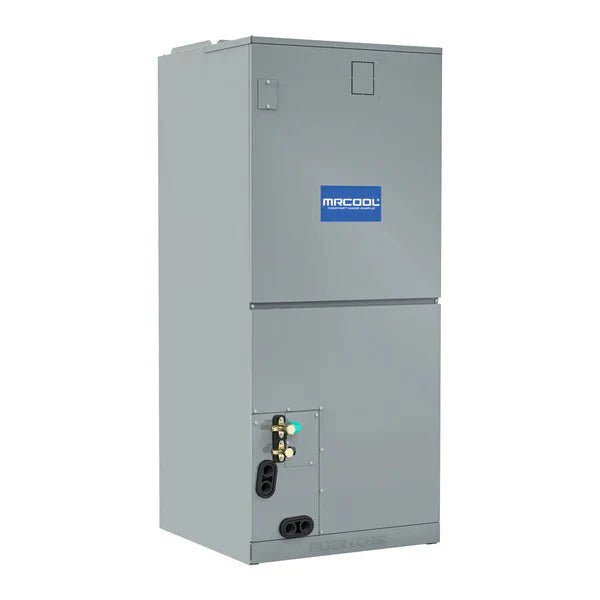

4 Ton MRCOOL® VersaPro Central Ducted Air Handler
The MRCOOL VersaPro 4 Ton Air Handler (Model: MVP-48-HP-MUAH-230-00) is a highly efficient and cost-effective solution for achieving year-round comfort in larger residential spaces. Designed to handle up to 2,000 square feet with ease, this mrcool 4 ton air handler combines quiet operation with strong performance and a SEER2 rating of 15.8, making it an excellent replacement for older, high-cost systems.
Crafted from durable painted galvanized steel, the mrcool versapro 4 ton air handler is built for longevity. It’s engineered with user-friendly maintenance features, including:
- An easy-access, removable filter for simple cleaning
- A built-in self-diagnostics panel for fast issue identification
- Compatibility with an optional heat kit for extended climate control
One of its standout qualities is installation flexibility. This unit can be configured in upflow, downflow, and horizontal (left/right) orientations — ideal for various layout requirements. Installation is further streamlined using MRCOOL’s No-Vac® precharged line set, filled with eco-friendly R-410A refrigerant. No vacuuming is required, saving time and ensuring a clean setup.
Homeowners will also enjoy enhanced comfort with:
- A wireless remote featuring Follow Me functionality to adjust airflow based on room position

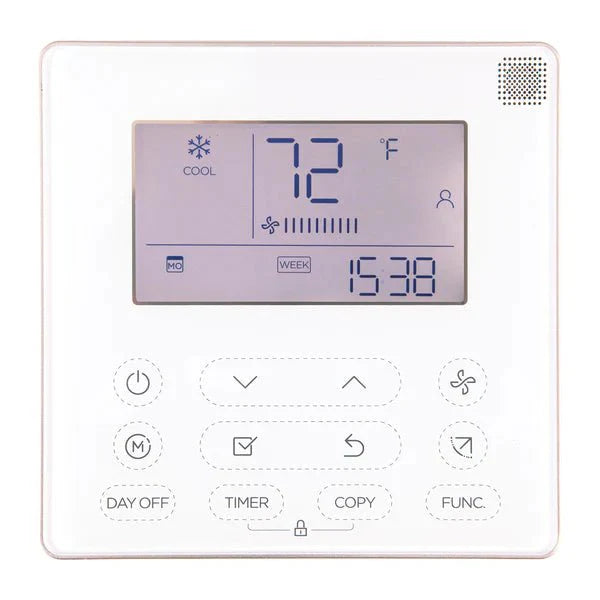

- A wired thermostat for dependable and consistent temperature regulation
- Quiet performance for uninterrupted living and sleeping environments
With its reliable build and advanced features, the MVP-48-HP-MUAH-230-00 comes backed by MRCOOL’s 10-year parts and compressor warranty, providing long-term protection and value.
Explore additional models in the MRCOOL VersaPro Central Ducted Heat Pump Split System collection to complete your home’s HVAC system with confidence.
|
Dimensions |
21.02" D x 49.02" H x 21.02" W |
|
CFM |
1470.59/1282.35/1094.12/905.88 |
|
Tonnage |
4 |
|
Voltage (V) |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
7.5 |
|
Rated Load |
6 |
|
Decibel Rating (DBA) |
50 |
|
Decibel Rating Low (DBA) |
46 |
|
Decibel Rating High (DBA) |
53 |
|
Max Lineset Length (FT) |
213.25 |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
APP Compatibility |
yes |
|
AHRI Certified |
yes |
|
Base Parts Warranty |
10 years |
|
Base Compressor Warranty |
10 years |
|
Contains Electronics |
yes |
|
Net Weight (LBS) |
132.5 |
|
Gross Depth (IN) |
24.42 |
|
Gross Height (IN) |
52.56 |
|
Gross Width (IN) |
26.57 |
|
Gross Weight (LBS) |
156.75 |
