MRCOOL VersaPro Air Handler - 3.0 Ton, 36k BTU, 16.9 SEER2 MVP-36-HP-MUAH-230-00
MRCOOL VersaPro Air Handler - 3.0 Ton, 36k BTU, 16.9 SEER2 MVP-36-HP-MUAH-230-00
Product: MVP-36-HP-MUAH-230-00
Description

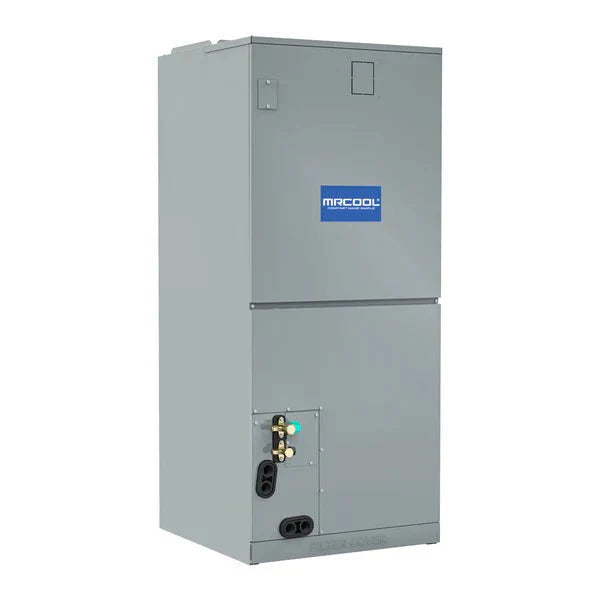

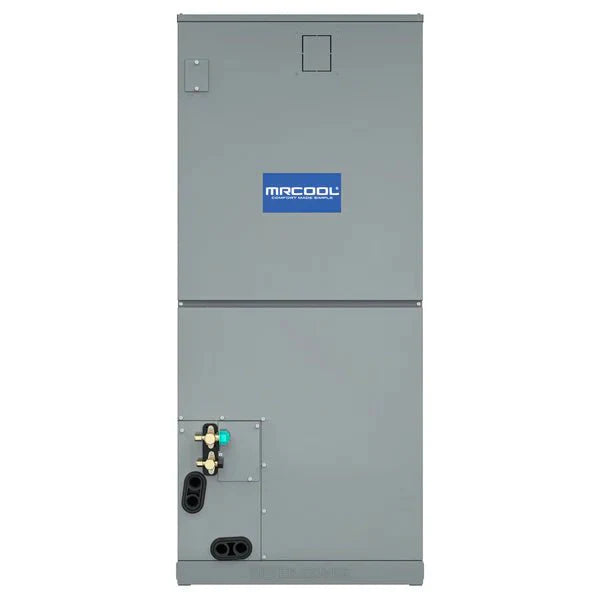

3 Ton MRCOOL® VersaPro Central Ducted Air Handler
The MRCOOL VersaPro 3 Ton Air Handler (Model: MVP-36-HP-MUAH-230-00) is a smart and energy-efficient choice for maintaining optimal indoor comfort throughout the year. With a SEER2 rating of 16.9 and the ability to cover up to 1,500 square feet, this mrcool 3 ton air handler is ideal for medium to large residential spaces, offering a reliable upgrade from outdated systems.
Constructed with durable painted galvanized steel, the mrcool versapro 3 ton air handler delivers exceptional longevity and consistent performance. Designed with convenience in mind, this unit features:
- A removable filter for quick and easy maintenance
- A self-diagnostics panel to detect and resolve system issues swiftly
- Optional heat kit compatibility for enhanced heating capability
Its multi-position configuration supports upflow, downflow, and horizontal (left/right) installations, allowing flexible placement based on your home’s design. Installation is quick and clean, thanks to compatibility with MRCOOL’s No-Vac® precharged line set, filled with eco-friendly R-410A refrigerant — eliminating the need for vacuuming during setup.
Comfort control is effortless with these included features:
- A wireless remote with Follow Me technology that adjusts temperature based on your location

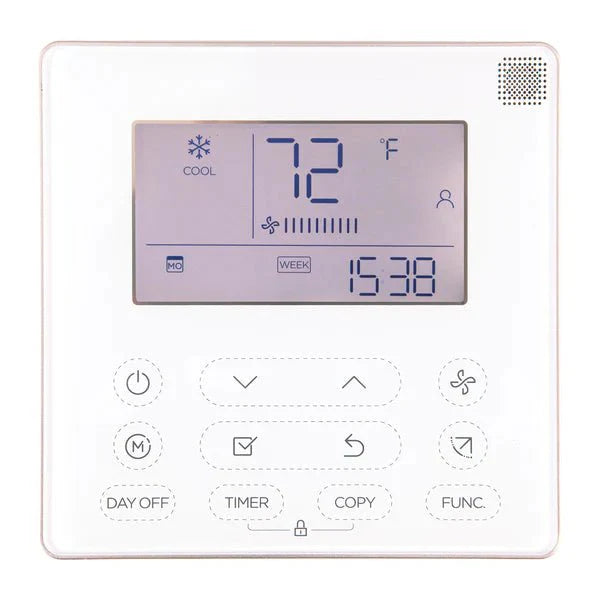

- A wired thermostat for consistent and dependable climate regulation
- Whisper-quiet operation that doesn’t disrupt daily activities
Backed by MRCOOL’s 10-year parts and compressor warranty, the MVP-36-HP-MUAH-230-00 model offers dependable coverage, peace of mind, and outstanding value.
Explore more models in the MRCOOL VersaPro Central Ducted Heat Pump Split System collection to complete your HVAC setup today.
|
Dimensions |
21.02" D x 49.02" H x 21.02" W |
|
CFM |
1188.24/1082.35/970.59/864.71 |
|
Tonnage |
3 |
|
Voltage (V) |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
5 |
|
Rated Load |
4 |
|
Decibel Rating (DBA) |
42.5 |
|
Decibel Rating Low (DBA) |
40 |
|
Decibel Rating High (DBA) |
45.5 |
|
Max Lineset Length (FT) |
213.25 |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
APP Compatibility |
yes |
|
AHRI Certified |
yes |
|
Base Parts Warranty |
10 years |
|
Base Compressor Warranty |
10 years |
|
Contains Electronics |
yes |
|
Net Weight (LBS) |
129.63 |
|
Gross Depth (IN) |
24.41 |
|
Gross Height (IN) |
52.56 |
|
Gross Width (IN) |
26.57 |
|
Gross Weight (LBS) |
157.41 |
