MRCOOL VersaPro Air Handler - 2 Ton, 24k BTU, 16.7 SEER2 MVP-24-HP-MUAH-230-25
MRCOOL VersaPro Air Handler - 2 Ton, 24k BTU, 16.7 SEER2 MVP-24-HP-MUAH-230-25
Product: MVP-24-HP-MUAH-230-25
Description
The MRCOOL VersaPro 2 Ton Air Handler (Model: MVP-24-HP-MUAH-230-25) is a smart and economical solution to maintain ideal indoor temperatures throughout the year. With an outstanding SEER2 rating of 16.7, this mrcool 2 ton air handler efficiently covers up to 1,000 square feet of space — making it an excellent replacement for outdated systems.
Built from durable painted galvanized steel, the mrcool versapro 2 ton air handler delivers long-lasting performance and minimal upkeep. Key features include:
- A removable air filter for quick and easy maintenance
- Self-diagnostics panel to instantly identify potential issues
- Optional electric heat kit for enhanced seasonal functionality
The unit supports multiple installation configurations, including upflow, downflow, and horizontal (left or right) setups, providing unmatched flexibility for various applications. Its 25-ft Quick Connect® precharged line set, filled with eco-friendly R-410A refrigerant, makes installation straightforward and eliminates the need for vacuuming — saving time and effort.
Designed with your comfort in mind, the system also includes:
- A wireless remote control with Follow Me technology for temperature accuracy based on room location

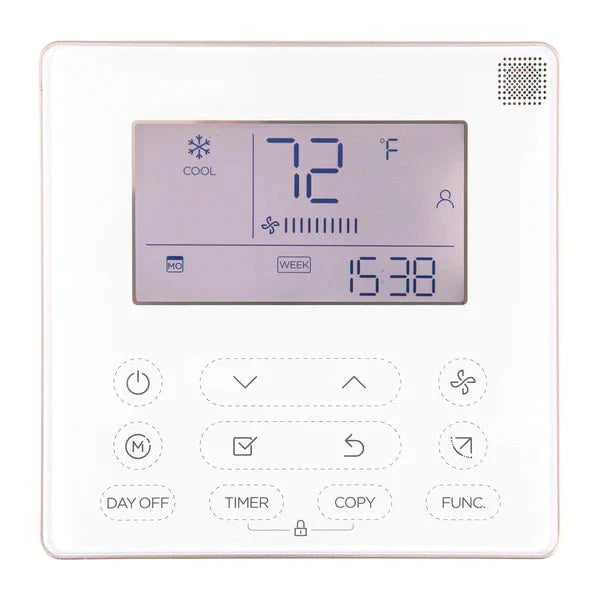

- A wired thermostat for consistent and reliable indoor climate control
- Quiet, efficient operation suitable for residential settings
Choosing the MVP-24-HP-MUAH-230-25 means investing in comfort and reliability. It comes backed by MRCOOL’s 10-year parts and compressor warranty, ensuring peace of mind for years to come.
Explore more options in the MRCOOL VersaPro Central Ducted Heat Pump Split System collection to complete your ideal HVAC setup.
|
Dimensions |
17.52" D x 45" H x 21.02" W |
|
CFM |
817.65/752.94/682.35/611.76 |
|
Tonnage |
2 |
|
Voltage (V) |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
4 |
|
Rated Load |
3 |
|
Decibel Rating (DBA) |
41.5 |
|
Decibel Rating Low (DBA) |
38 |
|
Decibel Rating High (DBA) |
43 |
|
Max Lineset Length (FT) |
98.42 |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
5/8 |
|
APP Compatibility |
yes |
|
AHRI Certified |
yes |
|
Base Parts Warranty |
10 years |
|
Base Compressor Warranty |
10 years |
|
Contains Electronics |
yes |
|
Net Weight (LBS) |
106.48 |
|
Gross Depth (IN) |
20.87 |
|
Gross Height (IN) |
48.62 |
|
Gross Width (IN) |
26.57 |
|
Gross Weight (LBS) |
132.72 |
