MRCOOL VersaPro Air Handler - 2.5 Ton, 30k BTU, 16.5 SEER2 MVP-30-HP-MUAH-230-25
MRCOOL VersaPro Air Handler - 2.5 Ton, 30k BTU, 16.5 SEER2 MVP-30-HP-MUAH-230-25
Product: MVP-30-HP-MUAH-230-25
Description

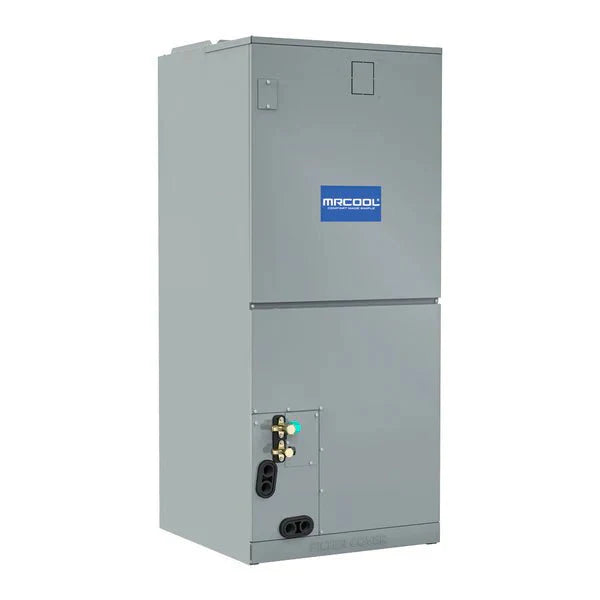

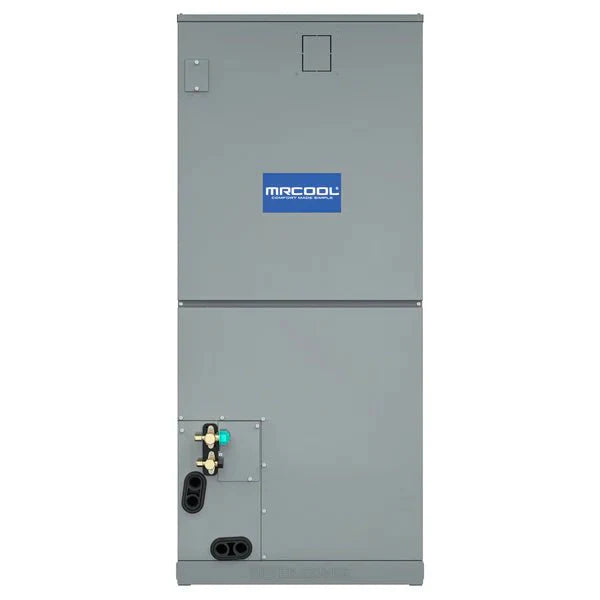

2.5 Ton MRCOOL® VersaPro Central Ducted Air Handler
The MRCOOL VersaPro 2.5 Ton Air Handler (Model: MVP-30-HP-MUAH-230-25) offers a prudent and cost-effective solution for maintaining year-round indoor comfort. With a SEER2 rating of 16.5, this mrcool 2.5 ton air handler efficiently manages spaces of up to 1,250 square feet, making it a smart upgrade from older, less efficient models.
Crafted from durable painted galvanized steel, the mrcool versapro 2.5 ton air handler is built for long-term performance. Homeowners benefit from minimal maintenance thanks to:
- An easily removable air filter for routine cleaning
- A self-diagnostic panel that simplifies issue detection
- Compatibility with an optional heat kit for added versatility
This unit is designed for flexible installation, supporting upflow, downflow, and horizontal (left or right) configurations. The included 25-foot Quick Connect® precharged line set, filled with R-410A refrigerant, allows for eco-friendly, vacuum-free installation — ideal for time-sensitive HVAC setups.
Additional user-friendly features include:
- A wireless remote with Follow Me functionality for room-based temperature control

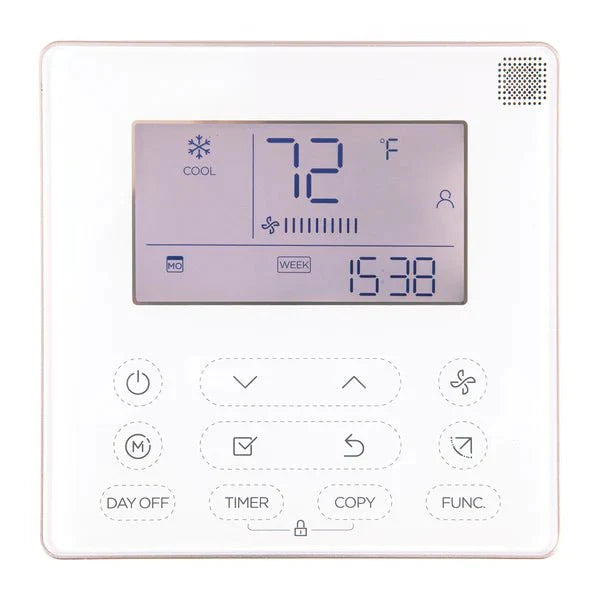

- A wired thermostat that ensures precise and stable indoor climate management
- Quiet operation, delivering comfort without disruptive noise
Backed by a robust 10-year parts and compressor warranty from MRCOOL, the MVP-30-HP-MUAH-230-25 model provides lasting peace of mind and excellent value for homeowners.
Browse the full range of compatible systems in the MRCOOL VersaPro Central Ducted Heat Pump Split System collection to complete your HVAC solution.
|
Dimensions |
21.02" D x 49.02" H x 21.02" W |
|
CFM |
1088.24/894.12/805.88/711.76 |
|
Tonnage |
2.5 |
|
Voltage (V) |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
4.5 |
|
Rated Load |
3.5 |
|
Decibel Rating (DBA) |
40.5 |
|
Decibel Rating Low (DBA) |
36.5 |
|
Decibel Rating High (DBA) |
43.5 |
|
Max Lineset Length (FT) |
164.04 |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
5/8 |
|
APP Compatibility |
yes |
|
AHRI Certified |
yes |
|
Base Parts Warranty |
10 years |
|
Base Compressor Warranty |
10 years |
|
Contains Electronics |
yes |
|
Net Weight (LBS) |
128.53 |
|
Gross Depth (IN) |
24.41 |
|
Gross Height (IN) |
52.56 |
|
Gross Width (IN) |
26.57 |
|
Gross Weight (LBS) |
157.41 |
