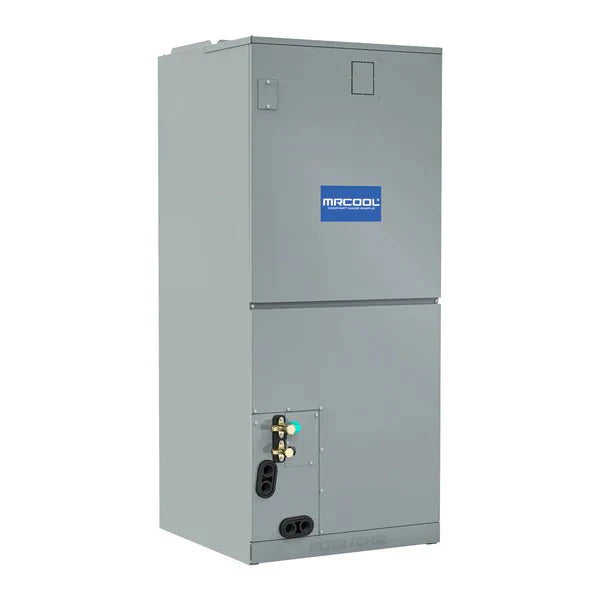

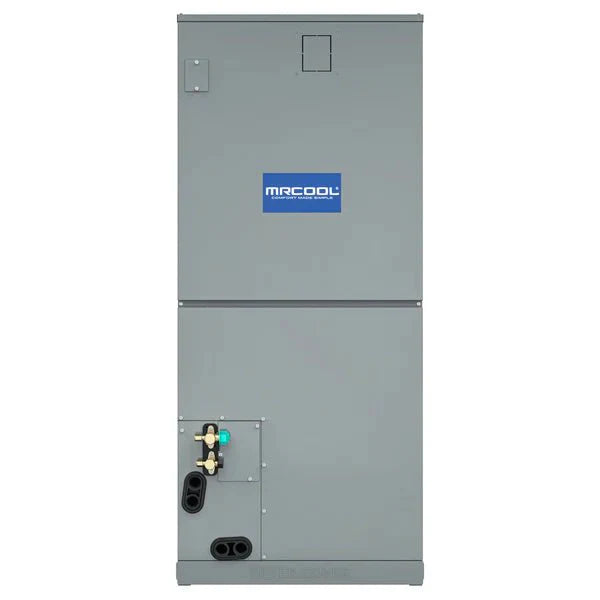

MRCOOL VersaPro Air Handler - 1.5 Ton, 18k BTU, 16.6 SEER2 MVP-18-HP-MUAH-230-25
MRCOOL VersaPro Air Handler - 1.5 Ton, 18k BTU, 16.6 SEER2 MVP-18-HP-MUAH-230-25
Product: MVP-18-HP-MUAH-230-25
Description
Selecting the MRCOOL VersaPro 1.5 Ton Air Handler (Model: MVP-18-HP-MUAH-230-25) presents an exceptional and cost-effective solution for year-round comfort. Engineered for efficient and quiet performance, this mrcool 1.5 ton air handler is ideal for spaces up to 750 square feet and comes with an impressive SEER2 rating of 16.6 — making it a dependable upgrade from older units.
Constructed with painted galvanized steel, this mrcool versapro 1.5 ton air handler offers long-term reliability and includes:
- A removable filter for simple cleaning
- A self-diagnostics panel for fast error code identification
- Compatibility with an optional electric heat kit for added heating flexibility
Installation is made easy with the included 25-ft Quick Connect® precharged line set, which eliminates the need for vacuuming and ensures an eco-friendly process. This unit supports multiple configuration options including upflow, downflow, and horizontal (left/right) orientations — perfect for a wide range of applications.
Comfort control is enhanced by the wireless remote featuring Follow Me functionality, which adjusts airflow based on the remote’s location in the room. You’ll also benefit from:

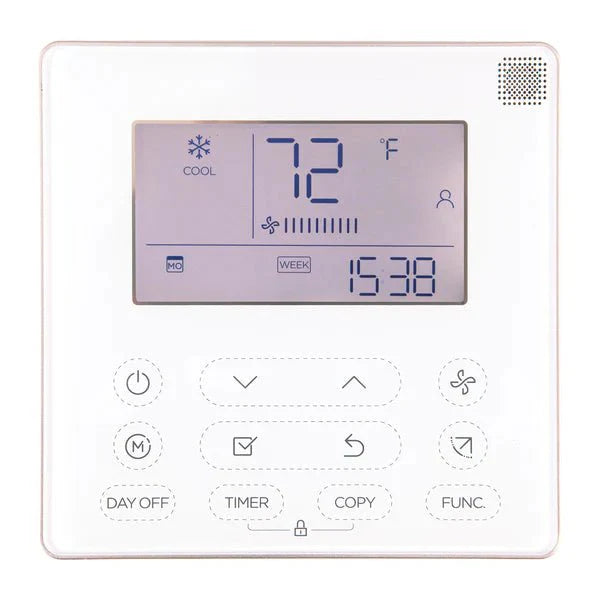

- A wired thermostat for consistent temperature control
- Whisper-quiet operation that maintains comfort without noise
- Easy compatibility with matching systems in the MRCOOL lineup
Investing in the MVP-18-HP-MUAH-230-25 model also includes peace of mind, thanks to MRCOOL’s 10-year parts and compressor warranty.
Explore more models in the mrcool versa pro series to find the perfect fit for your HVAC setup.
|
Dimensions |
17.52" D x 45" H x 21.02" W |
|
CFM |
617.65/576.47/529.41/494.12 |
|
Tonnage |
1.5 |
|
Voltage (V) |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
2.5 |
|
Rated Load |
2 |
|
Decibel Rating (DBA) |
38.5 |
|
Decibel Rating Low (DBA) |
35.5 |
|
Decibel Rating High (DBA) |
39.5 |
|
Max Lineset Length (FT) |
98.42 |
|
Liquid Line Size |
1/4 |
|
Suction Line Size |
1/2 |
|
APP Compatibility |
yes |
|
AHRI Certified |
yes |
|
Base Parts Warranty |
10 years |
|
Base Compressor Warranty |
10 years |
|
Contains Electronics |
yes |
|
Net Weight (LBS) |
106.48 |
|
Gross Depth (IN) |
20.87 |
|
Gross Height (IN) |
48.62 |
|
Gross Width (IN) |
26.57 |
|
Gross Weight (LBS) |
131.61 |
