MRCOOL VersaPro Model : MVP-36-HP-MUAH-230A00-O

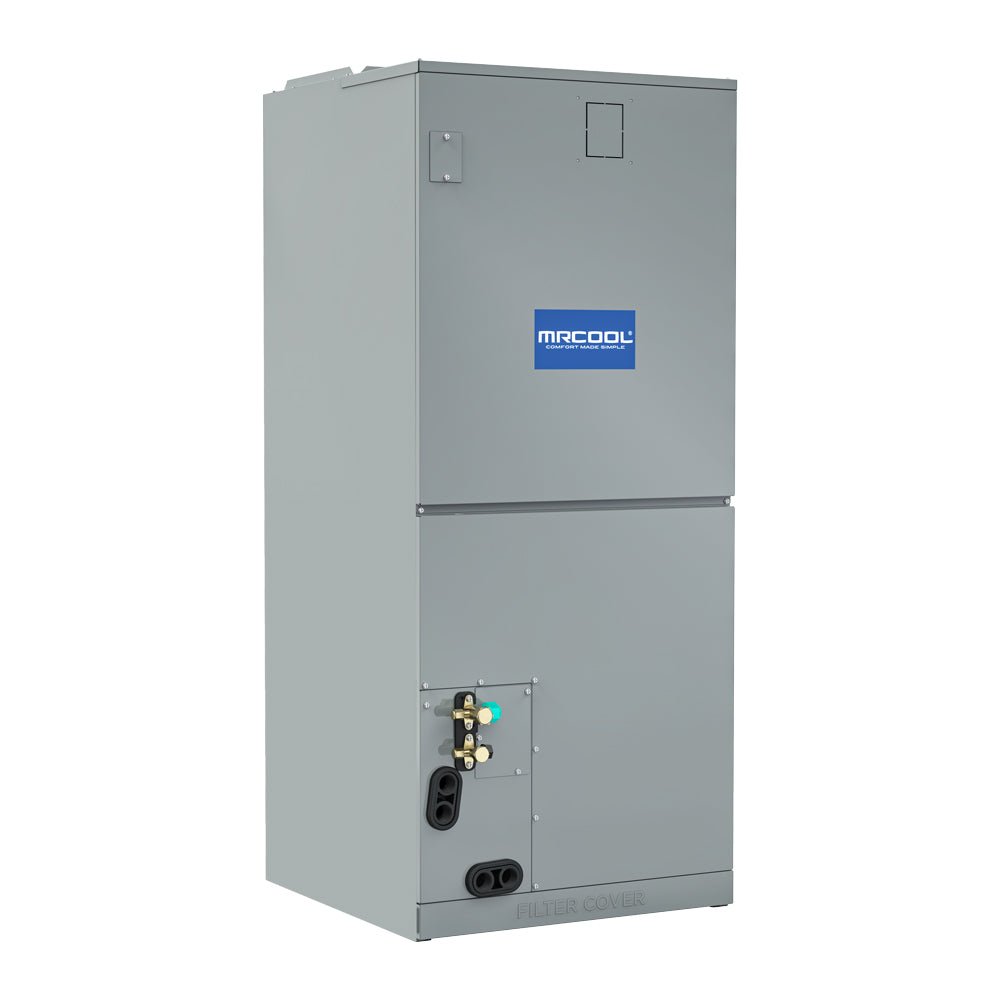

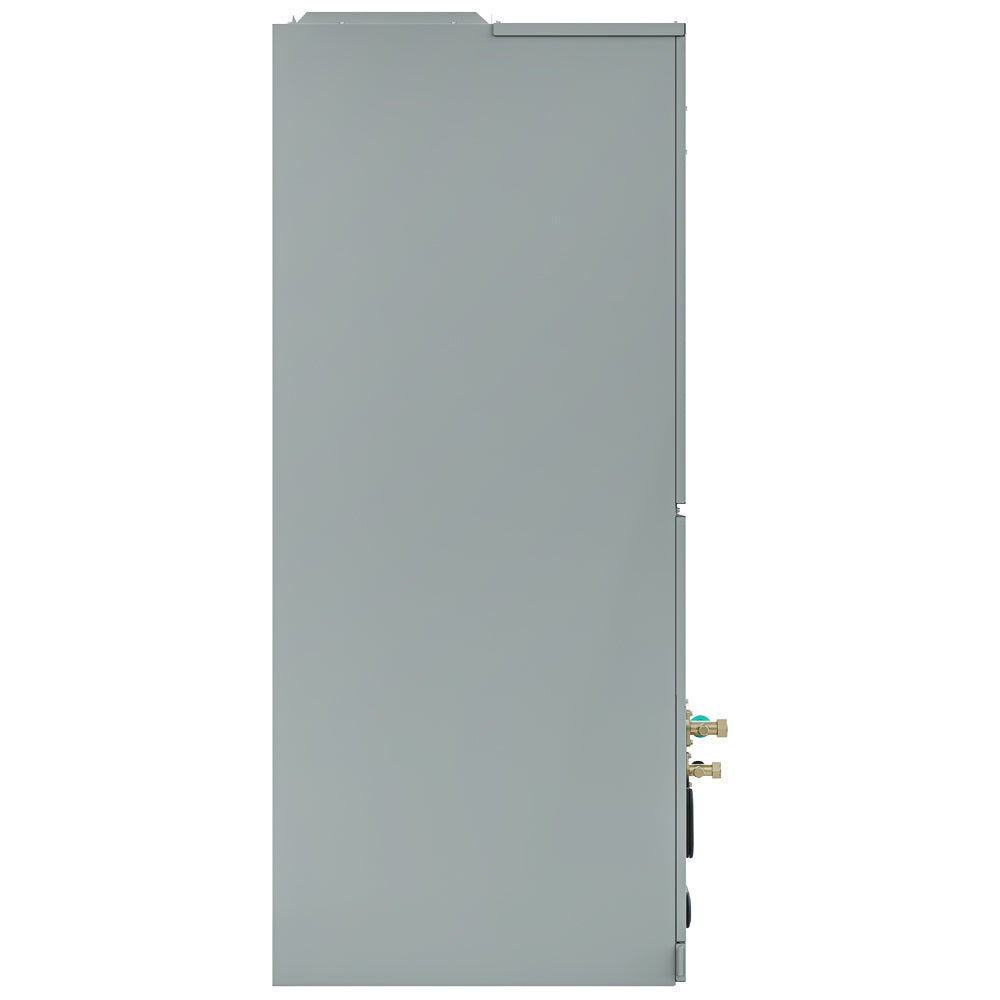

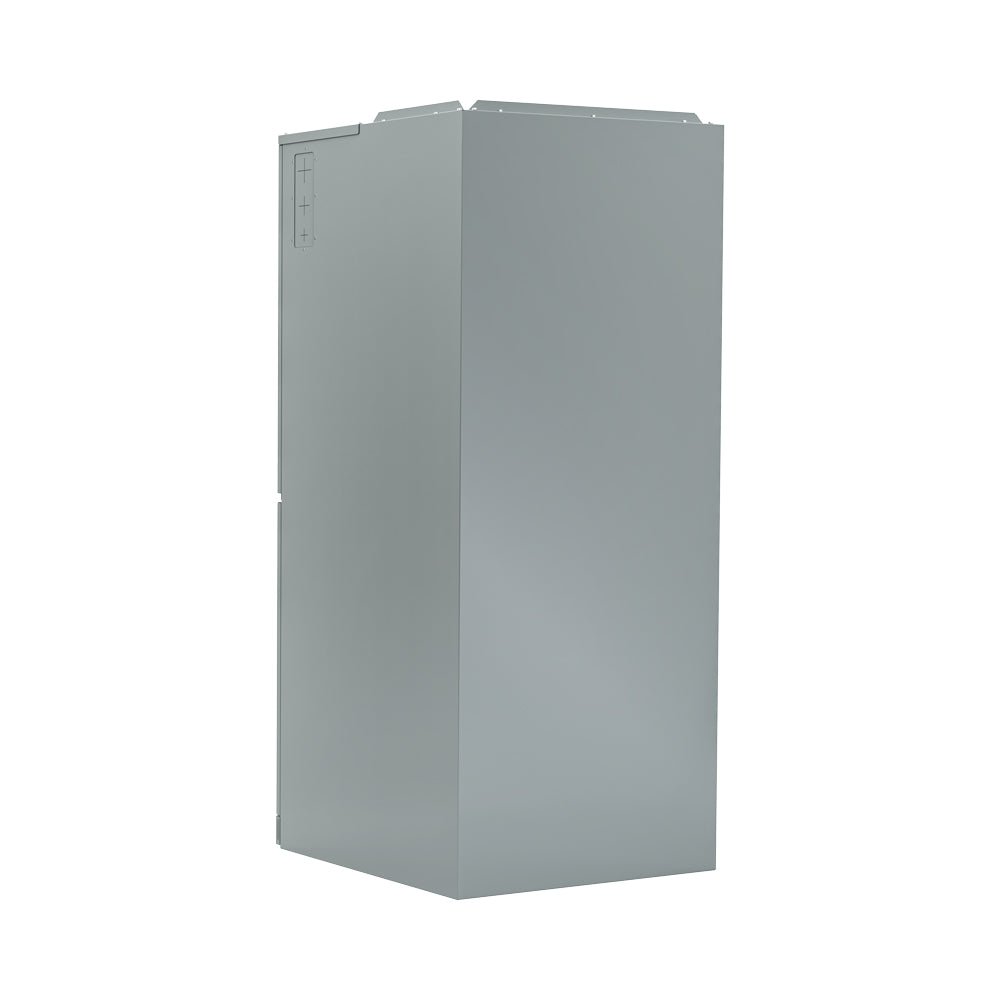

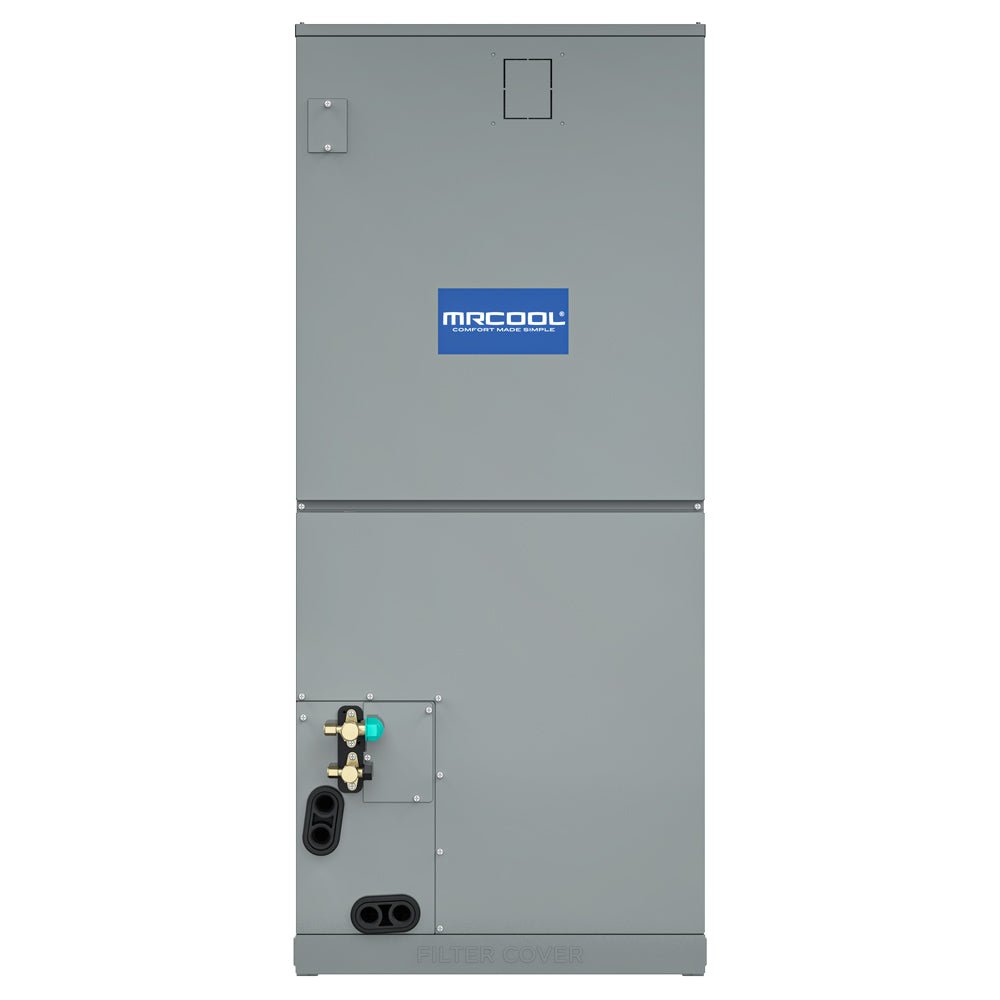

MRCOOL® VersaPro® 3 Ton Central Ducted Air Handler – High-Efficiency Heating & Cooling
Upgrade your home’s HVAC system with the MRCOOL VersaPro 3 Ton Central Ducted Air Handler, designed for efficient and reliable year-round comfort. With a SEER2 rating of 17.4, this unit effectively heats and cools spaces up to 1,500 sq. ft., making it an ideal replacement for older, less efficient systems.
Built for long-term durability, it features a painted galvanized steel exterior that withstands wear and tear. The self-diagnostics panel simplifies maintenance by quickly identifying issues, minimizing downtime. Its flexible installation options—including upflow, downflow, and horizontal configurations—allow seamless integration into various home layouts.
Designed for eco-friendly performance, this air handler uses R-454B refrigerant, reducing environmental impact while maintaining efficiency. An optional heat kit is available for enhanced warmth when needed.
For easy climate control, the MRCOOL Smart Thermostat ensures precise temperature management, while SmartHVAC app compatibility allows remote access for added convenience. This unit is also compatible with the MRCOOL Central Ducted Hyper Heat system, ensuring top-tier performance and comfort.
Backed by a 10-year warranty, the MRCOOL VersaPro 3 Ton Air Handler offers efficiency, flexibility, and reliability, making it a smart upgrade for superior home climate control.
|
CFM
|
1188.97/1083.02/971.19/865.24
|
|
TONNAGE
|
3
|
|
COOLING CAPACITY (BTU)
|
36000
|
|
HEATING CAPACITY (BTU)
|
36000
|
|
VOLTAGE (V)
|
115/208-230
|
|
PHASE
|
1
|
|
CYCLE
|
60
|
|
MAX FUSE BREAKER (A)
|
15
|
|
MIN CIRCUIT AMPACITY (A)
|
8.0/6.0
|
|
COLOR
|
gray
|
|
DECIBEL RATING LOW (DBA)
|
28
|
|
DECIBEL RATING HIGH (DBA)
|
48
|
|
NUMBER OF SPEEDS
|
3
|
|
MAX LINESET LENGTH (FT)
|
246 ft
|
|
LIQUID LINE SIZE
|
3/8
|
|
SUCTION LINE SIZE
|
3/4
|
|
FILTER TYPE
|
Replaceable
|
|
FILTER SIZE
|
19x20x1
|
|
AUXILIARY HEATER INCLUDED
|
No
|
|
AUXILIARY HEATER AVAILABLE
|
Yes
|
|
AUXILIARY HEATER SIZES
|
5kW/8kW/10kW/15kW/20kW
|
|
ADJUSTABLE THERMOSTAT
|
Yes
|
|
WIFI COMPATIBILITY
|
Yes
|
|
APP COMPATIBILITY
|
Yes
|
|
ETL CERTIFIED
|
Yes
|
|
ENERGY STAR CERTIFIED
|
Yes
|
|
AHRI CERTIFIED
|
Yes
|
|
BASE PARTS WARRANTY
|
10 Years
|
|
BASE COMPRESSOR WARRANTY
|
10 Years
|
|
CONTAINS ELECTRONICS
|
Yes
|
|
CONTAINS CHEMICALS
|
Yes
|
|
CONTAINS COMPRESSED GAS
|
Yes
|
|
NET DEPTH (IN)
|
21.02
|
|
NET HEIGHT (IN)
|
49.02
|
|
NET WIDTH (IN)
|
21.02
|
|
NET WEIGHT (LBS)
|
129.41
|
|
GROSS DEPTH (IN)
|
24.41
|
|
GROSS HEIGHT (IN)
|
52.56
|
|
GROSS WIDTH (IN)
|
26.57
|
|
GROSS WEIGHT (LBS)
|
153.88
|
