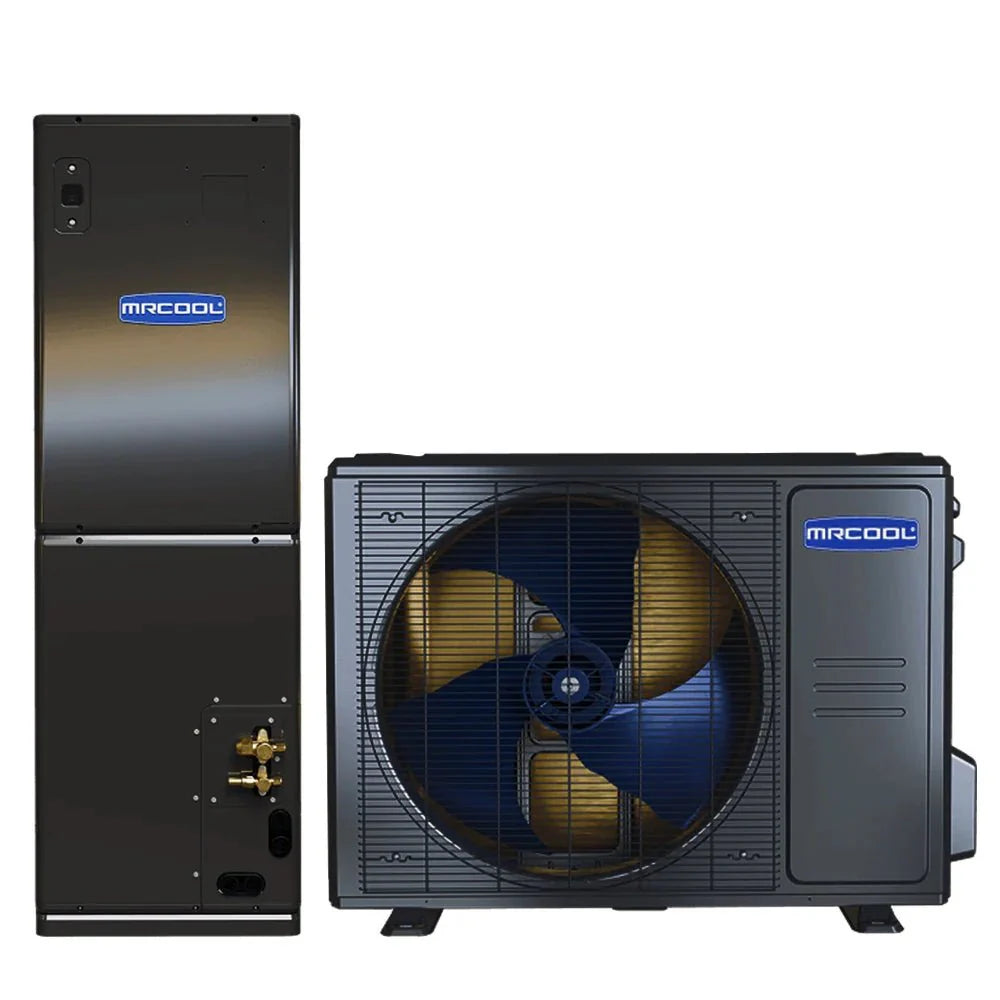

MRCOOL Universal Series 2.5 Ton Central Heat Pump Split System UHP1830AH1830-O
MRCOOL Universal Series 2.5 Ton Central Heat Pump Split System UHP1830AH1830-O
The MRCOOL® Universal® Series 30K BTU 2.5 Ton Central Ducted Heat Pump System delivers superior year-round climate control with 17.2 SEER2 efficiency and R-454B refrigerant technology. This DC inverter-driven system operates reliably across extreme temperature ranges from -22°F to 122°F, making it exceptionally suited for demanding climates. The multi-position air handler integrates seamlessly into existing ductwork, supporting both replacement and new installation applications. Advanced inverter technology optimizes energy consumption while maintaining consistent comfort, reducing operational costs without compromising performance. Ideal for professionals and homeowners prioritizing efficiency, durability, and versatile installation capabilities.
|
BRAND NAME |
MRCOOL |
|
SERIES |
Universal R-454B |
|
MODEL |
UHP18030-O |
|
GTIN |
00840255587884 |
|
UPC |
840255587884 |
|
UNIT TYPE |
Universal Series Heat Pump |
|
SHORT DESCRIPTION |
Universal Series Heat Pump Inverter Condenser |
|
SEER2 |
Up to 17.2 |
|
EER2 |
Up to 12 |
|
HSPF2-4 |
10.8 |
|
HSPF2-5 |
8.8 |
|
TONNAGE |
2.5 |
|
COOLING CAPACITY (BTU) |
30000 |
|
HEATING CAPACITY (BTU) |
33000 |
|
VOLTAGE (V) |
208/230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
30 |
|
MIN CIRCUIT AMPACITY (A) |
29.5 |
|
COLOR |
Dark Grey |
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
105.82 |
|
DECIBEL RATING (DBA) |
62 |
|
INVERTER |
DC |
|
MAX LINESET LENGTH (FT) |
164 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
CONDENSER FAN MOTOR RPM |
950/950/850/750 |
|
METERING DEVICE |
EXV |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
BASE WARRANTY |
10 Year Parts |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE LABOR WARRANTY |
2 Year |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
16.14 |
|
NET HEIGHT (IN) |
31.89 |
|
NET WIDTH (IN) |
37.24 |
|
NET WEIGHT (LBS) |
166.67 |
|
GROSS DEPTH (IN) |
19.68 |
|
GROSS HEIGHT (IN) |
34.84 |
|
GROSS WIDTH (IN) |
42.91 |
|
GROSS WEIGHT (LBS) |
176.37 |
|
BRAND NAME |
MRCOOL |
|
SERIES |
Universal R-454B |
|
MODEL |
UAH18030-O |
|
GTIN |
00840255587839 |
|
UPC |
840255587839 |
|
UNIT TYPE |
Universal Series Air Handler |
|
SHORT DESCRIPTION |
Universal Series 30,000 BTU Air Handler |
|
CFM |
998.8/894.7/806.4/712.2/N\A |
|
TONNAGE |
2.5 |
|
VOLTAGE (V) |
115/208/230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
8/6 |
|
MOUNT TYPE |
Multi-Position |
|
COLOR |
Dark Grey |
|
REFRIGERANT TYPE |
R-454B |
|
DECIBEL RATING (DBA) |
49/47/45.5/31.5/N\A |
|
DECIBEL RATING LOW (DBA) |
31.5 |
|
DECIBEL RATING HIGH (DBA) |
49 |
|
NUMBER OF SPEEDS |
4 |
|
MAX LINESET LENGTH (FT) |
164 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
FILTER TYPE |
Replaceable |
|
FILTER SIZE |
16 x 20 x 1 |
|
METERING DEVICE |
EXV |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
5 KW / 8 KW / 10 KW / 15 KW |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
BASE WARRANTY |
10 Year Parts |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE LABOR WARRANTY |
2 Year |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
21.5 |
|
NET HEIGHT (IN) |
53.98 |
|
NET WIDTH (IN) |
17.52 |
|
NET WEIGHT (LBS) |
149.25 |
|
GROSS DEPTH (IN) |
31.1 |
|
GROSS HEIGHT (IN) |
20.47 |
|
GROSS WIDTH (IN) |
57.09 |
|
GROSS WEIGHT (LBS) |
182.1 |
