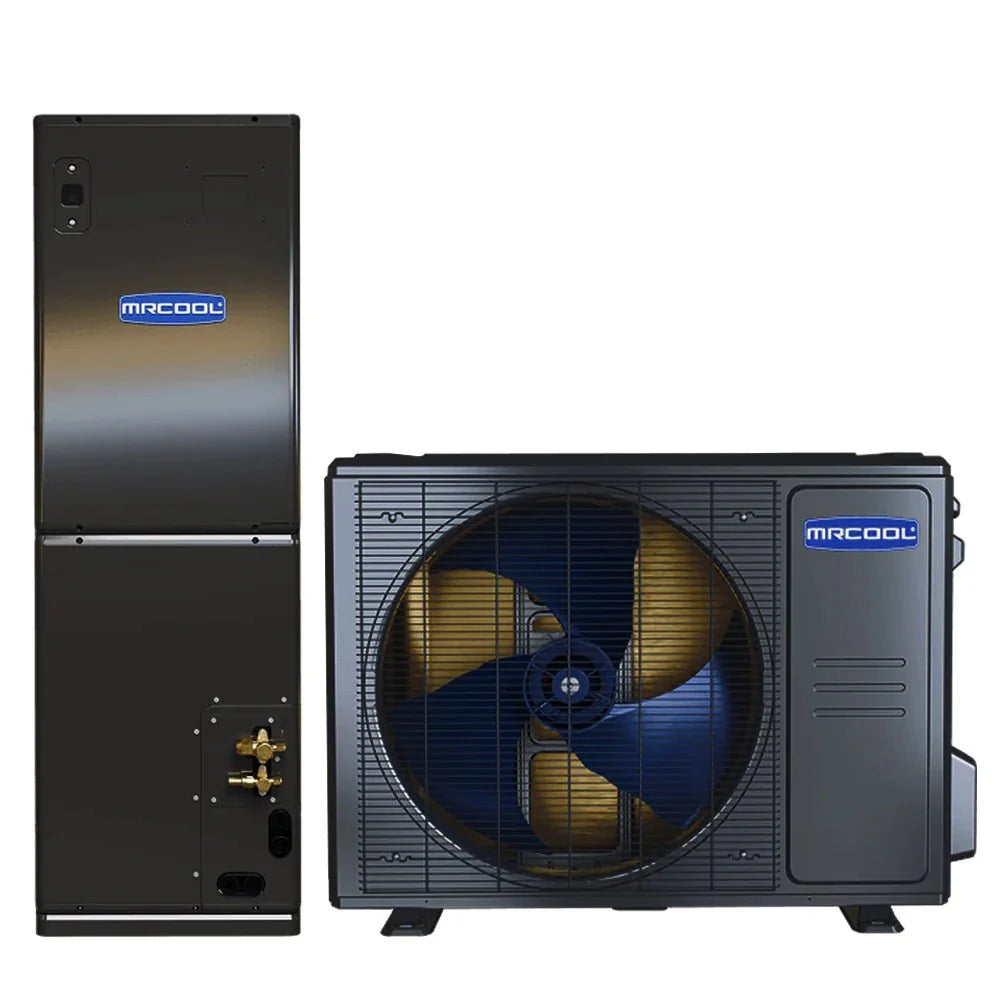

MRCOOL Universal 24,000 BTU 2 Ton 19 SEER2 Central Heat Pump System
MRCOOL Universal 24,000 BTU 2 Ton 19 SEER2 Central Heat Pump System
The MRCOOL Universal 24,000 BTU 2 Ton Heat Pump System delivers reliable heating and cooling performance across all seasons with an 18.6 SEER2 efficiency rating that minimizes energy consumption. This DC inverter-driven unit maintains consistent comfort even in extreme temperatures, making it ideal for demanding climates. The versatile 24K air handler accommodates upflow, downflow, and horizontal mounting configurations, adapting seamlessly to various installation spaces. Its compact design simplifies setup while maintaining the robust performance expected from commercial-grade equipment. Built for durability and efficiency, this system provides year-round climate control with reduced operational costs.
| BRAND NAME | MRCOOL |
| SERIES | Universal R-454B |
| MODEL | UHP18024-O |
| GTIN | 840255587877 |
| UPC | 840255587877 |
| UNIT TYPE |

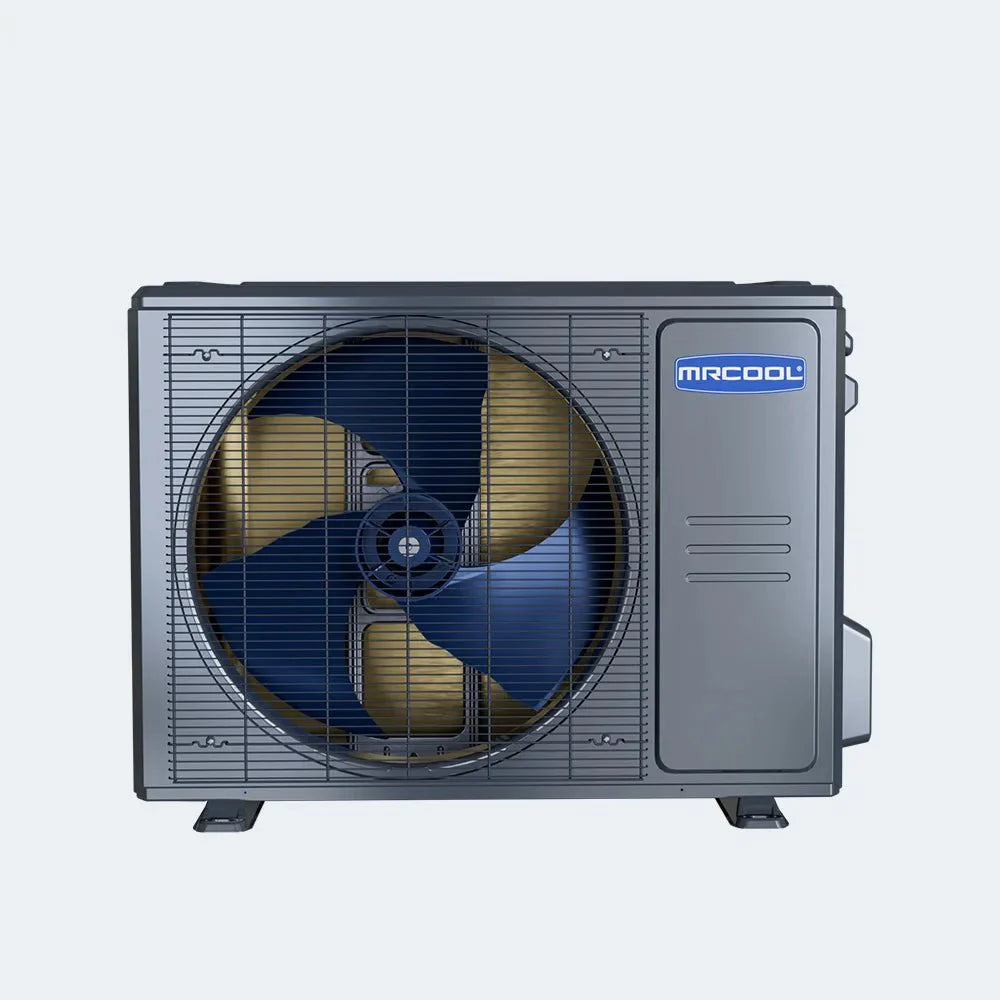

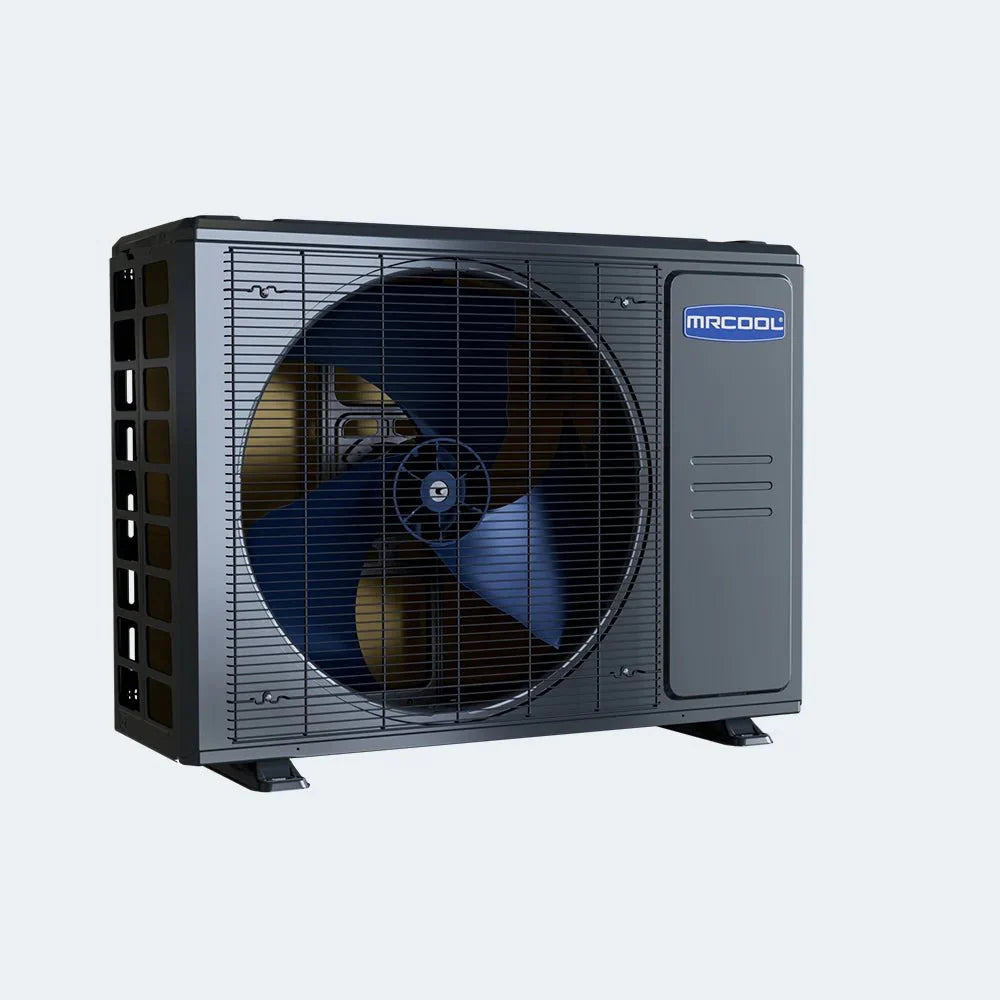

Universal Series Heat Pump
|
| SHORT DESCRIPTION |
Universal Series Heat Pump Inverter Condenser
|
| SEER2 | Up to 18.6 |
| EER2 | Up to 12 |
| HSPF2-4 | 10 |
| HSPF2-5 | 8.1 |
| TONNAGE | 2 |
| COOLING CAPACITY (BTU) | 24000 |
| HEATING CAPACITY (BTU) | 24000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 20 |
| MIN CIRCUIT AMPACITY (A) | 19 |
| COLOR | Dark Grey |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 74.08 |
| DECIBEL RATING (DBA) | 59 |
| INVERTER | DC |
| MAX LINESET LENGTH (FT) | 164 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 3/4 |
| COMPRESSOR MOTOR TYPE | Rotary |
| CONDENSER FAN MOTOR RPM | 810/700/450 |
| METERING DEVICE | EXV |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| BASE WARRANTY | 10 Year Parts |
| BASE PARTS WARRANTY | 10 Years |
| BASE LABOR WARRANTY | 2 Year |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 13.46 |
| NET HEIGHT (IN) | 26.5 |
| NET WIDTH (IN) | 35.04 |
| NET WEIGHT (LBS) | 102.29 |
| GROSS DEPTH (IN) | 15.67 |
| GROSS HEIGHT (IN) | 29.13 |
| GROSS WIDTH (IN) | 39.17 |
| GROSS WEIGHT (LBS) | 109.13 |
| BRAND NAME | MRCOOL |
| SERIES | Universal R-454B |
| MODEL | UAH18024-O |
| GTIN | 840255587822 |
| UPC | 840255587822 |
| UNIT TYPE |

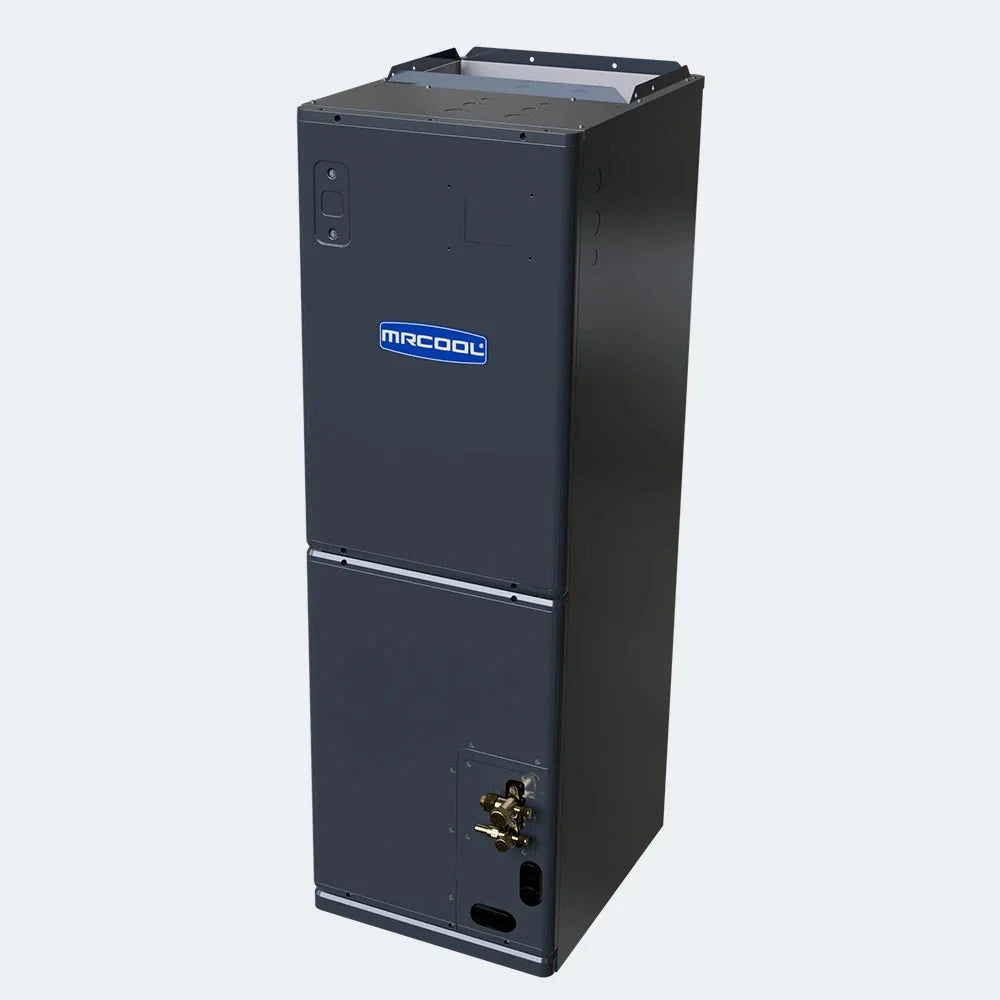

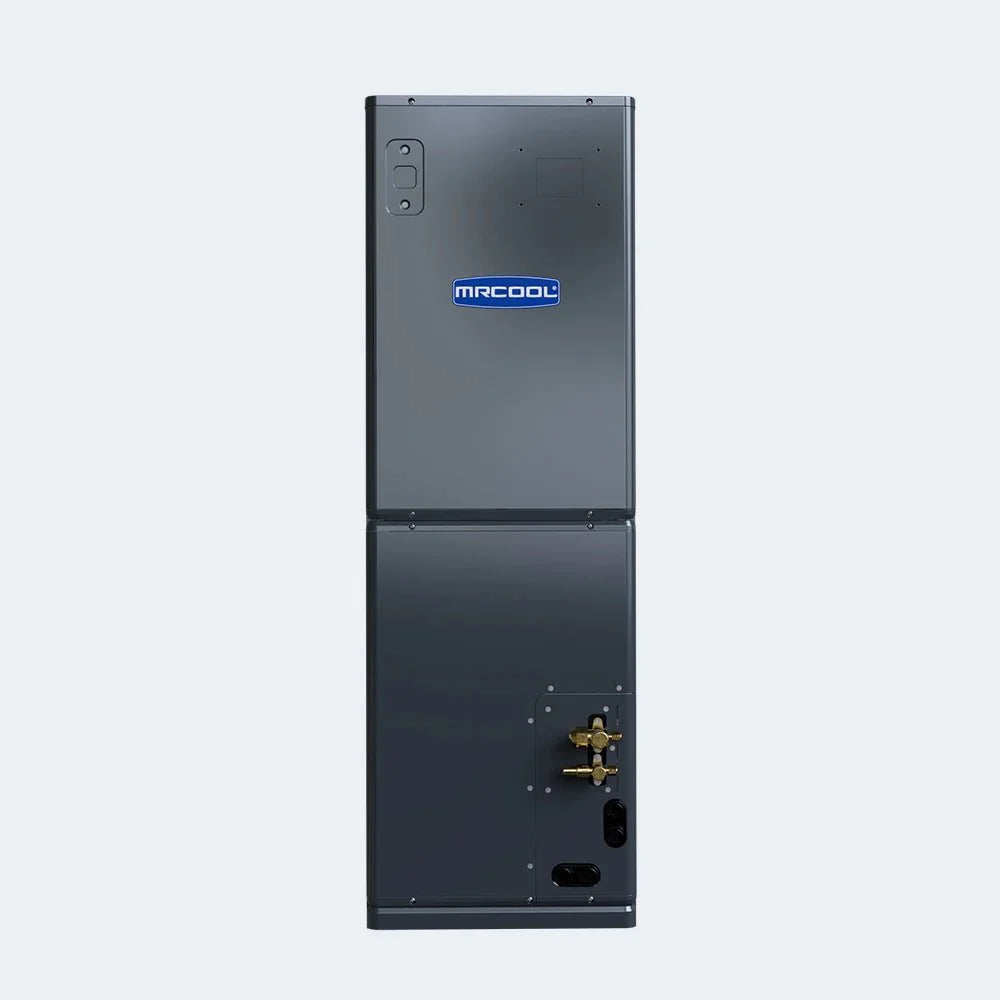

Universal Series Air Handler
|
| SHORT DESCRIPTION |
Universal Series 24,000 BTU Air Handler
|
| CFM | 824/759.3/694.5/629.8/N\A |
| TONNAGE | 2 |
| VOLTAGE (V) | 115/208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 5.5/3.5 |
| MOUNT TYPE | Multi-Position |
| COLOR | Dark Grey |
| REFRIGERANT TYPE | R-454B |
| DECIBEL RATING (DBA) | N\A/47.5/44/33/N\A |
| DECIBEL RATING LOW (DBA) | 33 |
| DECIBEL RATING HIGH (DBA) | 47.5 |
| NUMBER OF SPEEDS | 4 |
| MAX LINESET LENGTH (FT) | 164 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 3/4 |
| FILTER TYPE | Replaceable |
| FILTER SIZE | 12 x 20 x 1 |
| METERING DEVICE | EXV |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | Yes |
| AUXILIARY HEATER SIZES |
5 KW / 8 KW / 10 KW / 15 KW
|
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| BASE WARRANTY | 10 Year Parts |
| BASE PARTS WARRANTY | 10 Years |
| BASE LABOR WARRANTY | 2 Year |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 21.5 |
| NET HEIGHT (IN) | 49.72 |
| NET WIDTH (IN) | 14.49 |
| NET WEIGHT (LBS) | 123.02 |
| GROSS DEPTH (IN) | 31.1 |
| GROSS HEIGHT (IN) | 17.52 |
| GROSS WIDTH (IN) | 52.95 |
| GROSS WEIGHT (LBS) | 154.76 |
