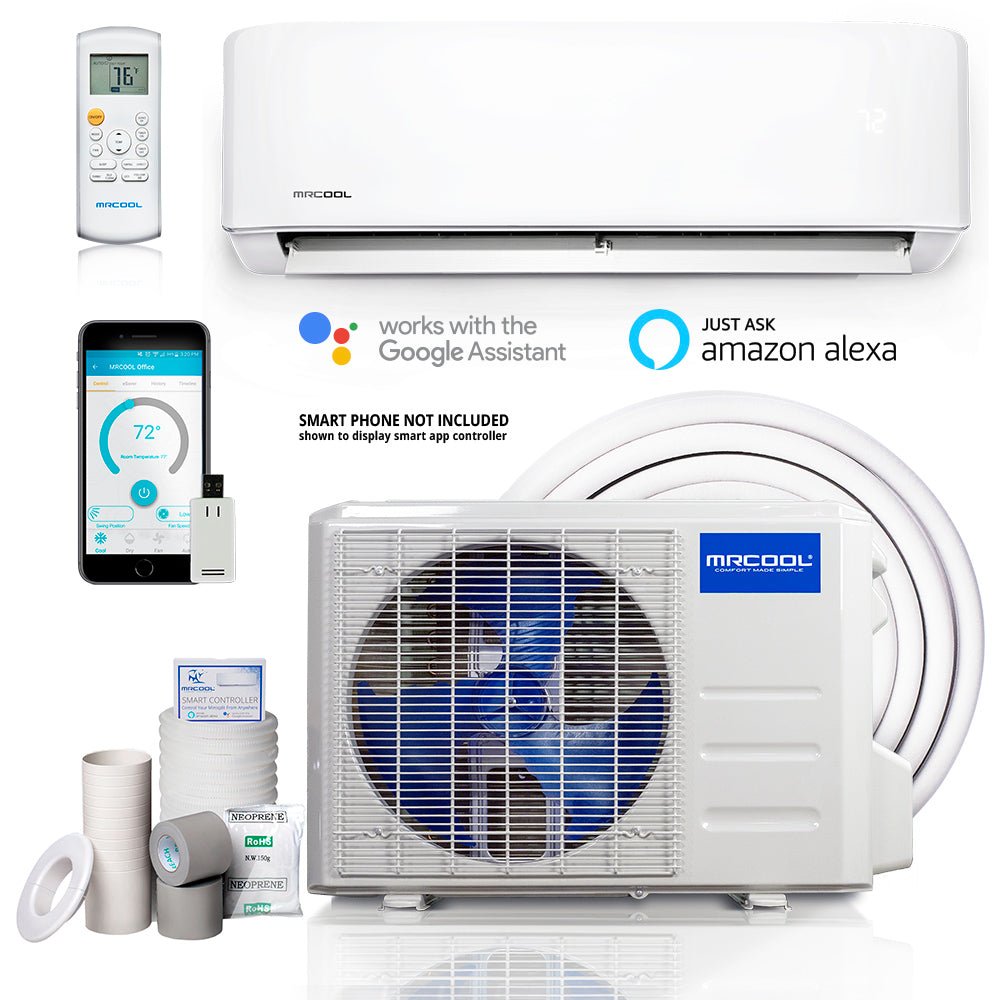

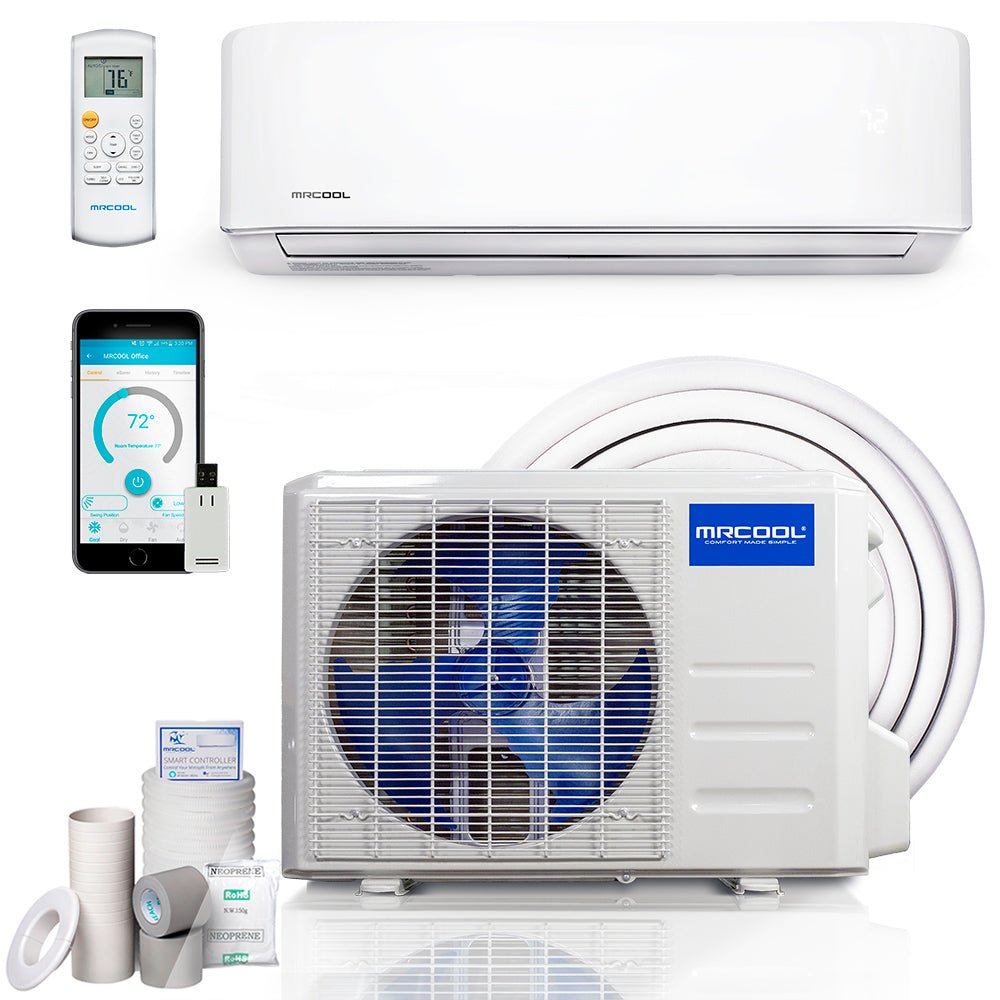

MRCOOL EasyPro 5th Generation 18,000 BTU R-454B Ductless Mini Split System 230 Volts EZPRO-18-HP-23016D-O

The MR COOL EZPRO-18-HP-23016D-O Easy Pro 5th Generation mini-split system is crafted to ensure powerful and dependable heating and cooling for larger residential applications. This system is energy efficient and maintains superior indoor comfort with a cooling rate of 17,000 BTU and a heating rate of 18,000 BTU. It perfectly suits large rooms such as living rooms, big bedrooms, and offices, covering an area of approximately 700-800 sq ft.

Product Overview

The MR COOL EZPRO-18-HP-23016D-O model comes equipped with an advanced inverter technology-based compressor that adjusts output automatically in relation to the conditions present indoors, ensuring smoother operation, temperature stability, and significant energy savings during the operation of the device. This system comprises an air conditioner and 16 ft pre-charged line set that simplifies the system’s installation and provides efficient single-zone climate management.

Quick Facts

• Model / SKU: EZPRO-18-HP-23016D-O

• Cooling Capacity: 17,000 BTU

• Heating Capacity: 18,000 BTU

• Efficiency Rating: Up to 20 SEER2
• System Type: Ductless Mini Split System

• Refrigerant Type: R-454B

• Voltage: 208-230V – Single Phase

• Liquid Line Size: 1/4"

• Suction Line Size: 1/2"
• Condenser Weight: 62.61 lbs
• Air Handler Weight: 30.64 lbs
• Compressor Type: Inverter-Driven Compressor

• Zone Compatibility: Single Room / Zone

• Application: Residential Heating & Cooling

• Condenser Dimensions: Approx. 30.12 W" x 11.93 D" x 21.85 H"

• Air Handler Dimensions: Approx. 38.23 W" x 8.98 D" x 12.64 H"

Capacity & Coverage

MR COOL EZPRO-18-HP-23016D-O is designed for larger-sized spaces like open living spaces, master bedrooms, offices, etc. It uses 17,000 BTU strong and consistent temperature controlling airflow to uniformly control the temperature of a space of 700-800 sq. ft. area, depending on the degree of insulation of the room as well as on the arrangement of the room.

Efficiency & Performance

The energy efficiency rating of MR COOL EZPRO-18-HP-23016D-O is up to 20 SEER2, and therefore, it promotes positive energy consumption behaviors by decreasing the amount of electricity consumed by the device. This is made possible by the inverter compressor, which, in real-time conditions, adjusts the output of the device to meet the demand by the user. This unique feature provides reliable and efficient operation of the device throughout the entire calendar year.

Construction & Design

The MR COOL EZPRO-18-HP-23016D-O model is constructed using materials that are designed to provide durability for an extended period. The indoor unit has an elegant design which enables it to be compatible with the decoration of the modern indoor places. The materials of the outdoor condenser are resistant to corrosion, which ensures that it retains its efficient performance within a wide range of environmental conditions.

Installation & Application

The MR COOL EZPRO-18-HP-23016D-O is designed using a 16 ft pre-charged set line to assist the user in easy installation of the model. The model eliminates the need for a complicated set of HVAC procedures and provides an excellent indoor temperature management system by providing single-zone heating and cooling services without requiring ductwork in place.

Noise & Comfort

Given the low levels of noise produced by the MR COOL EZPRO-18-HP-23016D-O, it creates a comforting indoor environment. It helps ensure a pleasant indoor experience and functions well in a bedroom, living room, and office, as it has a modern compressor and fan.

FAQs

Q1: What size room is the MR COOL EZPRO-18-HP-23016D-O suitable for?
A: It is ideal for spaces up to approximately 700–800 sq ft.

Q2: Does this system include installation components?
A: Yes, it includes a 16 ft pre-charged line set for simplified installation.

Q3: Can this system provide both heating and cooling?
A: Yes, it offers both heating and cooling for year-round indoor comfort.
