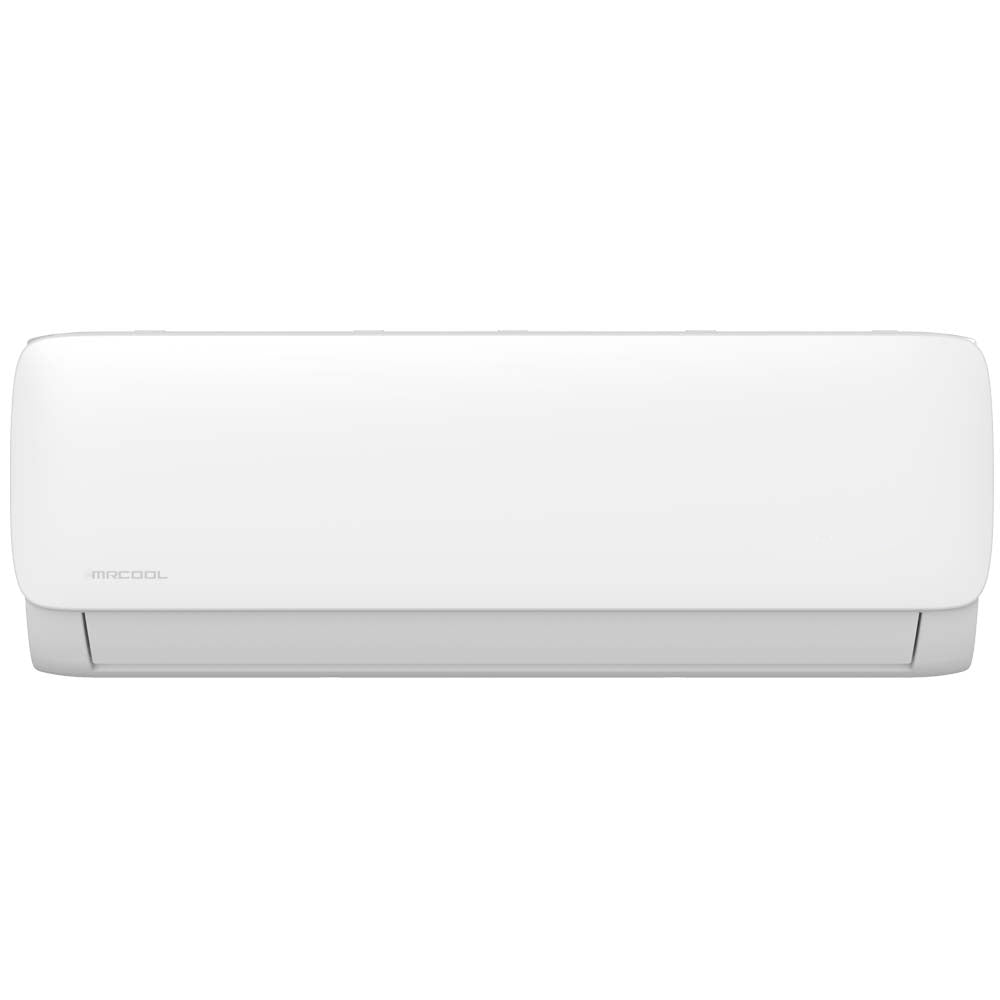

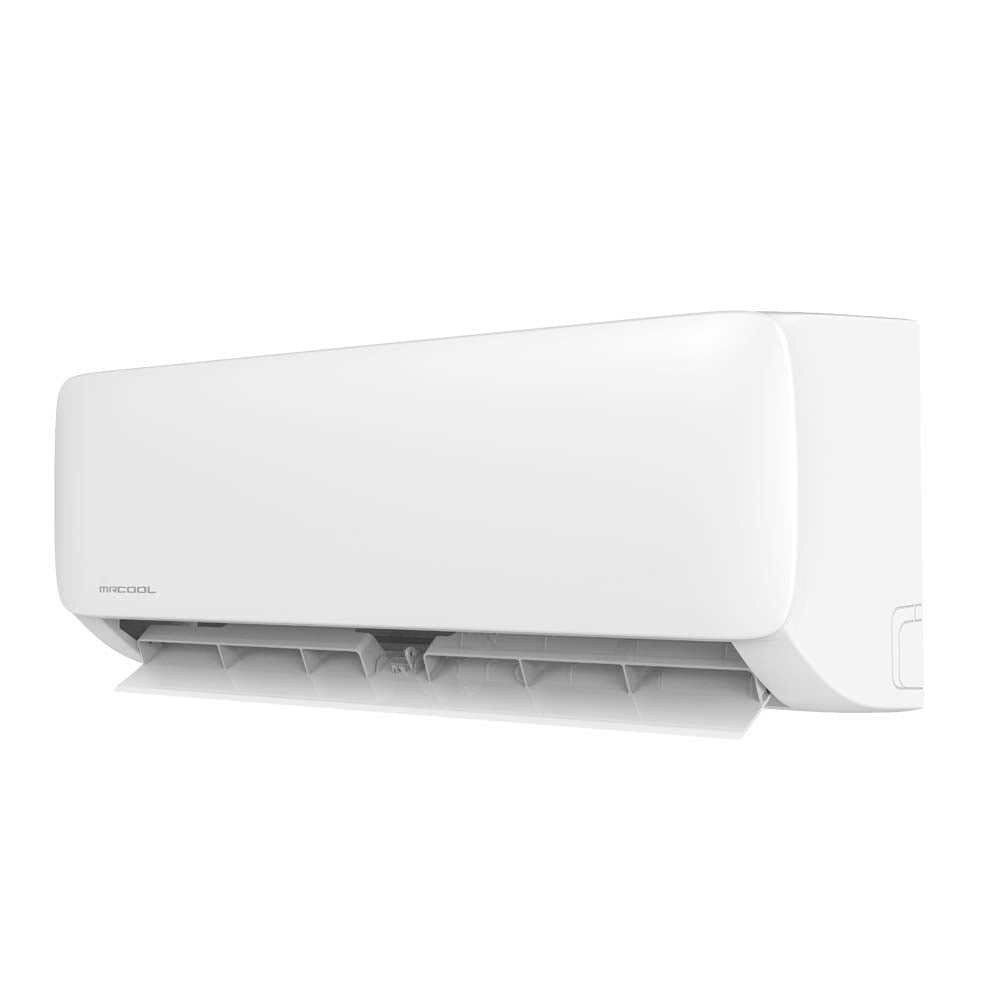

MRCOOL DIY Easy Pro Mini Split | 24,000 BTU | Heat pump 23016 |EZPRO-24-HP-23016

MRCOOL DIY Easy Pro Mini Split | 24,000 BTU | Heat pump 23016 |EZPRO-24-HP-23016

Regular price $1,498.00 USD
Regular price $1,798.00 USD Sale price $1,498.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Product: EZPRO-24-HP-23016

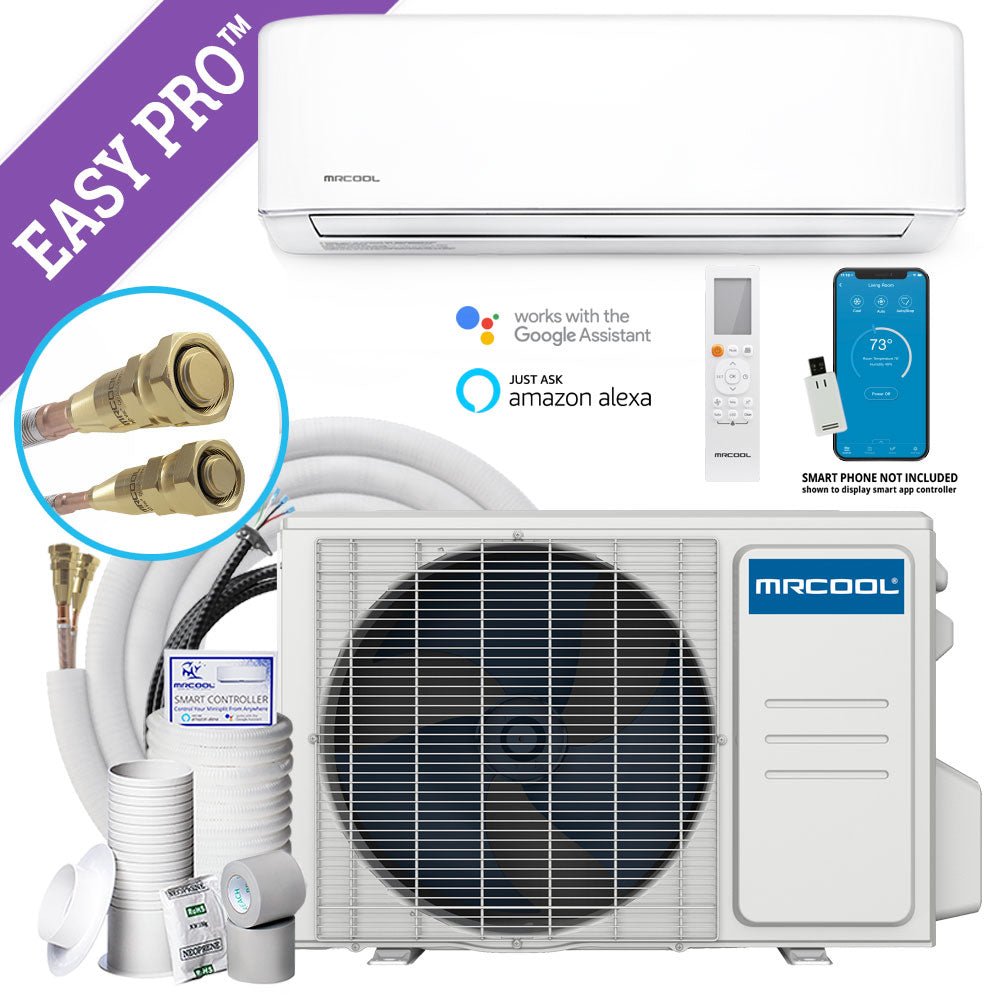

Mr Cool DIY Easy Pro 24k BTU Ductless Mini-Split Heat Pump System

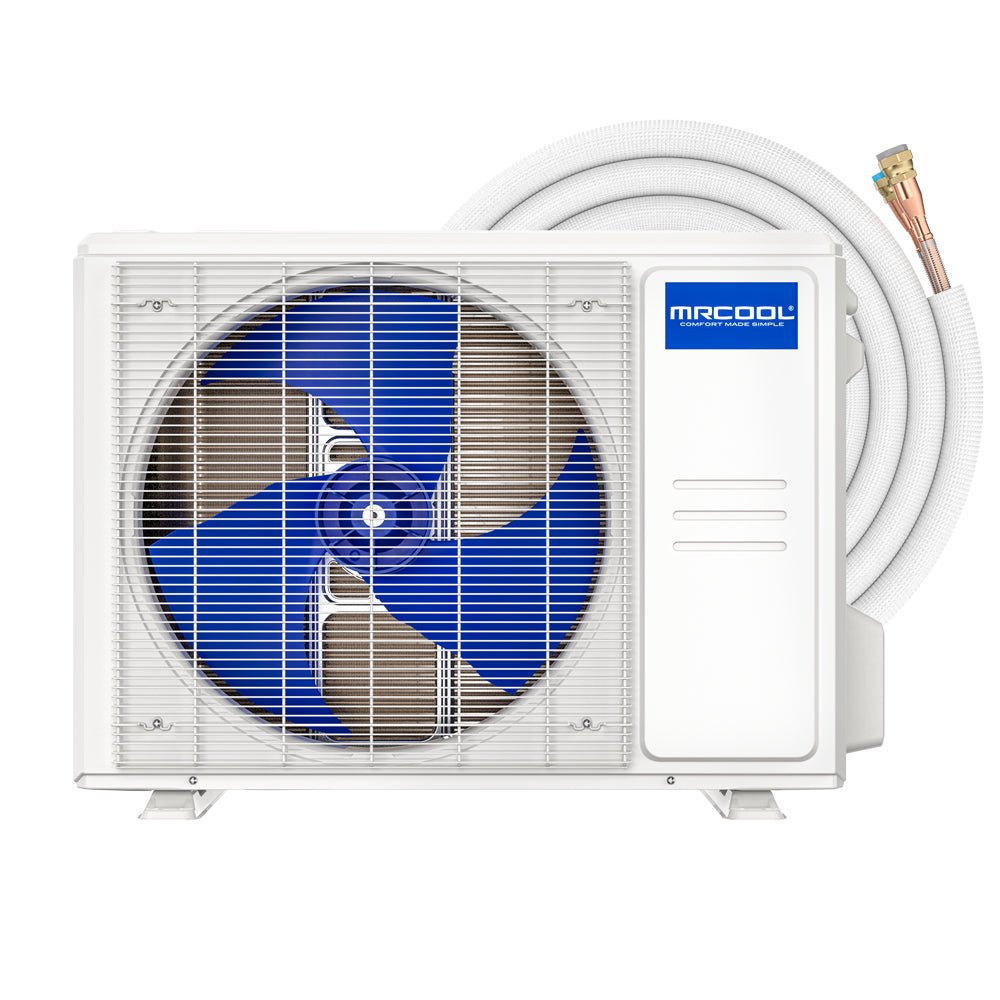

Create the ultimate comfort level in your home or office with the MrCool Easy Pro 24K BTU Ductless Mini-Split Heat Pump System. Heating or cooling up to 1,000 square feet efficiently with an 18 SEER, this unit is also easy to install thanks to 16-foot pre-charged line set with Fast Connection fittings.

You can choose one of the many operational modes to customize your heating and cooling experience such as Sleep Mode, Auto Mode, or Timer Mode. Maintaining the system is easy too as the filters need only to be rinsed with water before returning to the air handler. Cleaning both the indoor and outdoor units is as simple as wiping them down with a dry or damp cloth without any need for special cleaning products.

Controlling the system is easy too thanks to the included remote, the SmartHVAC app on your Apple or Android devices, or your Amazon Alexa and Google Assistant. Feel protected in your purchase with the 1-year compressor warranty and 2-year parts warranty in the unlikely event that something goes wrong.

This is a full heating and cooling system that is easy to install and won't break the bank.

Features

  • Up to 18 SEER
  • Gold Fin condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Energy Efficient DC Inverter
  • Low ambient cooling: cooling down to 5F exterior temperatures, the ideal system for computer server rooms, greenhouses, and any other applications that require cooling all year
  • Includes features such as timer mode, refrigerant leakage detection, and more
  • Systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
  • Quiet Running



Product Specs:

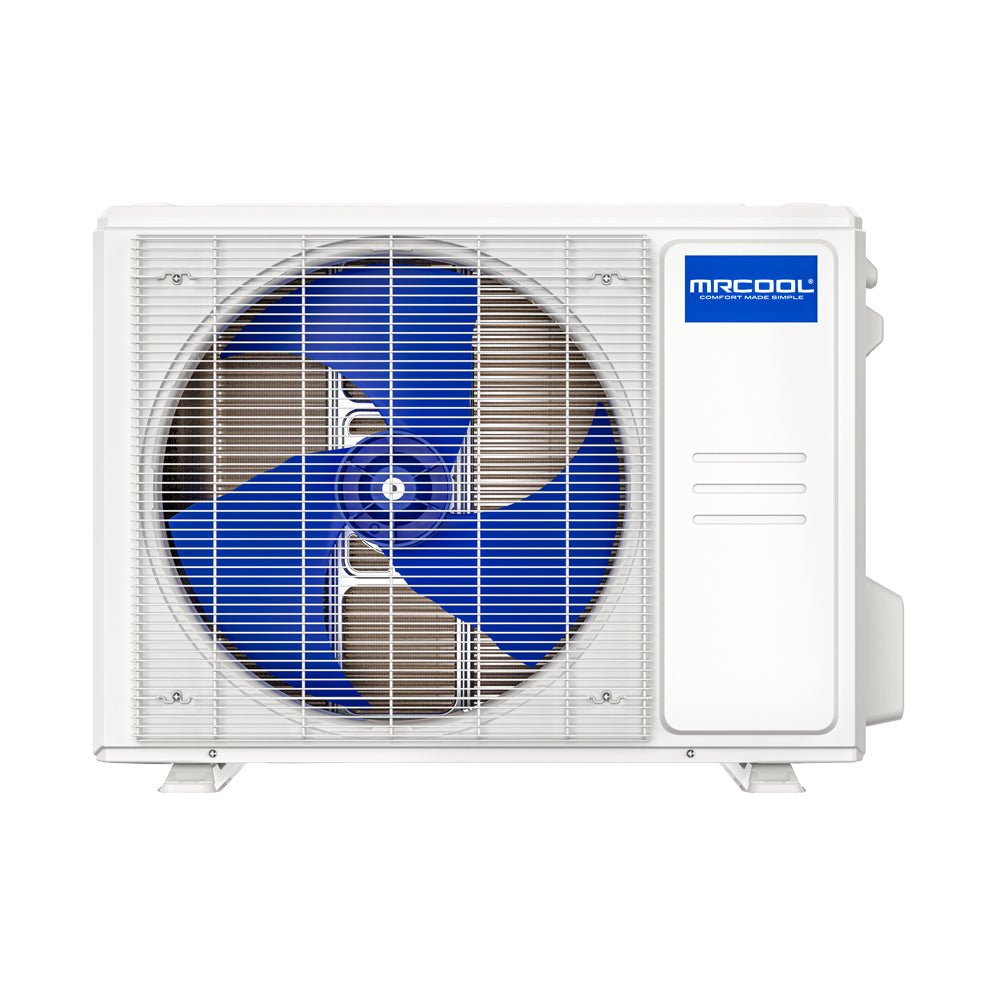

Condenser Dimensions

13.46" D x 26.5" H x 35.04" W

Air Handler Dimensions

9.21" D x 13.27" H x 42.60" W

SEER

18

EER

9

COP 47

3.08

HSPF

hspf4/hspf5 : 10.3/8.4

CFM

549.41/404.12/333.53

Cooling Capacity

24000 BTU

Heating Capacity

25000 BTU

Voltage

208-230 V

Phase

1

CYCLE

60 Hz

Max Fuse Breaker

35 A

Min Circuit Ampacity

21 A

Rated Load

15 A

Zone Capacity

1

Refrigerant Type

R-410A

Refrigerant Volume

62.79 oz

Decibel Rating

40 dBA

Decibel Rating Low

27 dBA

Decibel Rating High

45 dBA

Min Ambient Cool

5F - 122F

Min Ambient Heat

5F - 75.2F

Max Lineset Length

50ft

Liquid Line Size

3/8in

Suction Line Size

5/8in

Compressor Motor Type

Twin - Rotary

Condenser Fan Motor Rpm

810/720

Blower Motor Speeds

3

Blower Motor Rpm

1100/940/860

Filter Type

Washable

Fan Only Option

Yes

Sleep Mode

Yes

Auto Cool

Yes

Wi-Fi Compatibility

yes

App Compatibility

yes

Works With iOS

Yes

Works With Android

Yes

Remote Control Included

Yes

Energy Star Certified

yes

AHRI Certified

yes

Registered Warranty

2-year Parts/1-year Compressor

Registered Parts Warranty

2 years

Registered Compressor Warranty

1 year

Condenser Weight

97.66 lbs

Air Handler Weight

35.27 lbs
