MRCOOL DIY Mini Split 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump DIY-B-448HP09091818

MRCOOL DIY Mini Split 54,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump DIY-B-448HP09091818

$5,046.00 USD
$5,046.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Model: DIY-B-448HP09091818

MR COOL Specifications Sheet Click below:

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate

Product Overview:

  • Covers 1875 sq. ft.
  • DIY Installation
  • Wall Mounted
  • Number of Zones: 4
  • Voltage: 208 to 230
  • Outdoor Operating Temp (Cool): 5°F to 122°F
  • Outdoor Operating Temp (Heat): -13°F to 75.2°F

Product Description:

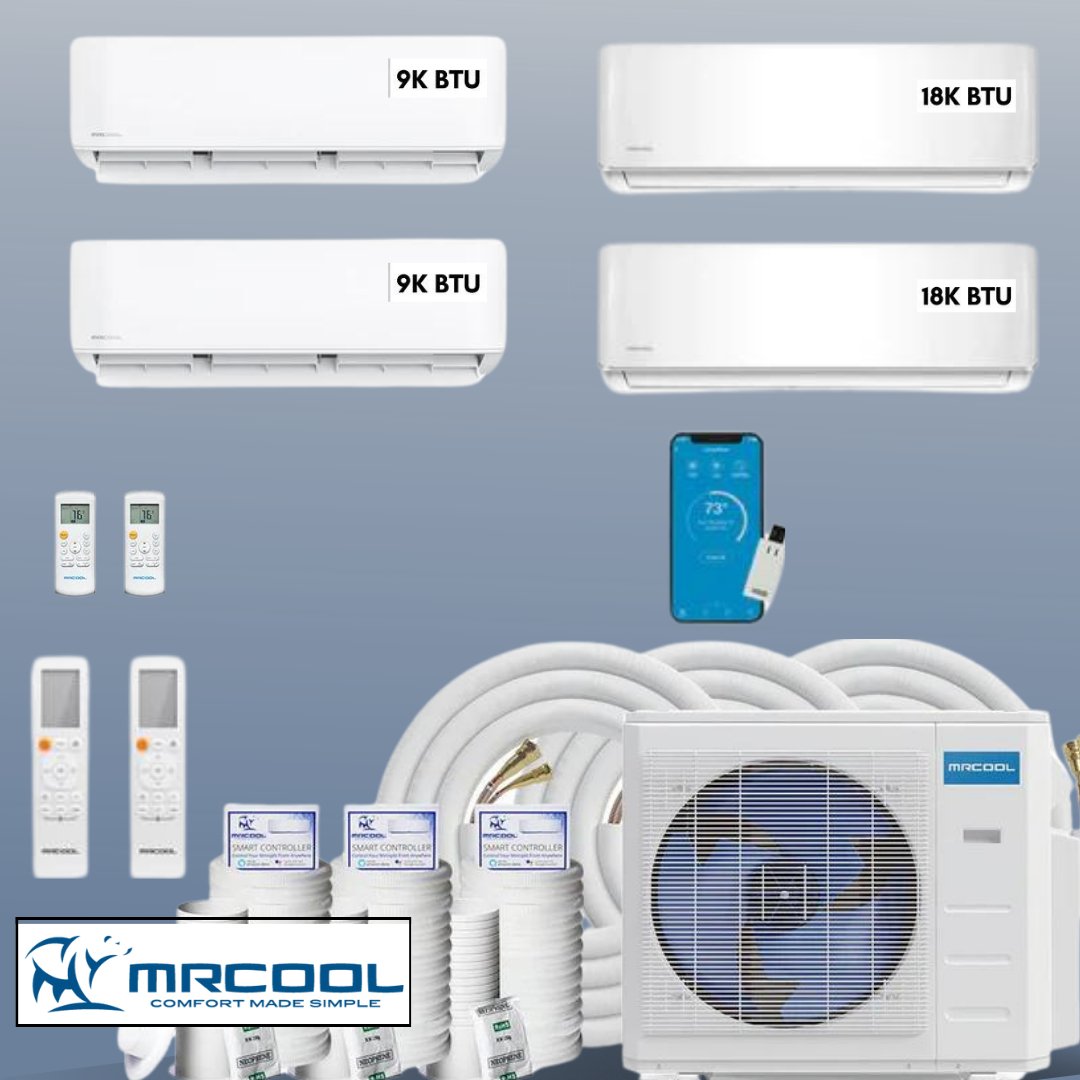

This 4th Generation MRCOOL Mini Split includes a DIY 48,000 BTU Multi-Zone Condenser, two 9,000 BTU Wall Mounted Air Handler, two 18,000 BTU Wall Mounted Air Handler and four Remotes. The best part about all of this is that you can install it yourself!

Condenser

  • Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 20.5 SEER efficiency rating.
  • Works In All Environments. The capability to continue to deliver heating performance when temperatures reach 5°F
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

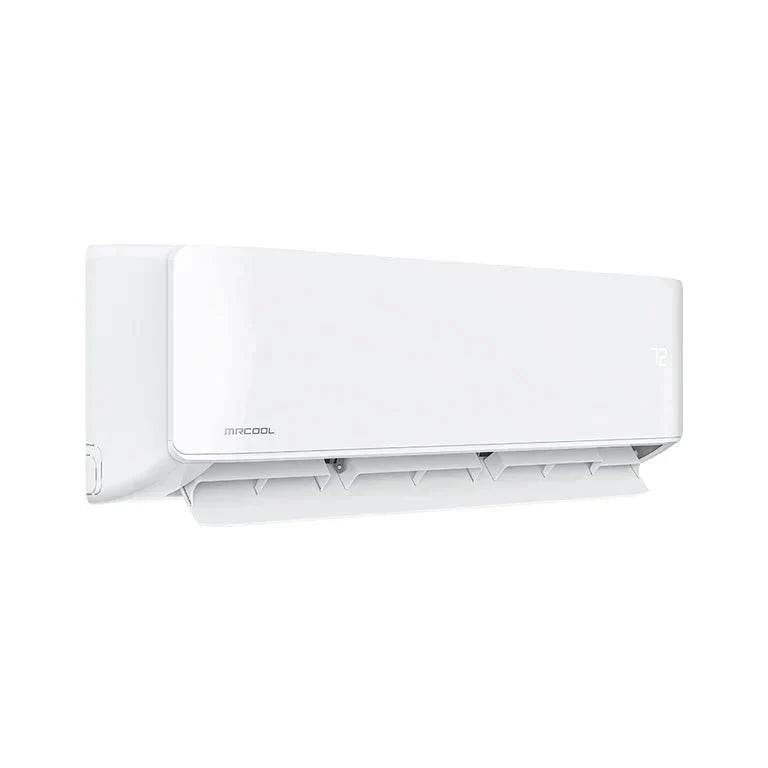

      Air Handler, 9K BTU, Quantity 2

      • Large Coverage Area. Handler covers an area up to 375 sq. ft.
      • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
      • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
      • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

      Air Handler, 18K BTU, Quantity 2

      • Large Coverage Area. Handler covers an area up to 750 sq. ft.
      • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
      • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
      • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

          SPECIFICATIONS AND DIMENSIONS:

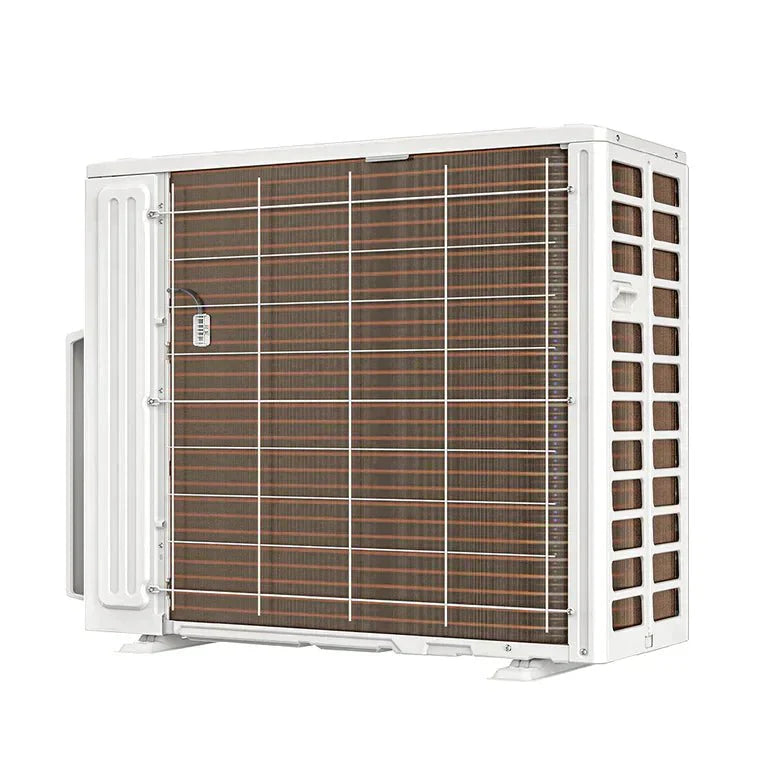

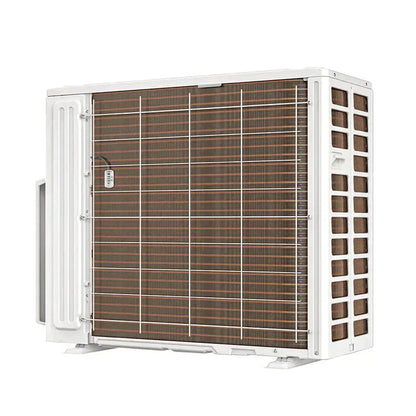

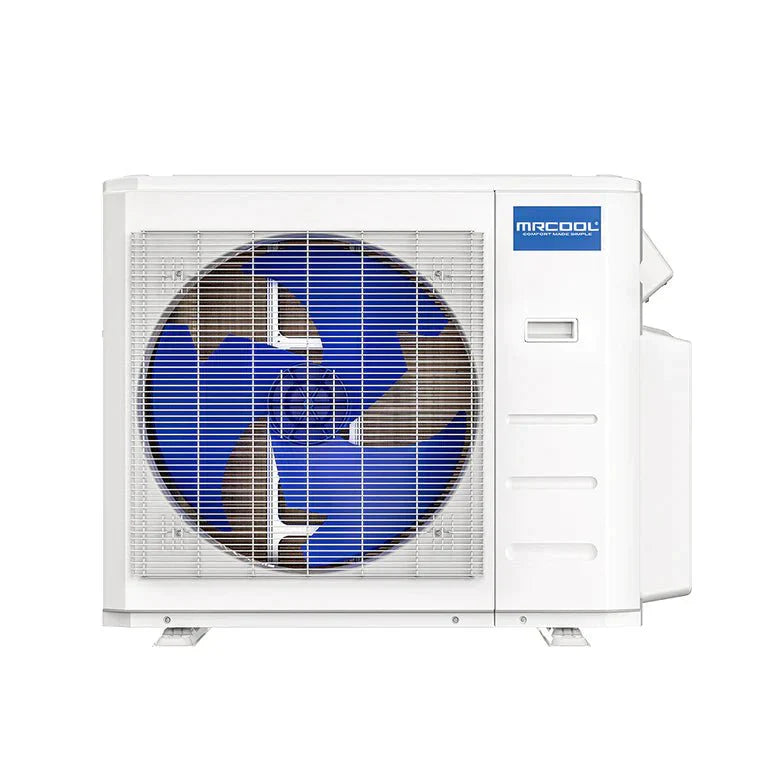

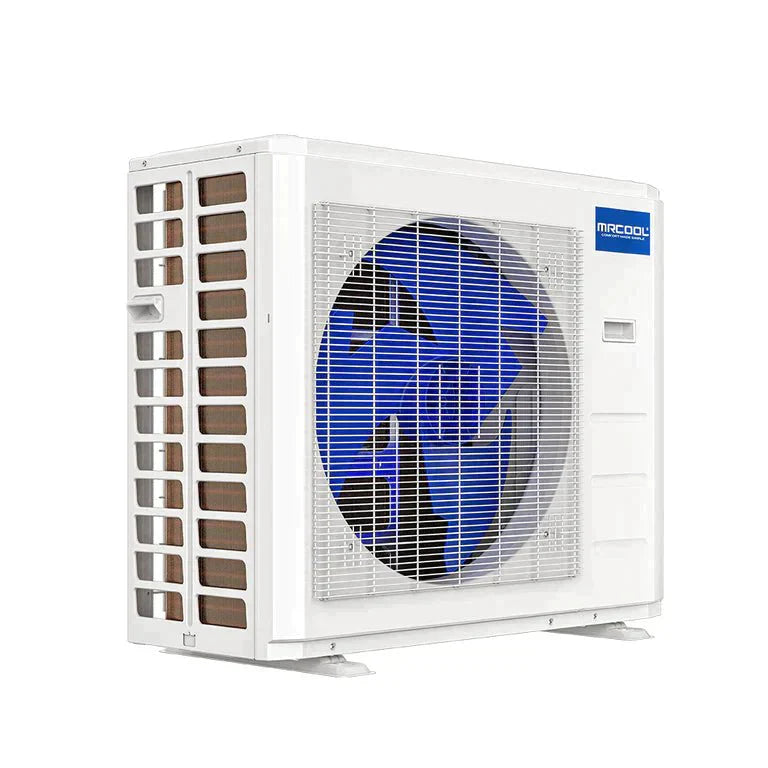

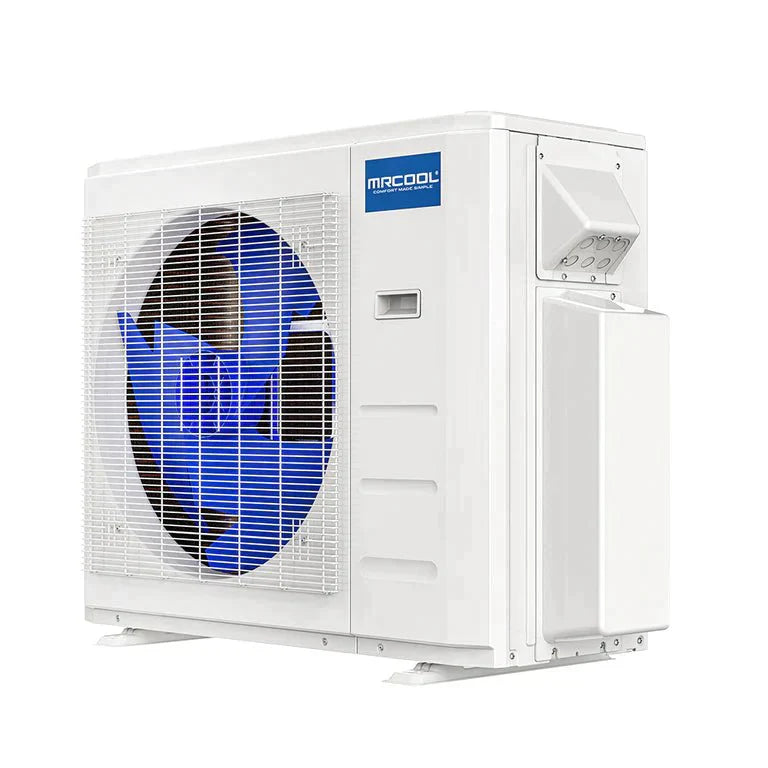

           Condenser



          Product Dimensions 37.48"W x 16.34"D x 52.48"H
          Cooling Capacity 48,000 BTU
          Heating Capacity 48,000 BTU
          Zone Capacity 5
          Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
          Heat Mode - Outdoor Operating Temperature Range 5F ~ 75.2F
          SEER 20.5
          EER 11
          Voltage Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
          Registered Warranty 7 Years Replacement on Condenser, 5 Years Parts


          Air Handler 9K BTU

          Product Dimensions 31.57"W x 7.44"D x 11.69"H
          Mount Type Wall
          Cooling Capacity 9,000 BTU
          Heating Capacity 9,000 BTU
          Registered Warranty 5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep


          Air Handler 18K BTU

          Product Dimensions 42.52"W x 8.90"D x 13.19"H
          Mount Type Wall
          Cooling Capacity 18,000 BTU
          Heating Capacity 18,000 BTU
          Registered Warranty 5 Years Parts
          Modes Auto - auto selects from Cool, Heat or Fan-Only
          Dry - dehumidify
          Cool
          Heat
          Fan Only
          Quiet
          Sleep

          COVERAGE AREA:

          Square Feet: 180-375 | BTU = 9K
          Square Feet: 376-500 | BTU = 12K
          Square Feet: 501-750 | BTU = 18K
          Square Feet: 751-1,000 | BTU = 24K
          Square Feet: 1,001-1,500 | BTU = 36K

          Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.
