MRCOOL DIY Mini Split 48,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump DIY-B-448HP12121212
MRCOOL DIY Mini Split 48,000 BTU 4 Zone Ductless Air Conditioner and Heat Pump DIY-B-448HP12121212
Model: DIY-B-448HP12121212
MR COOL Specifications Sheet Click below:
Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
Product Overview:
- Covers 2000 sq. ft.
- DIY Installation
- Wall Mounted
- Number of Zones: 4
- Voltage: 208 to 230
- Outdoor Operating Temp (Cool): 5°F to 122°F
- Outdoor Operating Temp (Heat): -13°F to 75.2°F
Product Description:

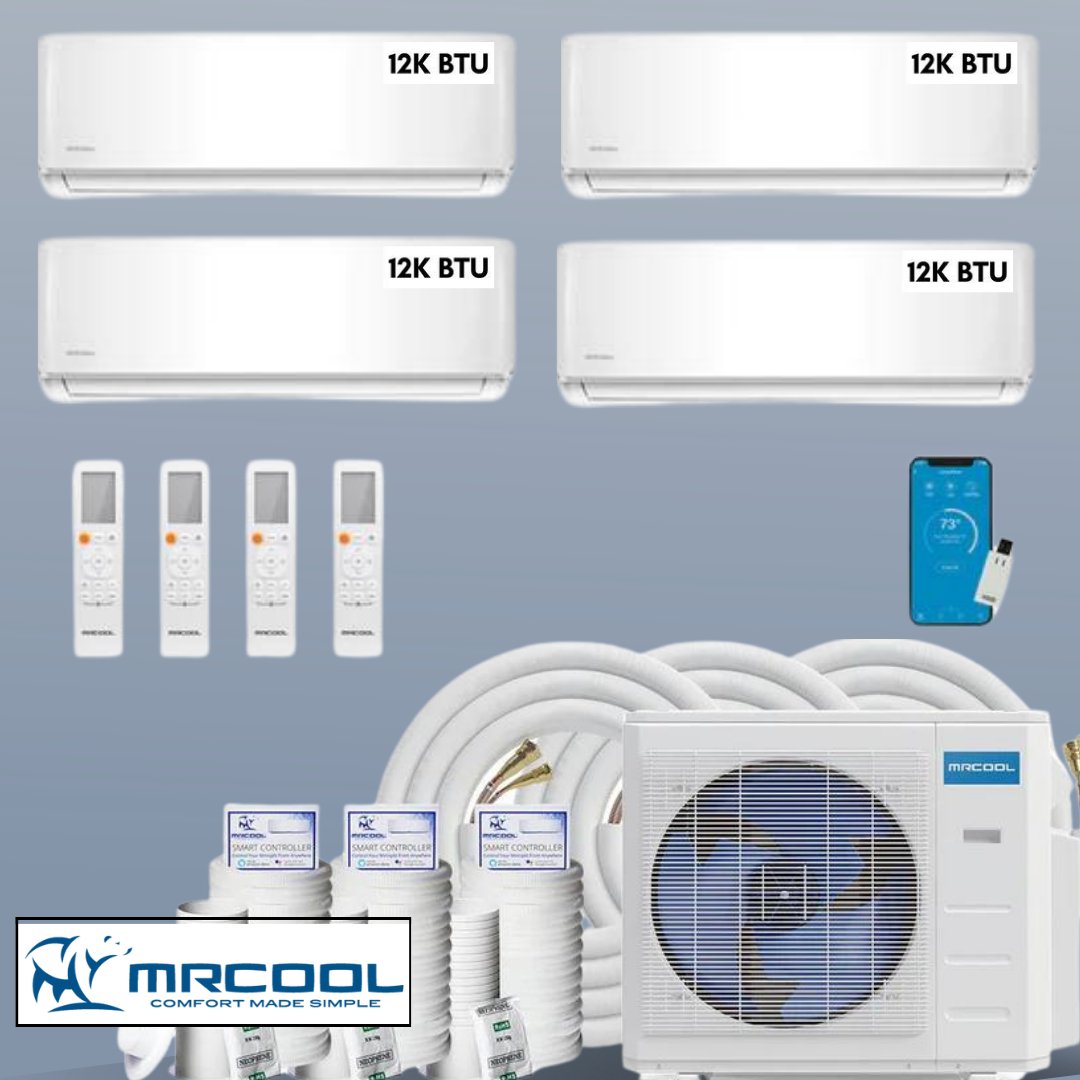

This 4th Generation MRCOOL Mini Split includes a DIY 48,000 BTU Multi-Zone Condenser, four 12,000 BTU Wall Mounted Air Handler, and four Remotes. The best part about all of this is that you can install it yourself!

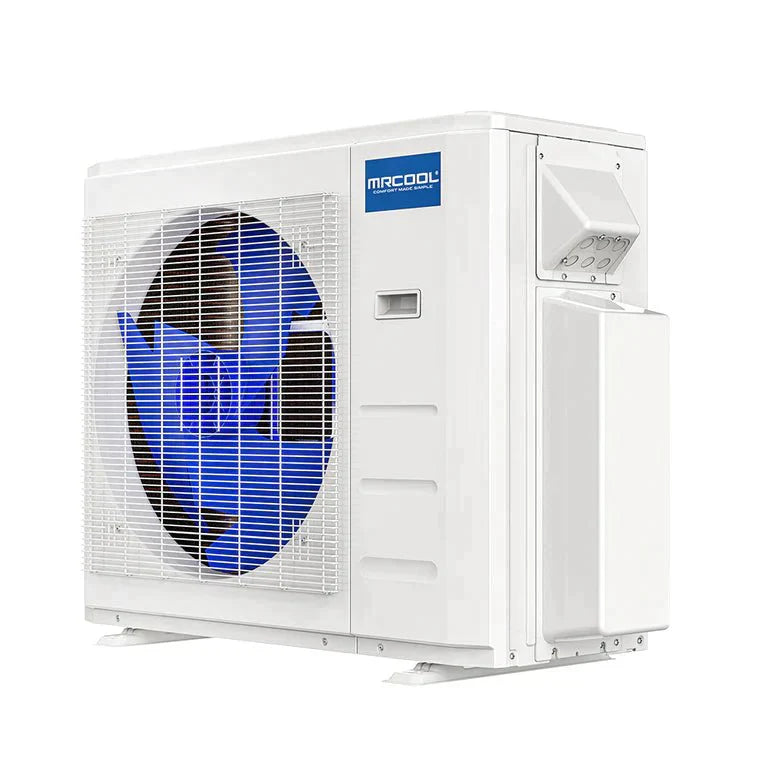

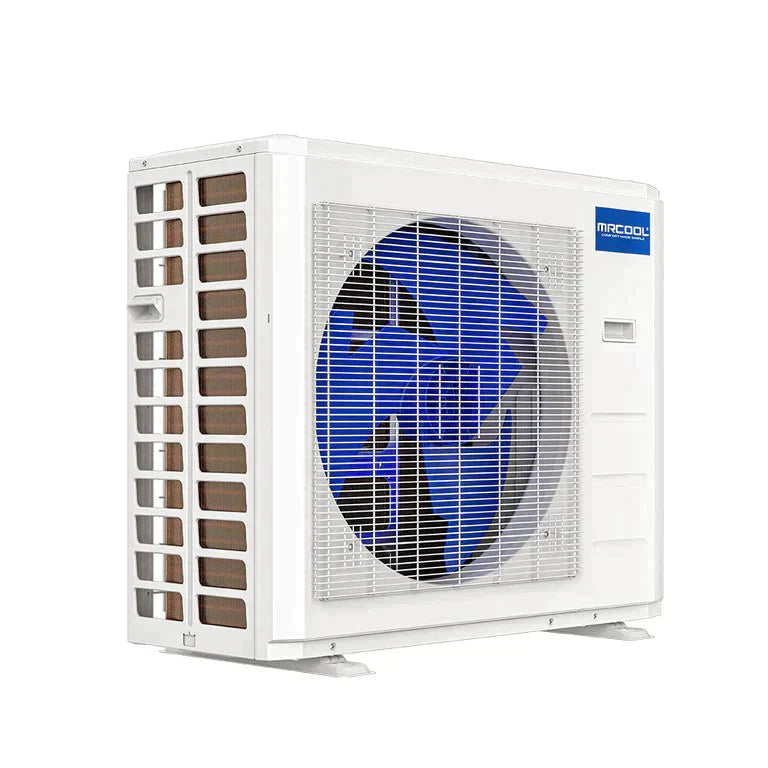

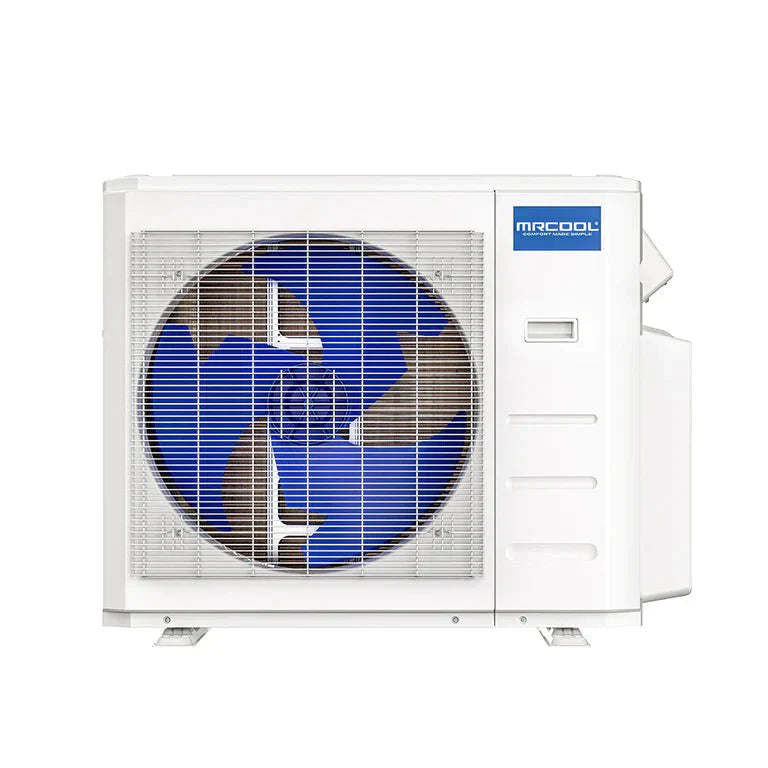

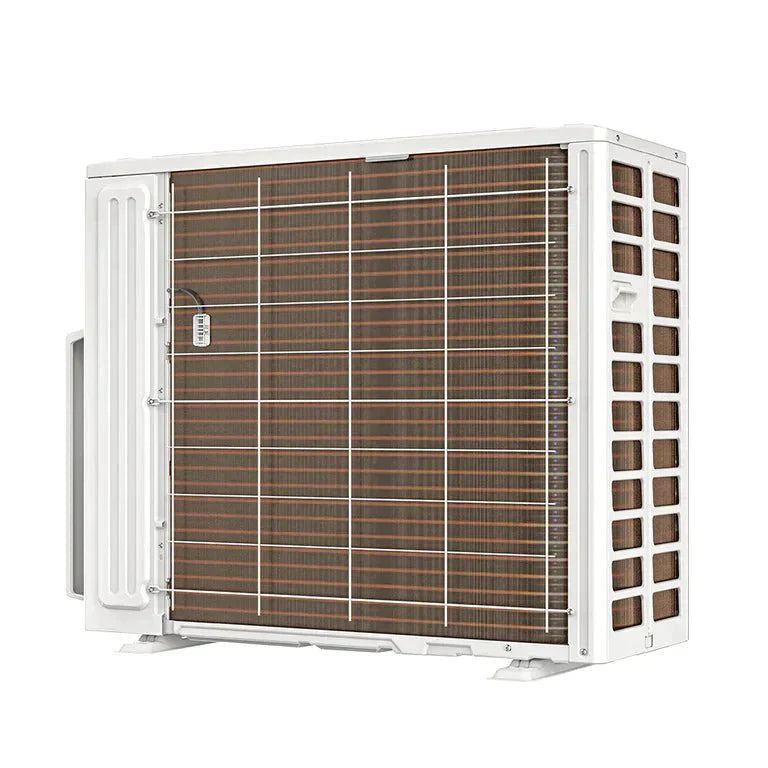

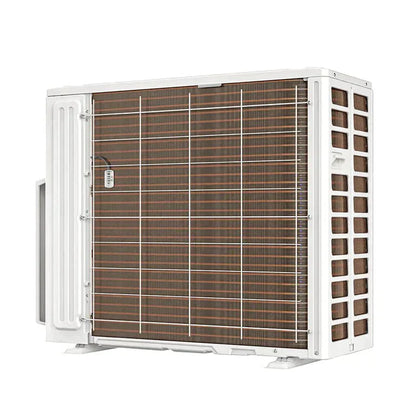

Condenser
- Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 20.5 SEER efficiency rating.
- Works In All Environments. The capability to continue to deliver heating performance when temperatures reach 5°F
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

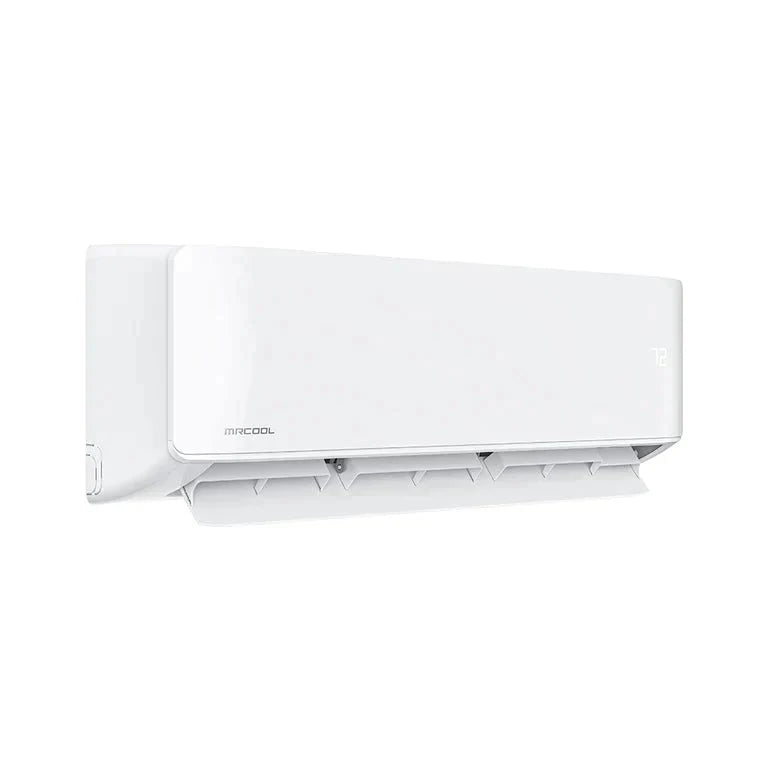

Air Handler, 12K BTU, Quantity 4
- Large Coverage Area. Handler covers an area up to 500 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
SPECIFICATIONS AND DIMENSIONS:
Condenser
| Product Dimensions | 37.48"W x 16.34"D x 52.48"H |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Zone Capacity | 5 |
| Cool Mode - Outdoor Operating Temperature Range | 5F ~ 122F |
| Heat Mode - Outdoor Operating Temperature Range | 5F ~ 75.2F |
| SEER | 20.5 |
| EER | 11 |
| Voltage | Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase) |
|
Registered Warranty |
7 Years Replacement on Condenser, 5 Years Parts |
Air Handler 12K BTU
| Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
| Mount Type | Wall |
| Cooling Capacity | 12,000 BTU |
| Heating Capacity |
12,000 BTU |
| Registered Warranty |
5 Years Parts |
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
COVERAGE AREA:
Square Feet: 180-375 | BTU = 9K
Square Feet: 376-500 | BTU = 12K
Square Feet: 501-750 | BTU = 18K
Square Feet: 751-1,000 | BTU = 24K
Square Feet: 1,001-1,500 | BTU = 36K
Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.
