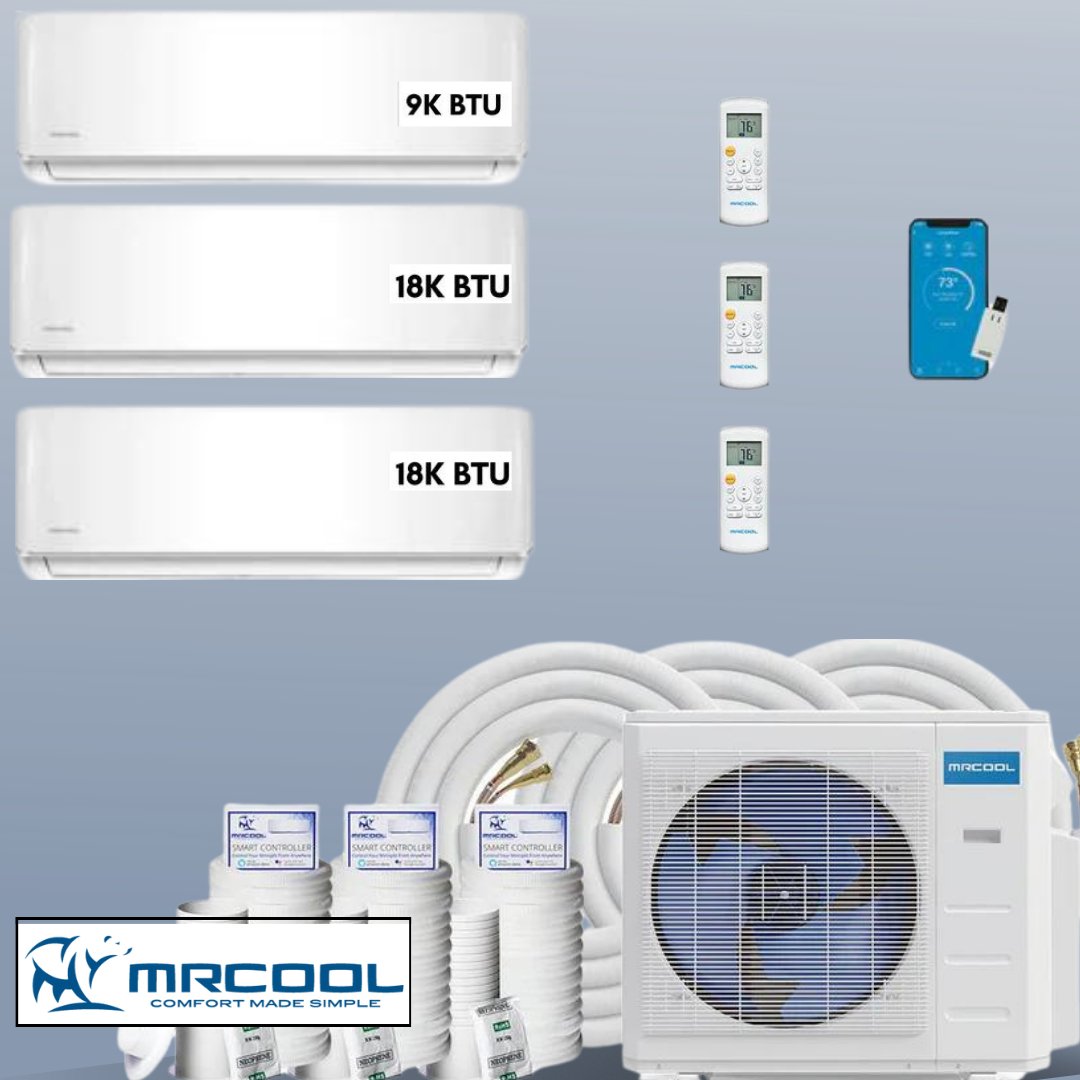

This 4th Generation MRCOOL DIY Mini Split includes everything you need to cool and heat your home, office or more. You'll be sent: 48K BTU Multi-Zone Condenser, 9K BTU Wall Mount Air Handler and two 18K BTU Air Handlers. The best part about all of this is that you can install it yourself! The MRCOOL DIY Mini Split is flexible enough to be installed virtually anywhere without hiring an expensive HVAC technician or the need to use expensive, specialized equipment.

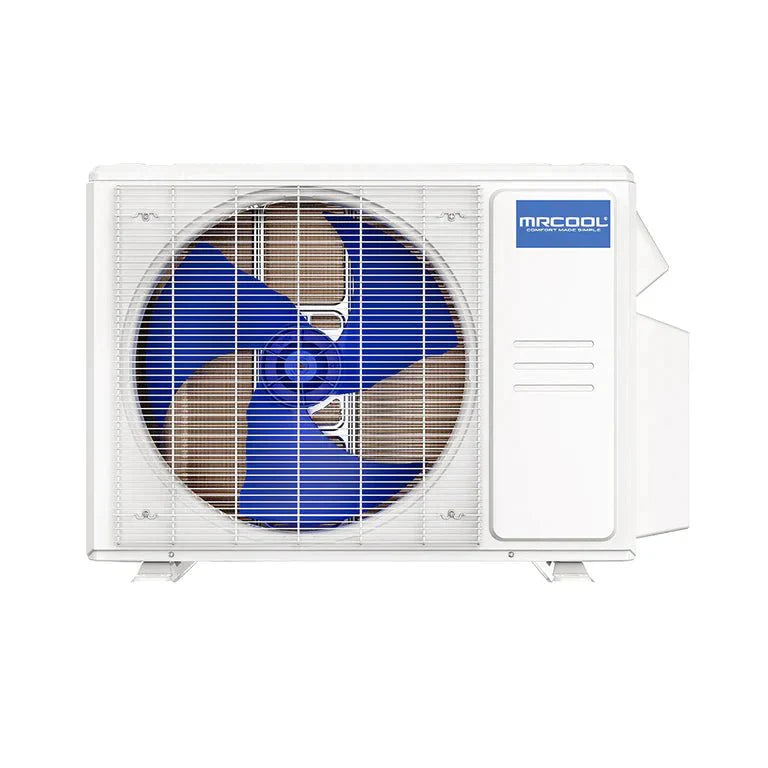

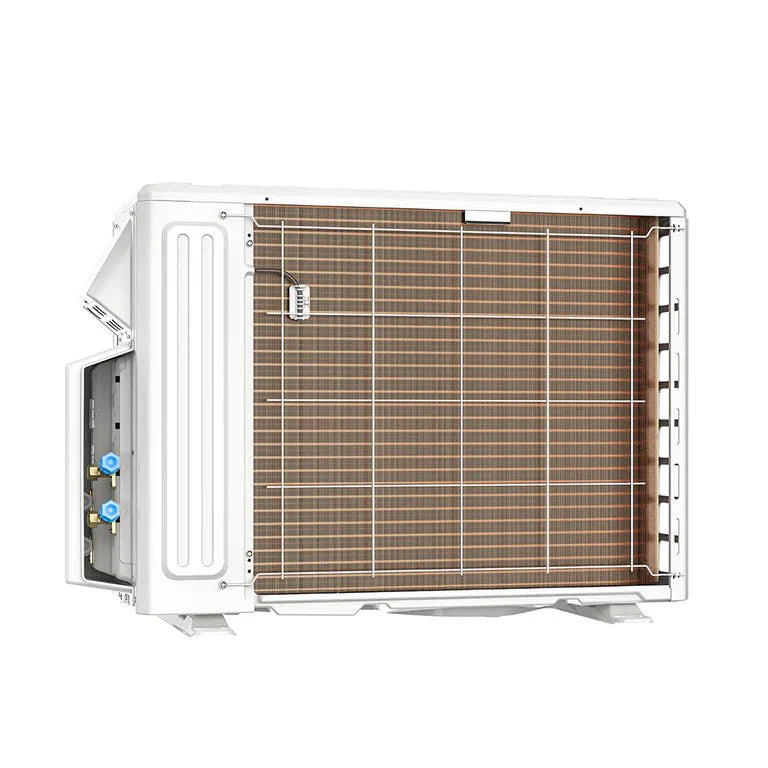

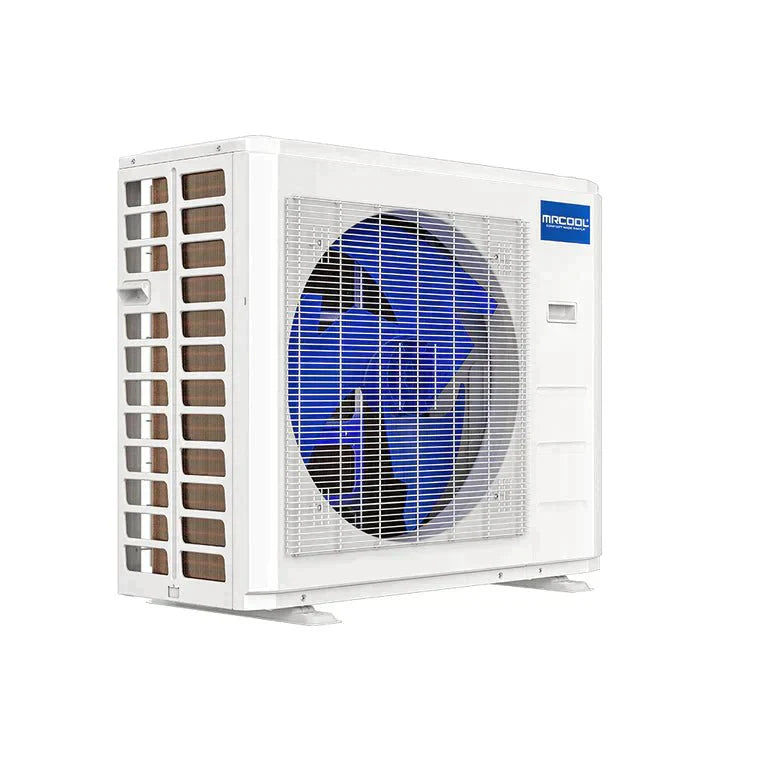

Condenser 48K BTU
Energy Efficient. This 48K BTU condenser is capable of producing up to an impressive 20.5 SEER2 efficiency rating. And yes... this qualifies for major savings using energy or tax rebates!
Works In Extreme Temperatures. The ability to heat even when temperatures drop to -5°F.
Cool and Heat Worry-Free. The condenser comes with a 7 year compressor and 5 year parts warranty. Want lifetime coverage on the compressor? Simply register into the MRCOOL Care Program to get the lifetime warranty!
Air Handler 9K BTU
Large Coverage Area. The air handler covers an area between 180 to 375 sq. ft.
Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
Easy to Control.This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
Convenient Installation.With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Air Handler 18K BTU
Large Coverage Area. The air handler covers an area between 375 to 750 sq. ft.
Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify) and SLEEP.
Easy to Control.This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
Convenient Installation.With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
SPECIFICATIONS AND DIMENSIONS:
Condenser
Product Dimensions
37.48"W x 16.34"D x 52.48"H
Cooling Capacity
48,000 BTU
Heating Capacity
48,000 BTU
Zone Capacity
5
Cool Mode - Outdoor Operating Temperature Range
5°F ~ 122°F
Heat Mode - Outdoor Operating Temperature Range
5°F ~ 75.2°F
SEER2
20.50
EER2
11
HSPF2
9.2
Voltage
Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase)
Registered Warranty
7 Years Replacement on Condenser, 5 Years Parts
Air Handler 9K BTU
Product Dimensions
31.57"W x 7.44"D x 11.69"H
Mount Type
Wall
Cooling Capacity
9,000 BTU
Heating Capacity
9,000 BTU
Registered Warranty
5 Years Parts
Modes
Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep
Air Handler 18K BTU
Product Dimensions
34.61"W x 8.90"D x 13.19"H
Mount Type
Wall
Cooling Capacity
18,000 BTU
Heating Capacity
18,000 BTU
Registered Warranty
5 Years Parts
Modes
Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep
Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.
