MRCOOL DIY Mini Split 42,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump DIY-B-336HP121218
MRCOOL DIY Mini Split 42,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump DIY-B-336HP121218
Model: DIY-B-336HP121218
MR COOL Specifications Sheet Click below:
Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
Product Overview:
- Covers 1750 sq. ft.
- DIY Installation
- Wall Mounted
- Number of Zones: 3
- Voltage: 208 to 230
- Outdoor Operating Temp (Cool): 5°F to 122°F
- Outdoor Operating Temp (Heat): -13°F to 75.2°F
Product Description:

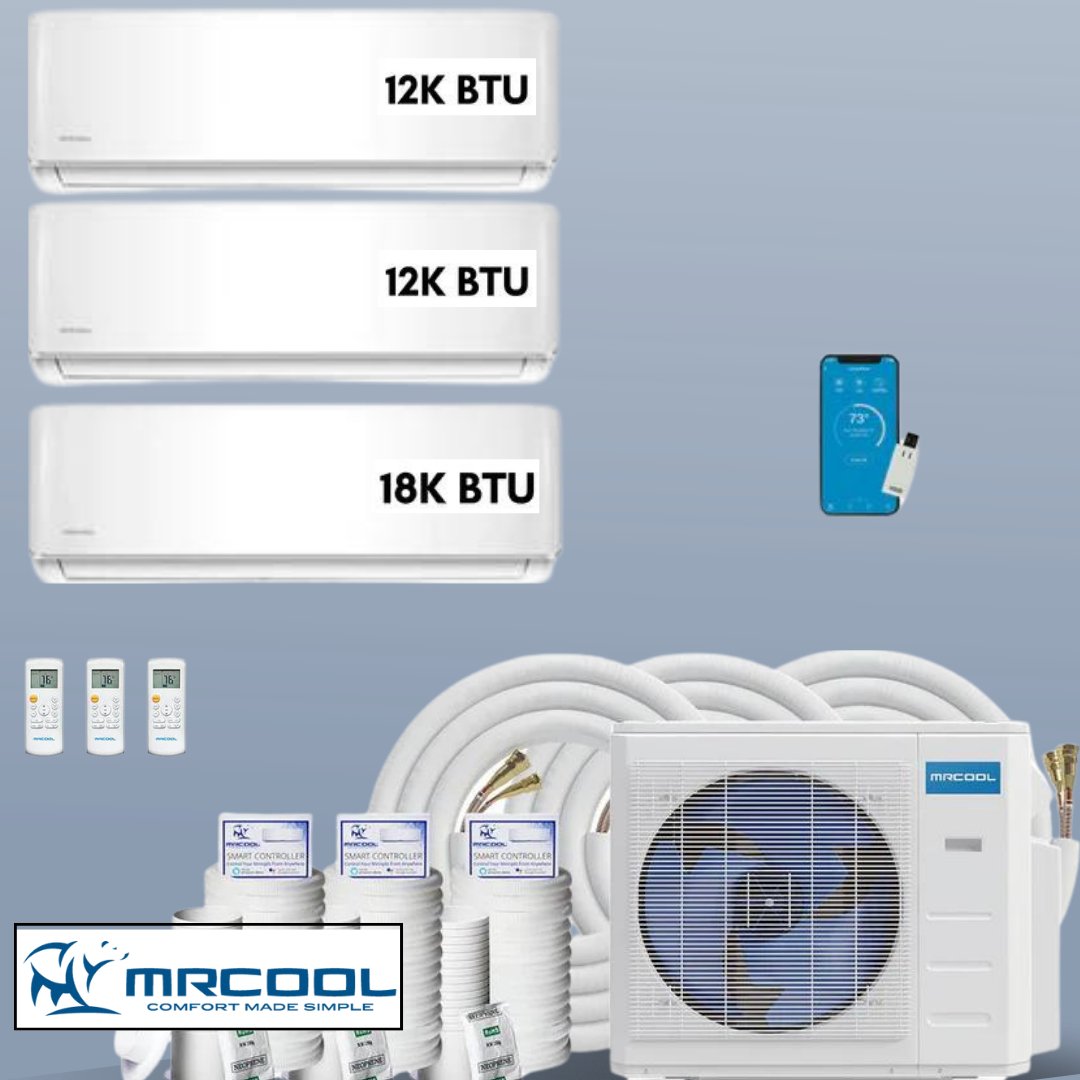

This 4th Generation MRCOOL Mini Split includes a DIY 36,000 BTU Multi-Zone Condenser, two 12,000 BTU Wall Mounted Air Handler, one 18,000 BTU Wall Mounted Air Handler, and three Remotes. The best part about all of this is that you can install it yourself!

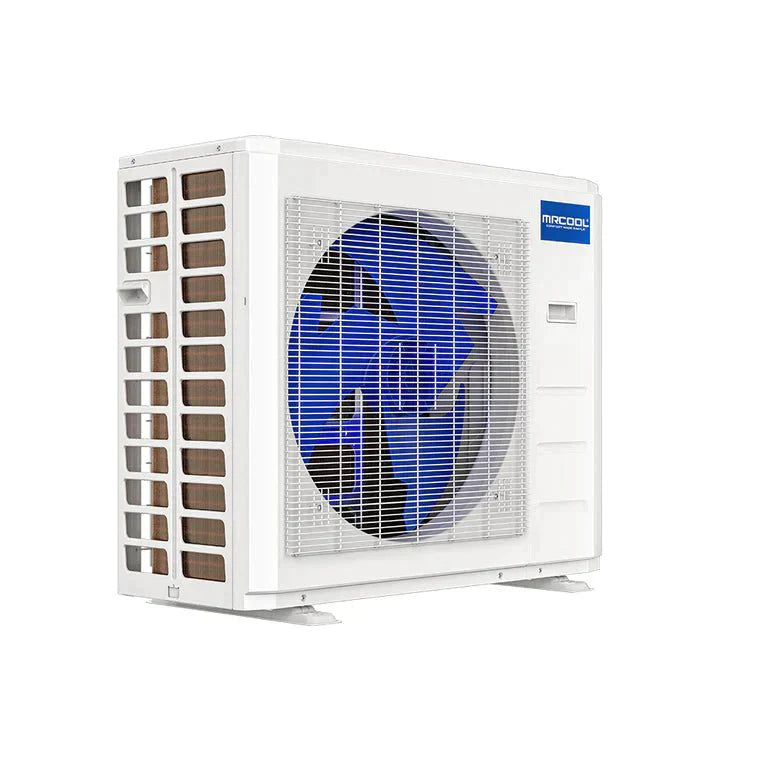

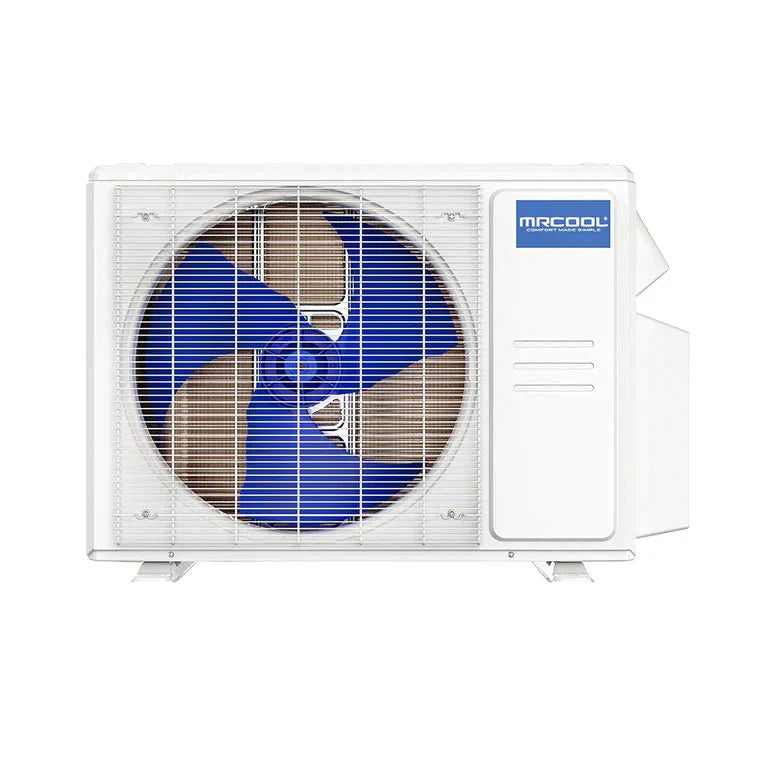

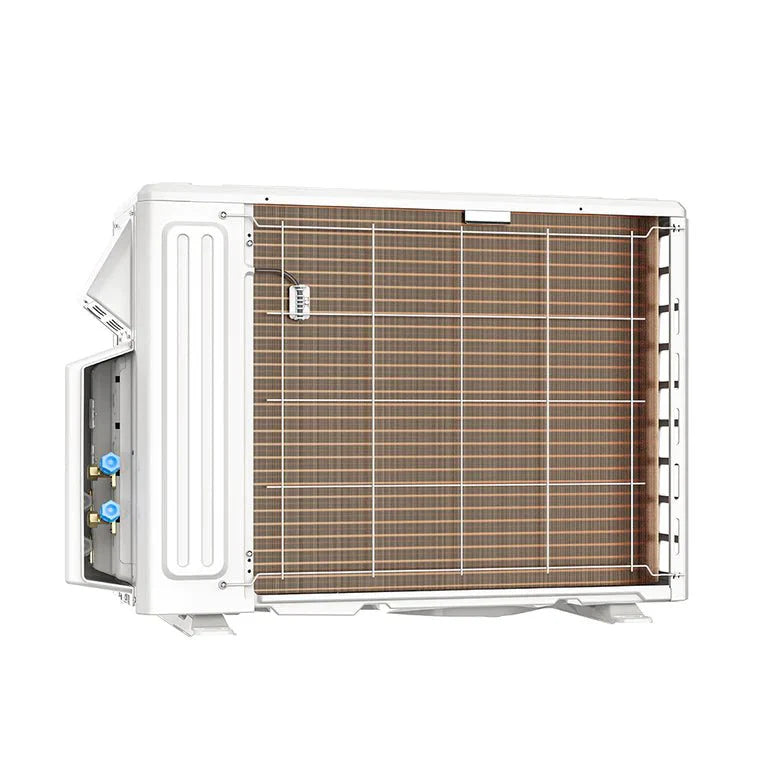

Condenser
- Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.
- Works In All Environments. The capability to continue to deliver heating performance when temperatures reach -13°F
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!
Air Handler, 12K BTU, Quantity 2
- Large Coverage Area. Handler covers an area up to 500 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Air Handler, 18K BTU, Quantity 1
- Large Coverage Area. Handler covers an area up to 750 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
SPECIFICATIONS AND DIMENSIONS:
Condenser
| Product Dimensions | 37.24"W x 16.14"D x 31.89"H |
| Cooling Capacity | 36,000 BTU |
| Heating Capacity | 36,000 BTU |
| Zone Capacity | 4 |
| Cool Mode - Outdoor Operating Temperature Range | 5F ~ 122F |
| Heat Mode - Outdoor Operating Temperature Range | -13F ~ 75.2F |
| SEER | 21.5 |
| EER | 10.5 |
| Voltage | Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase) |
|
Registered Warranty |
7 Years Replacement on Condenser, 5 Years Parts |
Air Handler 12K BTU
| Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
| Mount Type | Wall |
| Cooling Capacity | 12,000 BTU |
| Heating Capacity |
12,000 BTU |
|
Registered Warranty |
5 Years Parts |
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Air Handler 18K BTU
| Product Dimensions | 42.52"W x 8.90"D x 13.19"H |
| Mount Type | Wall |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity |
18,000 BTU |
|
Registered Warranty |
5 Years Parts |
| Modes |
Auto - auto selects from Cool, Heat or Fan-Only |
