MRCOOL DIY Mini Split 36,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump DIY-B-236HP1818

MRCOOL DIY Mini Split 36,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump

Model: DIY-B-236HP1818

MR COOL Specifications Sheet Click below:

• Installation Manual
• Product Brochure

Product Overview:

• Covers 1500 sq. ft.
• DIY Installation
• Wall Mounted
• Number of Zones: 2
• Voltage: 208 to 230
• Outdoor Operating Temp (Cool): 5°F to 122°F
• Outdoor Operating Temp (Heat): -13°F to 75.2°F

Product Description:

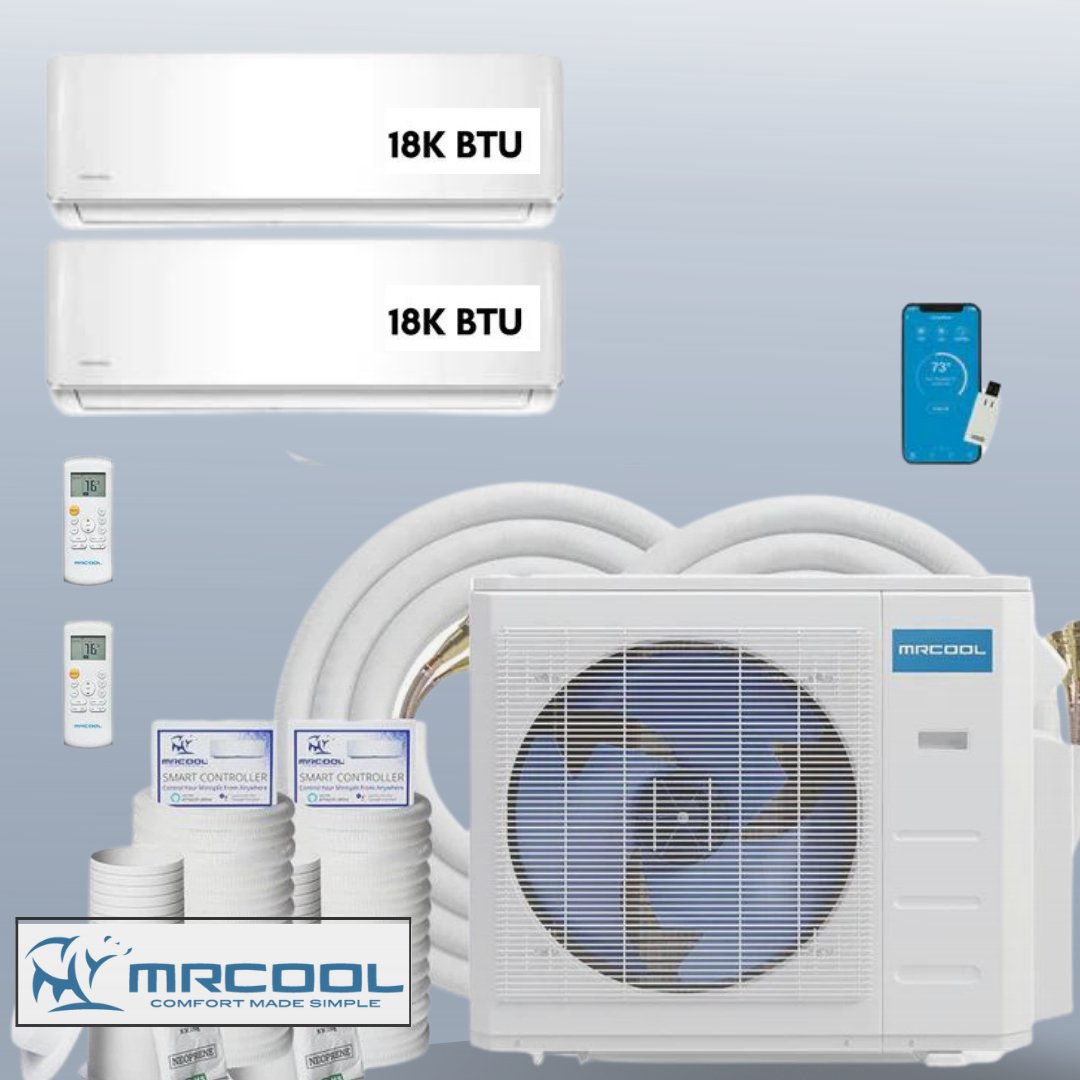

This 4th Generation MRCOOL Mini Split includes a DIY 36,000 BTU Multi-Zone Condenser, two 18,000 BTU Wall Mounted Air Handler and two Remotes. The best part about all of this is that you can install it yourself!

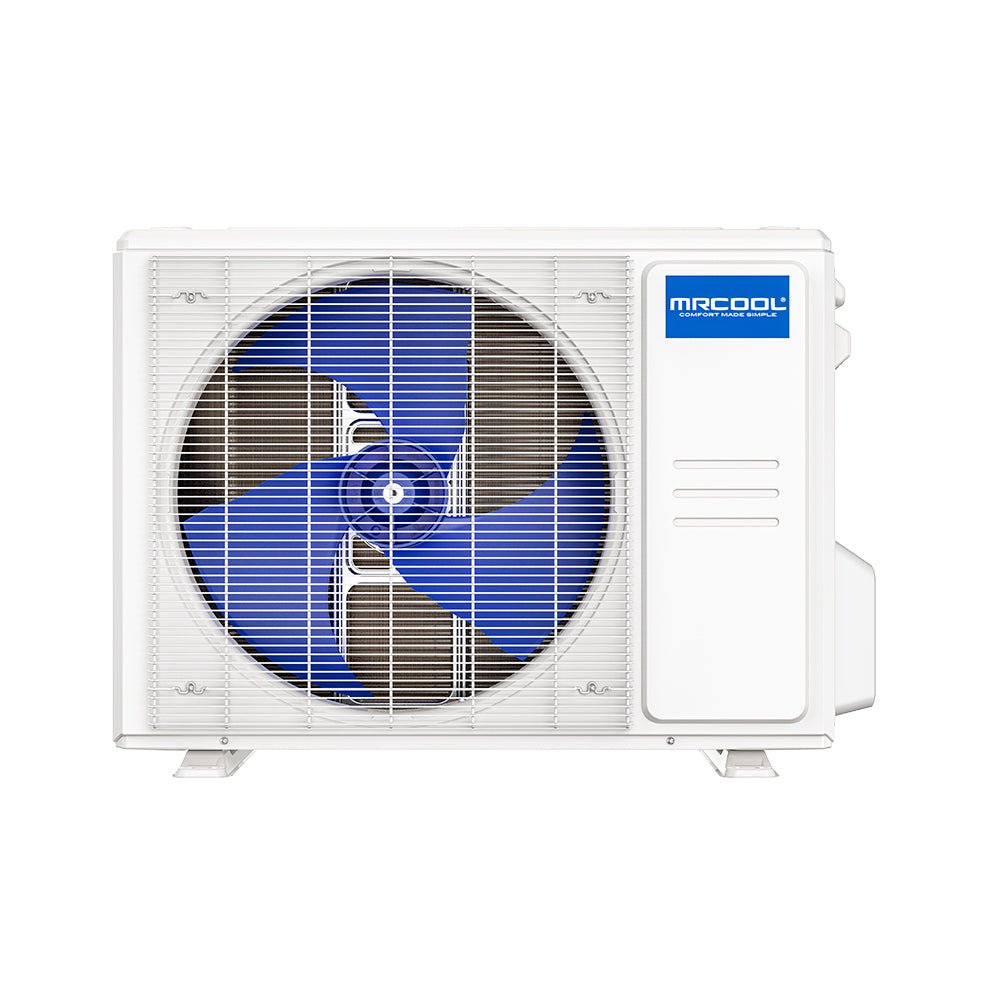

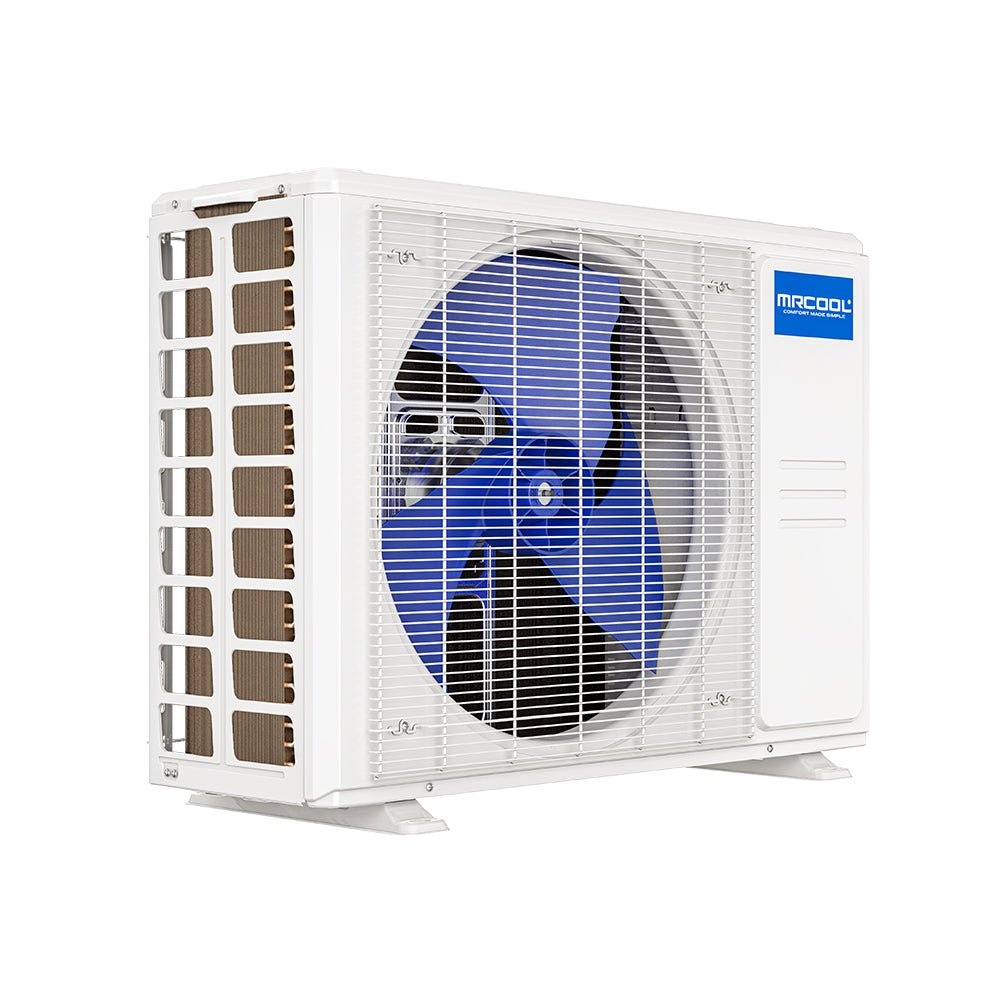

Condenser

• Energy Efficient. This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.
• Works In All Environments. The capability to continue to deliver heating performance when temperatures reach -13°F
• Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

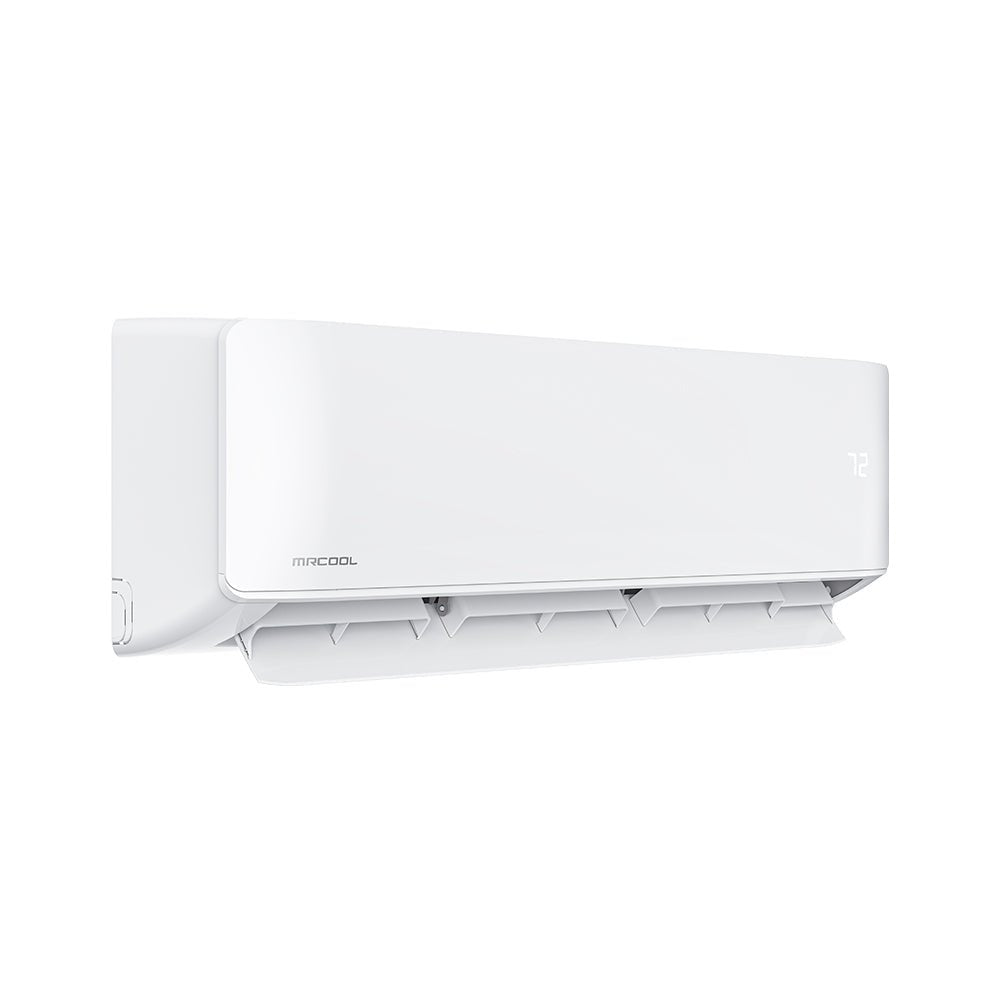

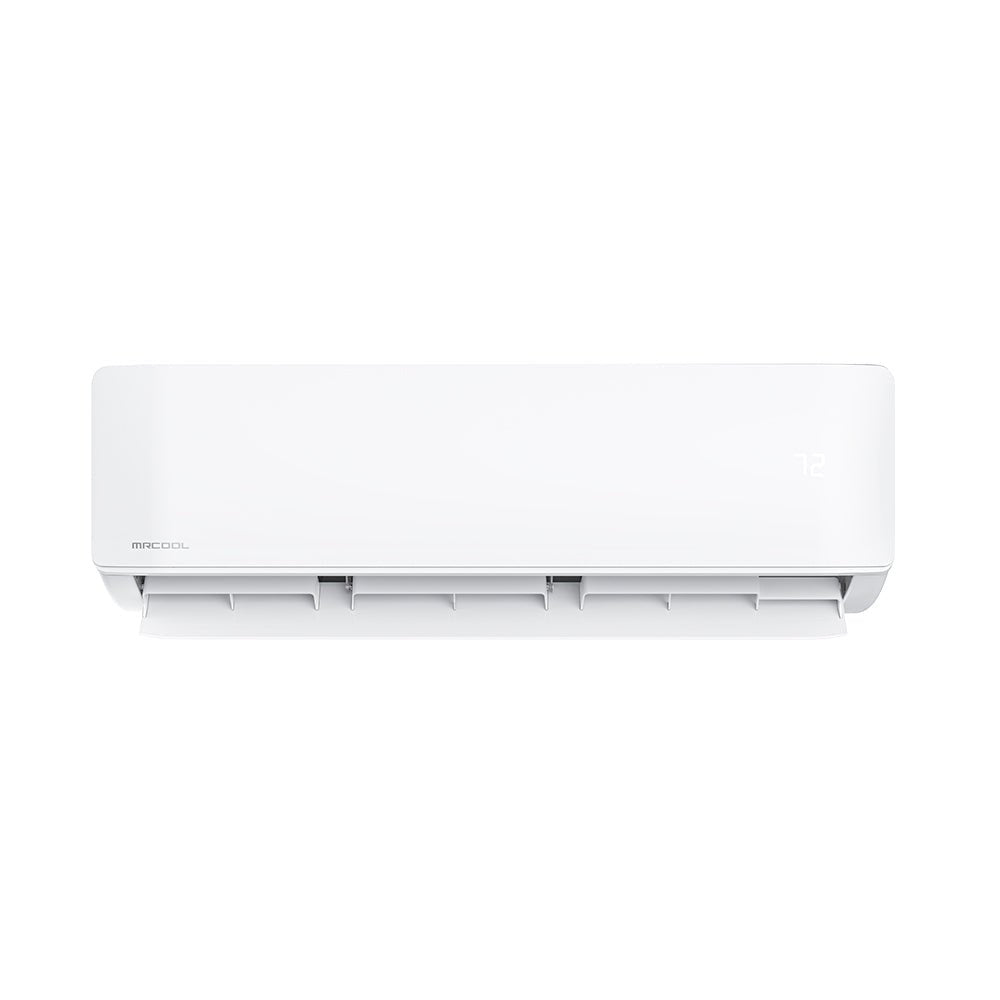

Air Handler, 18K BTU, Quantity 2

• Large Coverage Area. Handler covers an area up to 750 sq. ft.
• Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
• Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
• Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

SPECIFICATIONS AND DIMENSIONS

Condenser

Air Handler 18K BTU

MRCOOL DIY Mini Split 36,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump DIY-B-336HP090918

COVERAGE AREA:

Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.

Square Feet: 180-375 | BTU = 9K
Square Feet: 376-500 | BTU = 12K
Square Feet: 501-750 | BTU = 18K
Square Feet: 751-1,000 | BTU = 24K
Square Feet: 1,001-1,500 | BTU = 36K

Some additional factors may impact performance such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.
