MRCOOL DIY 24000 BTU 2-Zone Ceiling Cassette Mini Split Heat Pump DIY-BC-227HP1212
MRCOOL DIY 24000 BTU 2-Zone Ceiling Cassette Mini Split Heat Pump DIY-BC-227HP1212
The MRCOOL DIY 24,000 BTU 2-Zone Ceiling Cassette Mini Split Heat Pump is a high-efficiency, ductless heating and cooling system, perfect for multi-room climate control. Designed with MRCOOL’s DIY Quick Connect® technology, this system allows easy installation without an HVAC technician, saving you money and time.
With WiFi-enabled smart controls, Energy Star-certified performance, and pre-charged R-410A refrigerant, this 2-zone system ensures consistent, energy-efficient temperature regulation across multiple spaces. Ideal for homes, offices, and light commercial applications.
📌 Explore more in our collection:
Key Features & Benefits
🌡️ Efficient Heating & Cooling for Multiple Zones
✔ MRCOOL 24,000 BTU DIY Mini Split Heat Pump – Covers two rooms effortlessly
✔ Dual-Zone System (12,000 BTU per zone) – Provides customized comfort
✔ Energy Star-Certified – Ensures low energy costs & high efficiency
🔧 DIY Installation & Smart Technology
✔ DIY Quick Connect® Pre-Charged Line Set – No professional installation required
✔ WiFi-Enabled Smart Controls – Compatible with Alexa, Google Assistant & MRCOOL Smart App
✔ Auto-Restart, Timer & Sleep Mode – Ensures energy efficiency & convenience
🌬️ Advanced Airflow & Indoor Air Quality
✔ Ceiling Cassette Design – Provides discreet, space-saving installation
✔ Humidity Control Mode – Maintains optimal indoor air quality
✔ Auto-Swing Louvers & Multi-Zone Cooling – Offers even air distribution
🏡 Sleek, Durable & Reliable Performance
✔ Whisper-Quiet Operation – Perfect for bedrooms, offices & quiet spaces
✔ MRCOOL DIY-BC-227HP1212 – Designed for long-lasting climate control
✔ 10-Year Limited Warranty – Ensures peace of mind & reliability
Model: C
MR COOL Specifications Sheet Click below:
Installation Manual
Brochure
Warranty
Wired Thermostat Manual
AHRI Certificate
Product Overview:
- Covers 1000 sq. ft.
- DIY Installation
- Covers 1000 sq. ft.
- Ceiling Mounted
- Number of Zones: 2
- Voltage: 208 to 230
- Outdoor Operating Temp (Cool): 5°F to 122°F
- Outdoor Operating Temp (Heat): -13°F to 75.2°F
PRODUCT DESCRIPTION:

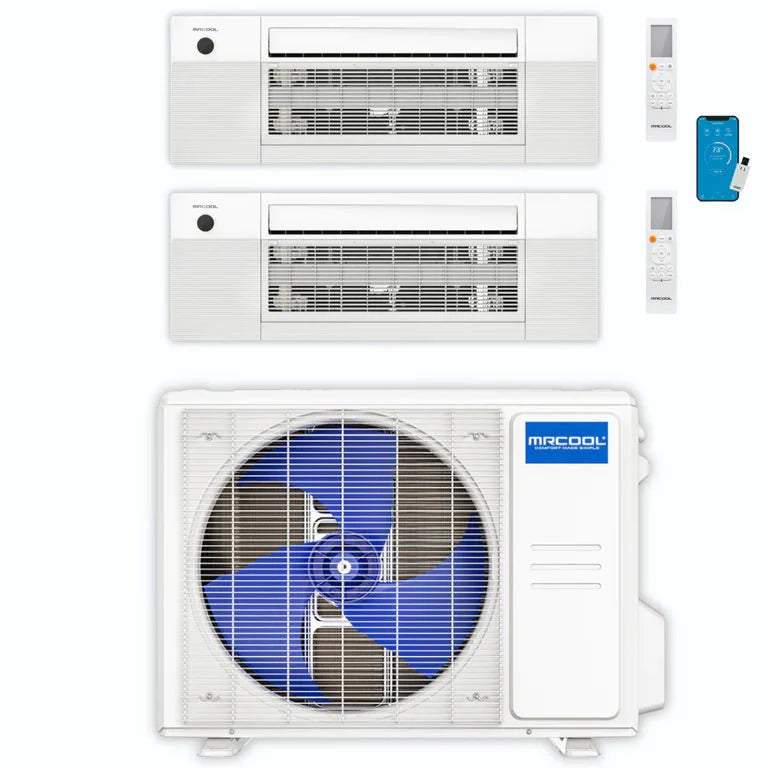

This 4th Generation MRCOOL Mini Split includes a DIY 27,000 BTU Multi-Zone Condenser, two 12,000 BTU Ceiling Cassette Air Handlers, and two Remotes. The best part about all of this is that you can install it yourself!
This package does not include linesets, don't forget to scroll up and add them!

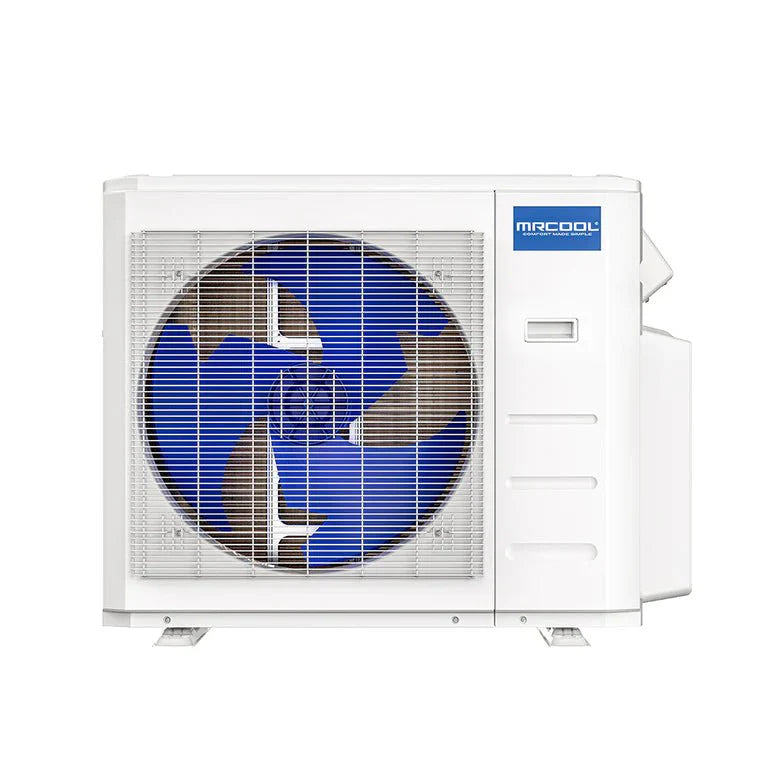

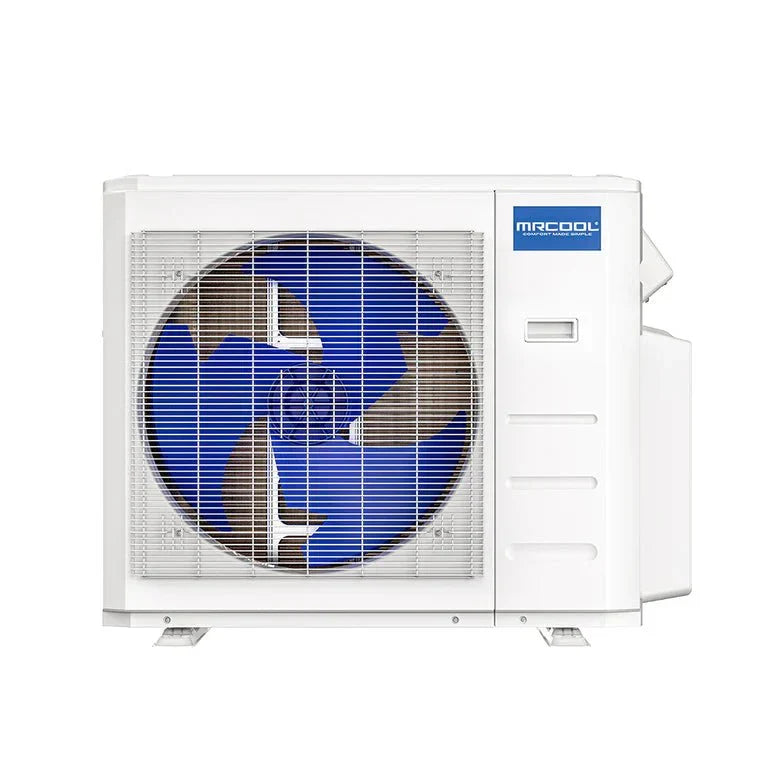

Condenser
- Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
- Works In All Environments. The capability to continue to deliver heating performance when temperatures reach -13°F
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

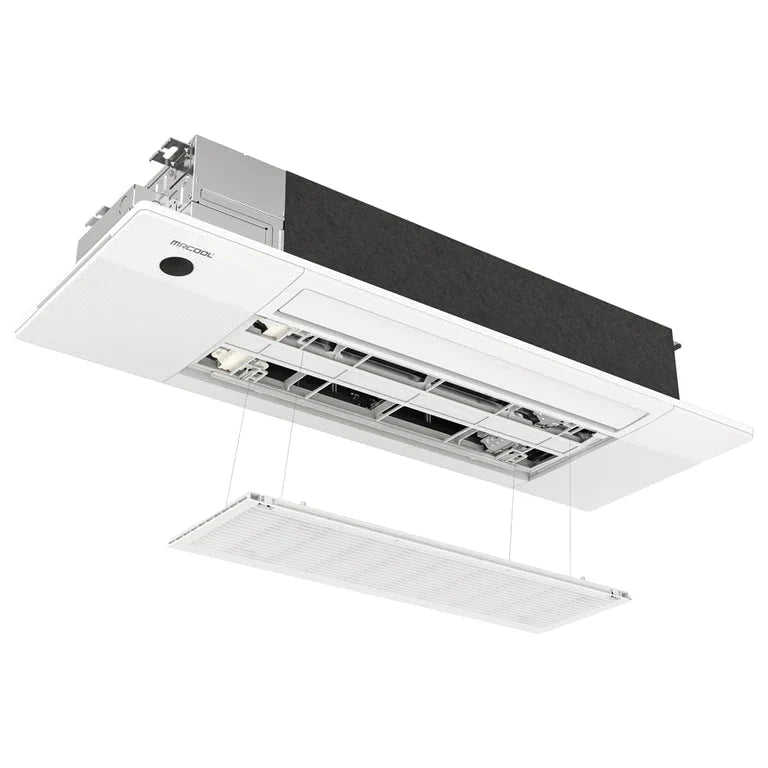

Air Handler, 12K BTU, Quantity 2
- Large Coverage Area. Handler covers an area up to 500 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Out of Sight Design. This unit has low profile installation for out of sight heating & cooling.
- Worry-Free Installation. Easily install between all types of joists on 16" center - including pre-manufactured I-joists
- Easy Air Filter Access. By activating the Elevation function on the remote controller (or smart controller), the filter panel will lower for easy air filter maintenance.
SPECIFICATIONS AND DIMENSIONS:
Condenser
| Product Dimensions | 37.24"W x 16.14"D x 31.89"H |
| Cooling Capacity | 27,000 BTU |
| Heating Capacity | 27,000 BTU |
| Zone Capacity | 3 |
| Cool Mode - Outdoor Operating Temperature Range | 5F ~ 122F |
| Heat Mode - Outdoor Operating Temperature Range | -13F ~ 75.2F |
| SEER | 22 |
| EER | 12 |
| Voltage | Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase) |
| Registered Warranty | 7 Years Replacement on Condenser, 5 Years Parts |
Air Handler 12K BTU
| Product Dimensions | 50.31"W x 13.19"D x 8.98"H |
| Mount Type | Ceiling Cassette |
| Cooling Capacity | 12,000 BTU |
| Heating Capacity |
12,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes |
Auto - Auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
COVERAGE AREA:
Please refer to this coverage chart to determine how many BTUs are required for the area you would like to cool or heat.
Square Feet: 180-375 | BTU = 9K
Square Feet: 376-500 | BTU = 12K
Square Feet: 501-750 | BTU = 18K
Square Feet: 751-1,000 | BTU = 24K
Square Feet: 1,001-1,500 | BTU = 36K
Some additional factors may impact performance, such as insulation, ceiling height and the number of appliances in the room. For assistance, contact our Sales Team.
