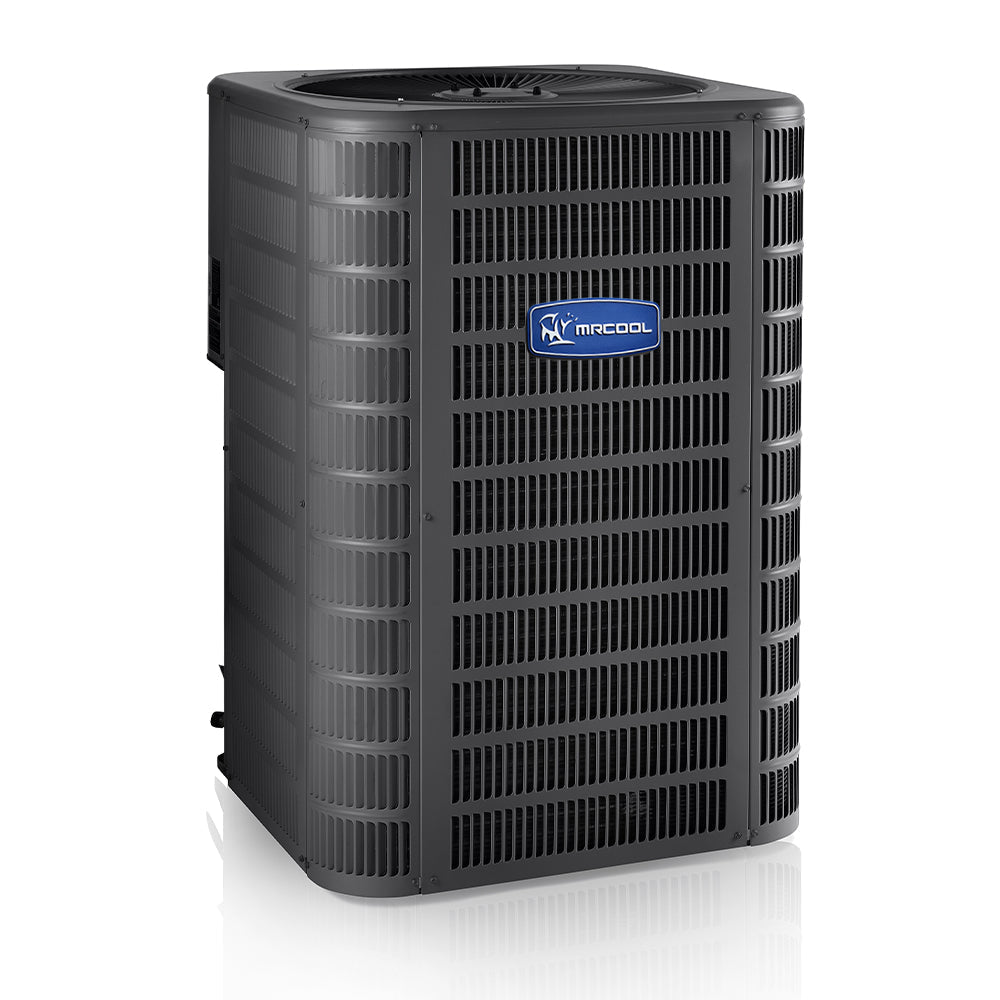

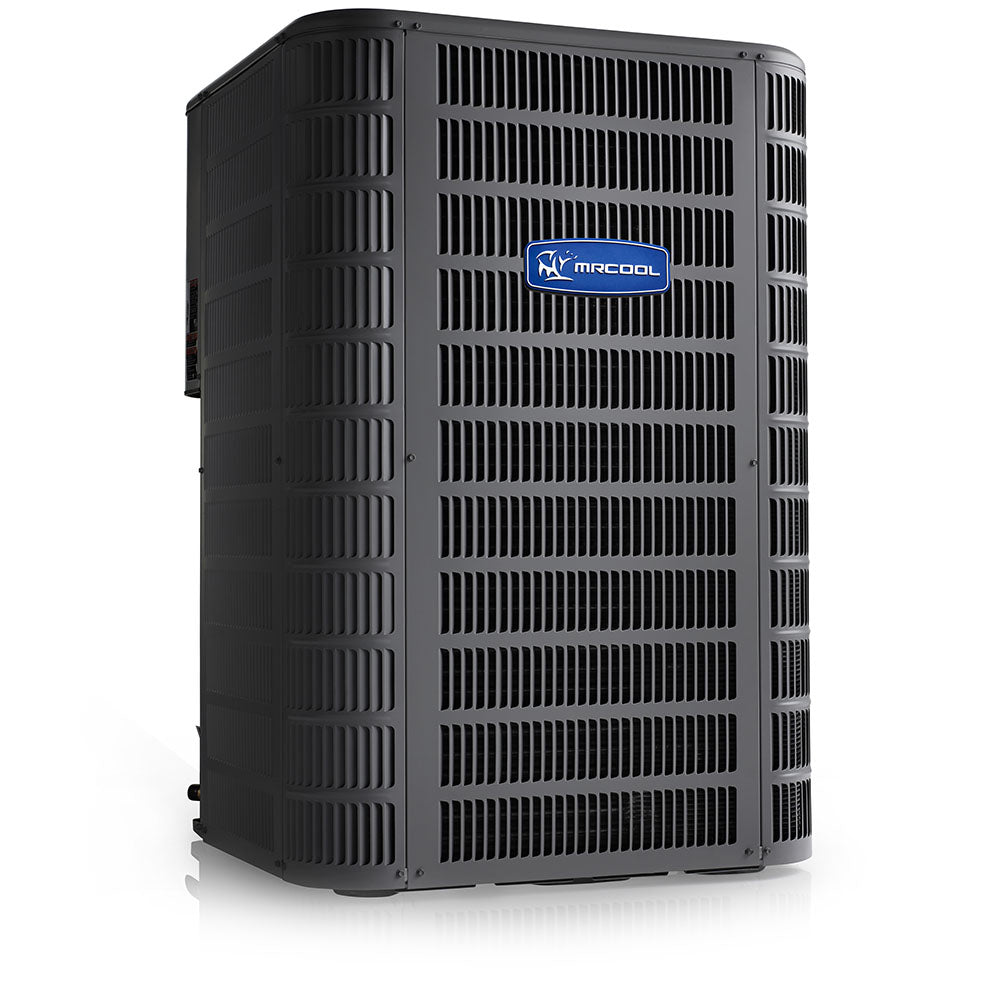

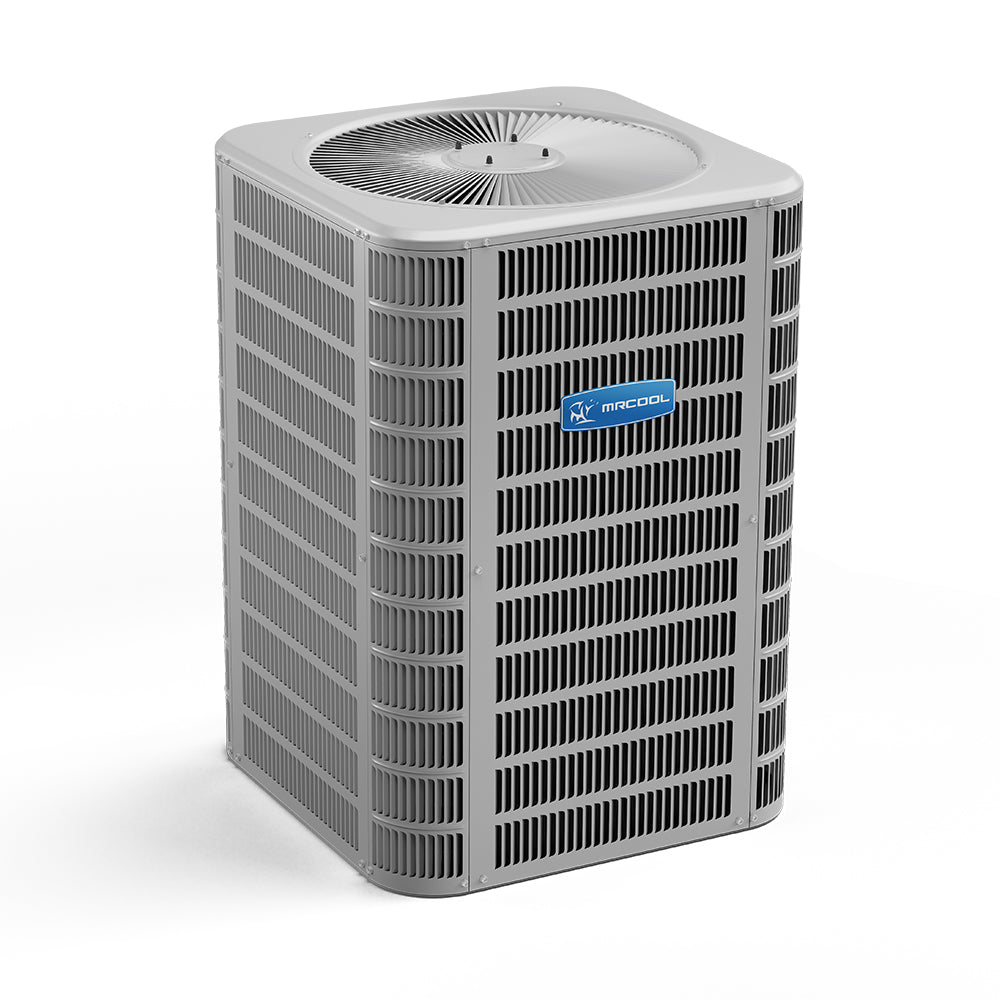

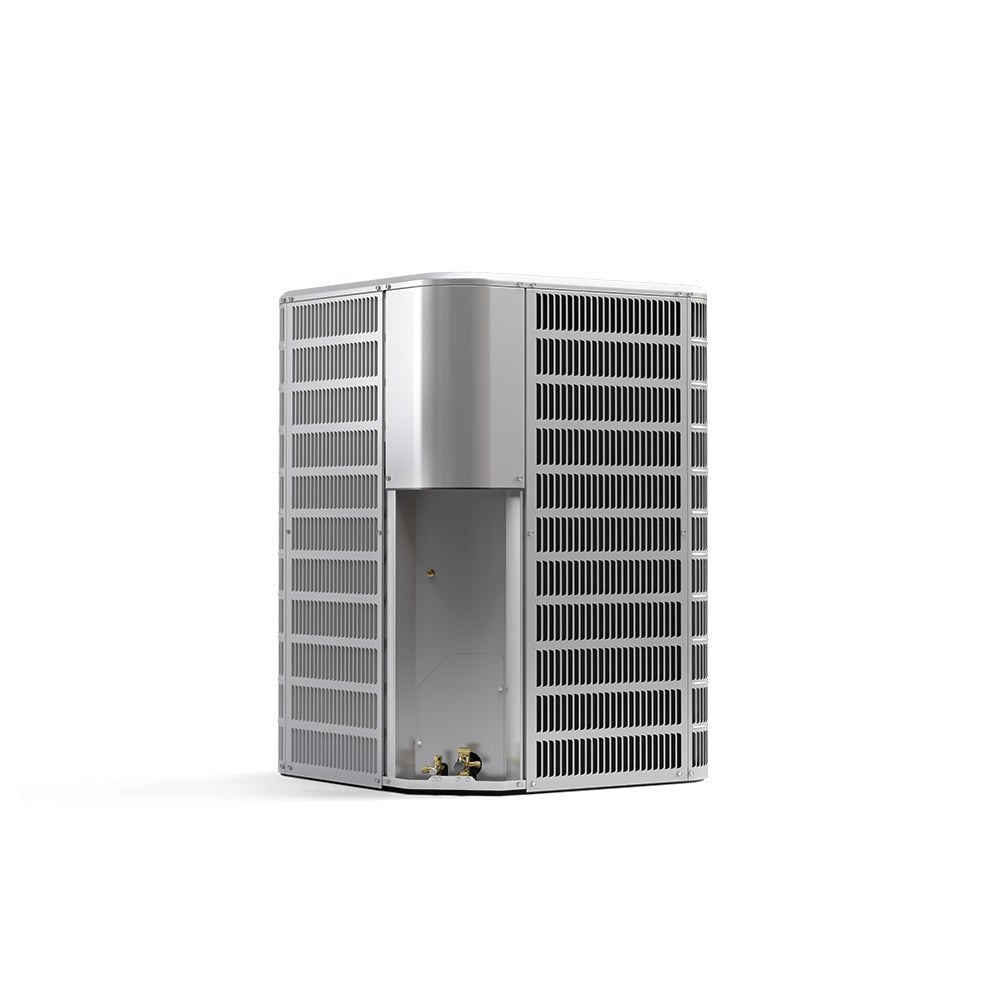

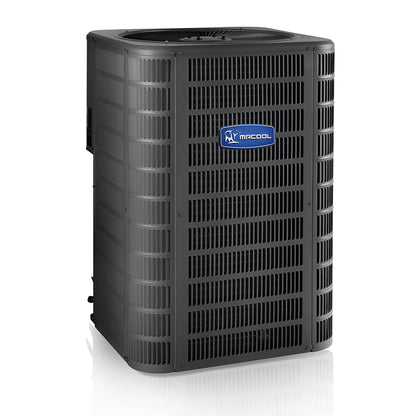

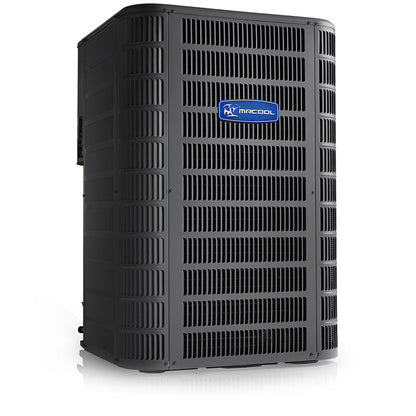

MRCOOL A/C Condenser 4 Ton 16 SEER R410A 48,000 BTU 208-230V/1Ph/60Hz
MRCOOL A/C Condenser 4 Ton 16 SEER R410A 48,000 BTU 208-230V/1Ph/60Hz
Stay cool and save money with the MRCOOL 4 Ton Split System A/C Condenser. This 208-230 volt condenser, when paired with other MRCOOL products, promises a seasonal energy efficiency rating of up to 16 SEER. Beat the heat with its powerful cooling and enjoy lower utility bills year after year. Please note, this is not a heat pump.
- CoolGuard total corrosion protection technology designed coil
- Corner-mounted controls for easy service
- Full metal louvered construction to protect the coil/ hail protection
- Factory installed high pressure switch
- Thread-on pressure switches for simple, quick replacement
- 10 year limited warranty on compressor
- Charged for 15 feet of line set
- Fan orifice for smoother airflow and sound level reduction
- Lanced fins for maximum heat transfer
- Every coil factory tested for leak proof construction
- All units ETL and ETLC approved and AHRI Certified
- Internally protected against high temperature motor overload conditions
|
SEER |
up to 16 |
|
MAX SEER |
16 |
|
EER |
11.7 |
|
CFM |
1500-1600 |
|
TONNAGE |
4 |
|
COOLING CAPACITY (BTU) |
46500-47500 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
STAGE |
Single |
|
MAX FUSE BREAKER (A) |
40 |
|
MIN CIRCUIT AMPACITY (A) |
24.2 |
|
COLOR |
Gray |
|
COLOR FAMILY |
Gray |
|
RATED LOAD |
18 |
|
MAX COVERAGE AREA |
2000 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME (OZ) |
156 |
|
DECIBEL RATING (DBA) |
78 |
|
INVERTER |
No |
|
MIN AMBIENT HEAT (F) |
-20 |
|
LINESET INCLUDED |
No |
|
LINE SET LENGTH |
15, 25, 35, 50 |
|
MAX LINESET LENGTH (FT) |
50 |
|
LINESET FITTING TYPE |
Sweat |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
7/8 |
|
COMPRESSOR MOTOR TYPE |
Scroll |
|
CONDENSER FAN MOTOR TYPE |
Direct Drive |
|
CONDENSER FAN MOTOR HP |
1/4 |
|
CONDENSER FAN MOTOR RPM |
825 |
|
METERING DEVICE |
TXV |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
7.5kw, 10kw, 15kw, 20kw |
|
UL RECOGNIZED |
No |
|
UL LISTED |
No |
|
ETL LISTED |
Yes |
|
ETL CERTIFIED |
No |
|
LEED CERTIFIED |
No |
|
ENERGY STAR COMPLIANT |
No |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
10 year registered parts warranty |
|
BASE WARRANTY |
Standard 5 year limited parts warranty |
|
REGISTERED PARTS WARRANTY |
Registered 10 Year Parts Warranty |
|
BASE PARTS WARRANTY |
5 Year Parts Warranty |
|
HAS BATTERIES |
No |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
RESTRICTED STATES |
No |
|
NET DEPTH (IN) |
37.00 |
|
NET HEIGHT (IN) |
28.25 |
|
NET WIDTH (IN) |
28.25 |
|
NET WEIGHT (LBS) |
218.00 |
|
GROSS DEPTH (IN) |
31.00 |
|
GROSS HEIGHT (IN) |
37.50 |
|
GROSS WIDTH (IN) |
30.50 |
