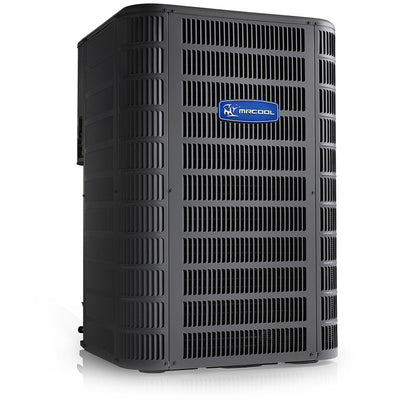

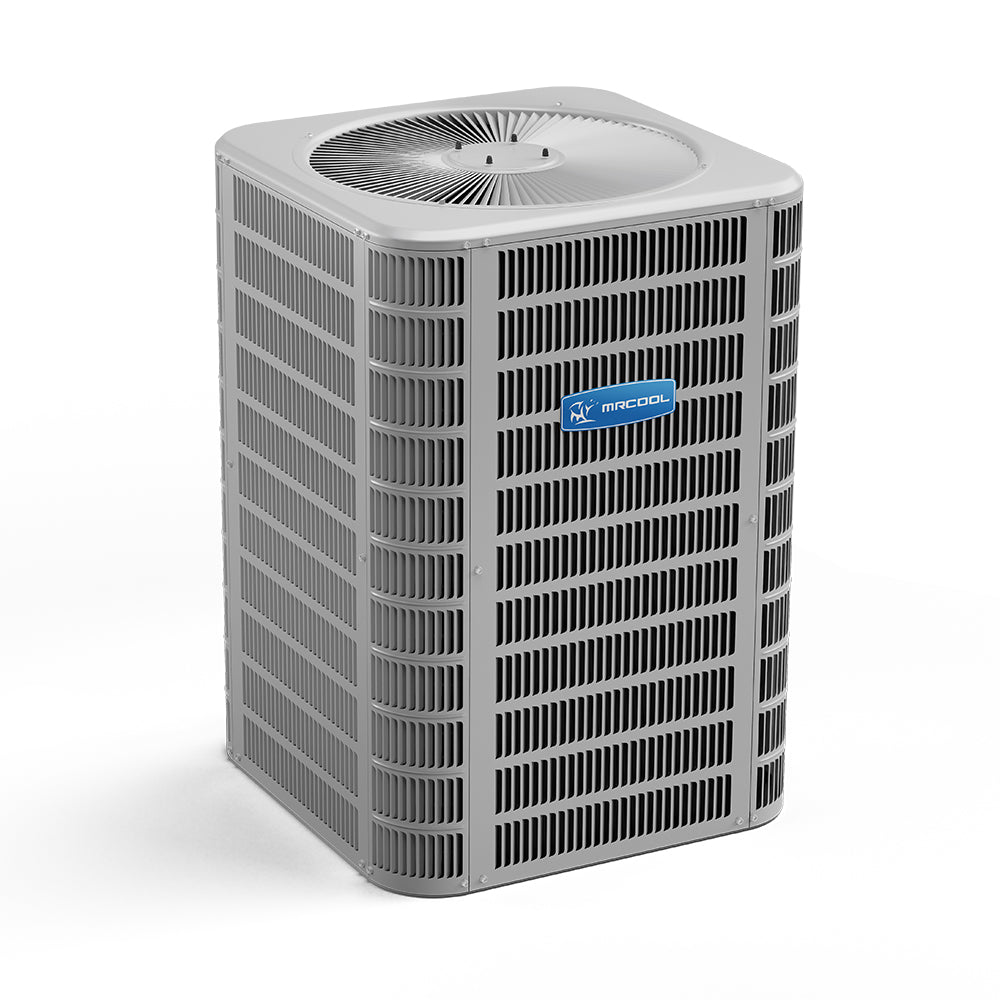

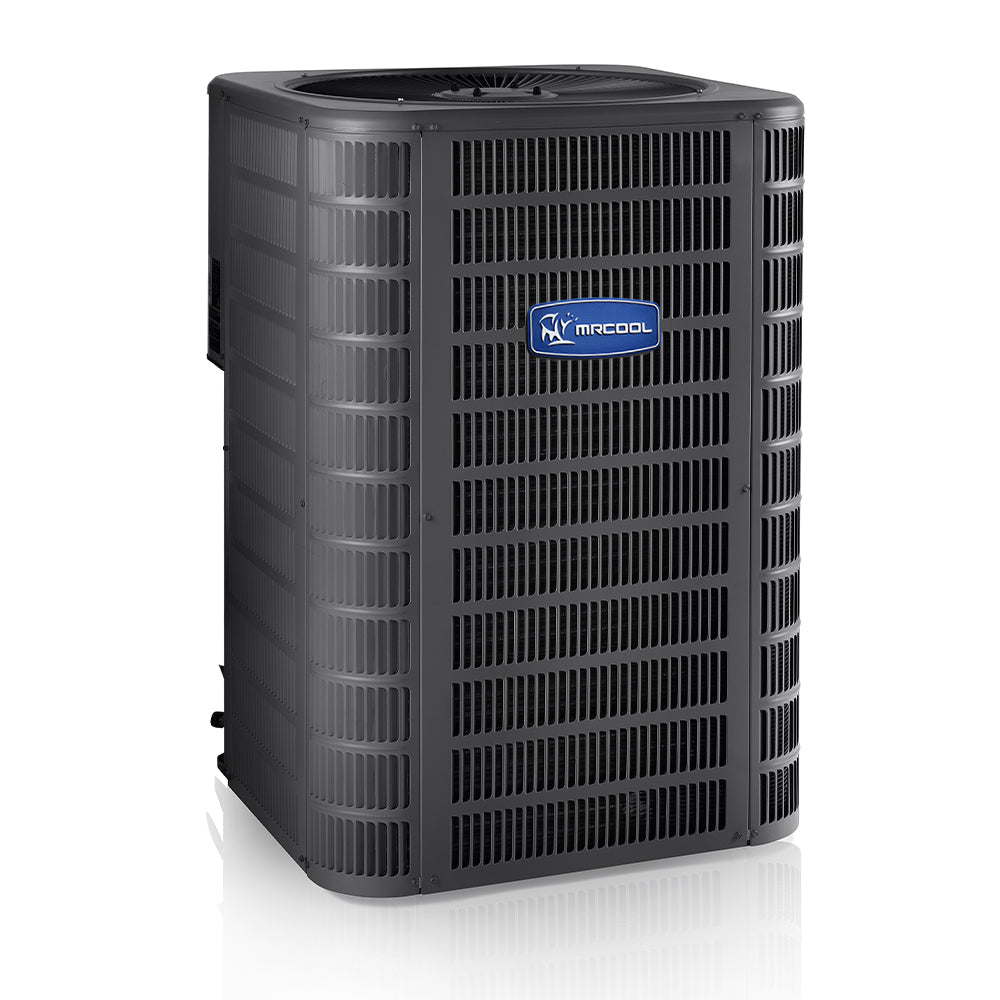

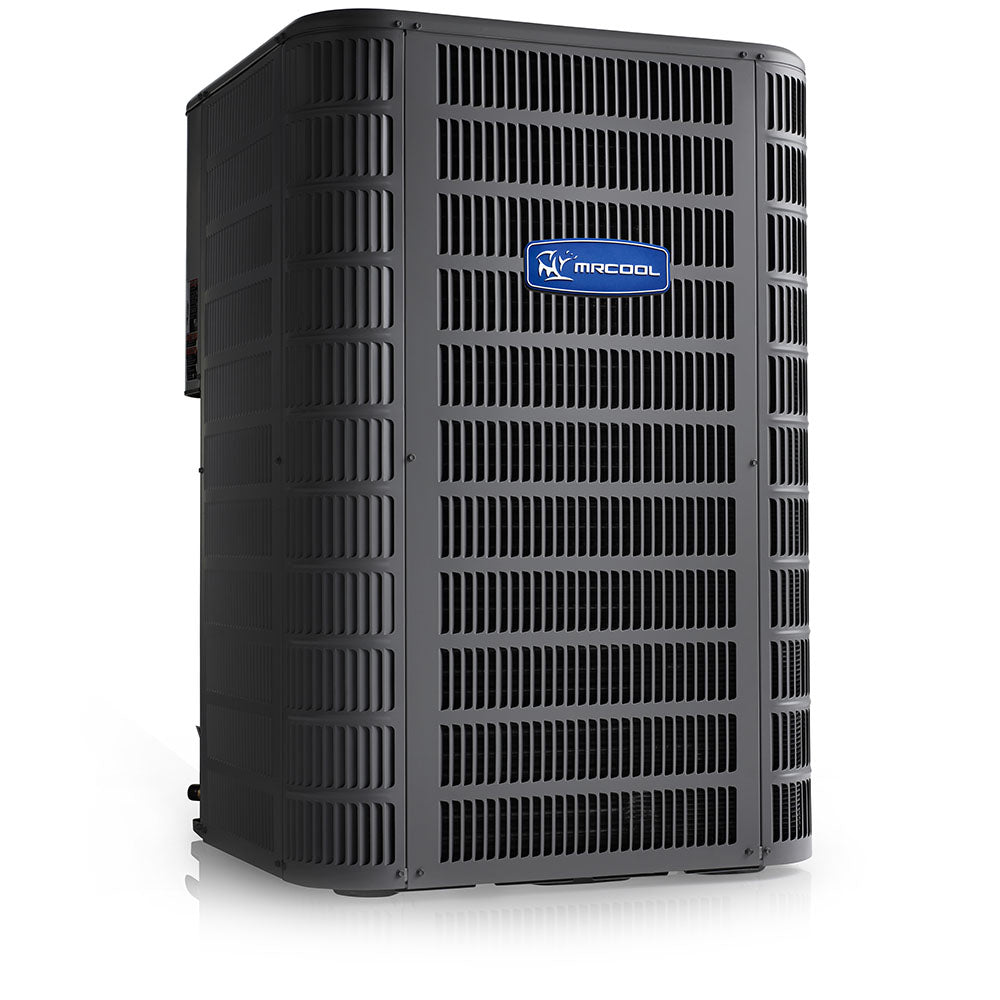

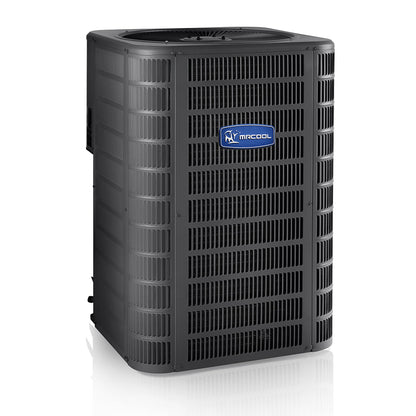

MRCOOL A/C Condenser 1.5 Ton 16 SEER R410A 18,000 BTU 208-230V/1Ph/60Hz
MRCOOL A/C Condenser 1.5 Ton 16 SEER R410A 18,000 BTU 208-230V/1Ph/60Hz
Upgrade your cooling system with the MRCOOL A/C Condenser. This 1.5 ton, 208-230 volt, R410-A refrigerant condenser has a high SEER rating of up to 16, ensuring maximum comfort and energy efficiency. Say goodbye to high utility bills and hello to quick cooling relief. *This unit only provides "cooling" (not a heat pump).*
- CoolGuard total corrosion protection technology designed coil

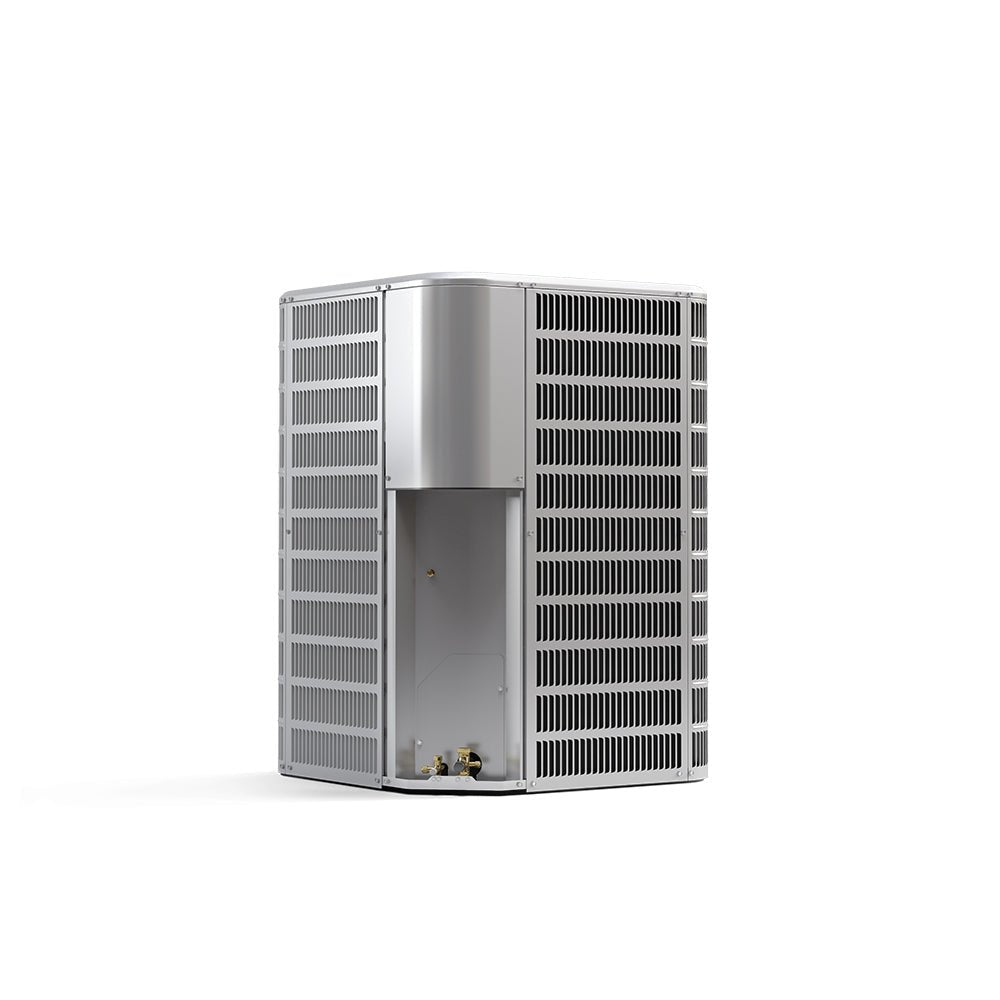

- Corner-mounted controls for easy service
- Full metal louvered construction to protect the coil/ hail protection
- Factory installed high pressure switch
- Thread-on pressure switches for simple, quick replacement
- 10 year limited warranty on compressor
- Charged for 15 feet of line set
- Fan orifice for smoother airflow and sound level reduction
- Lanced fins for maximum heat transfer
- Every coil factory tested for leak proof construction
- All units ETL and ETLC approved and AHRI Certified
- Internally protected against high temperature motor overload conditions
|
SEER |
up to 16 |
|
MAX SEER |
16 |
|
EER |
12.2 |
|
CFM |
600-650 |
|
TONNAGE |
1.5 |
|
COOLING CAPACITY (BTU) |
18000 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
STAGE |
Single |
|
MAX FUSE BREAKER (A) |
20 |
|
MIN CIRCUIT AMPACITY (A) |
11.9 |
|
COLOR |
Gray |
|
COLOR FAMILY |
Gray |
|
RATED LOAD |
9 |
|
MAX COVERAGE AREA |
750 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME (OZ) |
73 |
|
DECIBEL RATING (DBA) |
73 |
|
INVERTER |
No |
|
MIN AMBIENT HEAT (F) |
-20 |
|
LINESET INCLUDED |
No |
|
LINE SET LENGTH |
15, 25, 35, 50 |
|
MAX LINESET LENGTH (FT) |
50 |
|
LINESET FITTING TYPE |
Sweat |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
COMPRESSOR MOTOR TYPE |
Scroll |
|
CONDENSER FAN MOTOR TYPE |
Direct Drive |
|
CONDENSER FAN MOTOR HP |
1/10 |
|
CONDENSER FAN MOTOR RPM |
1075 |
|
METERING DEVICE |
TXV |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
7.5kw |
|
UL RECOGNIZED |
No |
|
UL LISTED |
No |
|
ETL LISTED |
Yes |
|
ETL CERTIFIED |
No |
|
LEED CERTIFIED |
No |
|
ENERGY STAR COMPLIANT |
No |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
10 year registered parts warranty |
|
BASE WARRANTY |
Standard 5 year limited parts warranty |
|
REGISTERED PARTS WARRANTY |
Registered 10 Year Parts Warranty |
|
BASE PARTS WARRANTY |
5 Year Parts Warranty |
|
HAS BATTERIES |
No |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
RESTRICTED STATES |
No |
|
NET DEPTH (IN) |
29.00 |
|
NET HEIGHT (IN) |
24.25 |
|
NET WIDTH (IN) |
24.25 |
|
NET WEIGHT (LBS) |
134.00 |
|
GROSS DEPTH (IN) |
27.00 |
|
GROSS HEIGHT (IN) |
29.50 |
|
GROSS WIDTH (IN) |
26.50 |
