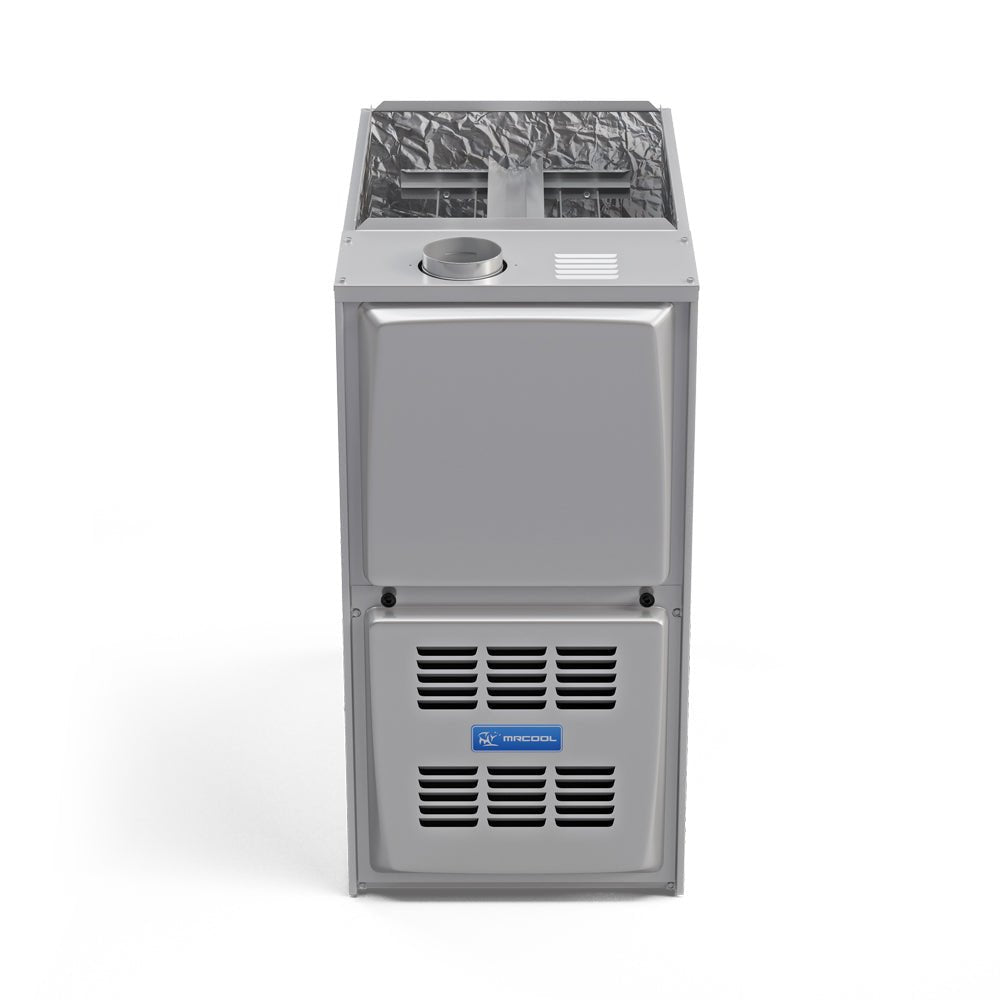

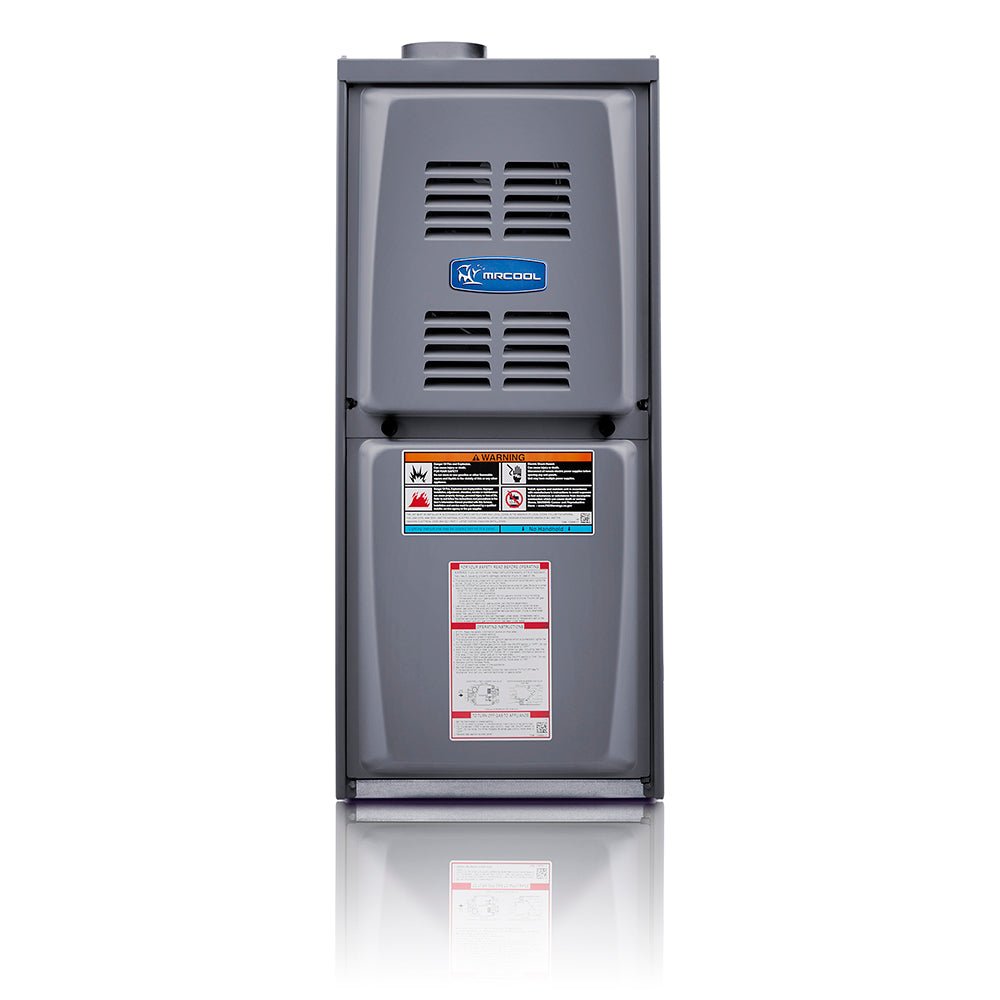

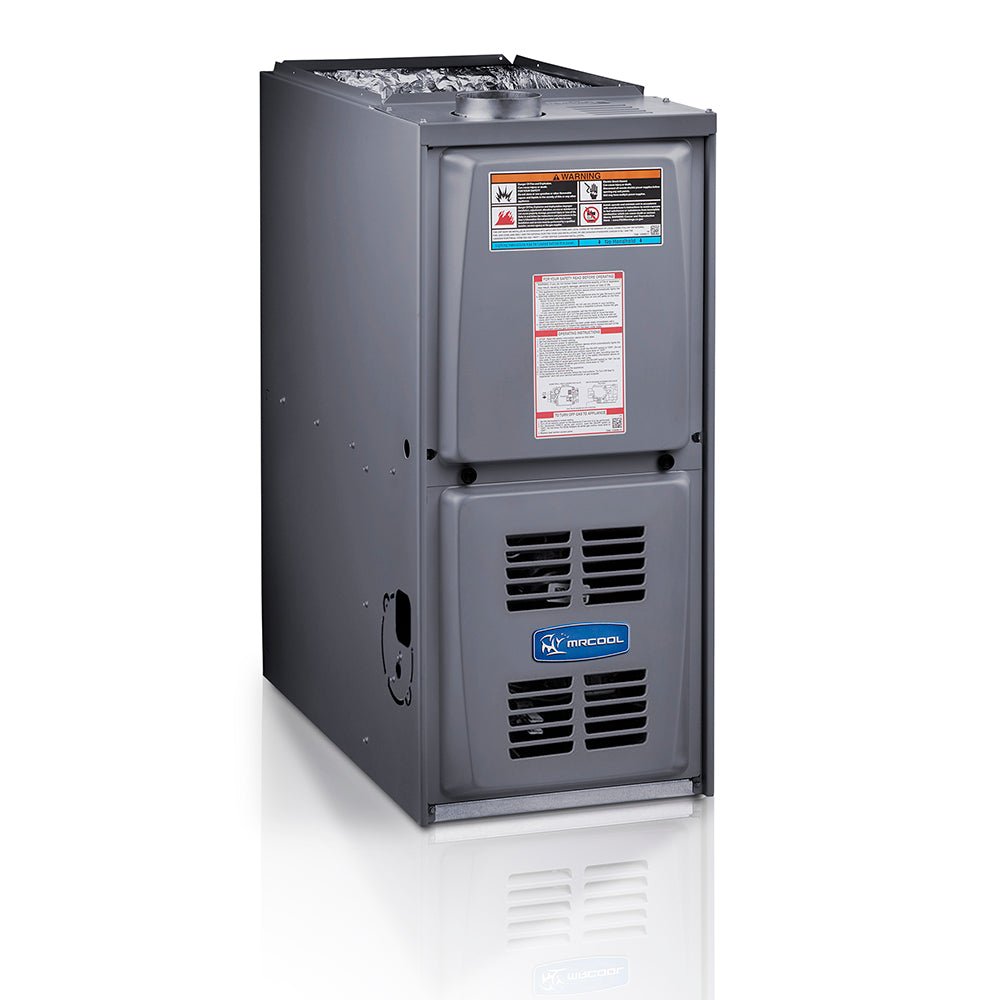

MRCOOL 80% AFUE 90K BTU 1600 CFM Downflow Single-Stage Multi-Speed ECM Motor Furnace with 17.5" Cabinet

MRCOOL 80% AFUE 90K BTU 1600 CFM Downflow Single-Stage Multi-Speed ECM Motor Furnace with 17.5" Cabinet

$1,304.00 USD
$1,304.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Stay warm and safe during harsh winter weather with MRCOOL's powerful, reliable gas furnace. Designed for down flow installation, this single stage furnace boasts an impressive 80% AFUE energy efficiency rating - meaning 80% of every dollar spent on heating fuel goes towards keeping you warm. Stay cozy and save money with this top-of-the-line furnace.

  • Easily removable slide out blower design
  • Registered 10-year parts warranty
  • Rotatable draft inducer for venting flexibility
  • Downflow furnace
  • Heating efficiency of 80% AFUE
  • AHRI Certified
  • LP kit not included
  • Aluminized steel tapered crimped non-welded clam shell heat exchanger design
  • Compact 33" height
  • Left or right utility connections
  • Multi-speed high efficiency (constant torque) blower motor
  • Zero step horizontal conversion

AFUE

80%

CFM

1570

TONNAGE

4

HEATING CAPACITY (BTU)

88,000

FUEL TYPE

Natural Gas

BTU INPUT

88000

BTU OUTPUT

70400

VOLTAGE (V)

120

PHASE

1

CYCLE

60

STAGE

Single

MAX FUSE BREAKER (A)

15

MIN CIRCUIT AMPACITY (A)

8.4

COLOR

Gray

COLOR FAMILY

Gray

FULL LOAD

8.4

NUMBER OF BURNERS

8

GAS CONNECTION SIZE

1/2

BLOWER MOTOR TYPE

ECM

BLOWER MOTOR HP

3/4

BLOWER MOTOR SPEEDS

5

BLOWER MOTOR RPM

945-1570

HEAT EXCHANGER TYPE

Aluminized steel

IGNITION TYPE

Silicon Nitride Ignitor

VENT CONNECTOR

4 inch

LP KIT INCLUDED

No

LP KIT AVAILABLE

Yes

CSA CERTIFIED

Yes

ISO CERTIFIED

No

ENERGY STAR COMPLIANT

No

ENERGY STAR CERTIFIED

No

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Registered 10 Year Parts Warranty

BASE WARRANTY

5 Year Parts Warranty

REGISTERED HEAT EXCHANGER WARRANTY

Registered 20 year Heat Exchanger Warranty

BASE HEAT EXCHANGER WARRANTY

20 year Heat Exchanger Warranty

HAS BATTERIES

No

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

No

CONTAINS AEROSOL

No

CONTAINS COMPRESSED GAS

No

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

Yes (California)

NET DEPTH (IN)

28.38

NET HEIGHT (IN)

33.00

NET WIDTH (IN)

17.50

NET WEIGHT (LBS)

140.00

GROSS WEIGHT (LBS)

140
