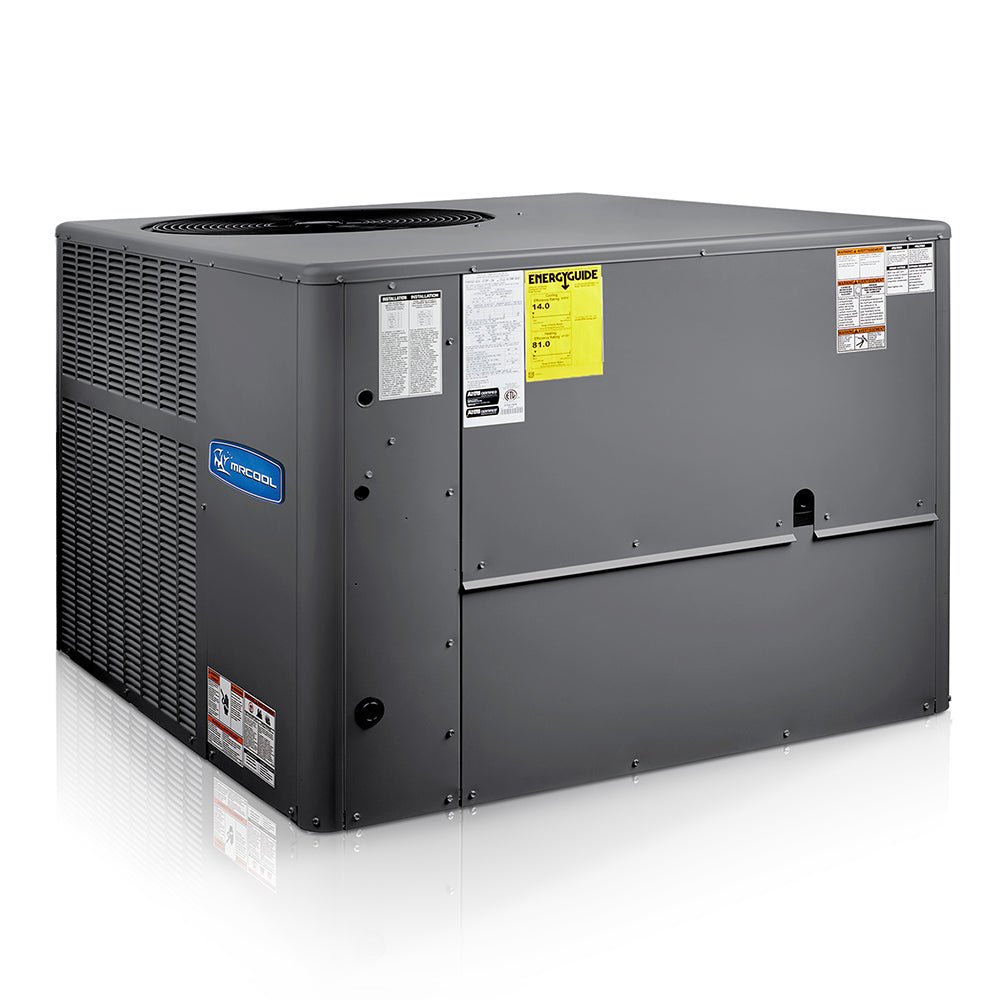

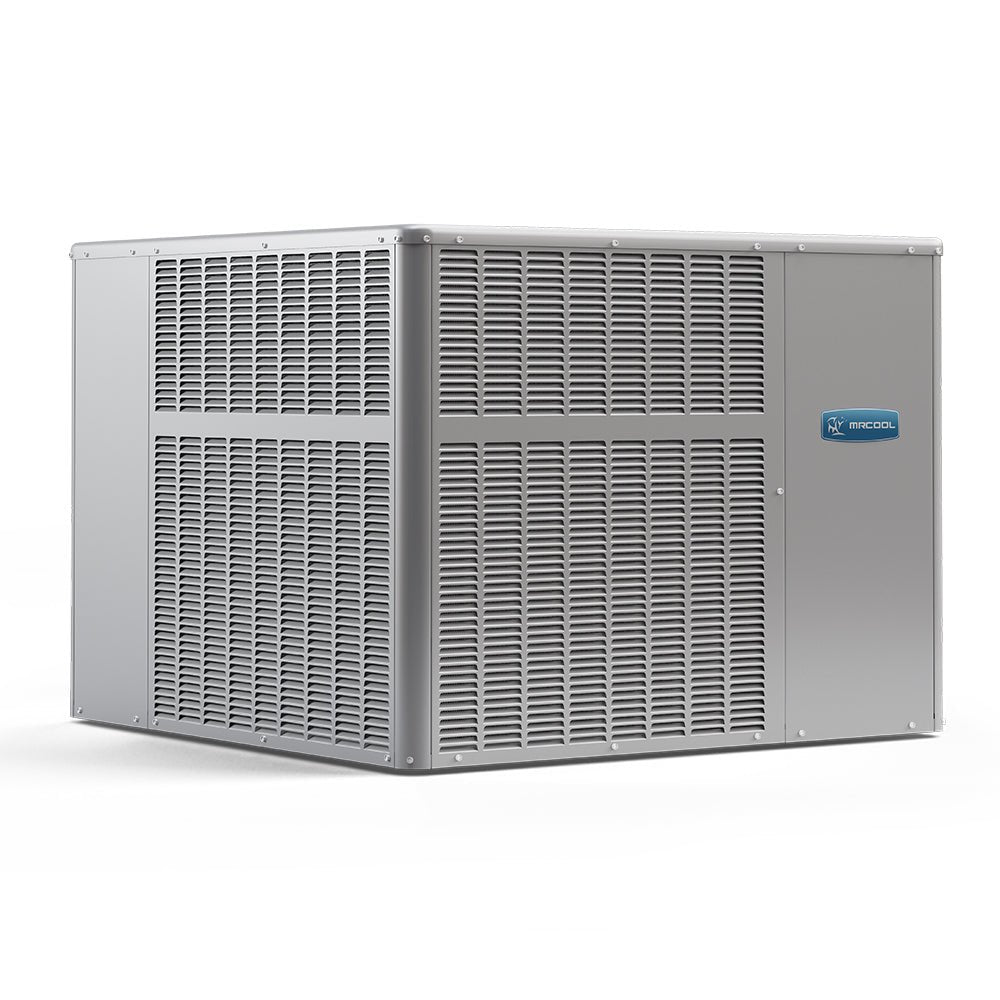

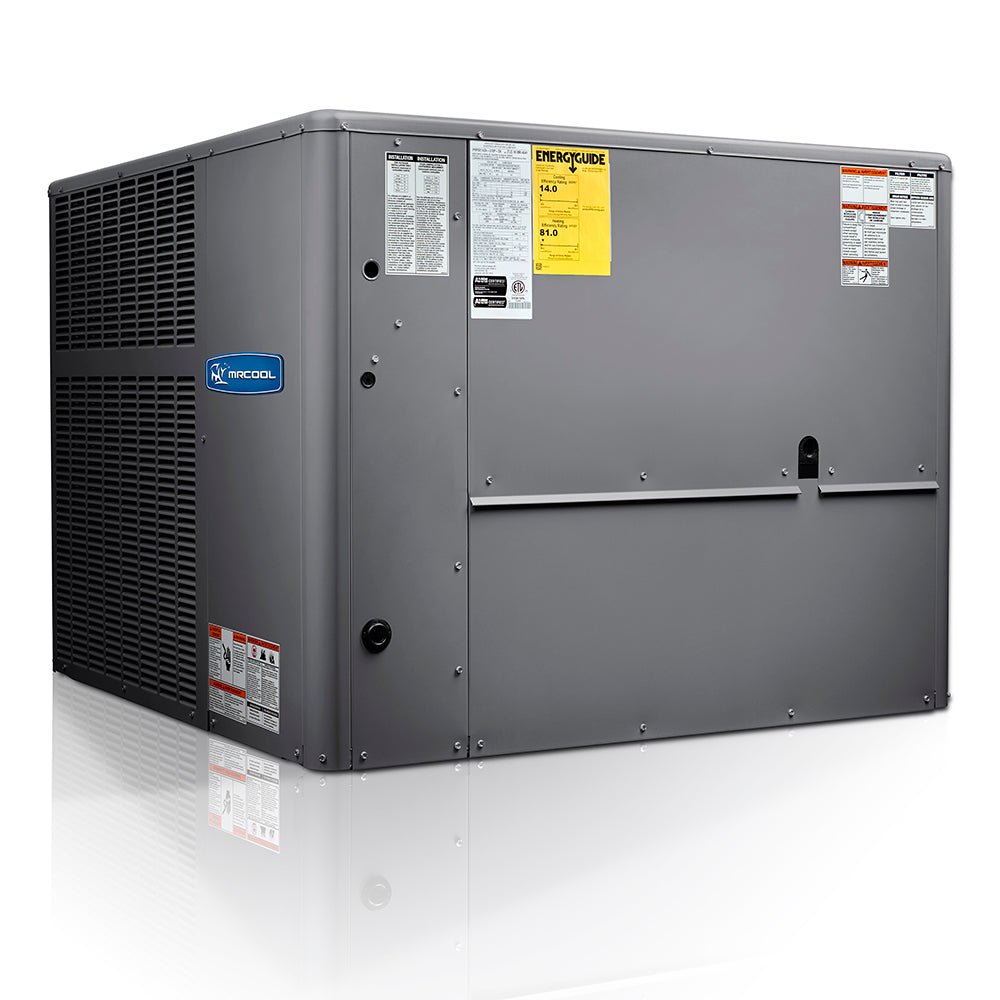

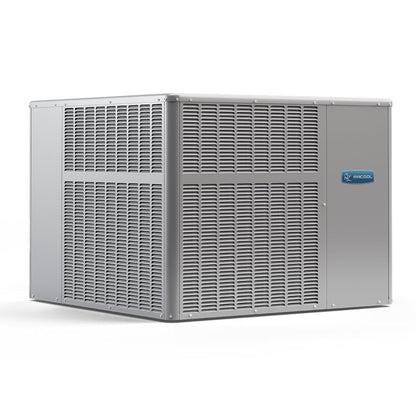

MrCOOL 2 Ton 14 SEER R-410A 60,000 BTU Heat Horizontal or Down Flow Package A/C and Gas
MrCOOL 2 Ton 14 SEER R-410A 60,000 BTU Heat Horizontal or Down Flow Package A/C and Gas

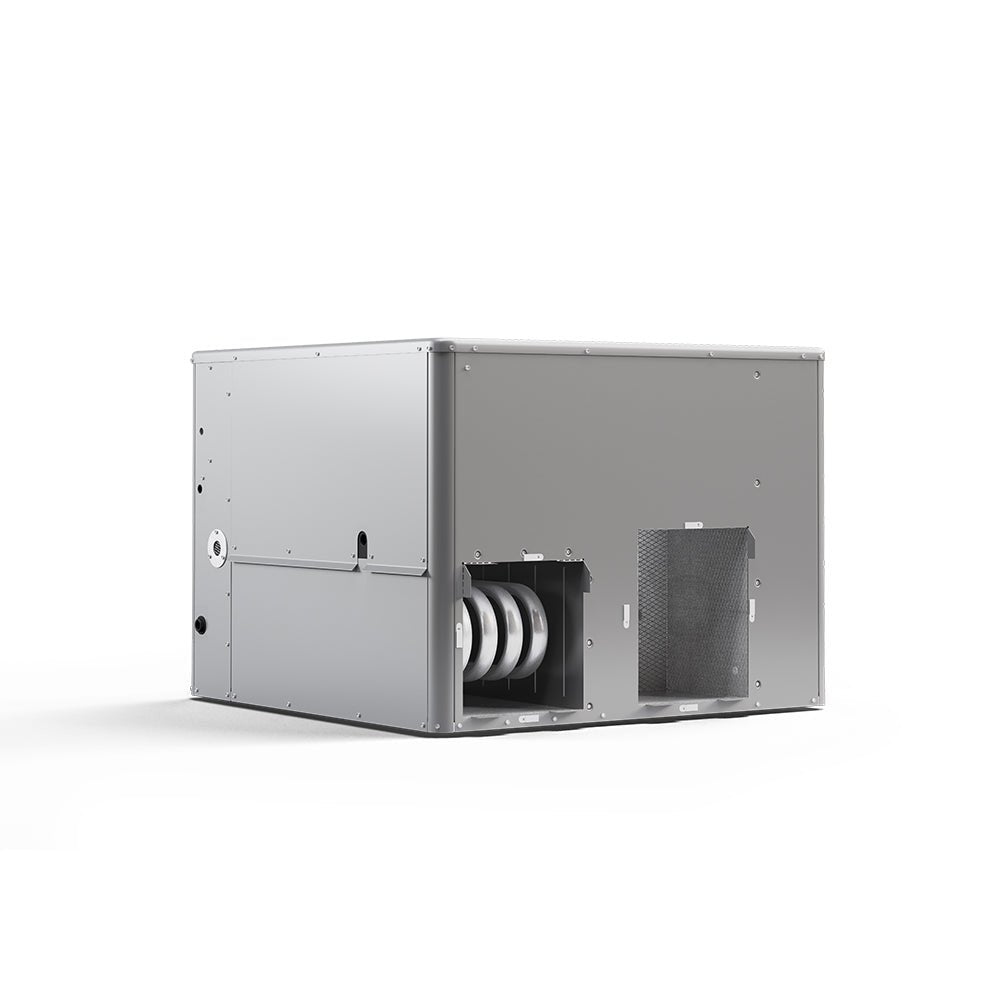

The MRCOOL Gas and Electric Packaged Unit combines a high performance 14 SEER air conditioner with a powerful gas furnace to deliver the best air comfort possible in all weather conditions. Like all MRCOOL products, this hybrid system is competitively priced, suitable for residential or commercial installation, and will run smoothly for years to come. A Package Gas Electric Unit is a fully self-contained, combination gas heating/electric cooling unit designed for outdoor installation. All unit sizes have return and discharge openings for both horizontal and down flow configurations, and are factory shipped with all down flow duct openings covered. Units may be installed either on a rooftop or on a cement slab. In gas heating mode, this unit is designed for a minimum continuous return-air temperature and a maximum continuous return-air temperature.
- Warranty is 15 year on heat exchanger and 10 years on parts when registered
- Insulated low profile cabinet with rounded corners and one piece base is stable, safe and attractive
- Features a high efficiency compressor designed to operate smoothly, quietly, and consistently
- Architecturally compatible to fit a small footprint, convenient for installation and maintenance
- All units ETL and ETLC approved and AHRI certified
- Optional LP & High Altitude Kits available
- Approved for installation in manufactured housing and mobile homes
- Aluminized Tri-Dimple tubular heat exchanger for increased efficiency
- Uses evironmentally friendly R-410A refrigerant
- Efficient multi-speed motor for wide airflow range
- Made in the USA
- 81% AFUE
|
SEER |
14 |
|
SEER2 |
13.4 |
|
EER |
11 |
|
EER2 |
10.6 |
|
AFUE |
81% |
|
CFM |
800 |
|
TONNAGE |
2 |
|
COOLING CAPACITY (BTU) |
22600 |
|
HEATING CAPACITY (BTU) |
43800 |
|
FUEL TYPE |
Natural Gas |
|
BTU INPUT |
54000 |
|
BTU OUTPUT |
43800 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
STAGE |
Single |
|
MAX FUSE BREAKER (A) |
20 |
|
MIN CIRCUIT AMPACITY (A) |
15.2 |
|
COLOR |
Gray |
|
COLOR FAMILY |
Gray |
|
RATED LOAD |
8.6 |
|
MAX COVERAGE AREA |
1000 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME (OZ) |
72 |
|
DECIBEL RATING (DBA) |
77 |
|
MIN AMBIENT HEAT (F) |
0 |
|
COMPRESSOR MOTOR TYPE |
Scroll |
|
CONDENSER FAN MOTOR TYPE |
ECM |
|
CONDENSER FAN MOTOR HP |
1/6 |
|
BLOWER MOTOR TYPE |
ECM |
|
BLOWER MOTOR HP |
1/4 |
|
BLOWER MOTOR SPEEDS |
Multi-speed |
|
BLOWER MOTOR RPM |
430-820 |
|
FILTER TYPE |
replaceable |
|
FILTER SIZE |
14X20X1 |
|
HEAT EXCHANGER TYPE |
Aluminized Tri-Dimple Tubular Heat Exchanger |
|
IGNITION TYPE |
Direct Spark |
|
METERING DEVICE |
Orifice |
|
LP KIT INCLUDED |
No |
|
LP KIT AVAILABLE |
Yes |
|
UL RECOGNIZED |
No |
|
UL LISTED |
No |
|
ETL LISTED |
Yes |
|
ETL CERTIFIED |
No |
|
LEED CERTIFIED |
No |
|
ASHRAE COMPLIANT |
No |
|
ENERGY STAR COMPLIANT |
No |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Registered 10 Year parts Warranty |
|
BASE WARRANTY |
5-years on parts if not registered |
|
REGISTERED HEAT EXCHANGER WARRANTY |
Registered 15 Years Heat Exchanger Warranty |
|
BASE HEAT EXCHANGER WARRANTY |
15-years on Heat Exchanger |
|
HAS BATTERIES |
No |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
RESTRICTED STATES |
Yes (California) |
|
NET DEPTH (IN) |
47.66 |
|
NET HEIGHT (IN) |
40.89 |
|
NET WIDTH (IN) |
47.66 |
|
NET WEIGHT (LBS) |
388.00 |
|
GROSS DEPTH (IN) |
48.00 |
|
GROSS HEIGHT (IN) |
42.50 |
|
GROSS WIDTH (IN) |
48.75 |
|
GROSS WEIGHT (LBS) |
347 |
|
FREIGHT CLASS |
125 |
