Model: GPGM32406041
Goodman Specifications Sheet Click HERE

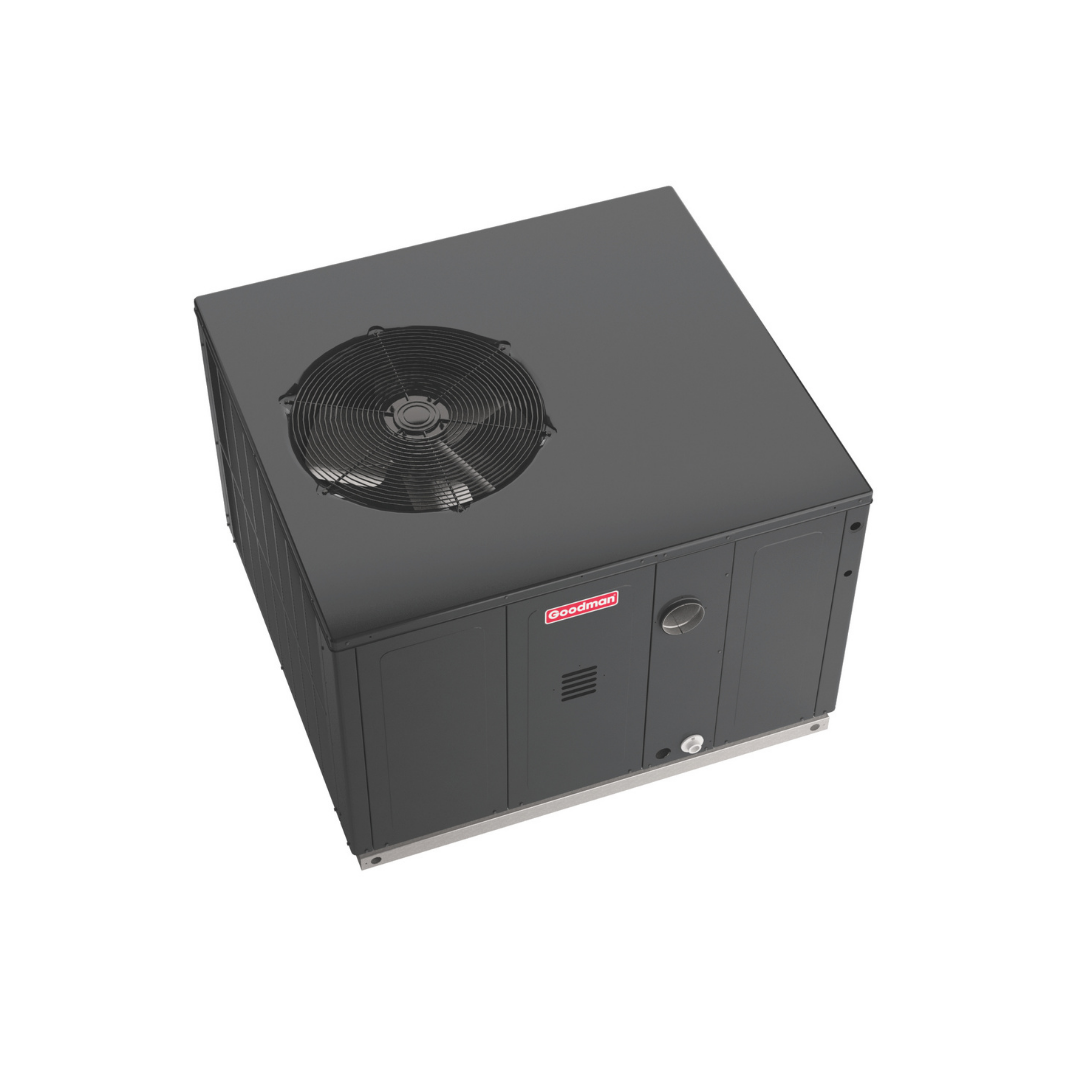

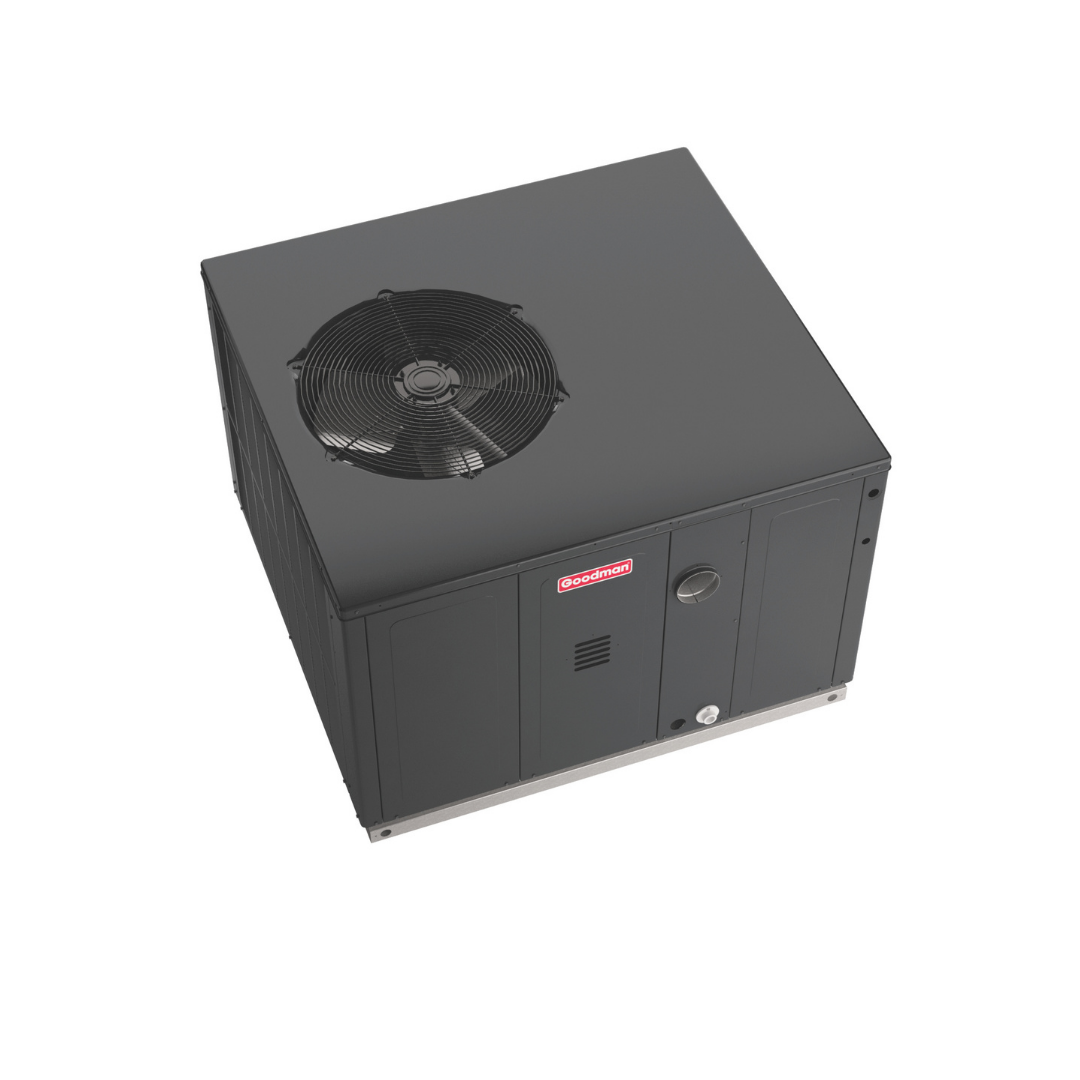

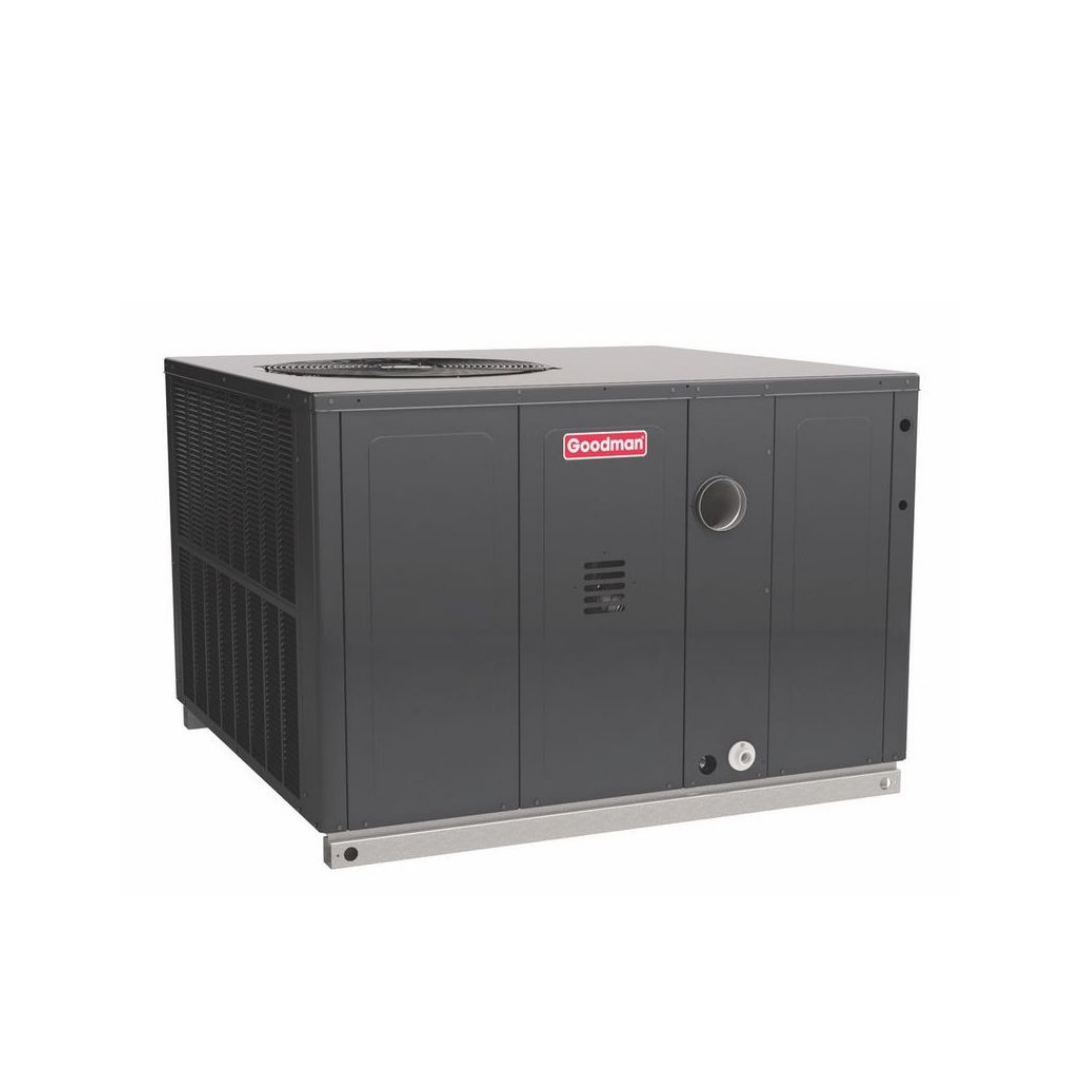

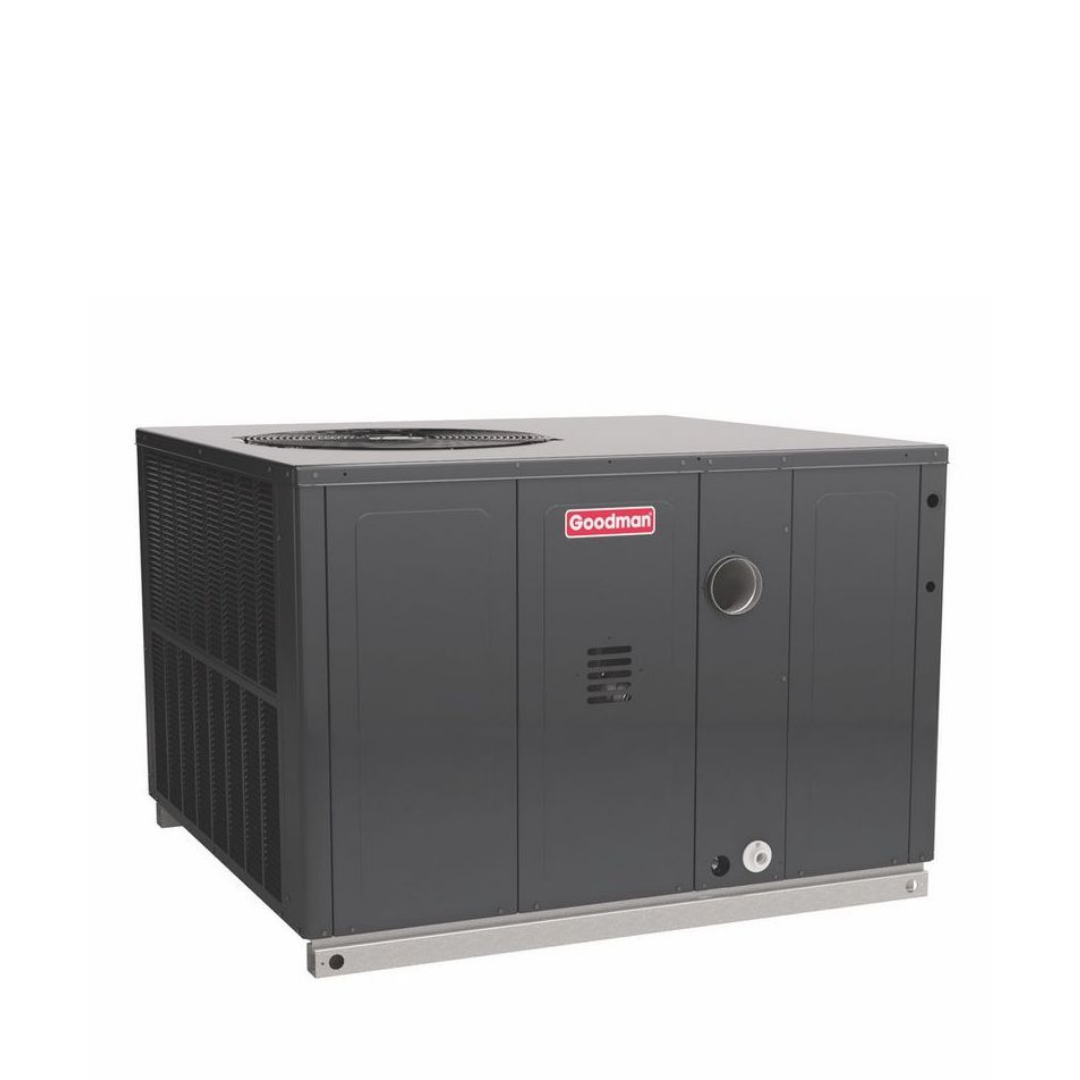

Package Unit/Roof Top Model: GPGM32406041
Specifications
Energy-efficient scroll compressor
Multi-speed ECM indoor blower motor

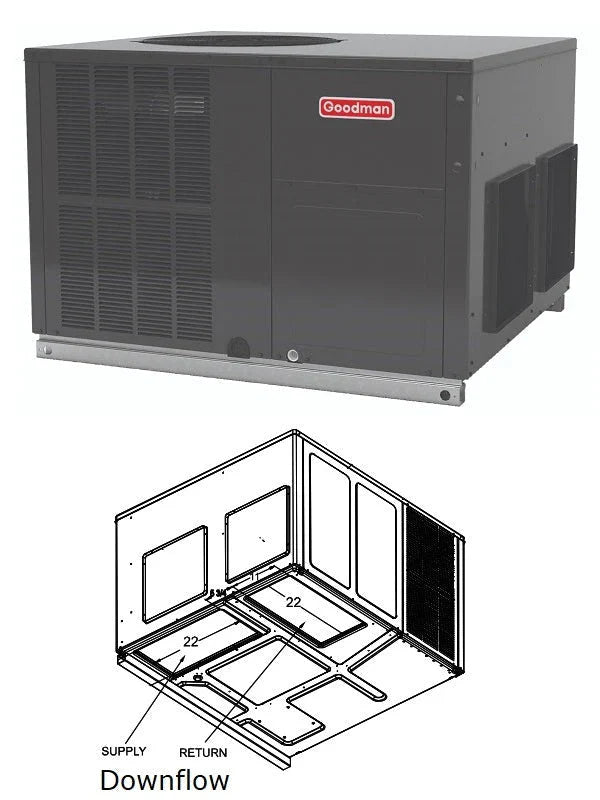

Convertible airflow: horizontal or downflow application
All-aluminum evaporator coil
Power-assisted combustion
Direct spark ignition system includes a microprocessor-based control for the entire ignition sequence, all blower operation, andall safety circuits complete with self-diagnostics
All models comply with California Low NOx standards (40ng/J NOx)
This furnace does not comply with the SCAQMD Rule 1111 nor the SJVAPCD Rule 4905 14 ng/J NOx emission limit and therefore is not eligible for installation in California’s South Coast Air Quality Management District (SCAQMD) nor the San Joaquin Valley Air Pollution Control District (SJVAPCD)
AHRI Certified
ETL Listed
Warranty
Standard warranties apply.
Standard parts, residential: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Registered parts, residential: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
Product Attributes
AFUE: 81
Airflow Rate High Cooling: 800
Brand: Goodman
Cabinet Features:
Fully insulated heavy-gauge, zinc-coated steel cabinet with UV-resistant powder-paint finish
Horizontal or downflow application
Compressor sound blanket
Convenient access panels
One roof curb fits all units
Fully insulated cabinet
Bottom, 2” high base rails for easier handling
When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds
Class: Packaged Gas/Electric/Dual
Compressor Stages: Single Stage
Compressor Type: Scroll
Cooling Capacity Rated: 23000
Unit Depth: 51
Unit Height: 32
Unit Width: 47
Family Description: Packaged Gas / Electric Units, 13.4 SEER2 / 81% AFUE, 2 to 5 Tons
Heating Capacity Rated: 60000
High-Fire Input Capacity: 60000
High-Fire Output Capacity: 48600
Min. Circuit: 14.4
Model Efficiency: 13.4 SEER2
Motor Speed Type: Multi Speed ECM
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Meets the 2023 M1 Test Standards
Category: Packaged Gas/Electric/Dual
Family: GPGM3
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 2 tons
Unit Type: Outdoor
Unit Weight: 412
