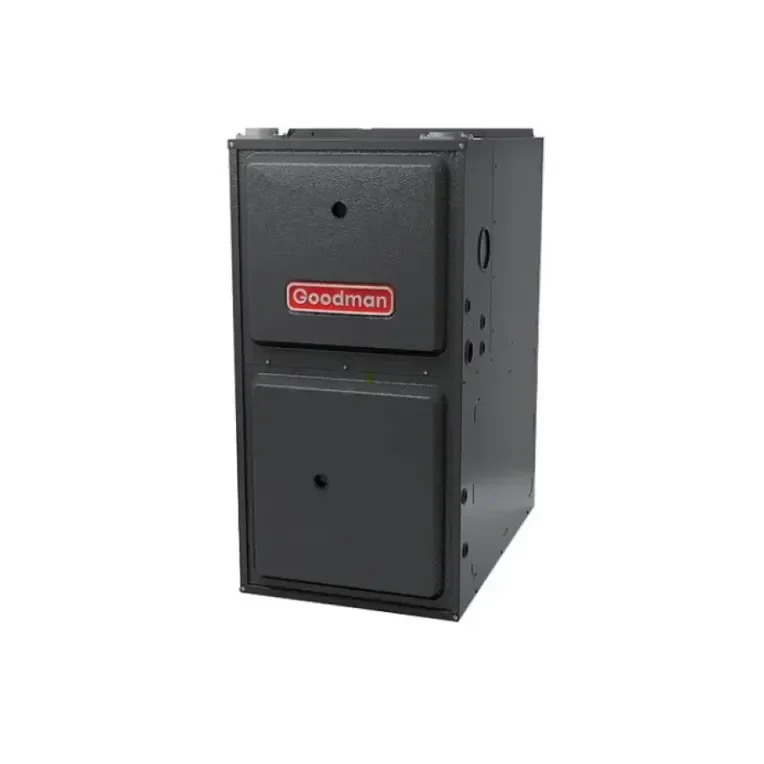

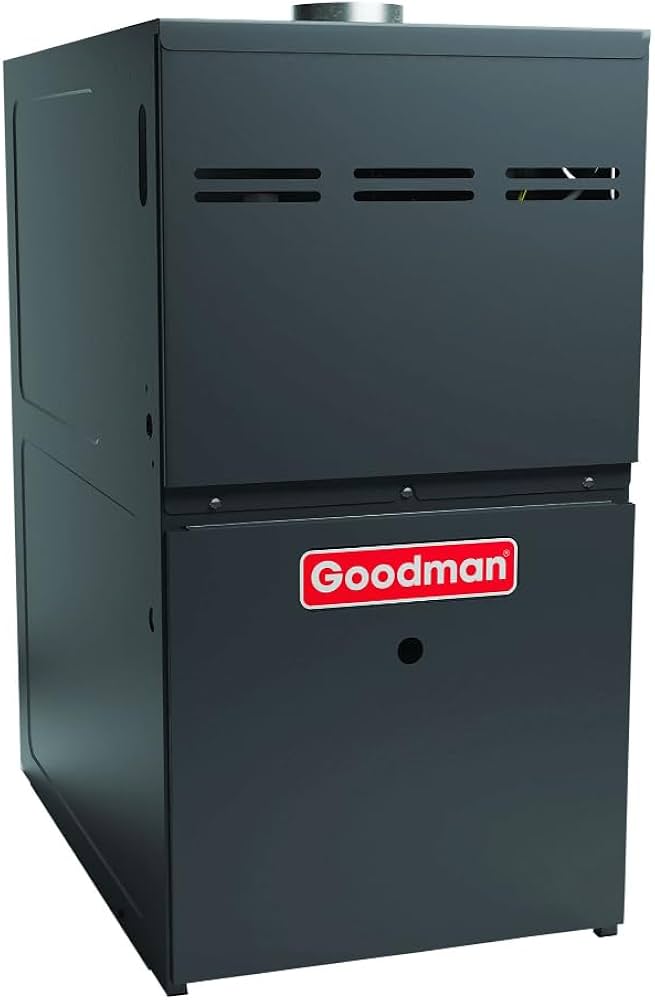

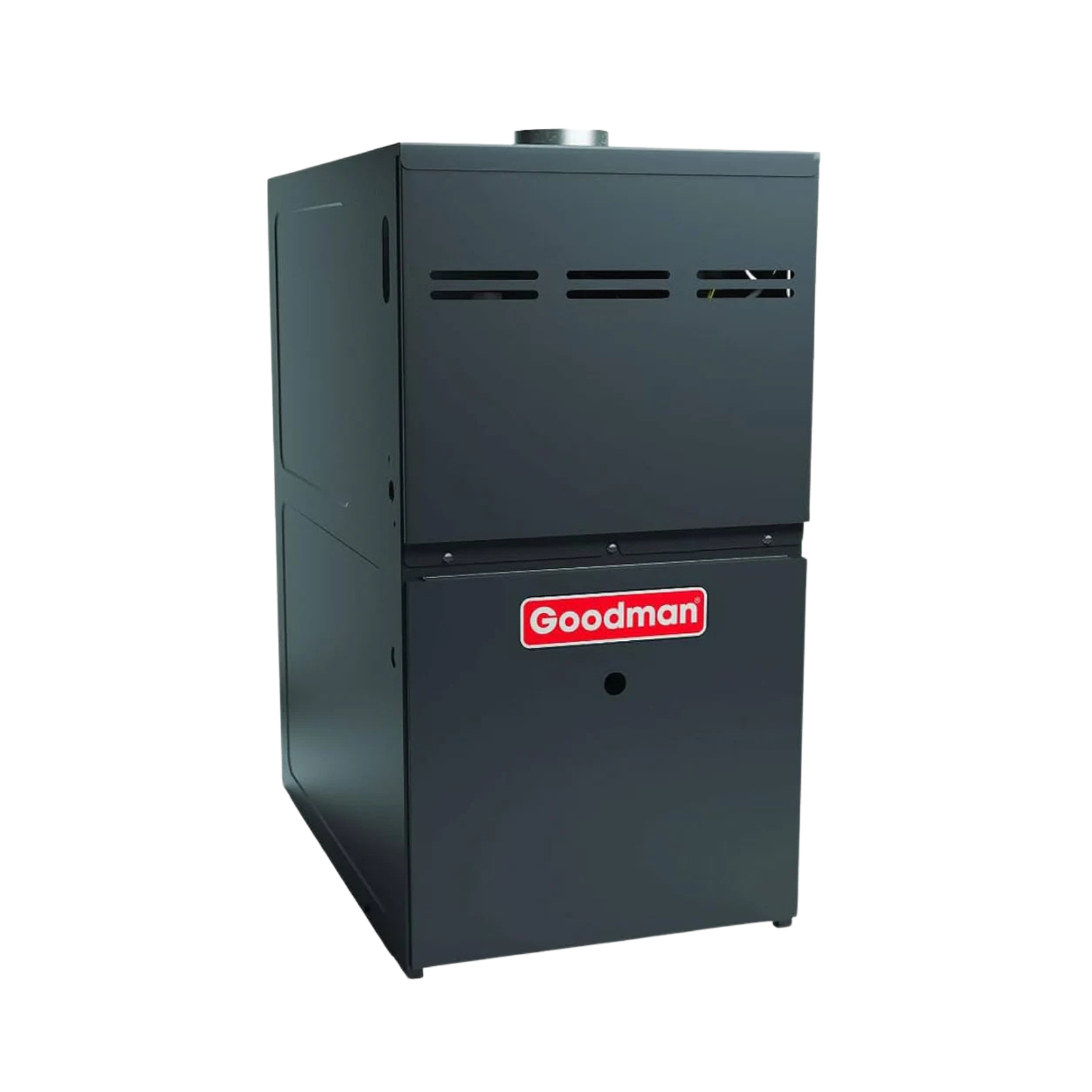

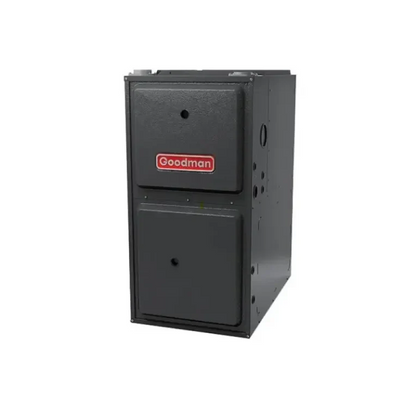

Goodman 96% AFUE Gas Furnace Multi Speed ECM, Single Stage, GCES960603BN

PRODUCT: GCES960603BN

Specifications:

1. Heavy-duty aluminized-steel tubular heat exchanger
2. Efficient and quiet variable-speed Blower
3. Integrated communicating ComfortBridge™ technology
4. Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application
5. Stainless-steel sloped secondary heat exchanger
6. Silicon Nitride igniter
7. Dual 7-segment display
8. Color-coded low-voltage terminal
9. Two-Stage gas valve
10. All models comply with California 40 ng/J
11. AHRI Certified, ETL Listed
12. Energy Star
13. Two-stage gas valve
14. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers

Warranty:

Standard warranties apply.
Standard parts, residential: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS
Registered parts, residential: HEAT EXCHANGER - 79 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
HEAT EXCHANGER - LIFETIME PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
HEAT EXCHANGER - 20 YEARS PARTS
Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS
ALL PARTS - 5 YEARS PARTS

Product Attributes:

AFUE: 96
Airflow Rate High Heating: 1065
Brand: Goodman
Cabinet Features:
Designed for multi-position installation — GMES96: upflow, horizontal left or right GCES96: downflow, horizontal left or right
Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
Easy-to-install top venting with optional side venting — GMES96/upflow models only
Convenient left or right connection for gas and electrical service
Cabinet air leakage (QLeak) ≤ 2%
Heavy-gauge steel cabinet with durable finish
Fully insulated heat exchanger and blower section
Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications
Class:
Gas Furnace
Unit Depth:
28.75
Unit Height:
34.5
Unit Width:
17-1/2
Family Description:
Single Stage Multi-Speed ECM Downflow Gas Furnace Up to 96% AFUE
High-Fire Input Capacity:
60000
High-Fire Output Capacity:
57660
keywords:
GCES960603BN
Min. Circuit:
10.3
Model Efficiency:
0.96
Motor Speed Type:
Multi Speed ECM
Power Frequency:
60
Power Phase:
1
Power Voltage:
115
Category:
Gas Furnace
Family:
GCES96
Product ID Bar Code:
GCES960603BN
Prop65 Label Required:
TRUE
Unit Type:
Indoor
Unit Weight:
116

Documents:

Warranty Certificate

Warranty Certificate

Installation Manual

Parts Manual

Product Brochure

Product Brochure

Specification Sheet

Warranty Certificate

Nomenclature

Primary Product Image

Installation Manual

Nomenclature

Nomenclature

Warranty Certificate

Service Manual

Dimensional Drawing
