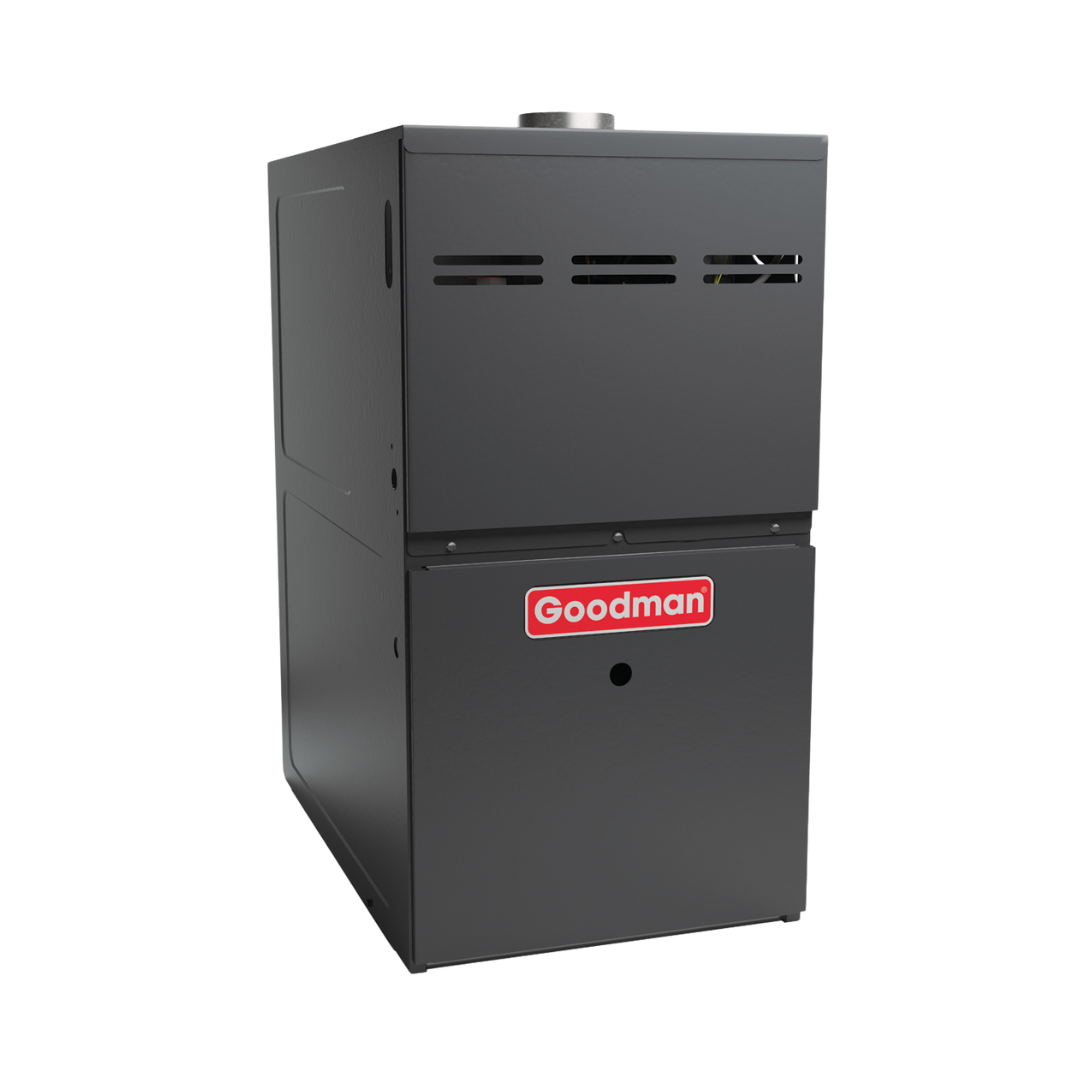

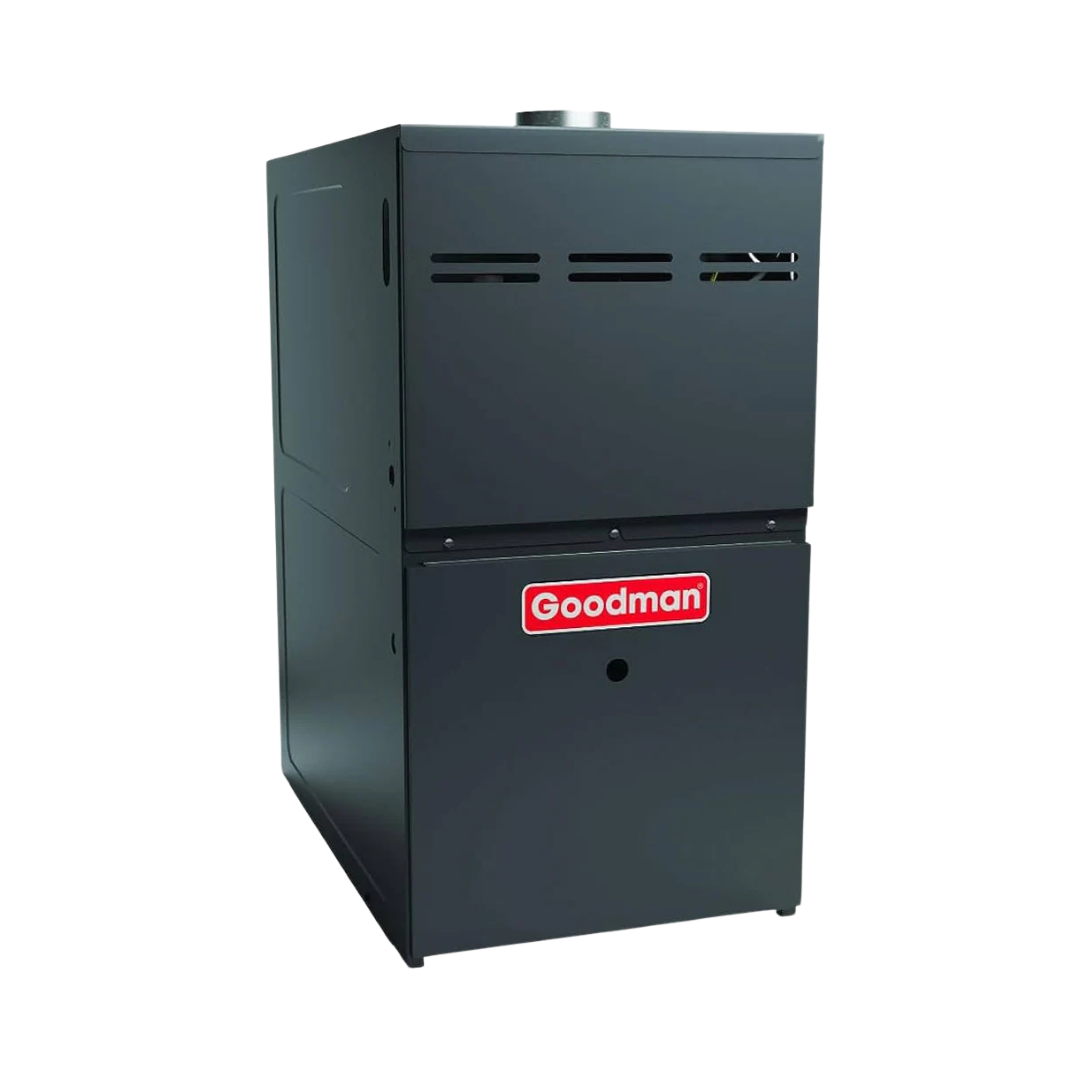

Goodman 80% AFUE Gas Furnace Nine Speed ECM, Two Stage, GR9T800804CX

The Goodman GR9T800804CX Gas Furnace exemplifies dependable and fuel-efficient home heating. This furnace has two-stage heating and a nine-speed ECM motor, refining warmth and comfort throughout the season. With a performance of 80% AFUE, it contributes to the reduction of the cost incurred in heating a home, and offers reliable service.

Product Overview

The Goodman GR9T800804CX Gas Furnace is engineered to expand on heating performance, and focus on energy value changes. The two-stage heating system and nine-speed ECM motor enhance the effectiveness of the system while consuming energy. The 80% AFUE value demonstrates the construct efficiency of the system and the value of reliability in the construction of the system.

Quick Facts

• Model: GR9T800804CX
• AFUE Efficiency: 80%
• Configuration: Upflow / Horizontal
• BTU Capacity: 80,000
• Motor Type: Nine-Speed ECM
• Operation: Two-Stage
• Fuel Type: Natural Gas (convertible to LP)
• Ignition Type: Silicon Nitride Hot Surface Ignition
• Dimensions: Approx. 21" W × 28" D × 33-3/8" H

Capacity & Coverage

Having a furnace capacity of 80,000 BTUs, the GR9T800804CX is adequate for 1,800 to 2,400-square-foot homes (depending on local climate and insulation). Delivering furnace consistent coverage means warm, comfortable, and air space ease is maintained in every room.

Efficiency

This furnace has an 80% AFUE rating, meaning that 80% of the fuel being used is converted to heat, with the furnace wasting very little heat energy. The two-stage operation together with the nine-speed ECM motor help the furnace adjust output to the required demand, which helps improve energy efficiency and lower the cost of energy used to operate the furnace.

Construction & Design

For durability and insulation efficiency, the Goodman GR9T800804CX is constructed with a heavy-gauge steel cabinet. The heat exchanger is made of aluminized steel, which helps with heat transfer, and the powder-coated steel casing helps with corrosion resistance, which ensures that the furnace is dependable and will last for a very long time.

Installation & Application

The GR9T800804CX is able to be installed in an upflow position, or in a horizontal position, which means it can be used for a variety of home layouts, including basements, attics, or utility rooms. For quick service, the front access panel of the furnace helps in the installation process, as well as providing maintenance ease and efficiency.

Noise & Comfort

The nine-speed ECM motor produces consistent airflow, and the motor’s construction lessens the operational noise. The two-stage operation is able to control temperature comfortably, which is quieter than single-stage furnaces, as it can prevent the furnace from producing harsh temperature changes.

FAQs

Q1: What is the benefit of the two-stage operation?

Improved comfort and efficiency are the results of the two-stage operation because it is possible to control the temperature and the demand more precisely.

Q2: Can the GR9T800804CX be converted to propane?

Yes. The LP conversion kit facilitates converting the propane tank to gas.

Q3: What size homes is this furnace suitable for?

Depending on climate and insulation, the GR9T800804CX furnace is perfect for homes sized between 1800 to 2400 square feet.

Q4: Is this furnace compatible with Goodman cooling systems?

Yes, Goodman cooling equipment, including evaporator coils, can be used to complete the HVAC system.

Q5: How quiet is the GR9T800804CX?

This furnace is quiet because it has a nine-speed ECM motor and an insulated cabinet, and it can sustain higher speeds with little noise.
