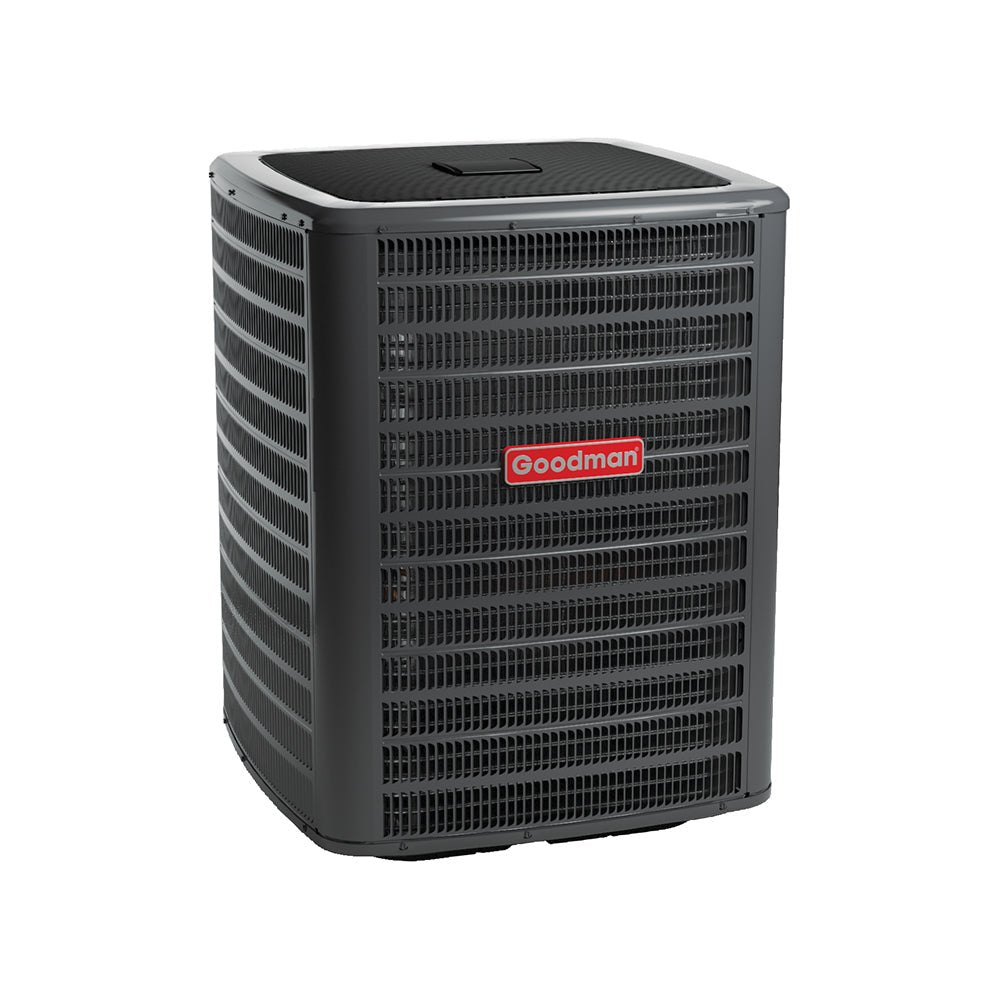

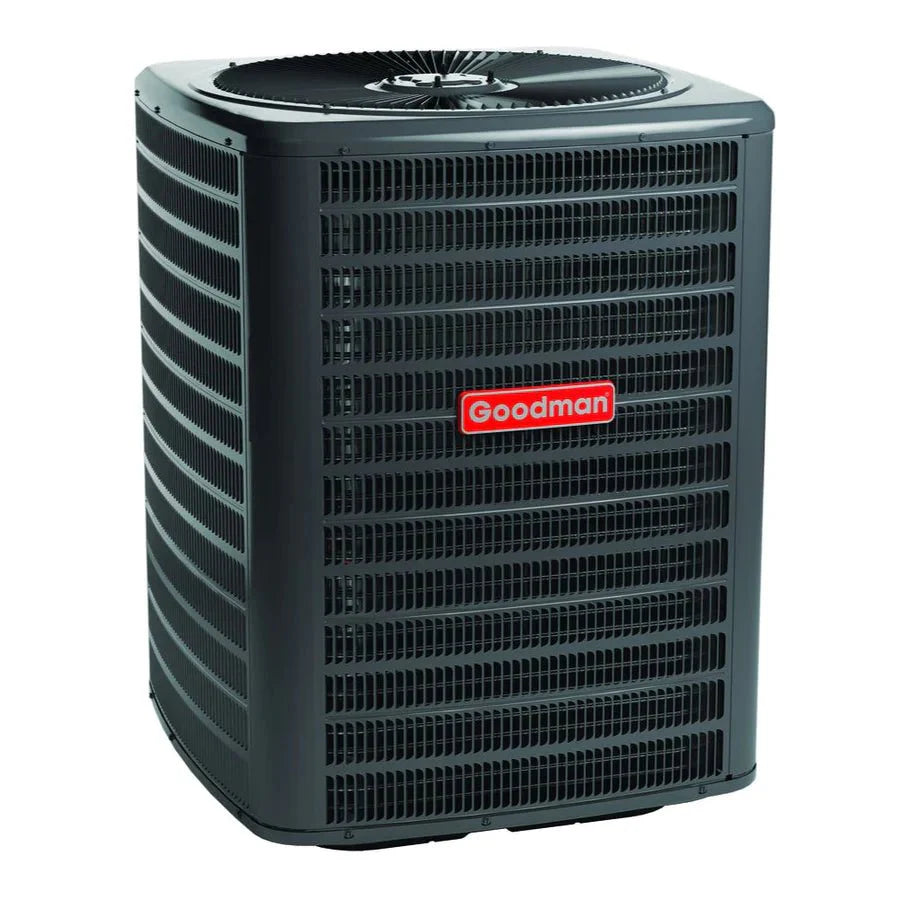

Goodman 4 Ton split air conditioner 15.2 seer single stage GSXH504810
Goodman 4 Ton split air conditioner 15.2 seer single stage GSXH504810
Outdoor Model Number : GSXH504810
Specifications:
High-efficiency scroll compressor
Copper tube/enhanced aluminum fin coil -5mm diameter on 1.5-3.0T
Fully charged for 15’ of tubing length
Factory-installed filter drier
Service valves with sweat connections and easy-to-access gauge ports
Contactor with lug connection
Ground lug connection
AHRI Certified, ETL Listed
Warranty:
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 10 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
Registered parts, commercial: ALL PARTS - 10 YEARS PARTS
Product Attributes
Brand: Goodman
Cabinet Features: Removable grille-style top designcompliant with UL 60335-2-40
Venturi for increased velocity of airflow
Heavy-gauge galvanized-steel cabinet
Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
Steel louver coil guard
Rust-resistant coated screws
Single-panel access to controls with space providedfor field-installed accessories
When properly anchored, meets the 2020 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)
Class: Split Air Conditioner
Compressor Stages: Single Stage
Compressor Type: Scroll
Family Description: High-Efficiency Split System Air Conditioner, Up to 15.2 SEER2
Max. Voltage: 253
Min. Circuit: 26.2
Min. Voltage: 197
Model Efficiency: 15.2 SEER2
Motor Speed Type: PSC
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Product Benefits: Meets the 2023 M1 Test Standards
Category: Split Air Conditioner
Family: GSXH5
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 4 tons
Unit Type: Outdoor
DOCUMENTS:
NOM-PF-2023_Nomenclature-G.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature-A_11-.pdf (daikincloud.io)
266941661.pdf (daikincloud.io)
NOM-PF-2023_Nomenclature_04-22.pdf (daikincloud.io)
PWGFURNSUNTA.pdf (daikincloud.io)
IM-IOG-2031.pdf (daikincloud.io)
PB-CB-GM9S80.pdf (daikincloud.io)
