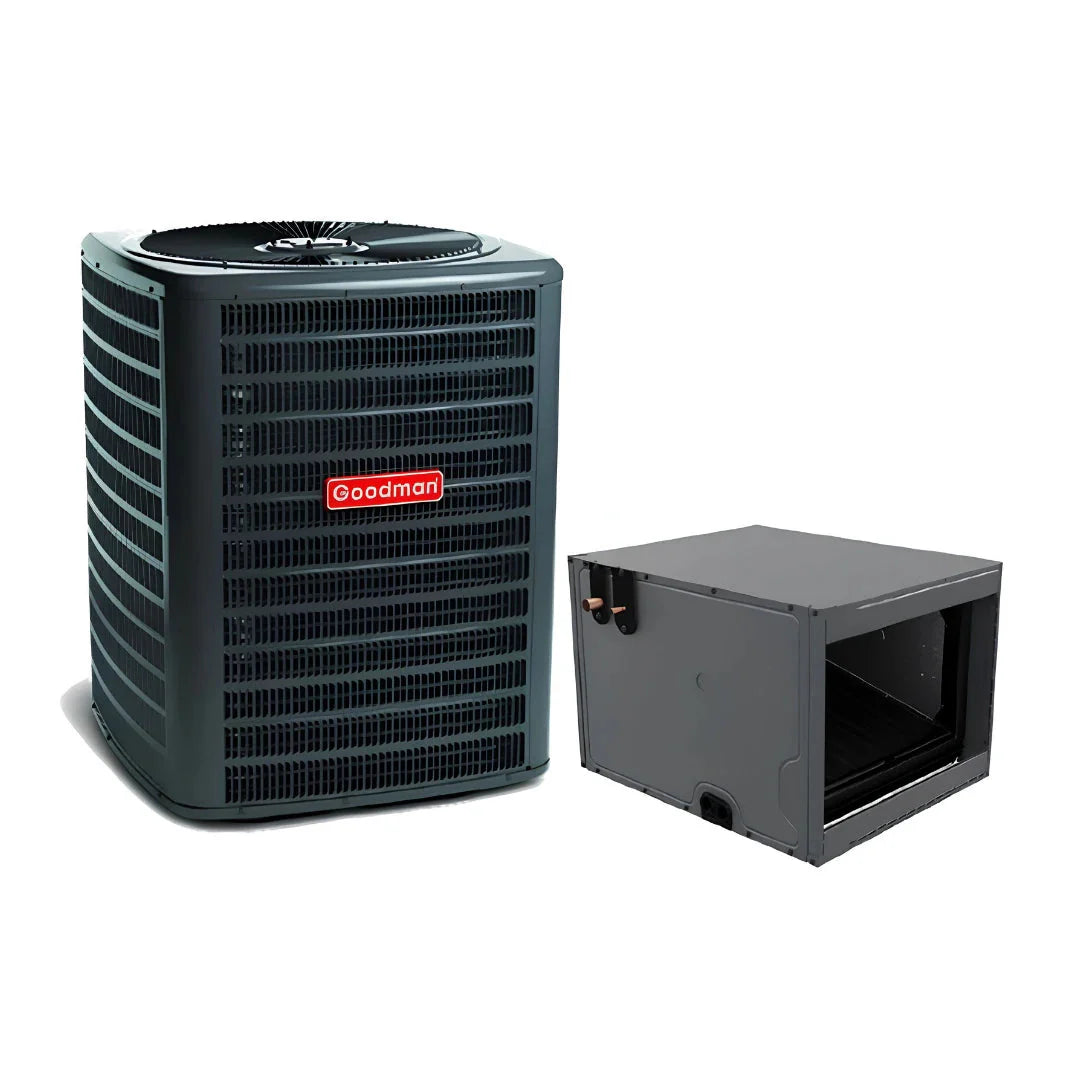

Goodman 2.5 Ton GLXS5B Split Air Conditioner 15.2 SEER2, Single Stage GLXS4BA3010 CHPTA3026C3

Model: GLXS4BA3010 CHPTA3026C3

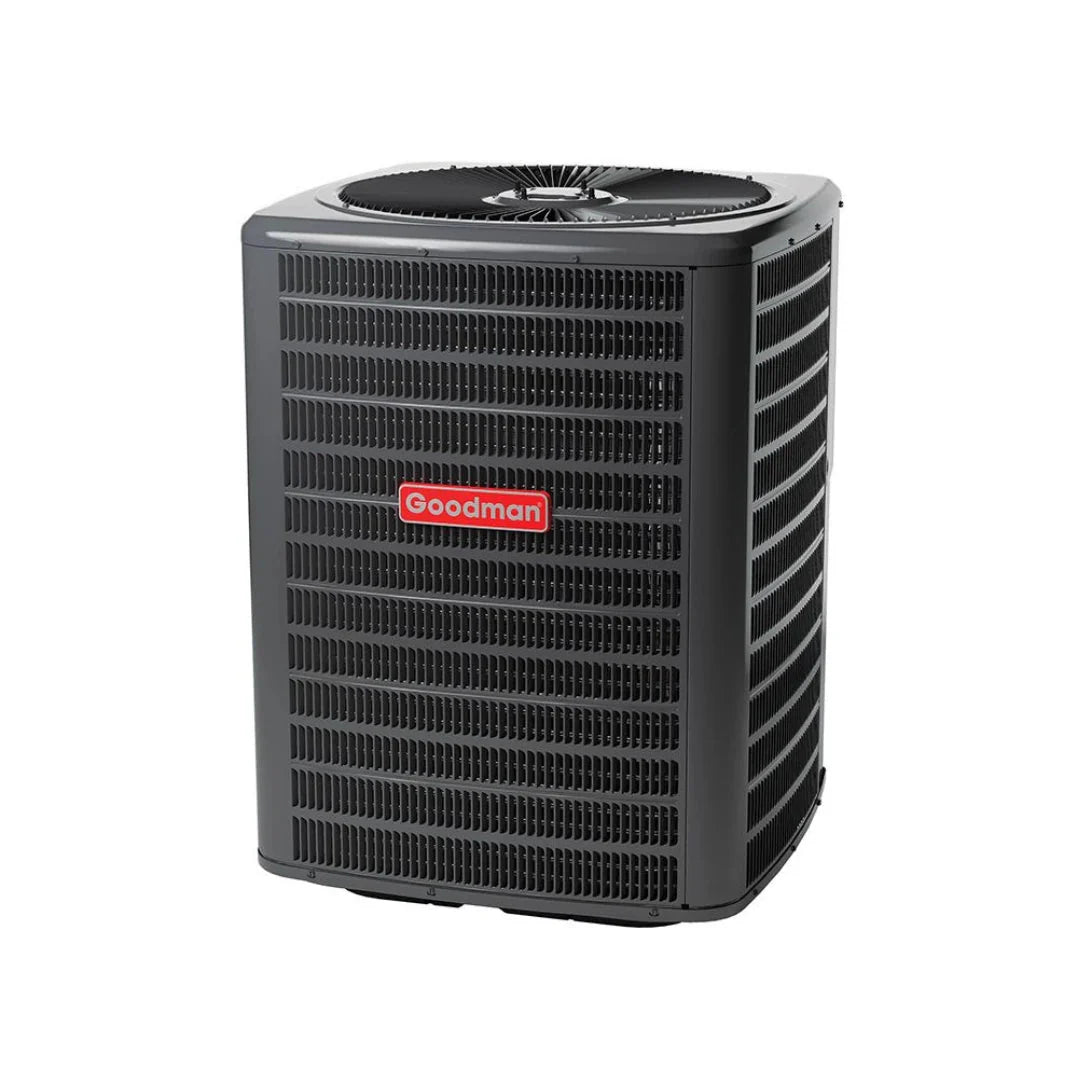

Goodman GLXS5B Split Air Conditioner

GLXS4BA3010

Specifications:

Brand: Goodman
Cabinet Features:
Removable grille-style top designcompliant with UL 60335-2-40
Venturi for increased velocity of airflow
Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
Wire fan discharge grille
Steel louver coil guard
Top and side maintenance access
Single-panel access to controls with space provided for field-installed accessories
When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Class: Split Air Conditioner
Compressor Stages: Single Stage
Compressor Type: Rotary
Cooling Capacity Rated: 28600
Unit Depth: 29
Unit Height: 32
Unit Width: 29
Family Description:
Energy-Efficient Classic R-32 Split System Air Conditioner, 14.3 SEER2, 1¬Ω To 5 Tons
keywords: GLXS4BA3010
Min. Circuit: 14.950000000000001
Power Frequency: 60
Power Phase: 1
Power Voltage: 208/230
Category: Split Air Conditioner
Family: GLXS4B
Product ID Bar Code: GLXS4BA3010
Prop65 Label Required: TRUE
Refrigerant: R-32
Unit Type: Outdoor
Suction Valve Outside Diameter: 3/4
Unit Weight: 155.4

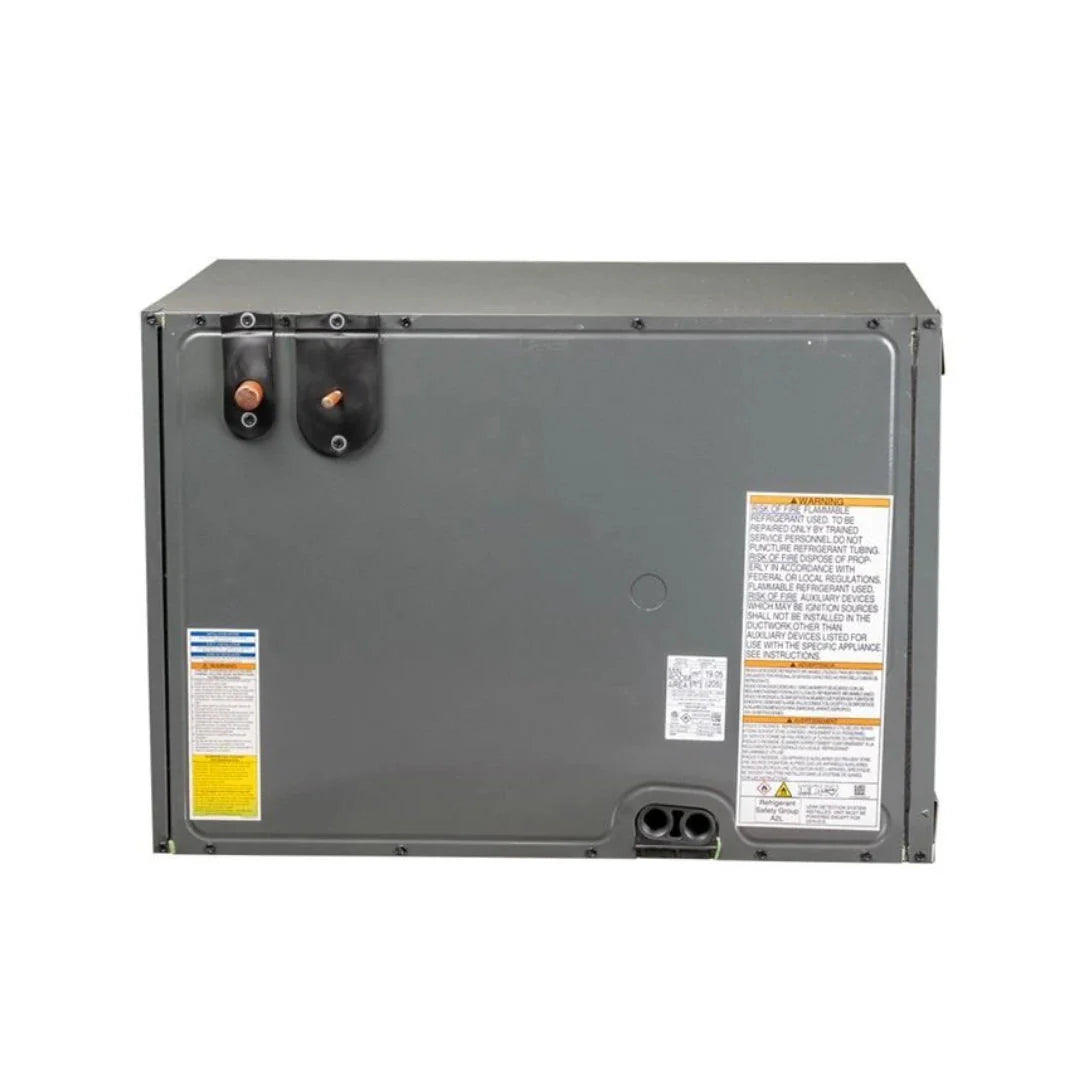

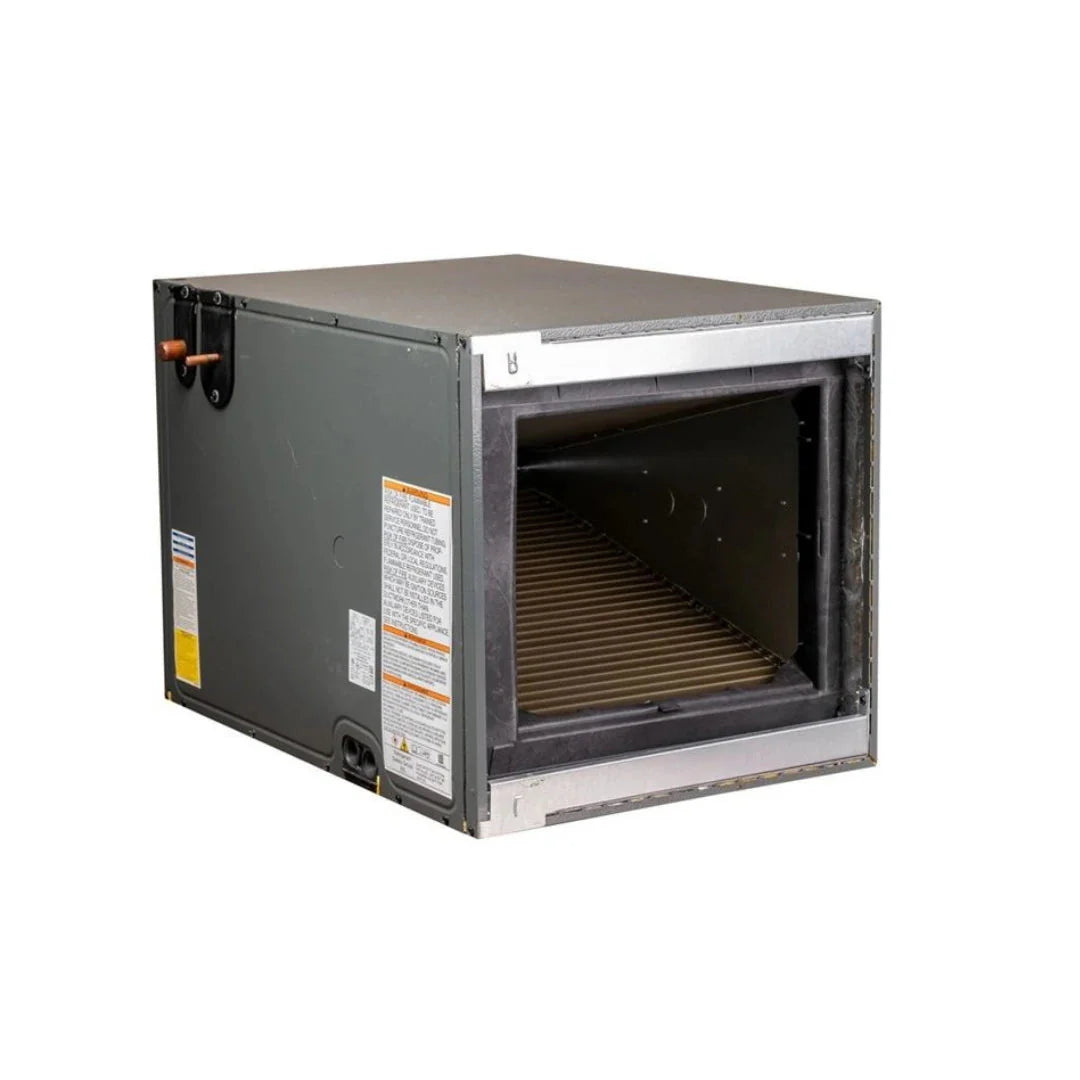

CHPTA3026C3

Product Benefits:
All-Aluminum evaporator coil
Optimized for use with R-32 refrigerant including circuits and manifold including circuits and manifolds
R-32 sensor designed for the life span of the coil
Factory-installed thermal expansion valves for cooling and heat pump applications
Standardized copper suction tube stub length
Check flowrator for cooling and heat pump applications
Horizontal application
21" depth for easier attic access
Single front access panel
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Galvanized, leather grain-embossed finish
Rust resistant, thermoplastic drain pan featuring a low water-retention design
DecaBDE-free thermoplastic drain pan with secondary drain connections
Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
UV-resistant drain pan
AHRI certified
ETL Listed

Specifications:

Warranty:

• Standard warranties apply.
• Standard parts, residential: ALL PARTS - 5 YEARS PARTS
• Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
• Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
• Registered parts, residential: ALL PARTS - 10 YEARS PARTS
• Registered parts, multi-family: ALL PARTS - 10 YEARS PARTS
• Registered parts, commercial: ALL PARTS - 5 YEARS PARTS
