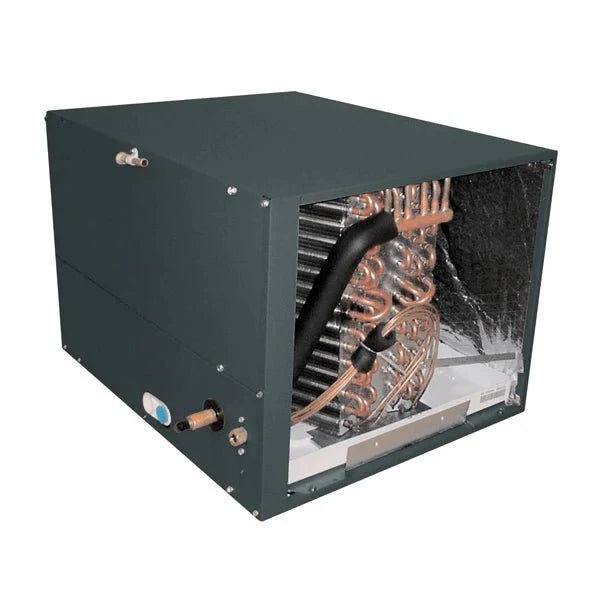

Goodman CHPTA3630C3 3 Ton Horizontal Evaporator Coil R-32 TXV

Overview

For those hoping to swiftly cool their homes with Goodman CHPTA3630C3 3.0 Ton Cased Horizontal Evaporator R-32 Coil with TXV, efficiency is second to none. Designed specifically for horizontal applications, this horizontal evaporator coil optimizes the airflow for quick and efficient heat exchange. With a capacity of 3 tons, this unit is perfect for larger homes and spaces that require dependable comfort.

Quick Facts

• Weight: 3.0 tons
• Refrigerant Type: R-32
• Orientation: Horizontal
• Cased evaporator coil with TXV.
• 21-inch wide painted steel cabinet
• Compatible with Goodman and Amana R-32 systems.

Capacity & Coverage

This 3.0-ton evaporator coil cools 1,200 to 1,500 square feet well, making it a good choice for medium to large homes. For reliable performance, even airflow, and easy refrigerant flow, this coil should be installed with a matching Line Set. When it comes to larger places, reliability is a key. Pre-assembly refrigerant line kits make sure that everything works smoothly, so they are great for larger homes and those who want to install them themselves.

Efficiency

The TXV that comes with the factory determines how to control the refrigerant flow to help the system use less energy and increase its lifespan. The coil uses R-32 refrigerant which is an improvement from the R-410A refrigerant. It is less harmful and has better cooling capabilities.

Construction & Durability

• Heavy gauge metal is used to make the cabinet which will eventually rust or be damaged.
• Aluminum fins and grooved copper tubes provide the best heat transfer.
• The fully insulated drain pan prevents condensation and the drain of the pan prevents the growth of microbes.
• To make sure it works and will not leak, it has been tested in the factory.

Installation & Compatibility

The horizontal design of the CHPTA3630C3 coil makes it easy to install in confined areas such as attics and basements. It is compatible with Goodman R-32 condensers and furnaces of the same width which makes it a perfect fit and airflow balanced. For the outdoor units, use a stable Equipment Pad and a smart Thermostat to control the temperature precisely.

Noise & Comfort

The coil has a sealed cabinet which, in combination with the insulated drain pan, dampens sound and vibration. This is to ensure that the inside of the home remains quiet.

Warranty

Every installation done by a licensed HVAC professional and warranty registrations done within 60 days will receive a 5-Year Limited Parts warranty.

FAQs

Q1: Will this coil work with R-410A systems that use refrigerant?
No, this coil is designed only for systems using R-32 refrigerant.

Q2: Is it okay to put it vertically?
No, this coil is strictly a horizontal installation coil.

Q3: Is a TXV included with the coil?
Yes, the coil is equipped with a factory-installed TXV to ensure proper refrigerant regulation.

Q4: Which condenser works best with this model?
For optimal performance, it is best to pair it with the Goodman GSXN404210 3.5 Ton 15.2 SEER2 R-32 Air Conditioner Condenser.
