DIY 4th Generation E Star 24k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz

DIY 4th Generation E Star 24k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz

Regular price $2,199.00 USD
Regular price $2,599.00 USD Sale price $2,199.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

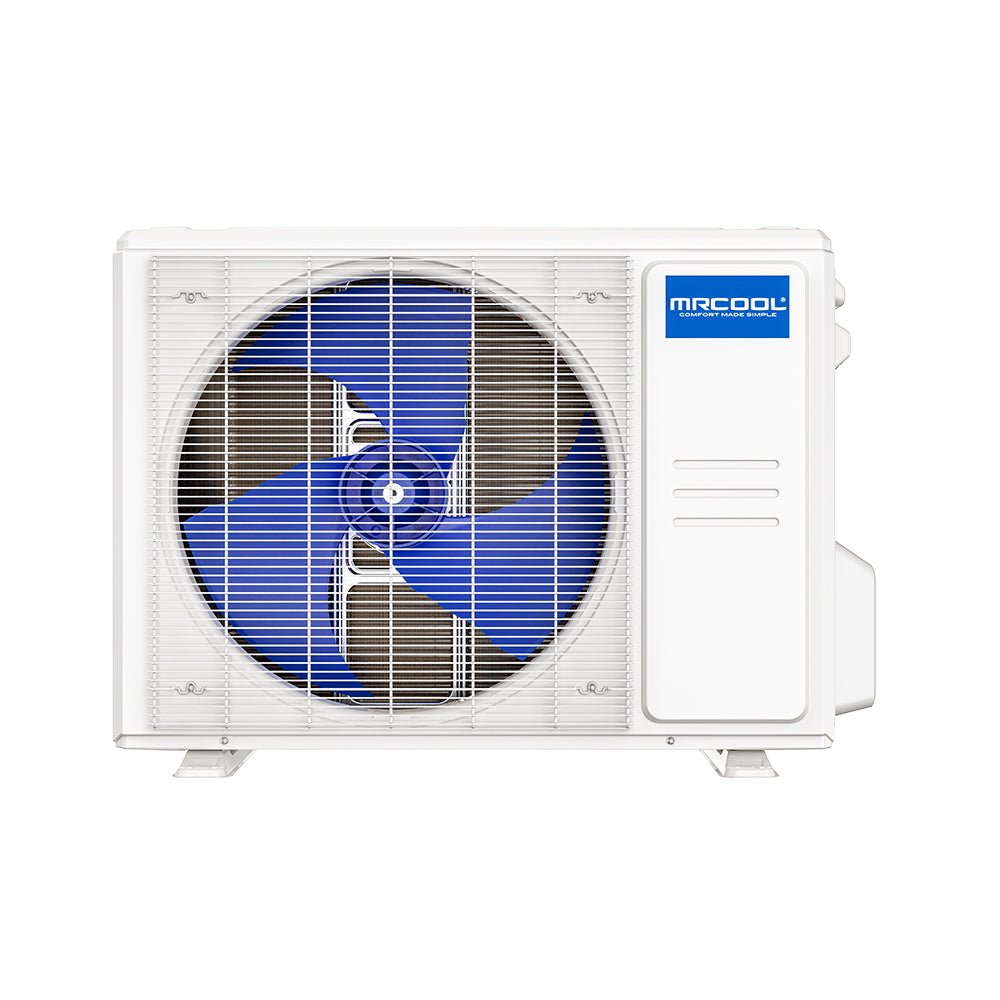

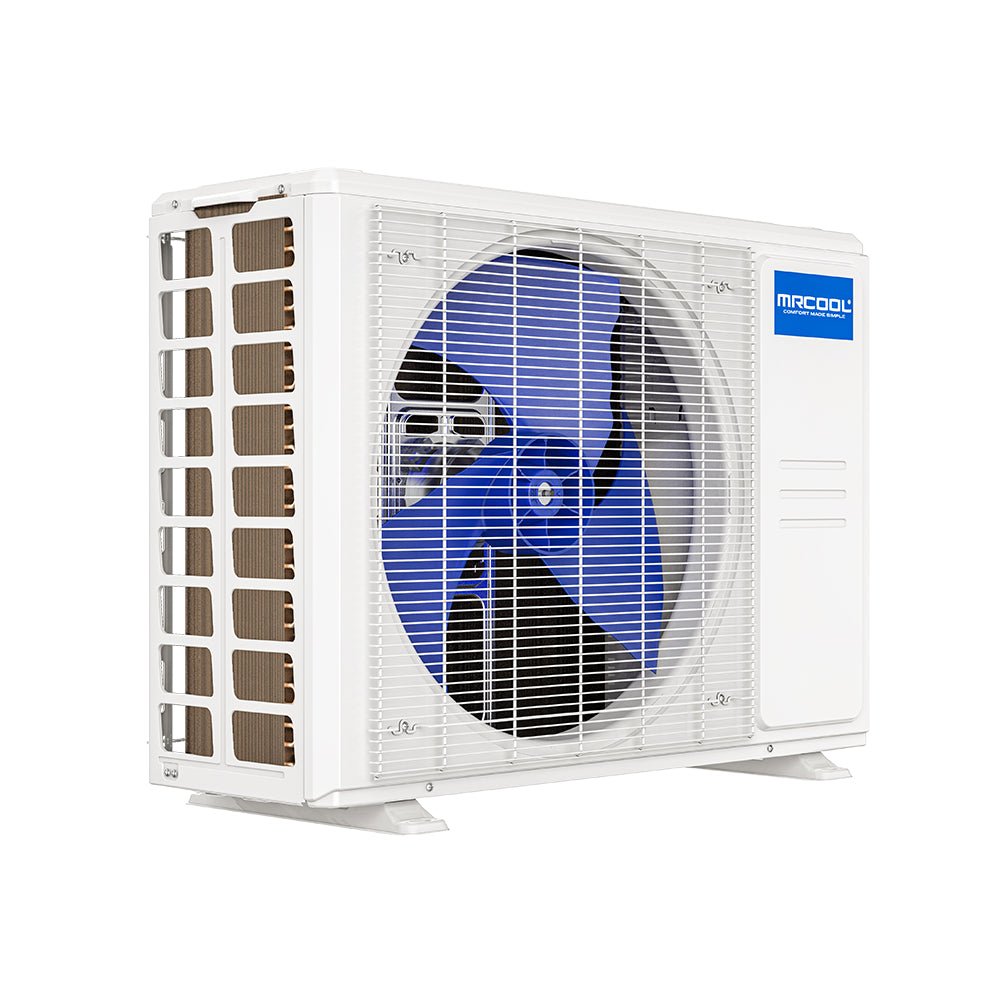

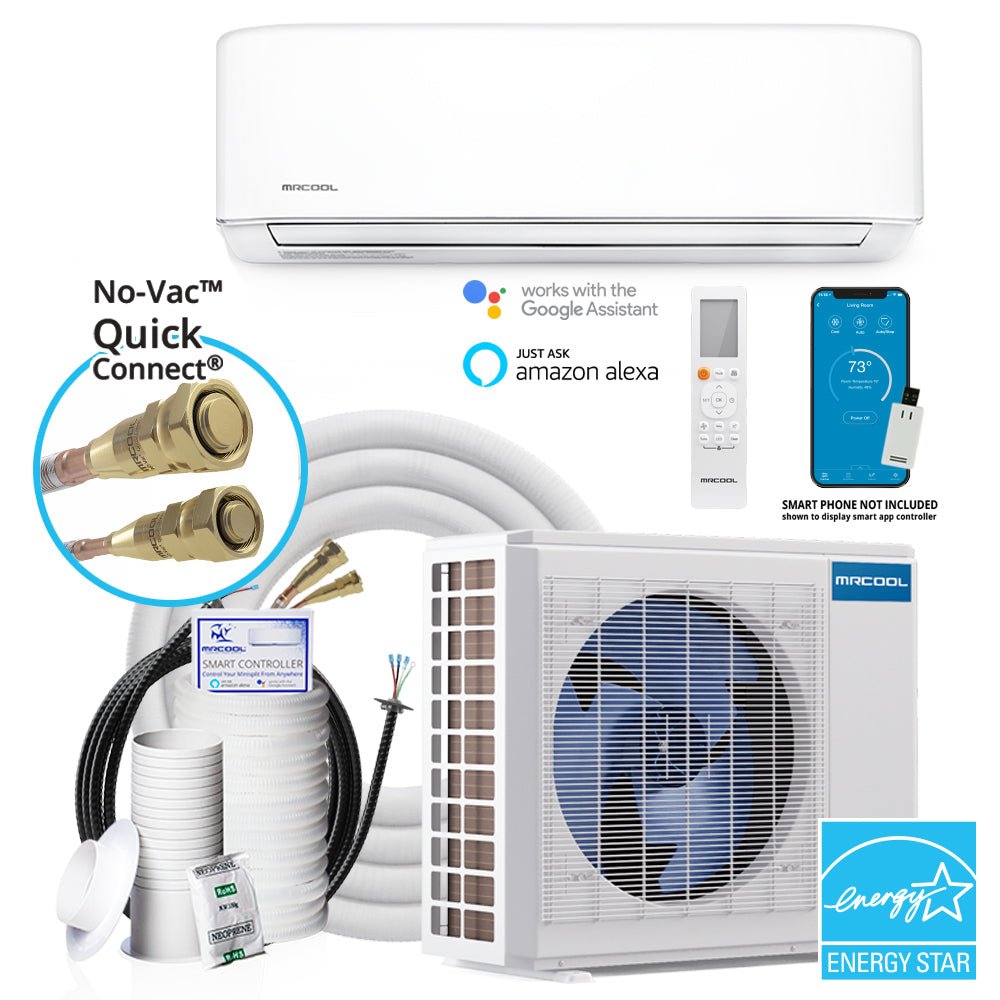

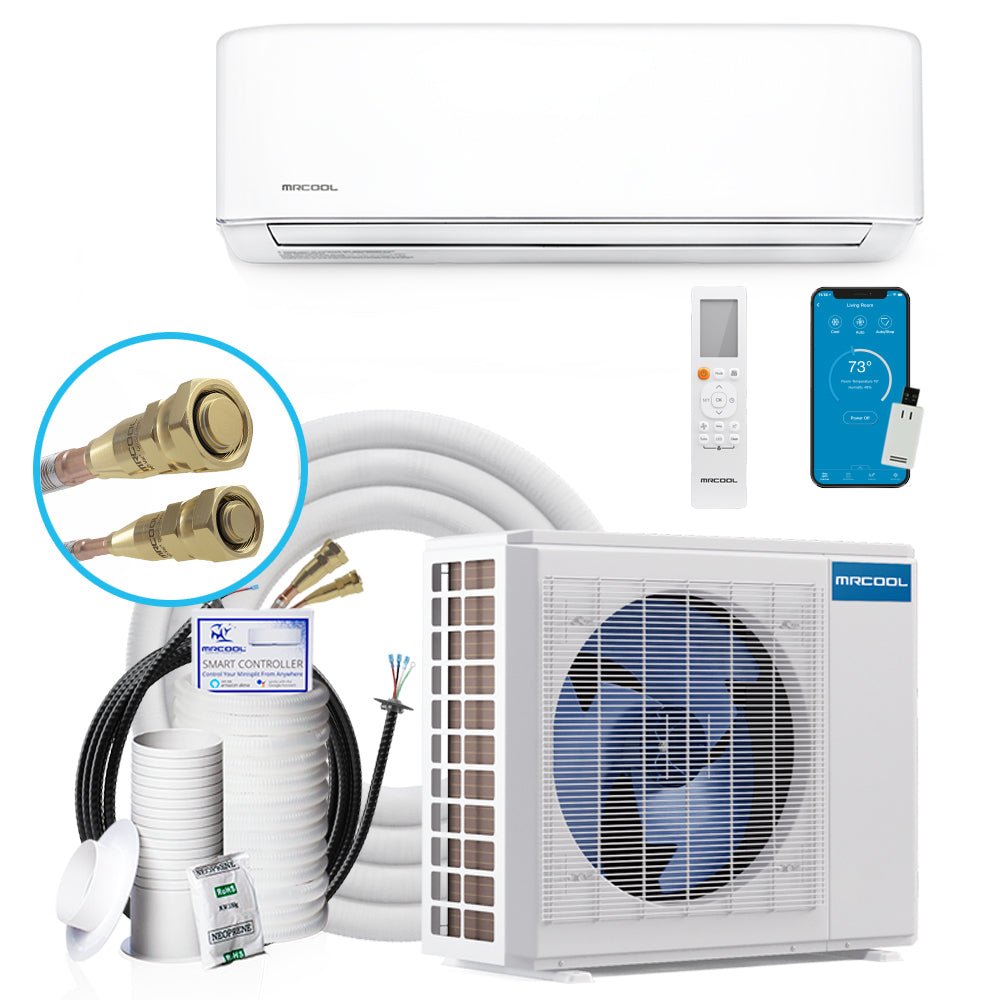

The MRCOOL® 4th Generation DIY 24K BTU, 20.5 SEER Ductless Heat Pump is an all in one system that seamlessly combines efficiency, durability, and simplicity. This system can offer a 20.5 SEER efficiency rating that has allowed it to achieve an Energy Star certification and can heat & cool an area up to 1,000 sq. ft. It also features durable construction and a corrosion-resistant Gold Fin condenser. All of this is contained within a Do-It-Yourself system that can be installed by a homeowner in a few hours using simple tools. This simplicity is achieved with the use of the patented MrCool Pre-Charged Quick-Connect Line Set included with the system. Not only is this system capable of delivering exceptional performance, it is also equipped with up to six operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. The system’s Follow Me Feature allows the system to adjust the room temperature based on wherever you’re standing with the hand-held remote control. This system also has the ability to be controlled with a smartphone by way of the Smart HVAC app. Backed by a limited lifetime compressor warranty, this system is sure to meet your comfort needs and peace of mind.

SEER

20.5

SEER2

20.5

EER

12.5

EER2

12.5

COP 47

3.15

HSPF-4

10.5

HSPF-5

9

HSPF2-4

9.2

HSPF2-5

7.1

CFM

605.88/505.88/364.71

TONNAGE

2

COOLING CAPACITY (BTU)

23000

HEATING CAPACITY (BTU)

25000

VOLTAGE (V)

208-230

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

35

MIN CIRCUIT AMPACITY (A)

22

COLOR

White

COLOR FAMILY

White

RATED LOAD

0.45

MAX COVERAGE AREA

Up to 1000

ZONE CAPACITY

1

REFRIGERANT TYPE

R-410A

REFRIGERANT VOLUME (OZ)

81.13

DECIBEL RATING (DBA)

48.5/43.5/33

DECIBEL RATING LOW (DBA)

33

DECIBEL RATING HIGH (DBA)

48.5

AIR FLOW DIRECTION

4-W

OSCILLATION

Yes

INVERTER

Yes

MIN AMBIENT COOL (F)

-13 ~ 122

MIN AMBIENT HEAT (F)

-13 ~ 75

LINE SET LENGTH

25

MAX LINESET LENGTH (FT)

75

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

5/8

COMPRESSOR MOTOR TYPE

Twin-Rotary

CONDENSER FAN MOTOR RPM

850/750/700

BLOWER MOTOR RPM

1200/1000/700

AUXILIARY HEATER INCLUDED

No

AUXILIARY HEATER AVAILABLE

No

FAN ONLY OPTION

Yes

QUIET MODE

Yes

AUTO COOL

Yes

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

REMOTE CONTROL INCLUDED

Yes

UL LISTED

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Limited Lifetime Compressor

BASE WARRANTY

5-year Parts/7-year Compressor

BASE PARTS WARRANTY

5-year Parts

REGISTERED COMPRESSOR WARRANTY

Limited Lifetime Compressor

BASE COMPRESSOR WARRANTY

7-year Compressor

HAS BATTERIES

Yes

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU;PR;VI
