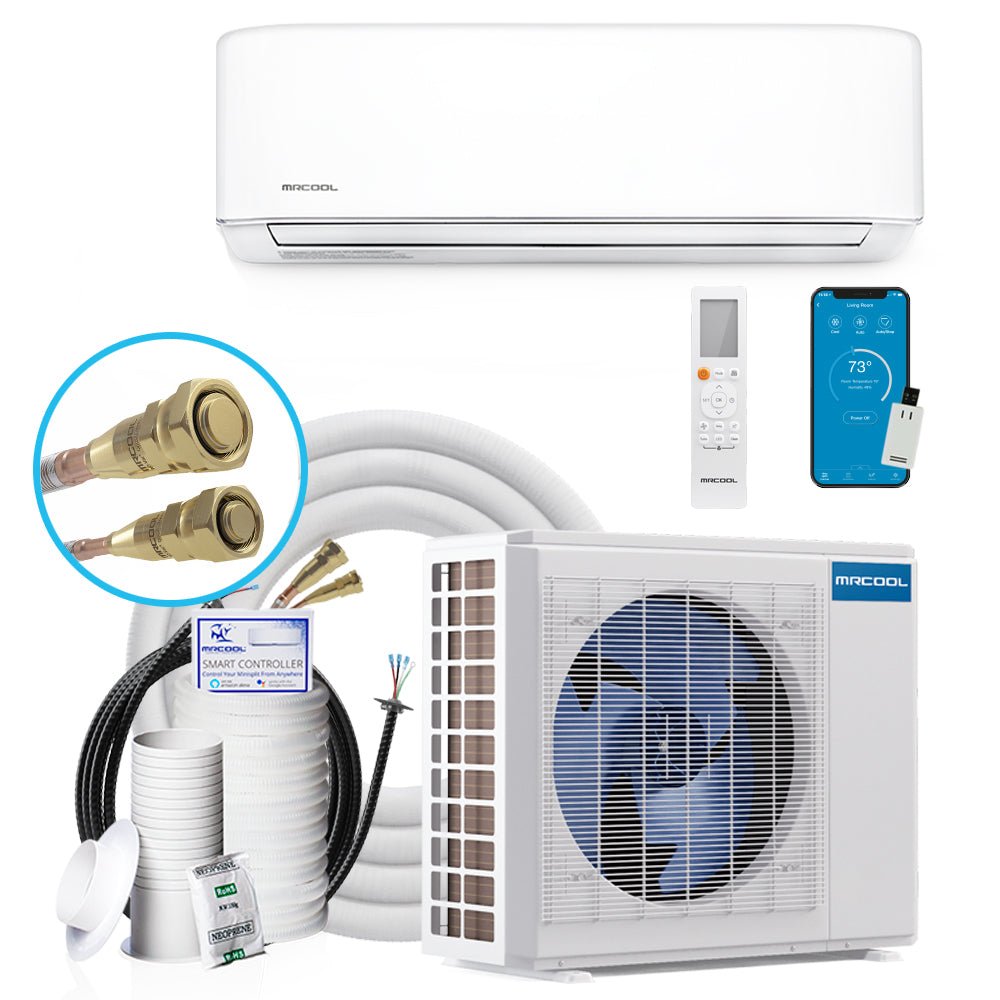

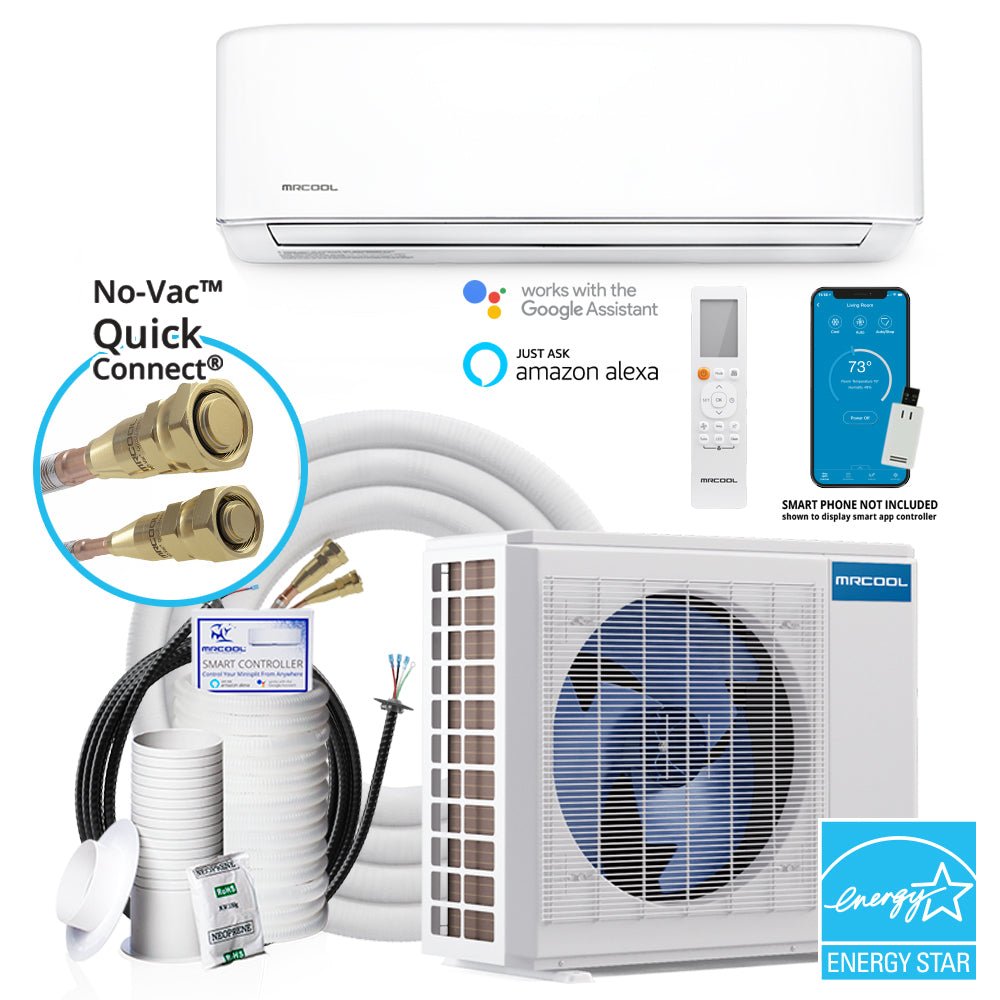

Mr Cool DIY 4th Generation E Star 18k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz

Mr Cool DIY 4th Generation E Star 18k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz

Regular price $2,356.00 USD
Regular price $2,256.00 USD Sale price $2,356.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

The MRCOOL® 4th Generation DIY 18K BTU, 22 SEER Ductless Heat Pump system offers a complete solution to your home’s heating and cooling needs. This system can heat & cool an area up to 750 sq. ft and is capable of an Energy Star certified, 22 SEER efficiency rating. However, the best feature of this system is the ease of installation it provides to the homeowner. With the included pre-charged 25 ft. line set, some hand tools, and a few hours of time this entire system can be completely installed. This system comes equipped with many functions that separate it from the rest. It has multiple operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification) and SLEEP. It also features the Follow Me function, which allows the system to continually adjust the room temperature based on where the hand-held remote controller is. Need to operate the system when you’re not at home? No problem. The MrCool system also has the capability of being operated with your smartphone with the use of the Smart HVAC app. MrCool stands behind the quality and workmanship of this system by being the only manufacturer to offer a limited lifetime compressor warranty.



SEER

22

SEER2

22.7

EER

12.5

EER2

12.6

COP 47

3.74

HSPF-4

11.5

HSPF-5

9

HSPF2-4

9.8

HSPF2-5

7.2

CFM

465.29/361.76/304.12

TONNAGE

1.5

COOLING CAPACITY (BTU)

18000

HEATING CAPACITY (BTU)

18000

VOLTAGE (V)

208-230

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

30

MIN CIRCUIT AMPACITY (A)

18

COLOR

White

COLOR FAMILY

White

RATED LOAD

0.25

MAX COVERAGE AREA

Up to 750

ZONE CAPACITY

1

REFRIGERANT TYPE

R-410A

REFRIGERANT VOLUME (OZ)

56.44

DECIBEL RATING (DBA)

44.5/37/31

DECIBEL RATING LOW (DBA)

31

DECIBEL RATING HIGH (DBA)

44.5

AIR FLOW DIRECTION

4-W

OSCILLATION

Yes

INVERTER

Yes

MIN AMBIENT COOL (F)

-13 ~ 122

MIN AMBIENT HEAT (F)

-13 ~ 75

LINE SET LENGTH

25

MAX LINESET LENGTH (FT)

75

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

1/2

COMPRESSOR MOTOR TYPE

Rotary

CONDENSER FAN MOTOR RPM

810/720

BLOWER MOTOR RPM

1120/950/700

AUXILIARY HEATER INCLUDED

No

AUXILIARY HEATER AVAILABLE

No

FAN ONLY OPTION

Yes

QUIET MODE

Yes

AUTO COOL

Yes

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

REMOTE CONTROL INCLUDED

Yes

UL LISTED

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Limited Lifetime Compressor

BASE WARRANTY

5-year Parts/7-year Compressor

BASE PARTS WARRANTY

5-year Parts

REGISTERED COMPRESSOR WARRANTY

Limited Lifetime Compressor

BASE COMPRESSOR WARRANTY

7-year Compressor

HAS BATTERIES

Yes

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU;PR;VI
