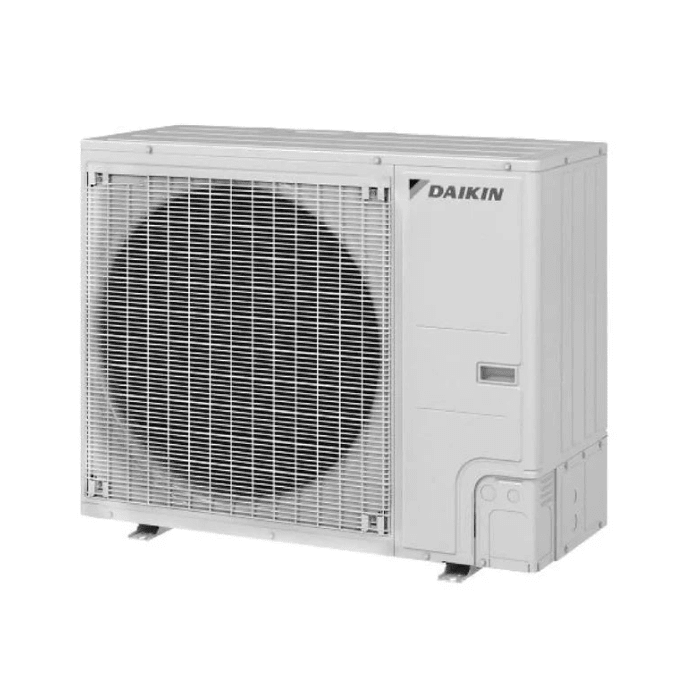

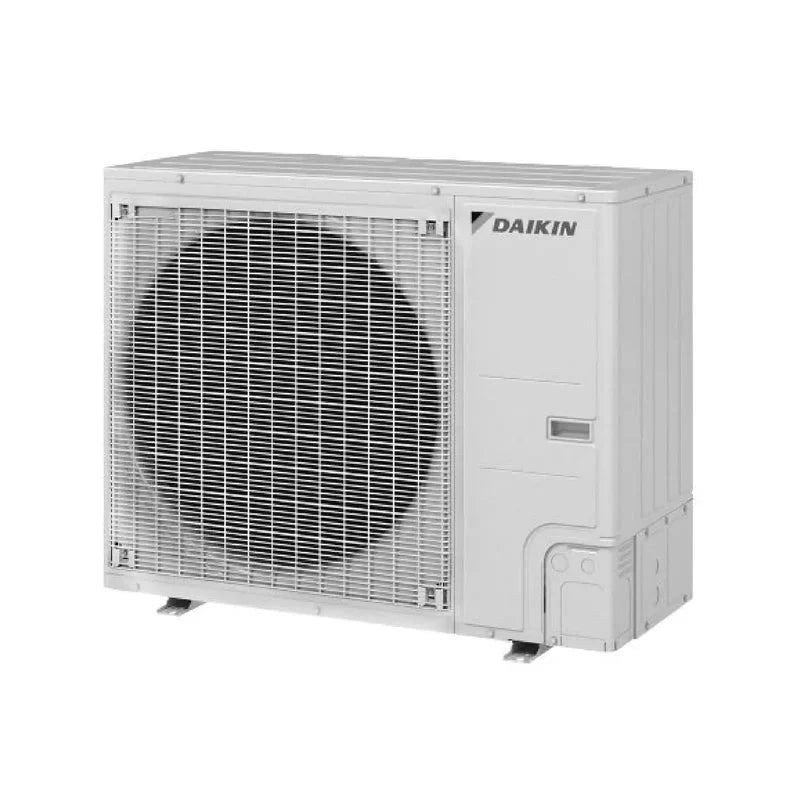

Daikin RZA24AAVJU 24K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32

Product: RZA24AAVJU

Descriptions:

The Daikin RZA24AAVJU is a single‑zone SkyAir Advance outdoor heat pump condenser designed to provide efficient cooling and heating for residential or light commercial spaces. It is typically paired with compatible indoor units in a ductless or ducted split system to deliver year‑round comfort. This model uses R‑32 refrigerant, which offers improved energy efficiency and lower global warming potential compared to older refrigerants. The unit features inverter compressor technology for smooth modulation, quieter operation, and better efficiency than fixed‑speed systems. It’s built for reliable performance, durability, and controlled climate comfort in a variety of settings.

Specifications

General

• Model: RZA24AAVJU

• Product Type: Outdoor heat pump condenser (single‑zone)

• System Type: Heat pump (cooling + heating)

• Refrigerant: R‑32

• Inverter‑driven compressor for variable capacity

• Compressor Type: Swing (inverter)

• Designed for single‑zone systems

• Warranty: Typically includes standard parts and compressor warranty with extended coverage when registered (e.g., up to 10 years limited)

Capacity

• Cooling Capacity: ~24,000 BTU/h (1.5 tons)

• Heating Capacity: Similar nominal capacity range for heating (dependent on indoor unit pairing and conditions)

• Designed for year‑round comfort with both cooling and heating modes.

Electrical

• Power Supply: 208 – 230 V AC

• Phase: Single‑phase

• Frequency: 60 Hz (standard residential/commercial supply)

• Maximum Overcurrent Protection: ~20 A

• Compressor Stages: Inverter (variable speed)

Physical Dimensions & Weight

• Height: ~34‑1/4 in

• Width: ~43‑5/16 in

• Depth: ~18‑1/8 in

• Unit Weight: ~234 lb (about 106 kg)

• Robust cabinet designed for outdoor installation and durability.
