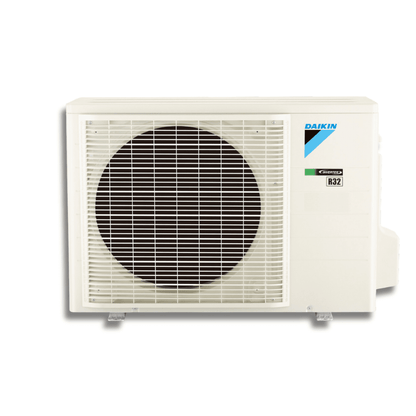

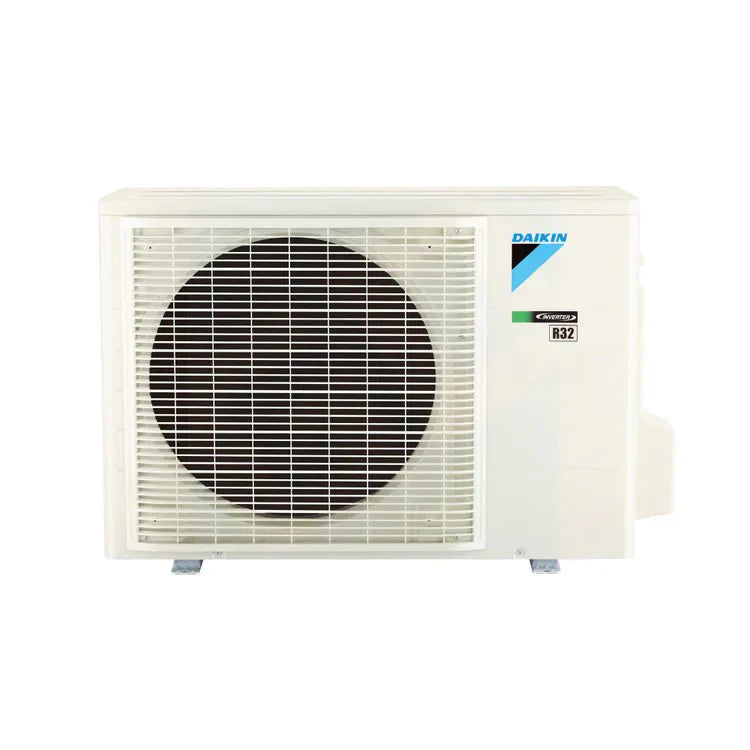

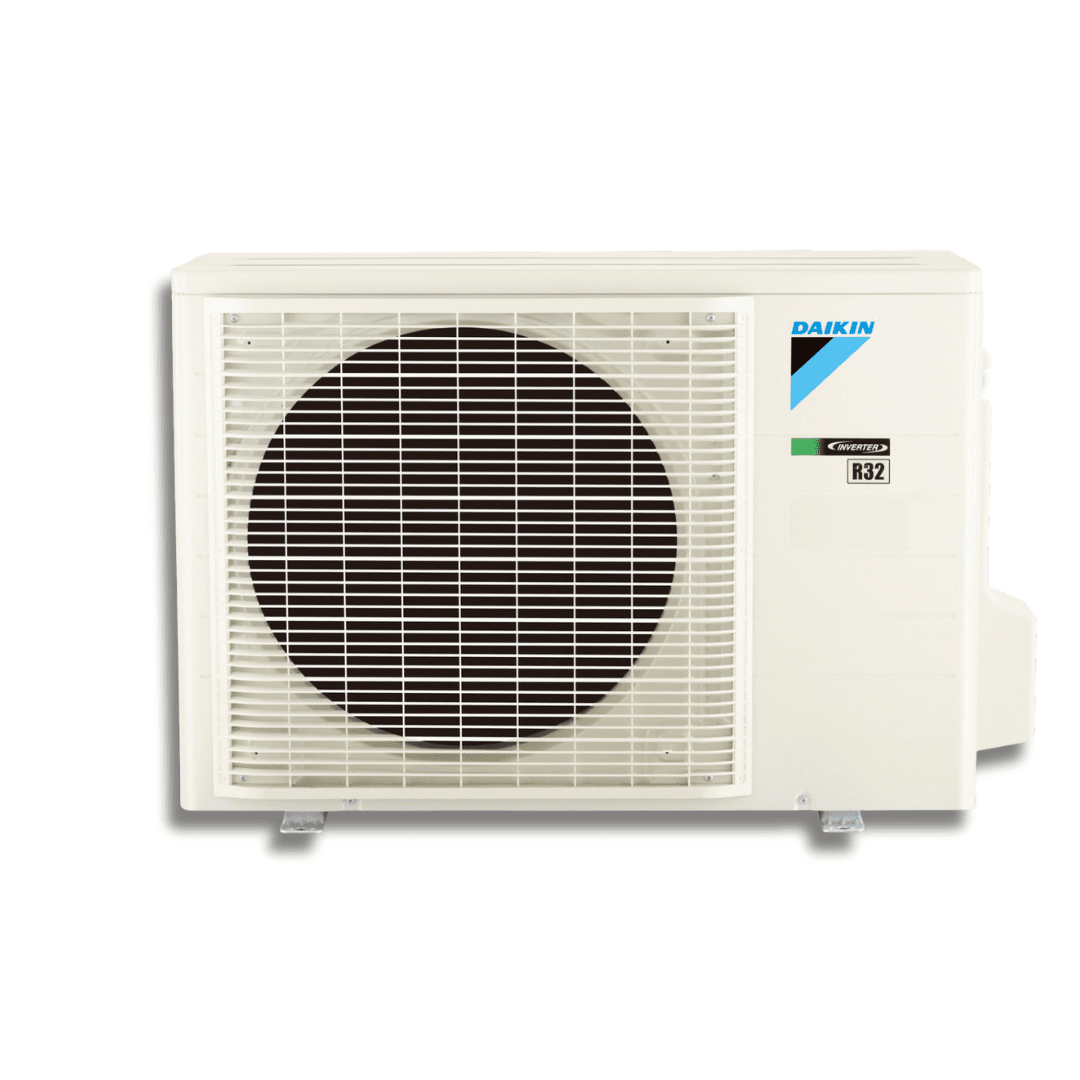

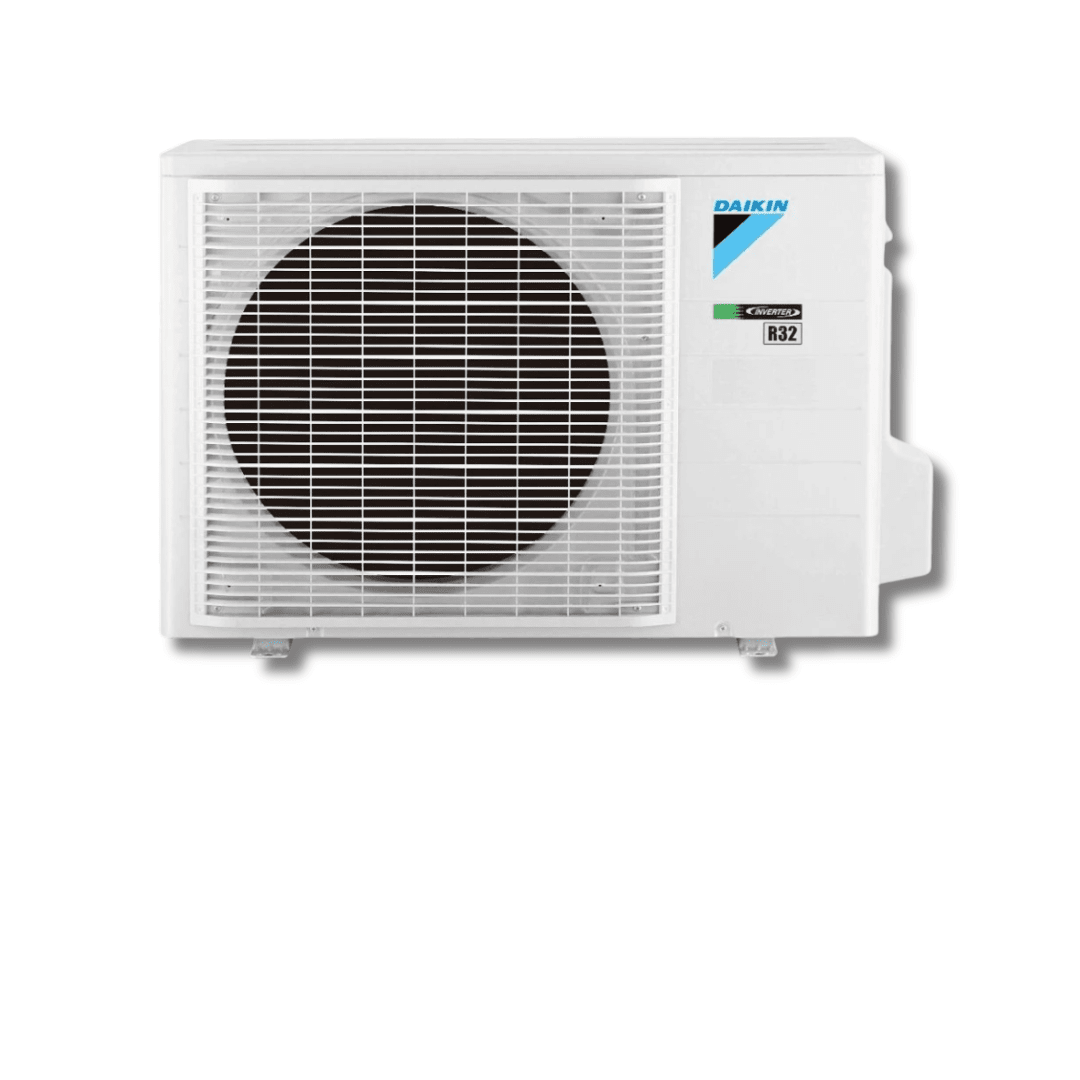

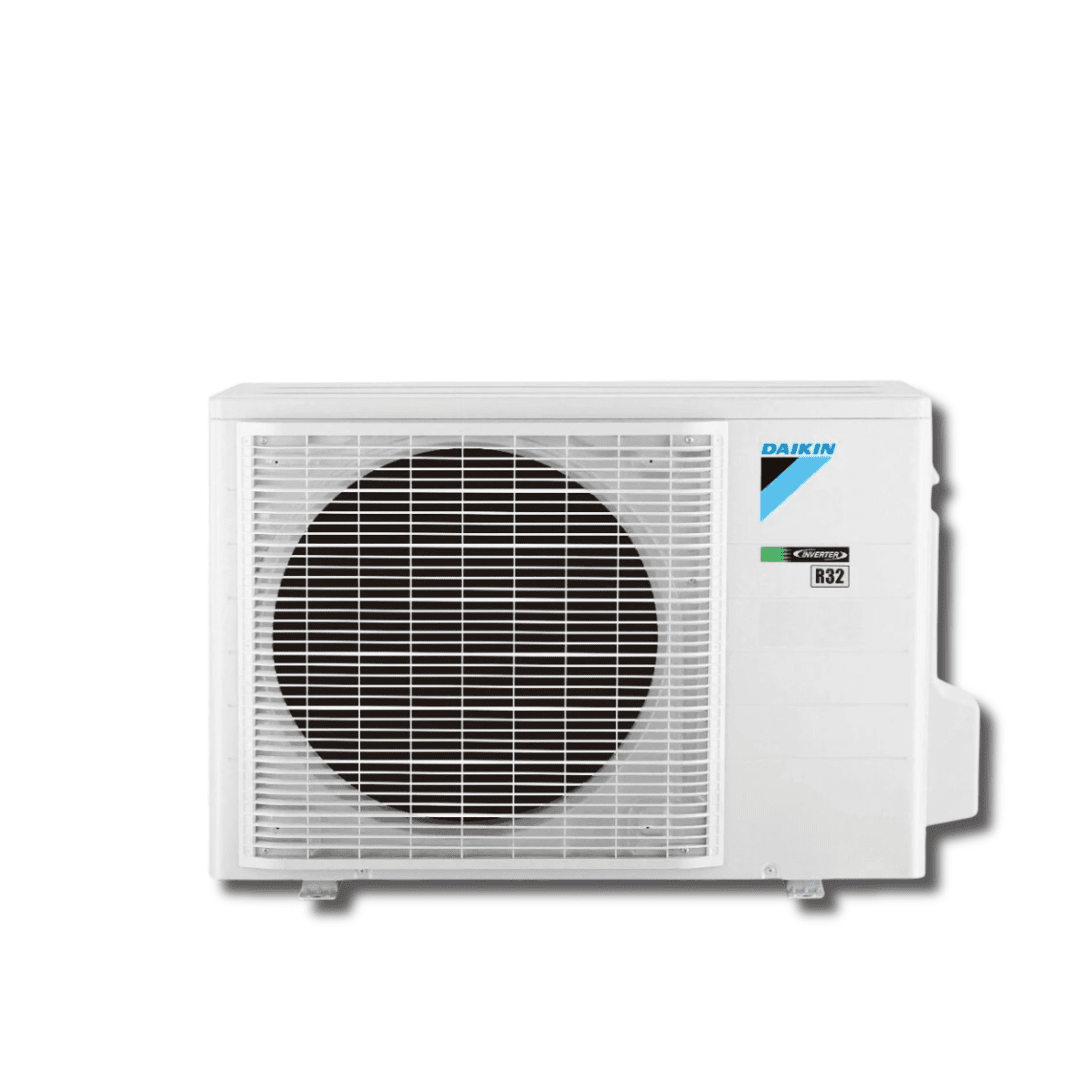

The Daikin RXM24WVJU9 is a powerful, high-efficiency heat pump outdoor unit from Daikin’s ATMOSPHERA series, designed for single-zone ductless mini-split applications. Engineered with advanced inverter-driven compressor technology, this unit delivers dependable year-round comfort with excellent energy efficiency and precise temperature control.
Utilizing environmentally friendly R-32 refrigerant, the RXM24WVJU9 reduces environmental impact while improving system performance. It is built to handle demanding climates, providing reliable heating down to -13°F and efficient cooling in outdoor temperatures up to 115°F. With durable, corrosion-resistant construction, quiet operation, and a 12-year limited warranty (with registration), this unit offers long-term comfort and reliability for residential and light commercial spaces.
Key Features
24,000 BTU cooling capacity – ideal for large rooms and open living areas
Inverter-driven compressor for energy-efficient, variable-speed operation
Cold-climate heating down to -13°F
High-ambient cooling performance up to 115°F
Eco-friendly R-32 refrigerant with lower global warming potential
Quiet outdoor operation for reduced noise impact
Corrosion-resistant heat exchanger for enhanced durability
12-year limited warranty on parts and compressor (registration required)
Outdoor Unit Specifications
Model Number
RXM24WVJU9
Series
ATMOSPHERA
Refrigerant
R-32
Nominal Cooling Capacity
24,000 BTU/h
Nominal Heating Capacity
Approximately 28,000 BTU/h
SEER2
Approximately 21.0
HSPF2
Approximately 9.5
EER2
Approximately 11.7
Cooling Operating Range
50°F to 115°F
Heating Operating Range
Down to -13°F
Sound Level (Cooling)
Approximately 56 dB(A)
Sound Level (Heating)
Approximately 57 dB(A)
Power Supply
208/230V, 60Hz, 1-Phase
Liquid Line Size
3/8"
Gas Line Size
5/8"
Maximum Piping Length
Up to approximately 98.5 ft
Dimensions (H x W x D)
30-11/16" x 39-3/8" x 14-3/16"
Unit Weight
Approximately 165 lbs
Warranty
12-Year Limited Parts & Compressor (with registration)
