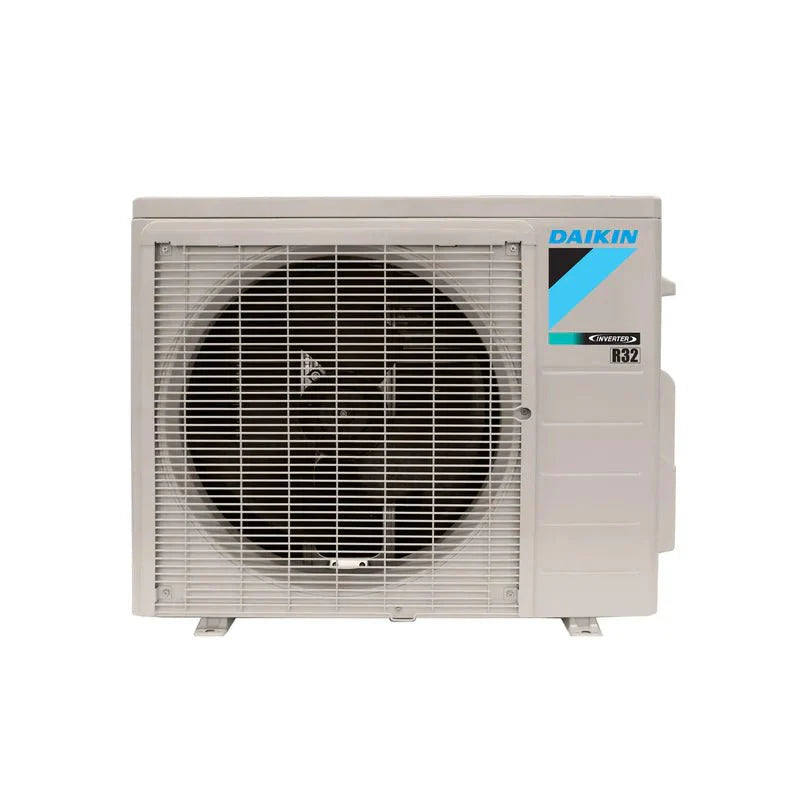

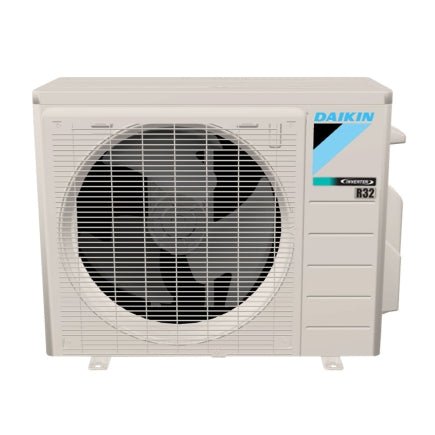

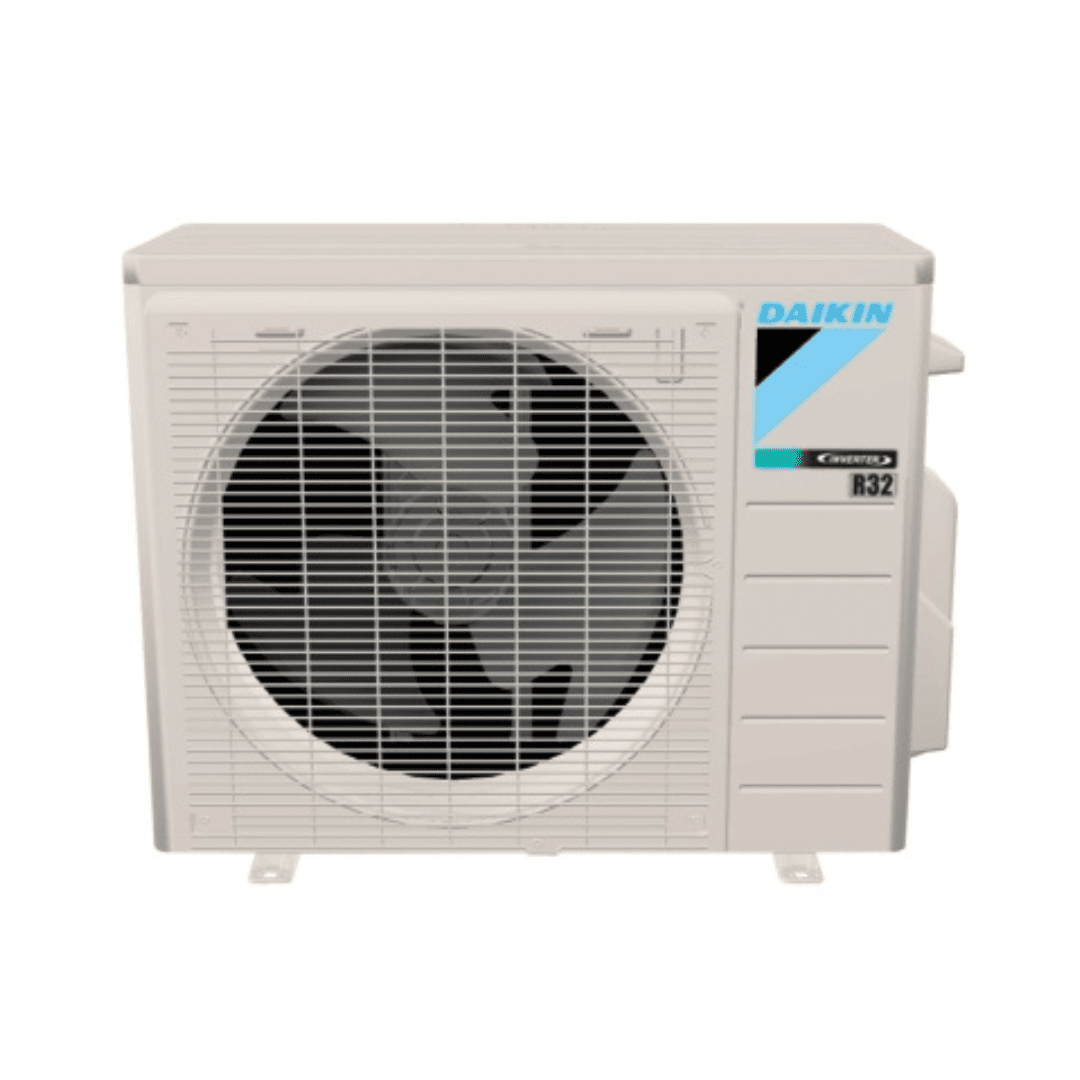

Daikin RXF24AXVJU 24,000 BTU Oterra Single Zone Heat Pump Outdoor Unit - R32

Product: RXF24AXVJU

Description:

The Daikin RXF24AXVJU is an outdoor heat pump condenser unit in Daikin’s ductless mini-split lineup using R-32 refrigerant and inverter compressor technology. It’s designed for single-zone heating and cooling and pairs with a compatible indoor air handler to provide comfortable year-round conditioning in smaller spaces such as bedrooms, living rooms, offices, or additions. The inverter technology delivers efficient modulation of cooling and heating output, smoother comfort, quieter operation, and improved energy savings compared to non-inverter systems.

Specifications:

Capacity & Performance

• Nominal Cooling Capacity: ~22,400 BTU/h

• Nominal Heating Capacity: ~23,600 BTU/h

• Cooling Capacity Range (Min–Max): ~7,000 – 26,400 BTU/h

• Heating Capacity Range (Min–Max): ~6,200 – 28,600 BTU/h

• Refrigerant: R‑32

• Compressor Type: Inverter‑driven swing compressor

• Application: Outdoor heat pump condenser for single‑zone system

• Max Piping Length: ~98.5 ft

• Max Height Difference (Indoor–Outdoor): ~66 ft


• Dimensions - (Unit Depth)13-13/16 in
• Dimensions - (Unit Width)36-5/8 in
• Dimensions - (Unit Height)27-13/32 in
• Weight - (Unit)101 lb

Efficiency Ratings

• SEER2 (Seasonal Energy Efficiency Ratio): ~21.0

• EER2 (Energy Efficiency Ratio): ~12.0

• HSPF2 (Heating Seasonal Performance Factor): ~9.1



Electrical

• Voltage: 208 – 230 V

• Phase: Single‑Phase

• Frequency: 60 Hz

• Minimum Circuit Ampacity (MCA): ~16.34 A

• Maximum Overcurrent Protection (Breaker): ~20 


Operating Temperature Range

• Cooling Mode Ambient Range: ~50 °F to ~122 °F

• Heating Mode Ambient Range: ~5 °F to ~65 °F
