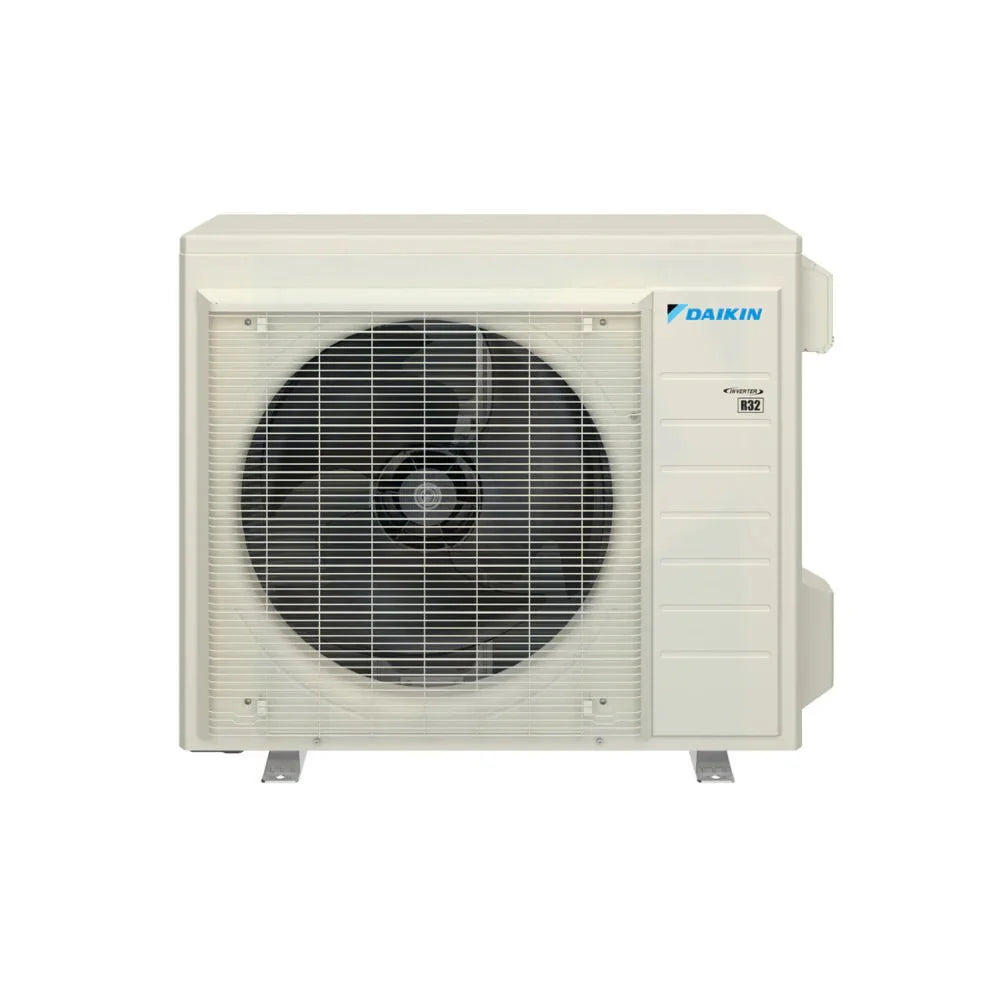

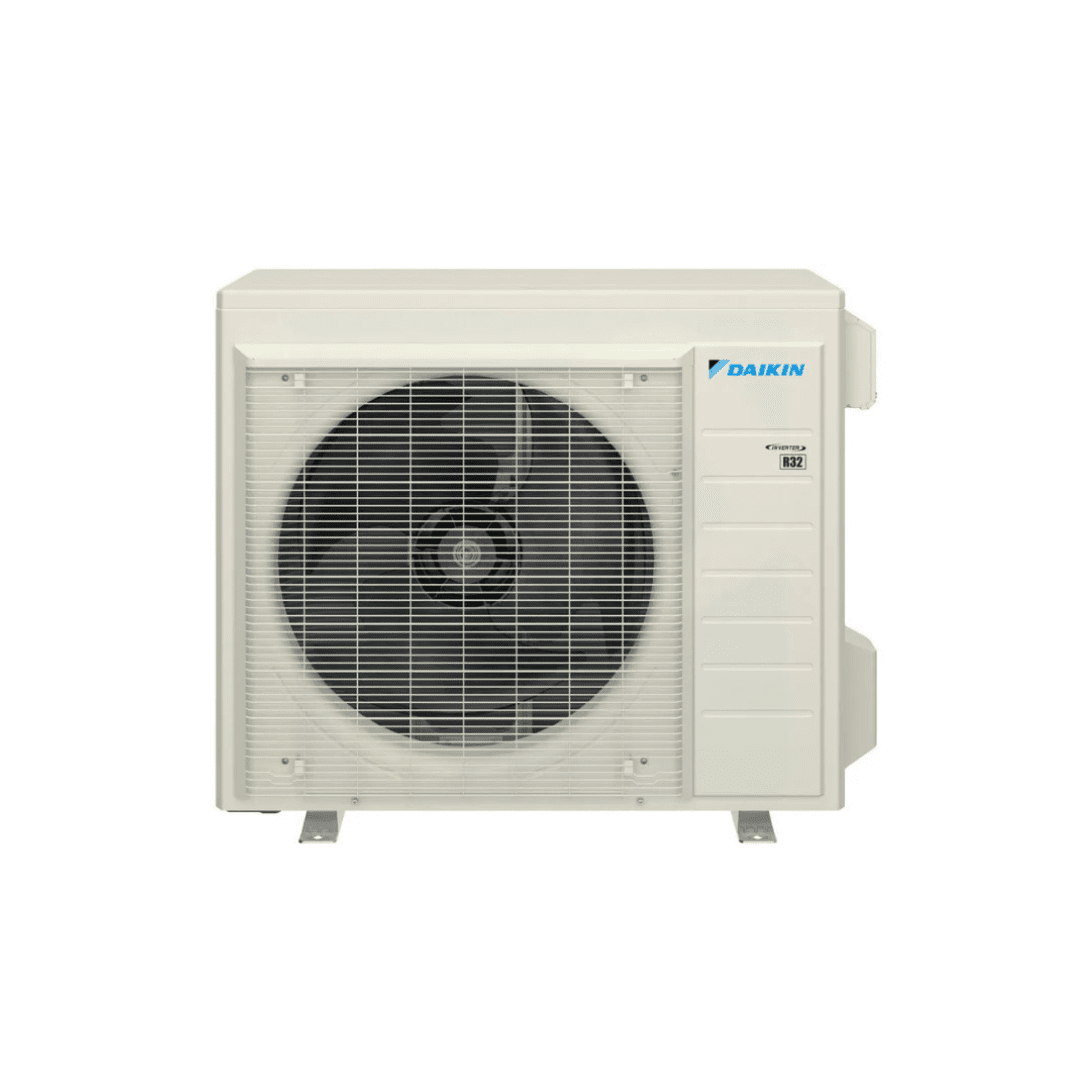

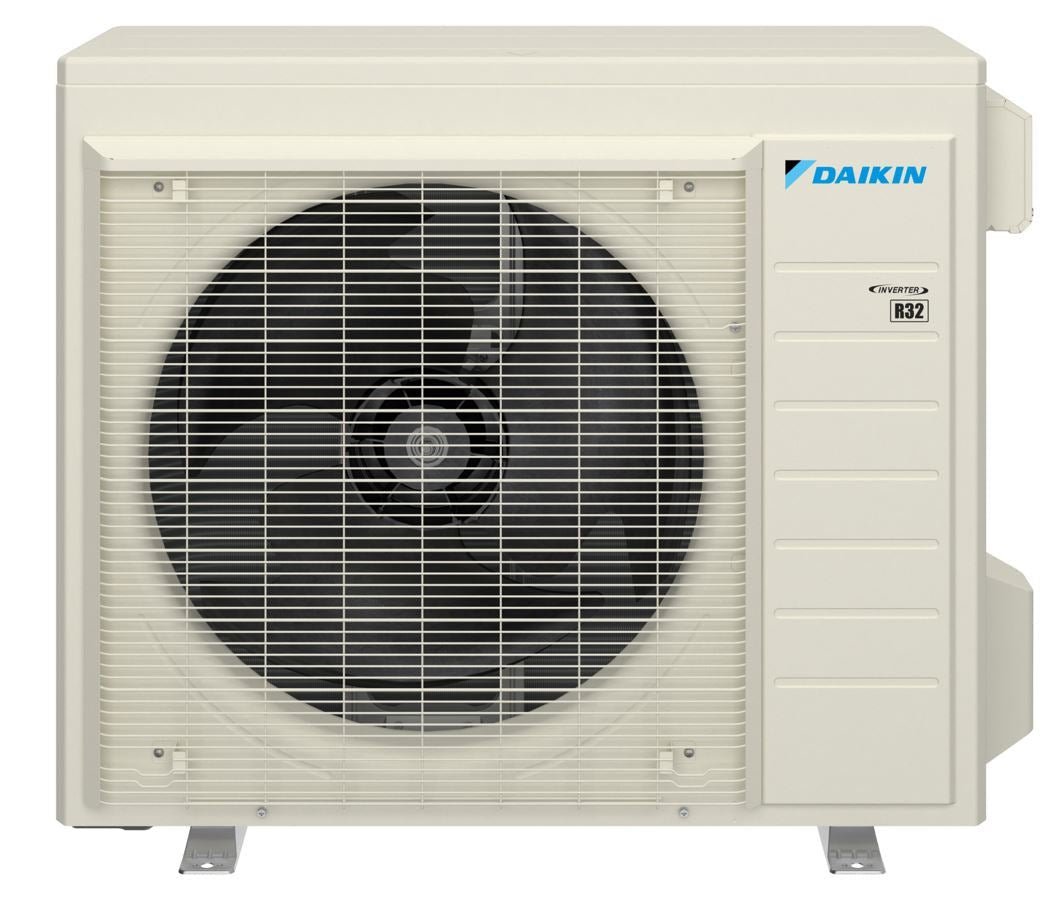

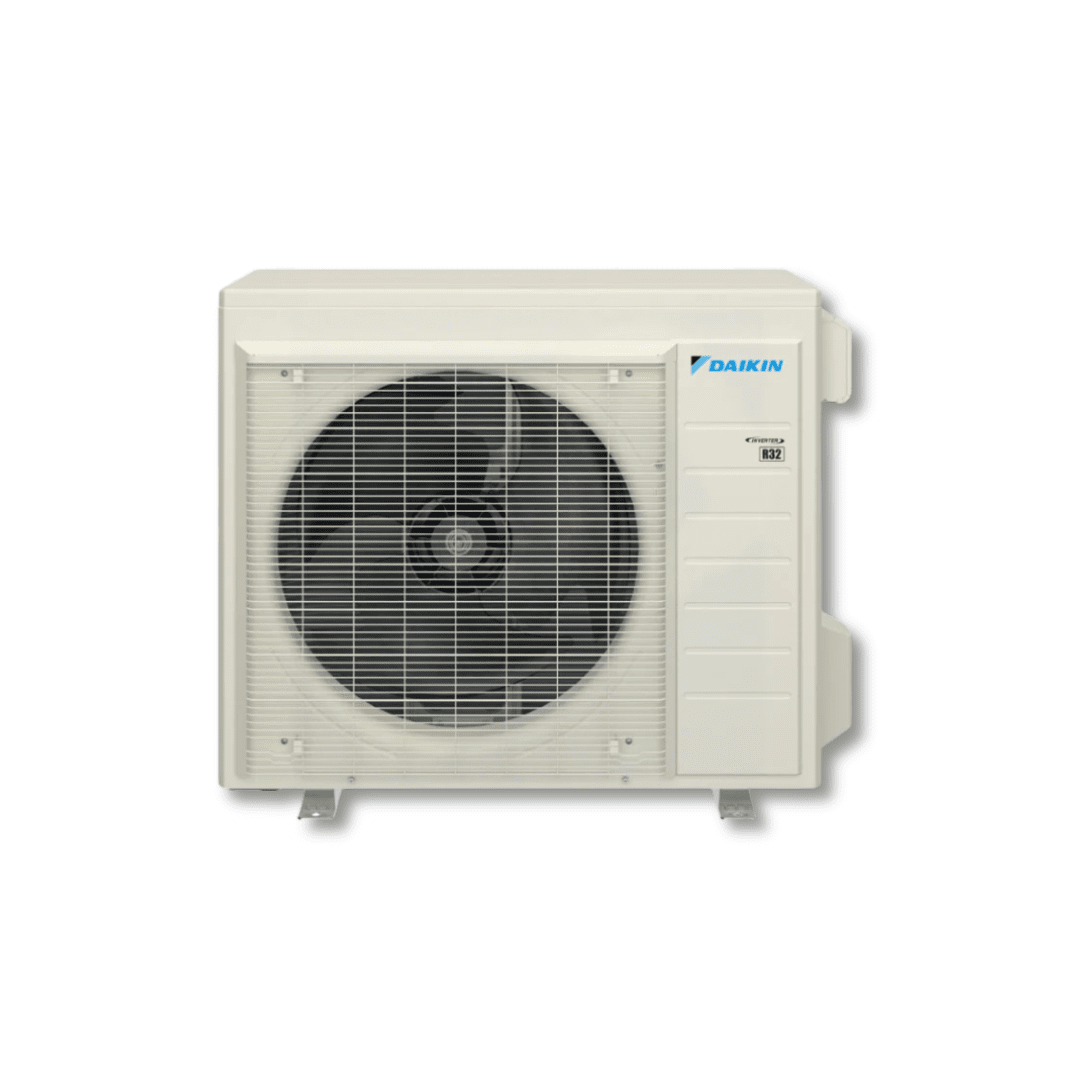

Daikin RXF18BVJU9 18,000 BTU Oterra Single Zone Heat Pump Outdoor Unit - R32

Product: RXF18BVJU9

Description:

The Daikin RXF18BVJU9 is an outdoor heat pump condenser unit designed for single‑zone ductless mini‑split systems. It is part of Daikin’s Oterra Series and uses R‑32 refrigerant, which has a lower environmental impact than older refrigerants. The unit features an inverter‑driven compressor for efficient and smooth operation throughout the year, delivering both cooling and heating performance. This outdoor unit pairs with a compatible indoor air handler to create a complete climate control system ideal for medium to large rooms such as living rooms, open spaces, and larger bedrooms.

Specifications — Daikin RXF18BVJU9

Capacity & Performance

• Cooling Capacity (Nominal): 18,000 BTU/h (≈ 1.5 ton class)

• Heating Capacity (Nominal): ~21,600 BTU/h

• Refrigerant: R‑32

• Compressor Type: Inverter variable‑speed swing compressor

Efficiency Ratings

• SEER2 (Cooling Efficiency): 21.0 (high efficiency)

• EER2 (Energy Efficiency Ratio): 12.0–12.5

• HSPF2 (Heating Seasonal Performance Factor): 9.6

Electrical

• Voltage: 208 – 230 V

• Phase: Single‑phase

• Frequency: 60 Hz

• Maximum Overcurrent Protection (Breaker/Fuse): ~20–25 A typical range

• Minimum Circuit Ampacity: ~16–21 A approximate operating range

• Dimensions - (Unit Depth)12-5/8 in
• Dimensions - (Unit Width)34-1/4 in
• Dimensions - (Unit Height)29-1/2 in
• Weight - (Unit)113 lb
