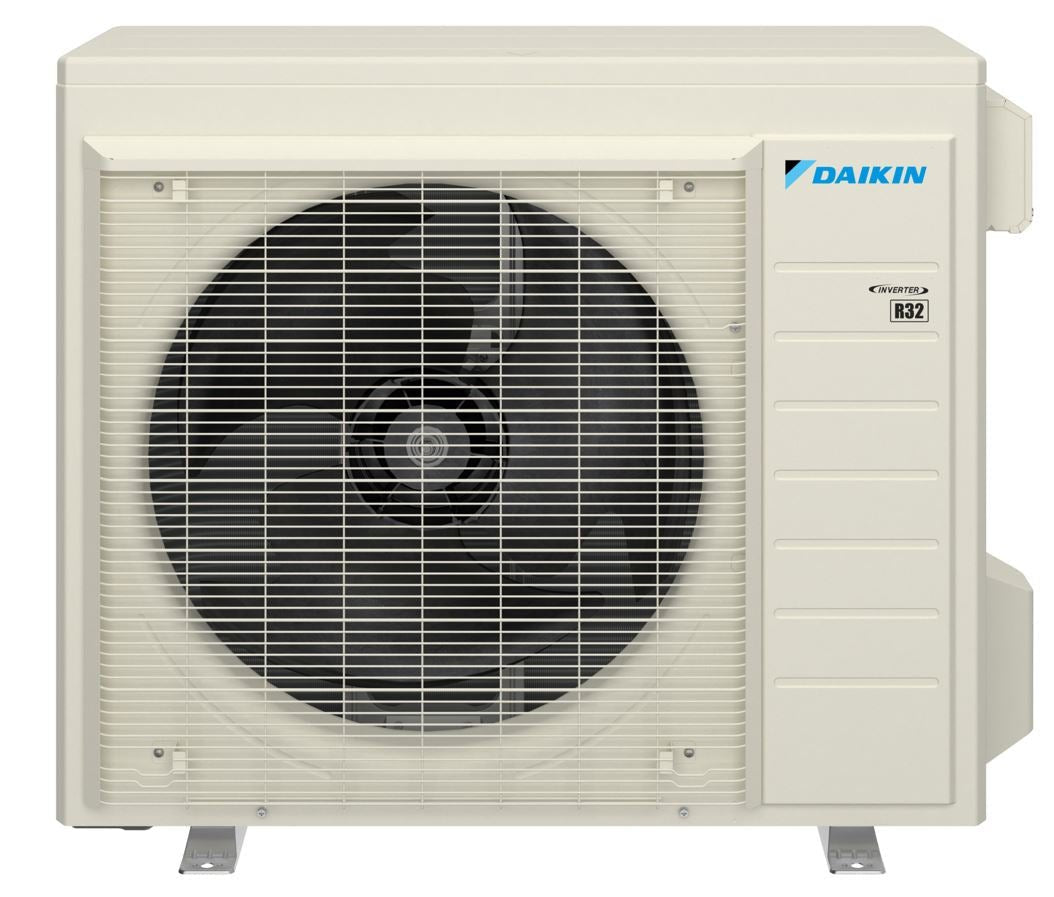

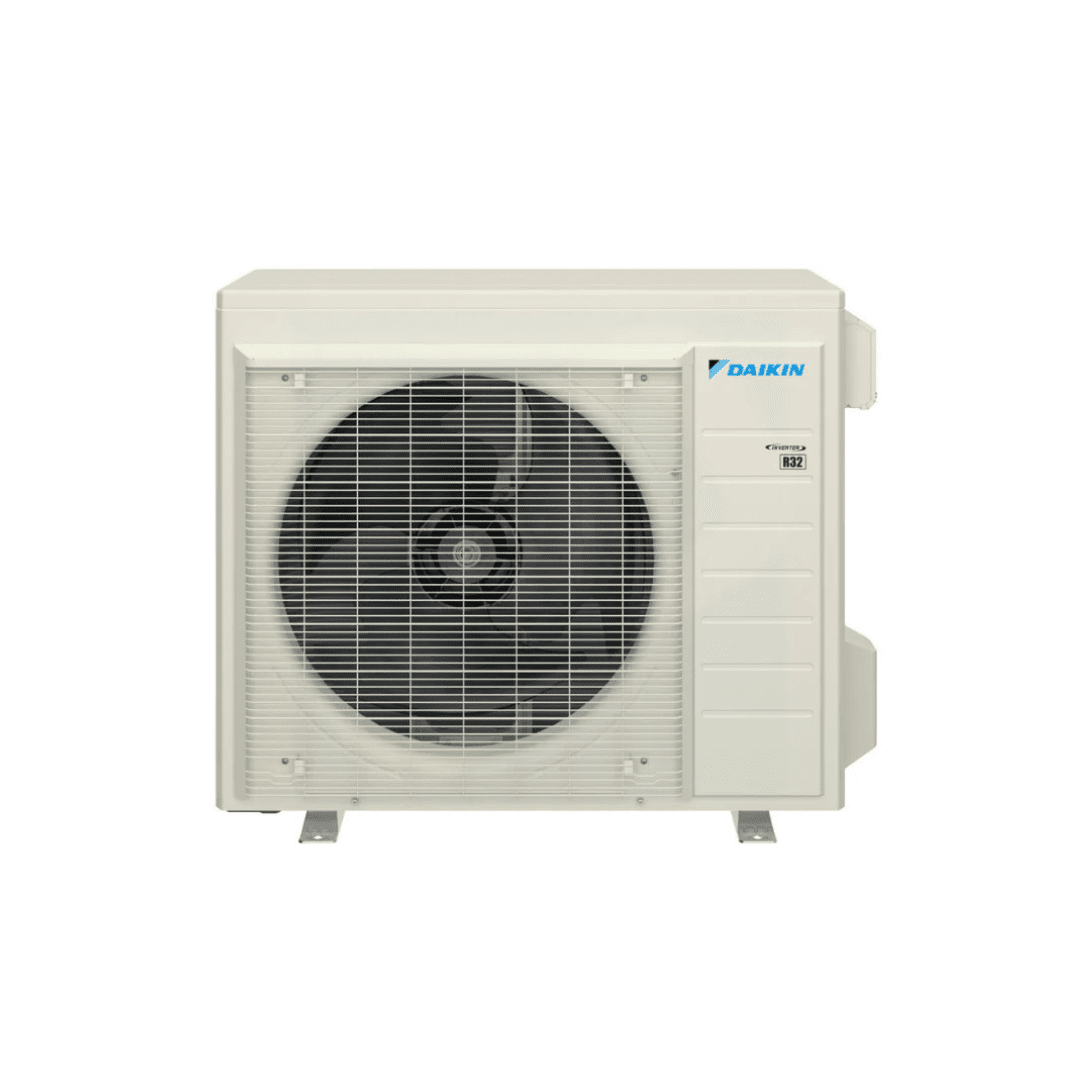

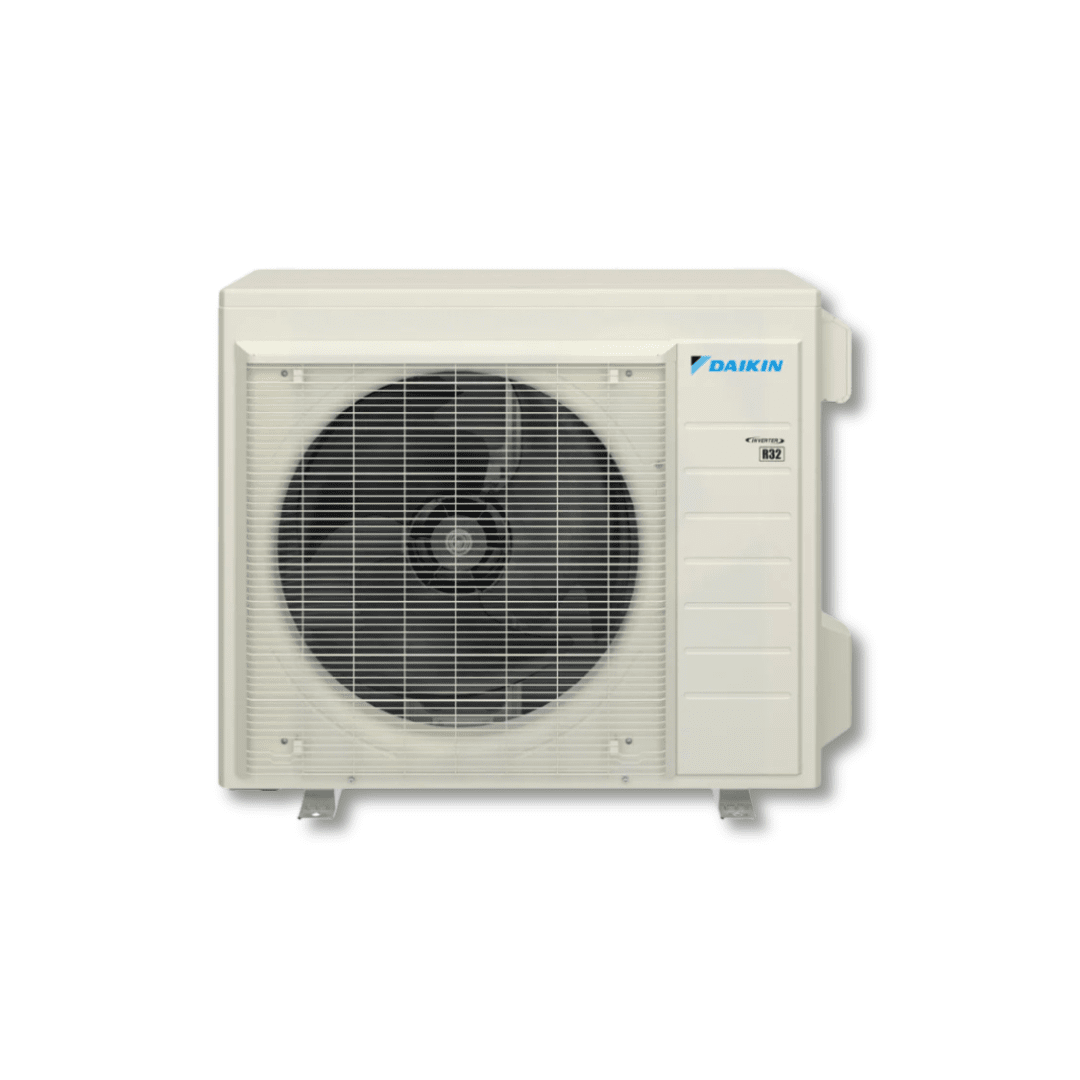

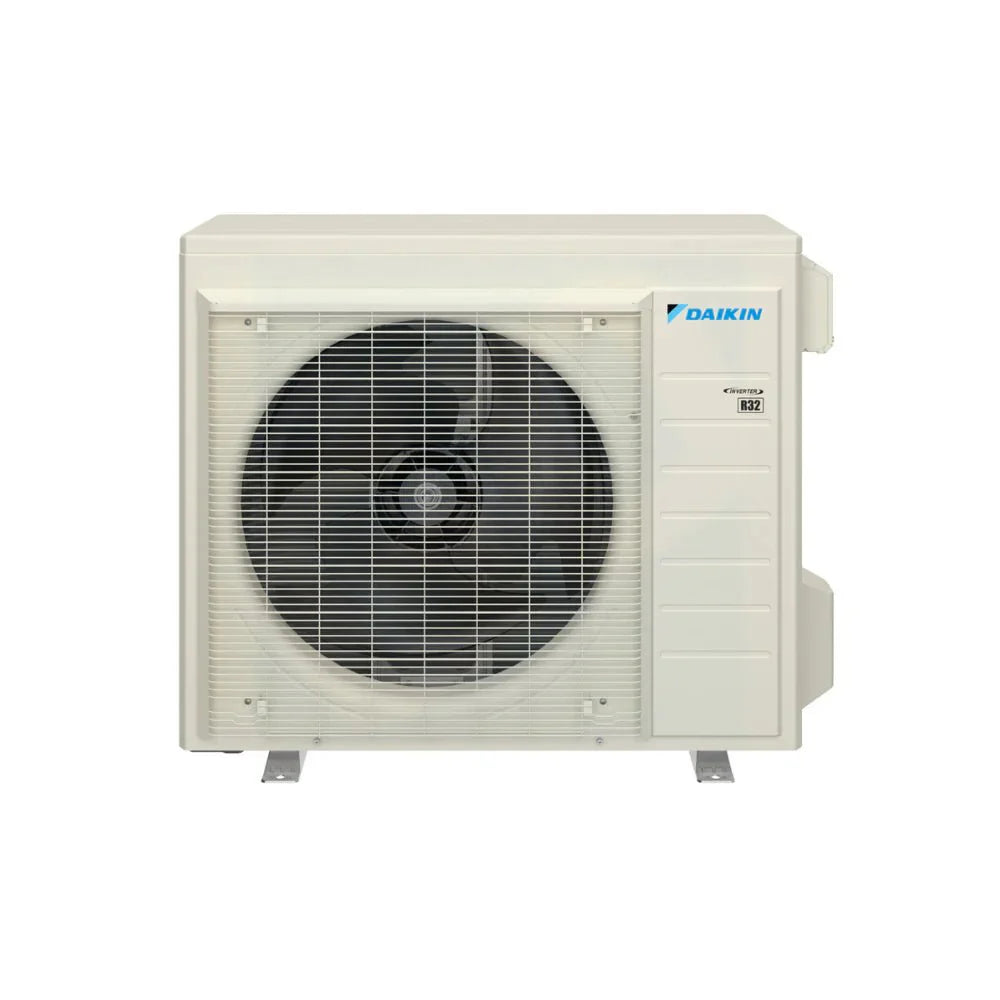

Daikin RXF12BVJU9 12,000 BTU Oterra Single Zone Heat Pump Outdoor Unit - R32

Description: Daikin RXF12BVJU9

The Daikin RXF12BVJU9 is a single-zone outdoor heat pump condenser unit designed for ductless mini-split heating and cooling systems. It uses eco-friendly R-32 refrigerant and an inverter variable-speed compressor to deliver efficient year-round comfort in smaller spaces such as bedrooms, offices, or living areas. The inverter compressor adjusts speed to the real-time load, improving efficiency and comfort while reducing noise.

This unit is part of Daikin’s Oterra series and is engineered for quiet operation, long service life, and reliable performance with automatic functions such as auto-restart after power interruption and self-diagnostics.

Specifications:

Capacity

• Cooling Capacity: Approximately 12,000 BTU/h

• Heating Capacity: Approximately 13,500 BTU/h

Efficiency

• SEER2 (Cooling Efficiency): 21.0

• EER2 (Energy Efficiency Ratio): 12.5

• HSPF2 (Heating Seasonal Performance Factor): 10.2



Electrical

• Voltage: 208 – 230 V

• Phase: Single-phase

• Frequency: 60 Hz

• Maximum Breaker Size: 15 A

• Minimum Breaker Size / MCA: ~9.36 A

• Compressor Stage: Inverter variable-speed type

Refrigerant & Piping

• Refrigerant Type: R-32

• Liquid Line Size: 1/4 inch

• Suction Line Size: 3/8 inch

• Pre-charged Line Set: Provided for standard lengths

• Maximum Total Piping Length: Up to about 66 ft

• Maximum Height Difference (Indoor ↔ Outdoor): Up to about 49 ft

• Dimensions - (Unit Depth)11-3/16 in
• Dimensions - (Unit Width)26-9/16 in
• Dimensions - (Unit Height)21-15/16 in
• Weight - (Unit)73 lb
