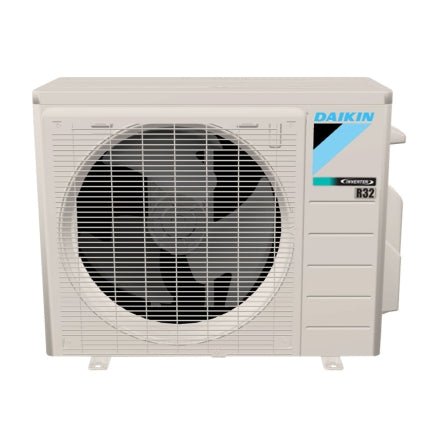

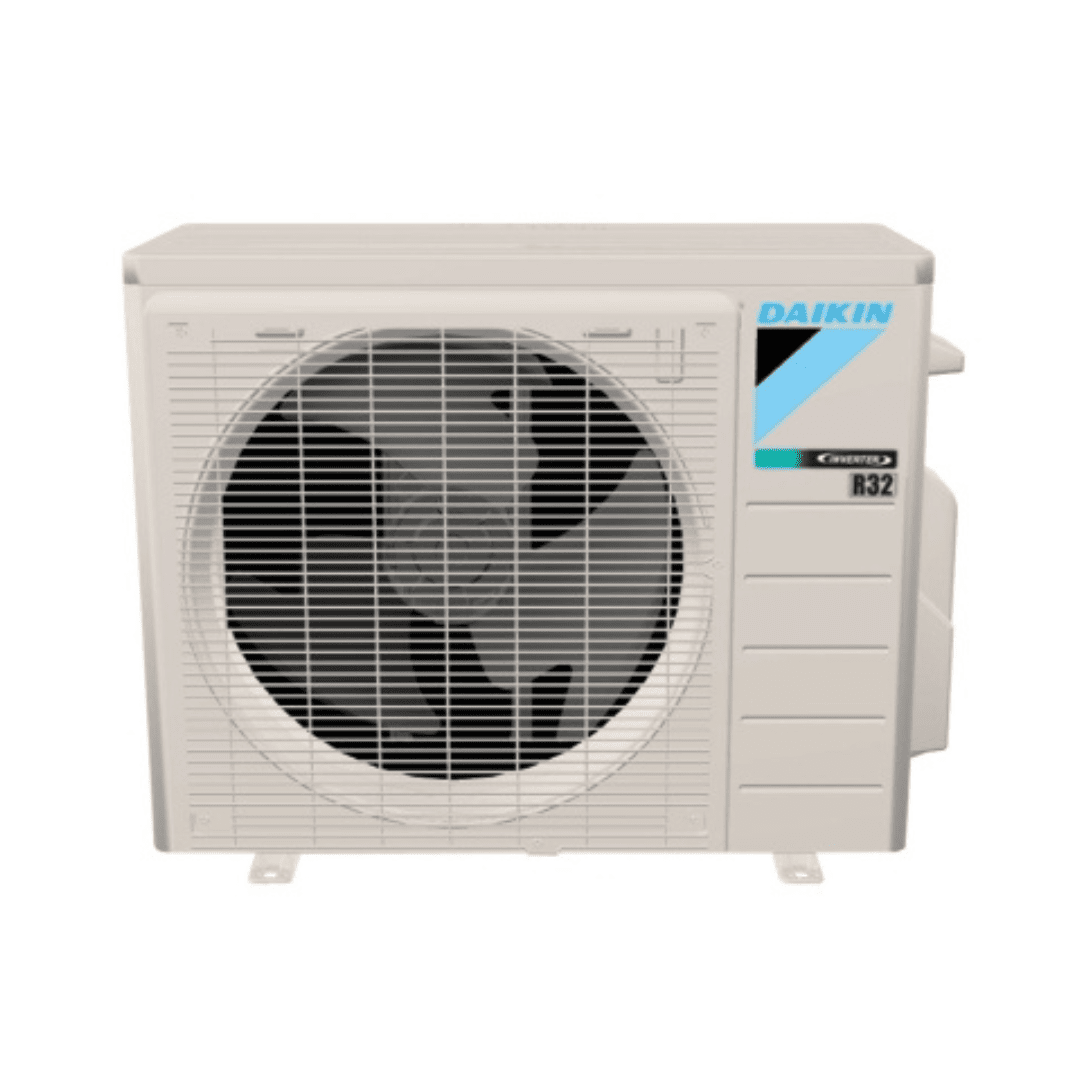

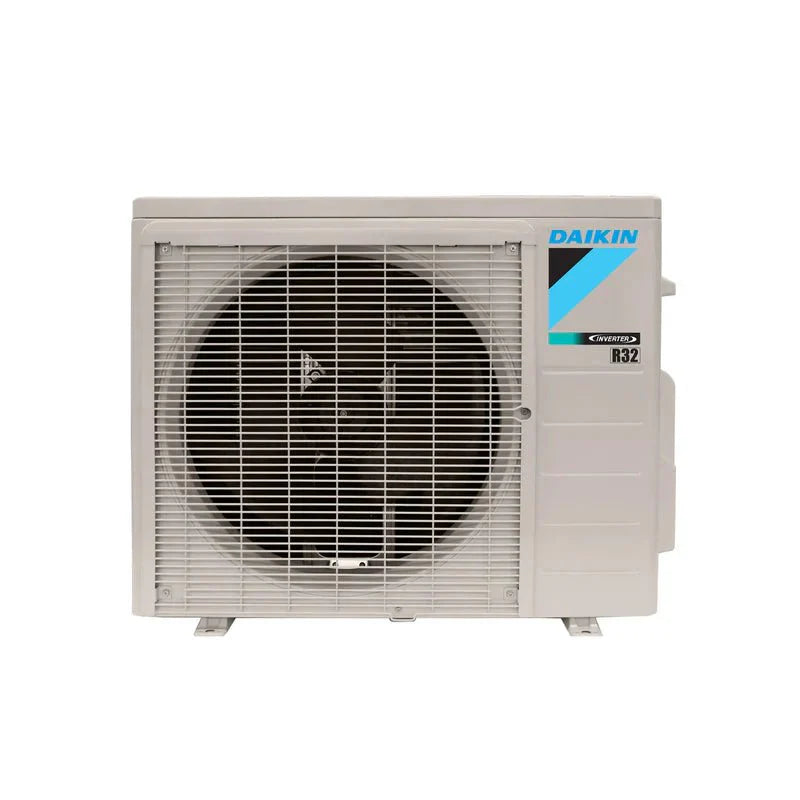

Daikin RXF12AXVJU 12,000 BTU Oterra Single Zone Heat Pump Outdoor Unit - R32

Product: RXF12AXVJU

Descriptions:

The Daikin RXF12AXVJU is an outdoor heat pump condenser unit in Daikin’s ductless mini-split lineup using R-32 refrigerant and inverter compressor technology. It’s designed for single-zone heating and cooling and pairs with a compatible indoor air handler to provide comfortable year-round conditioning in smaller spaces such as bedrooms, living rooms, offices, or additions. The inverter technology delivers efficient modulation of cooling and heating output, smoother comfort, quieter operation, and improved energy savings compared to non-inverter systems.

Specifications:

Capacity & Performance

• Cooling Capacity: 12,000 BTU/h (≈ 1 ton class)

• Heating Capacity: 13,500 BTU/h (heat pump mode)

• Refrigerant Type: R-32

• Cooling Range (Ambient): approximately 50 °F to ~115–122 °F

• Heating Range (Ambient): approximately 5 °F to ~65 °F

Efficiency Ratings

• SEER2 (Seasonal Energy Efficiency Ratio): 21.0

• EER2 (Energy Efficiency Ratio): 12.5

• HSPF2 (Heating Seasonal Performance Factor): 10.2



Electrical

• Voltage: 208 – 230 V

• Phase: Single-Phase

• Frequency: 60 Hz

• Minimum Circuit Ampacity (MCA): ~9.3 A

• Maximum Overcurrent Protection (Fuse/Breaker): ~15 A
