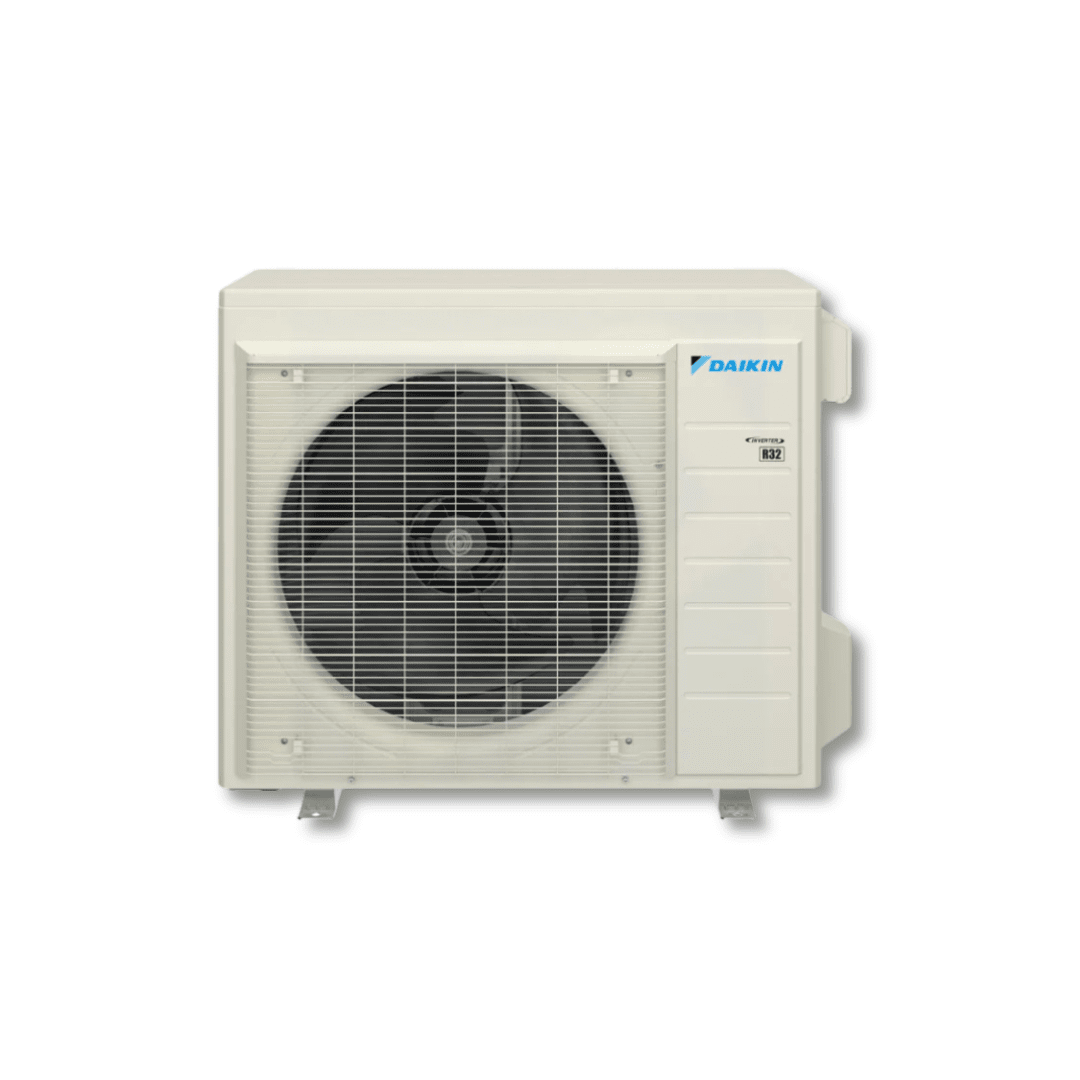

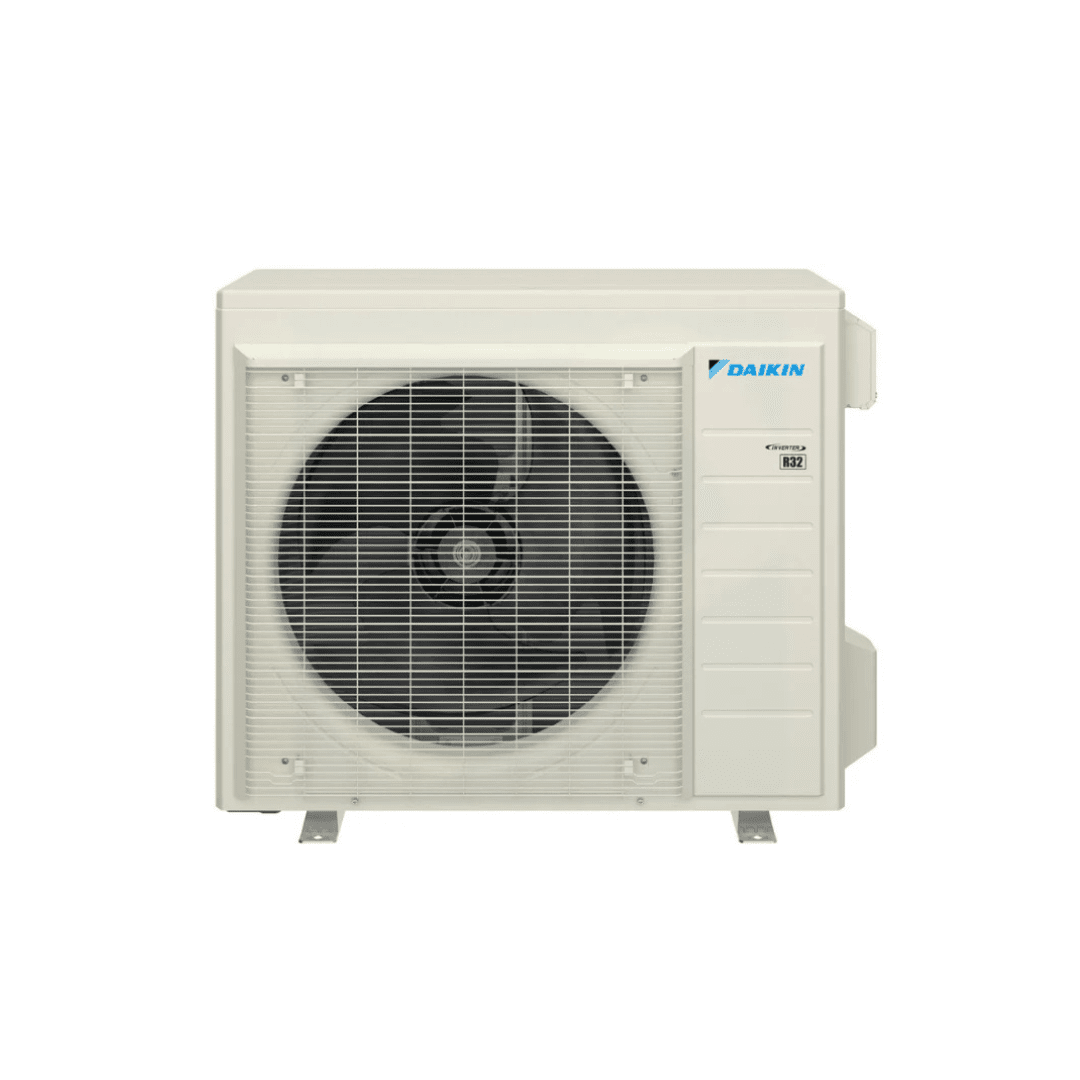

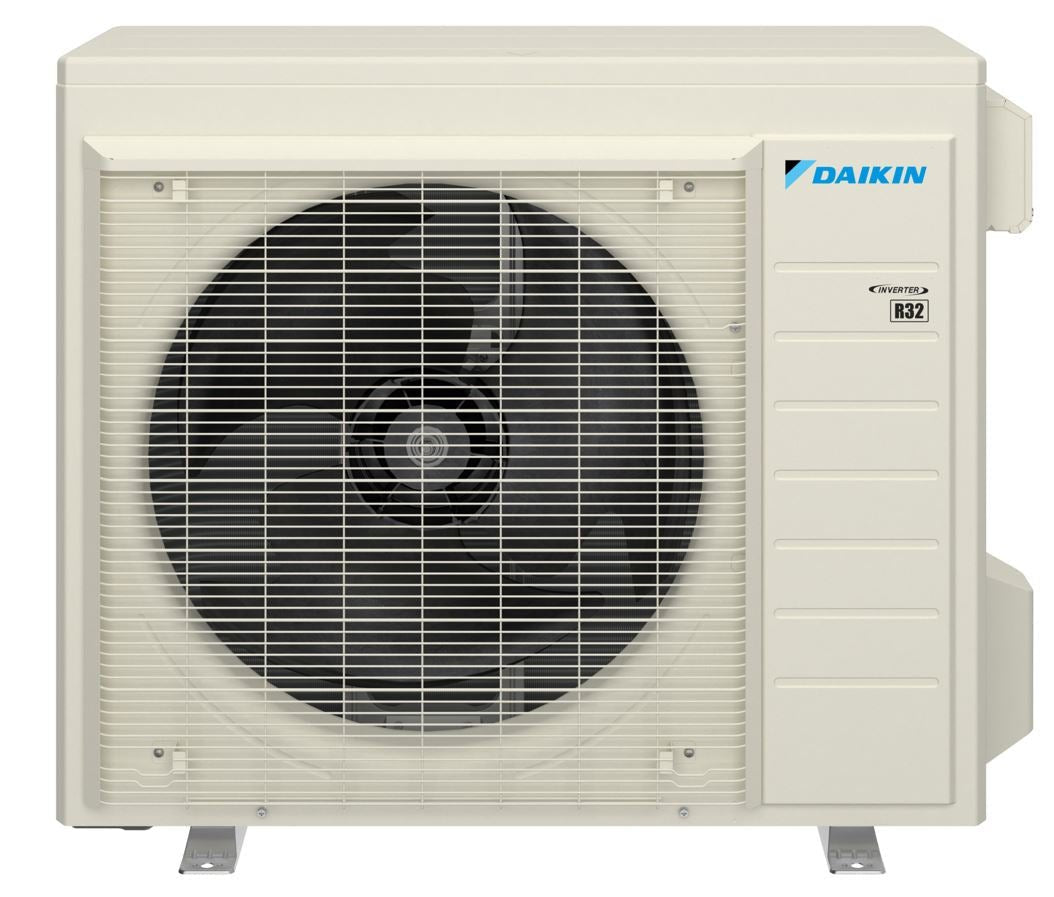

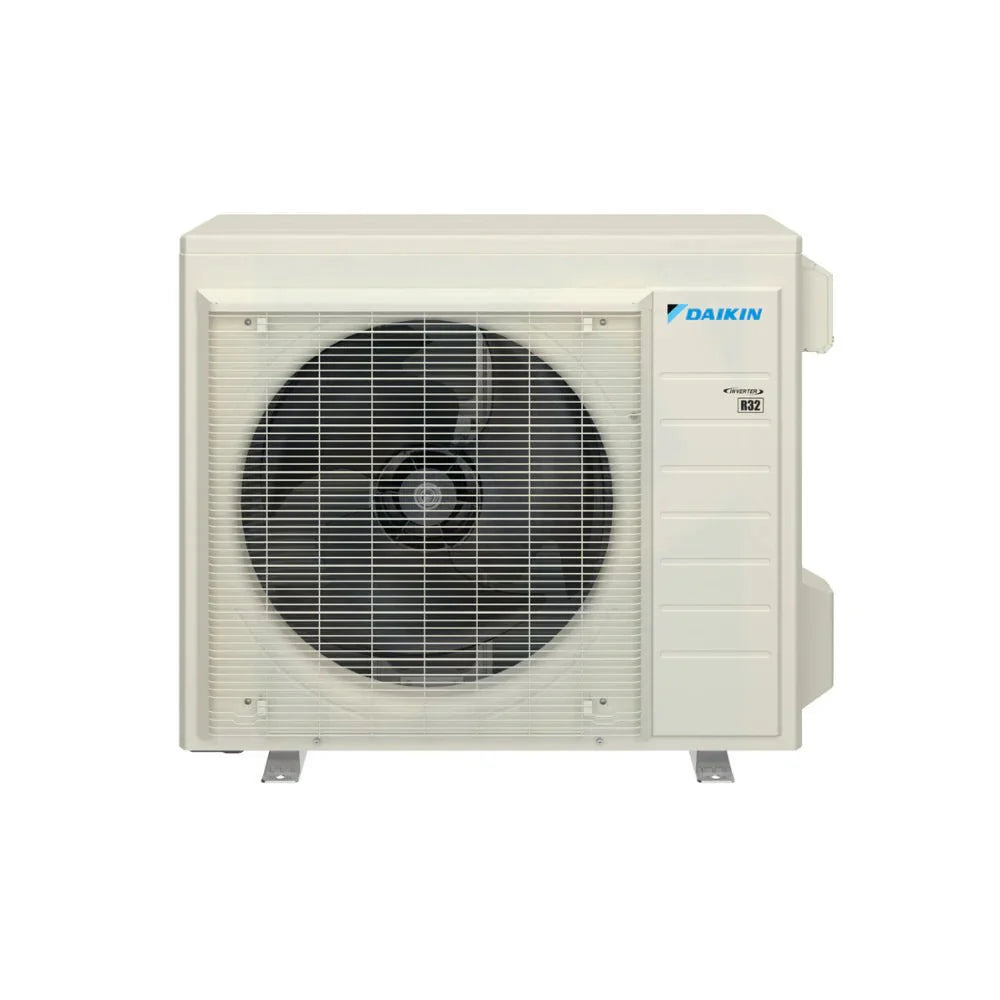

Daikin RXF09BVJU9 9,000 BTU Oterra Single Zone Heat Pump Outdoor Unit - R32

Description: Daikin RXF09BVJU9

The Daikin RXF09BVJU9 is a single-zone outdoor heat pump condenser unit designed for ductless mini-split heating and cooling systems. It uses eco-friendly R-32 refrigerant and an inverter variable-speed compressor to deliver efficient year-round comfort in smaller spaces such as bedrooms, offices, or living areas. The inverter compressor adjusts speed to the real-time load, improving efficiency and comfort while reducing noise.

This unit is part of Daikin’s Oterra series and is engineered for quiet operation, long service life, and reliable performance with automatic functions such as auto-restart after power interruption and self-diagnostics.

Specifications:

Cooling & Heating Capacities

• Nominal Cooling Capacity: 9,000 BTU/h

• Nominal Heating Capacity: Approximately 10,900 BTU/h

• Capacity range varies with conditions (modulating between low and high outputs).

Efficiency Ratings

• SEER2 (Seasonal Energy Efficiency Ratio): ~21.0 — high cooling efficiency.

• EER2 (Energy Efficiency Ratio): ~12.5 — efficient at peak conditions.

• HSPF2 (Heating Seasonal Performance Factor): ~10.2 — efficient heating performance.

Electrical

• Voltage: 208 – 230 V

• Phase: Single-phase

• Frequency: 60 Hz

• Minimum Circuit Ampacity (MCA): ~9.3 A

• Maximum Overcurrent Protection (Fuse/Breaker): ~15 A

• Refrigerant: R-32

• Dimensions - (Unit Depth)8-3/4 in
• Dimensions - (Unit Width)30-5/8 in
• Dimensions - (Unit Height)11-1/4 in
• Weight - (Unit)19 lb

Operating Temperature Range

• Cooling Mode: Approximately 50 °F to 118 °F ambient

• Heating Mode: Approximately 5 °F to 65 °F ambient
