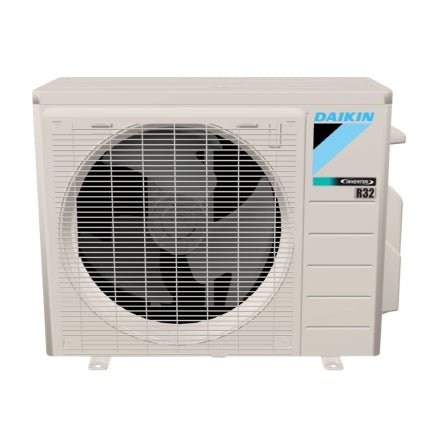

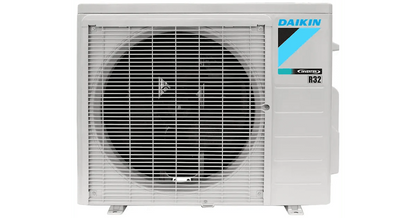

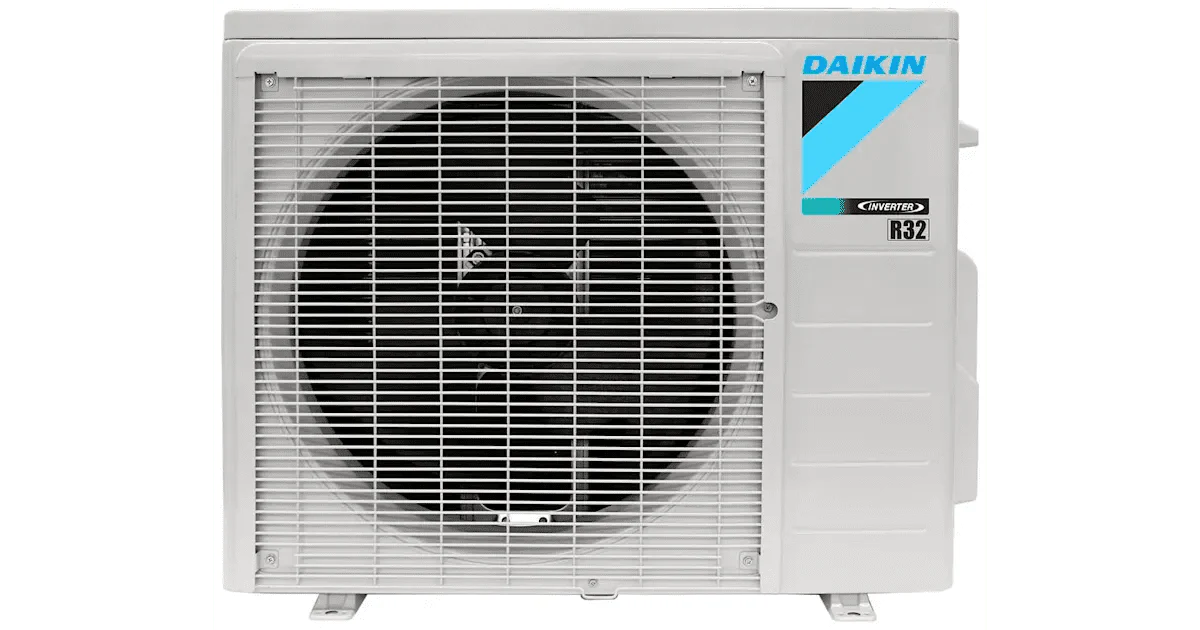

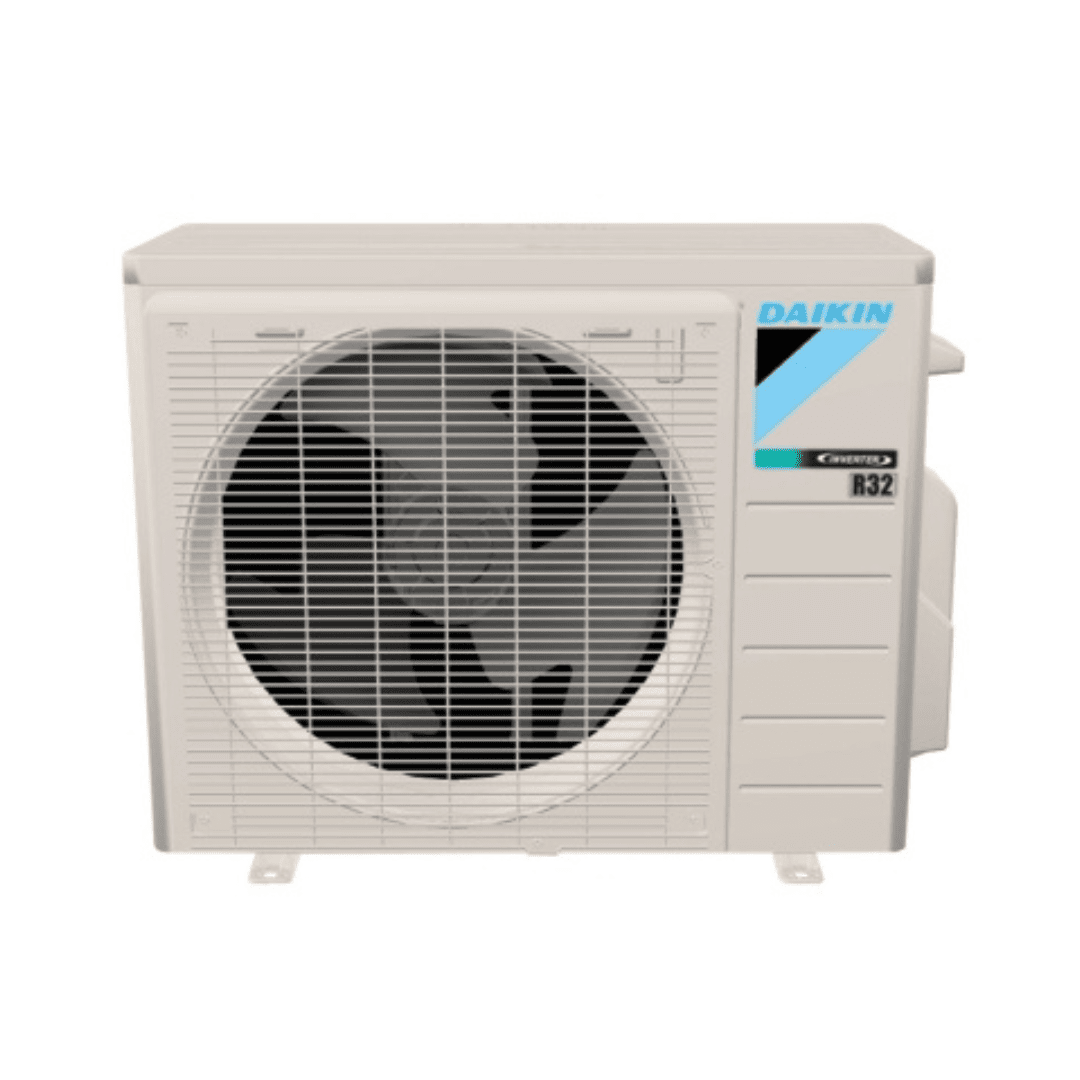

Daikin RXF09AXVJU 9,000 BTU Oterra Single Zone Heat Pump Outdoor Unit - R32

Product: RXF09AXVJU

Descriptions:

The Daikin RXF09AXVJU is an outdoor heat pump condenser unit in Daikin’s ductless mini-split lineup using R-32 refrigerant and inverter compressor technology. It’s designed for single-zone heating and cooling and pairs with a compatible indoor air handler to provide comfortable year-round conditioning in smaller spaces such as bedrooms, living rooms, offices, or additions. The inverter technology delivers efficient modulation of cooling and heating output, smoother comfort, quieter operation, and improved energy savings compared to non-inverter systems.

Specifications:

Capacity

• Cooling Capacity: 9,000 BTU/h (approx. 0.75 ton class)

• Heating Capacity: 10,000 BTU/h

Efficiency Ratings

• SEER2 (Seasonal Energy Efficiency Ratio): ~21.0 (high cooling efficiency)

• EER2 (Energy Efficiency Ratio): ~12.5

• HSPF2 (Heating Seasonal Performance Factor): ~10.2

Electrical

• Voltage: 208 – 230 V

• Phase: Single-phase, 60 Hz

• Minimum Circuit Ampacity (MCA): Approximately 9.3 A

• Maximum Overcurrent Protection (MOCP): Approximately 15 A

Operating Conditions

• Cooling Ambient Operating Range: Approx. 50 °F to 115 °F

• Heating Ambient Operating Range: Approx. 5 °F to 65 °F

Refrigerant & Piping

• • Refrigerant Type: R-32 (environmentally friendly, lower GWP)

  • Liquid Line Size: 1/4 in

  • Suction Line Size: 3/8 in

  • Pre-charged for Standard Line Set Length (typically ~25–33 ft; longer length requires additional charge)

  • Maximum Total Pipe Length: Typical range around 66 ft (varies by system)

  • Maximum Height Difference (Indoor–Outdoor): Approx. 50 ft

Weights and Dimensions

• Width (in.):26.5
• Depth (in.):11.188
• Height (in.):21.688
• Weight (lbs.):60
