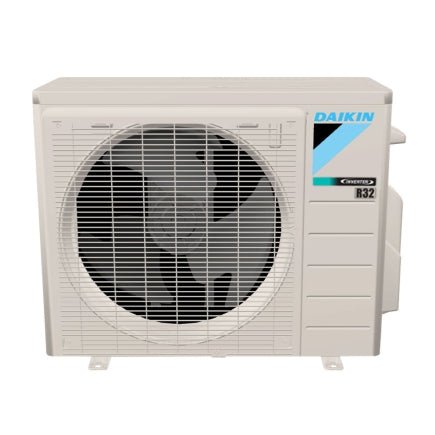

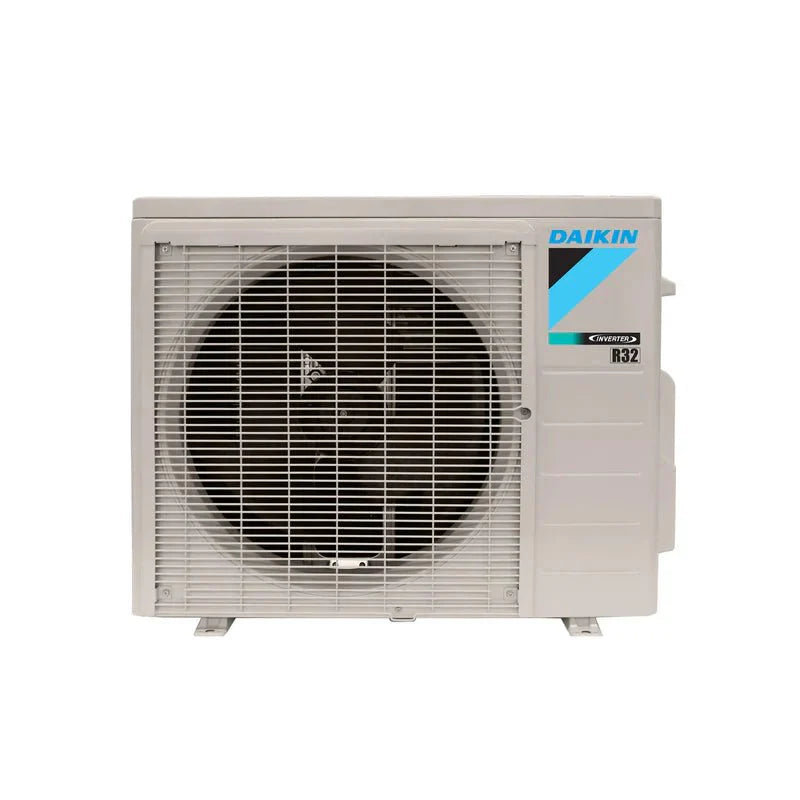

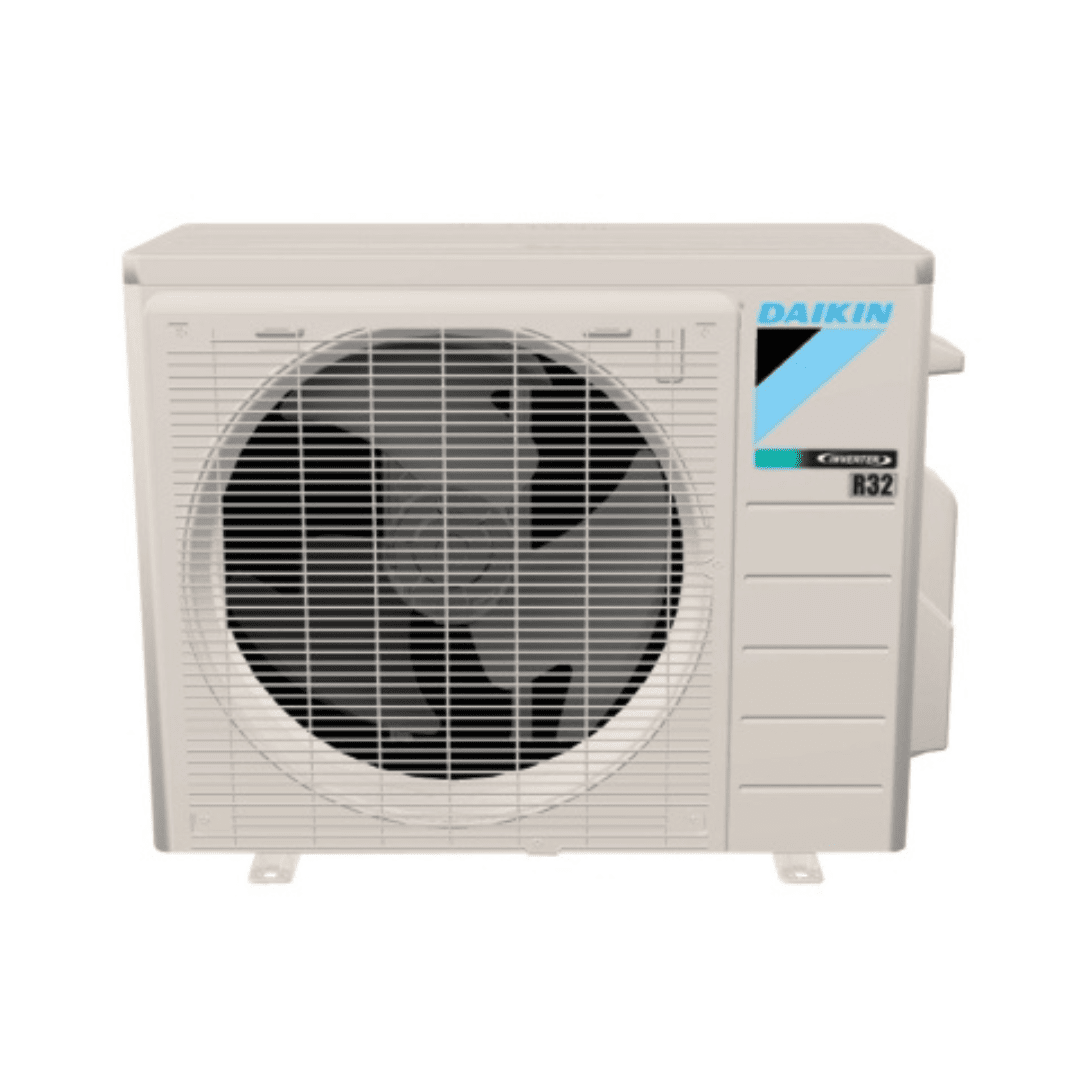

Daikin RXC24AXVJU 24,000 BTU Entra Mini Split Heat Pump Condenser Single Zone R32

Product: RXC24AXVJU

Description:

The Daikin RXC24AXVJU is a 2-ton, single-zone outdoor heat pump condenser designed for use in ductless mini-split HVAC systems. It pairs with a compatible indoor air handler (e.g., FTXC24AXVJU) to provide efficient cooling and heating year-round using eco-friendly R-32 refrigerant.

Specifications:

• Feature	Value

  Rated Cooling Capacity

  ~22,400 BTU/h (≈6.57 kW)

  Cooling Capacity Range (Min–Max)

  ~6,900 – 24,200 BTU/h

  Rated Heating Capacity

  ~23,000 BTU/h (≈6.74 kW)

  Heating Capacity Range (Min–Max)

  ~5,800 – 27,300 BTU/h

  SEER2 (Seasonal Cooling Efficiency)

  18.0

  EER2 (Energy Efficiency Ratio)

  10.5

  HSPF2 (Heating Efficiency)

  9.0

  COP (Coefficient of Performance)

  ~3.4

• Voltage

  208–230 V

  Frequency

  60 Hz

  Phase

  Single-phase

  Rated Running Current (Cooling)

  ~9.28 A

  Rated Running Current (Heating)

  ~8.62 A

  Min. Circuit Ampacity

  ~16.34 A

  Max. Breaker / Fuse Size

  ~20 A

  Cooling Ambient Operating Range

  ~50 °F to ~115 °F

  Heating Ambient Operating Range

  ~5 °F to ~65 °F

• Refrigerant Type

  R-32

  Factory Refrigerant Charge

  ~3.31 lb (1.50 kg)

  Additional Charge (per ft / m)

  ~0.18 oz/ft (17 g/m)

  Liquid Line Size (O.D.)

  1/4 in

  Suction Line Size (O.D.)

  5/8 in

  Max. Piping Length

  ~98.5 ft (30 m)

  Max. Height Difference

  ~32.8 ft (10 m)

Weights and Dimensions

• Width (in.):36.625
• Depth (in.):13.813
• Height (in.):27.406
• Weight (lbs.):101
