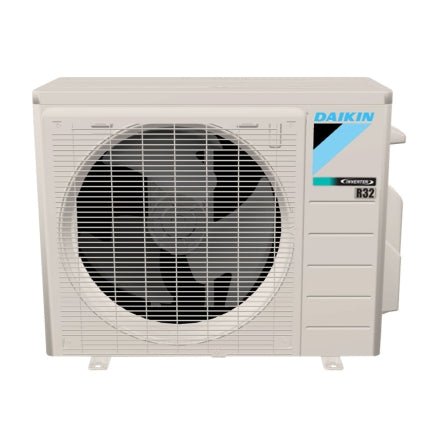

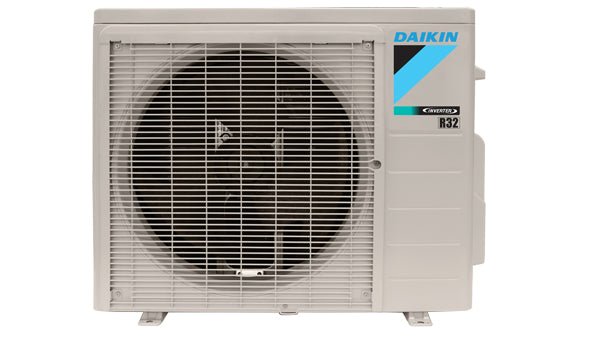

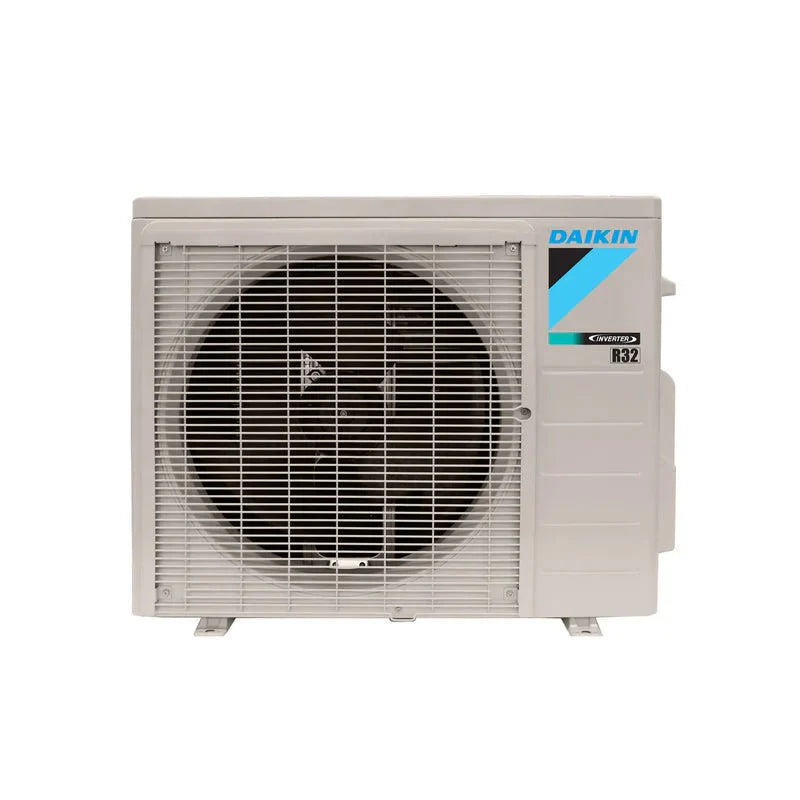

Daikin RXC18AXVJU 18,000 BTU Entra Mini Split Heat Pump Condenser Single Zone R32

Product: RXC18AXVJU

Description:

The Daikin RXC18AXVJU is a 1.5-ton, single-zone, air-cooled outdoor heat pump unit meant for ductless mini-split HVAC systems. It provides both cooling and heating using eco-friendly R-32 refrigerant and is commonly paired with a Daikin wall-mounted indoor unit. This unit uses a variable-speed inverter compressor for efficient, quiet operation and optimized comfort year-round.

Specifications:

Performance

• Rated Cooling Capacity: 18,100 BTU/h (~5.30 kW)

• Rated Heating Capacity: 18,000 BTU/h (~5.28 kW)

• Cooling Operating Range: ~6,900–20,000 BTU/h

• Heating Operating Range: ~5,800–22,500 BTU/h

• SEER2 (Cooling Efficiency): 18.0

• EER2 (Energy Efficiency Ratio): 10.5

• HSPF2 (Heating Efficiency): 9.0

• COP (Coefficient of Performance): ~3.3–3.4 at rated conditions

Electrical

• Voltage: 208–230 V

• Frequency: 60 Hz

• Phase: Single-phase

• Rated Running Current: Cooling ~7.49 A / Heating ~6.95 A

• Min. Circuit Ampacity: ~16.34 A

• Max. Fuse/Breaker Size: ~20 A

Refrigerant & Piping

• Refrigerant Type: R-32

• Factory Refrigerant Charge: ~3.31 lb (1.50 kg)

• Additional Charge: ~0.18 oz/ft (17 g/m)

• Liquid Line (O.D.): 1/4 in

• Suction Line (O.D.): 1/2 in

• Max. Piping Length: ~98.5 ft (30 m)

• Max. Height Difference (Indoor/Outdoor): ~32.8 ft (10 m)

Dimensions & Weight

• Width: ~36-5/8 in (~930 mm)

• Height: ~27-13/32 in (~696 mm)

• Depth: ~13-13/16 in (~351 mm)

• Unit Weight: ~101 lb (~46 kg)
