Daikin RXC12AXVJU Entra Series - 12k BTU - Outdoor Condenser - Single Zone Only - R-32

Product: RXC12AXVJU

Description:

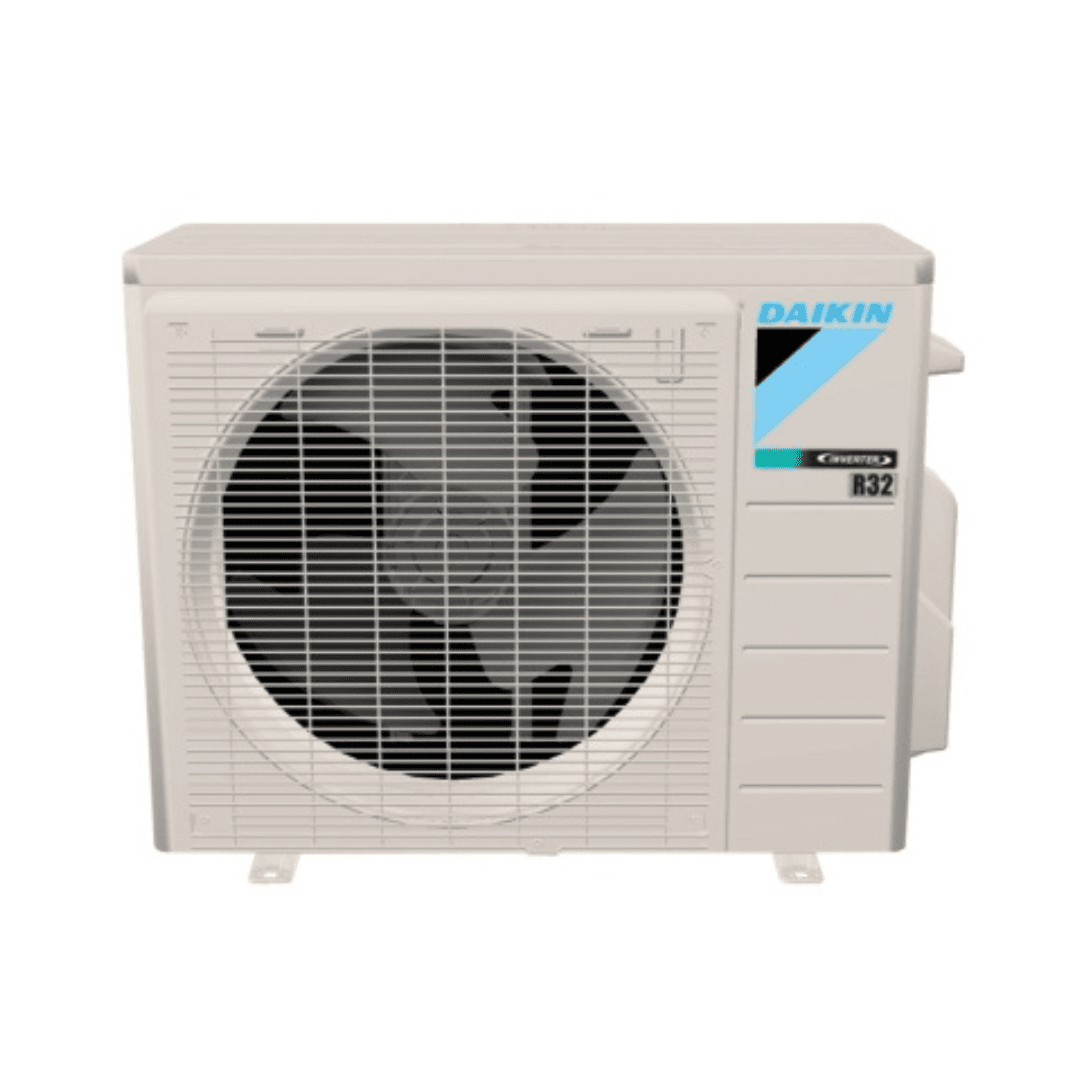

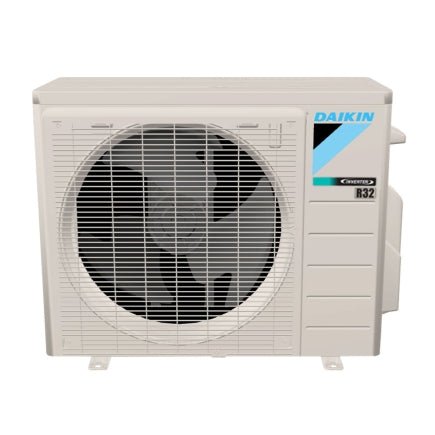

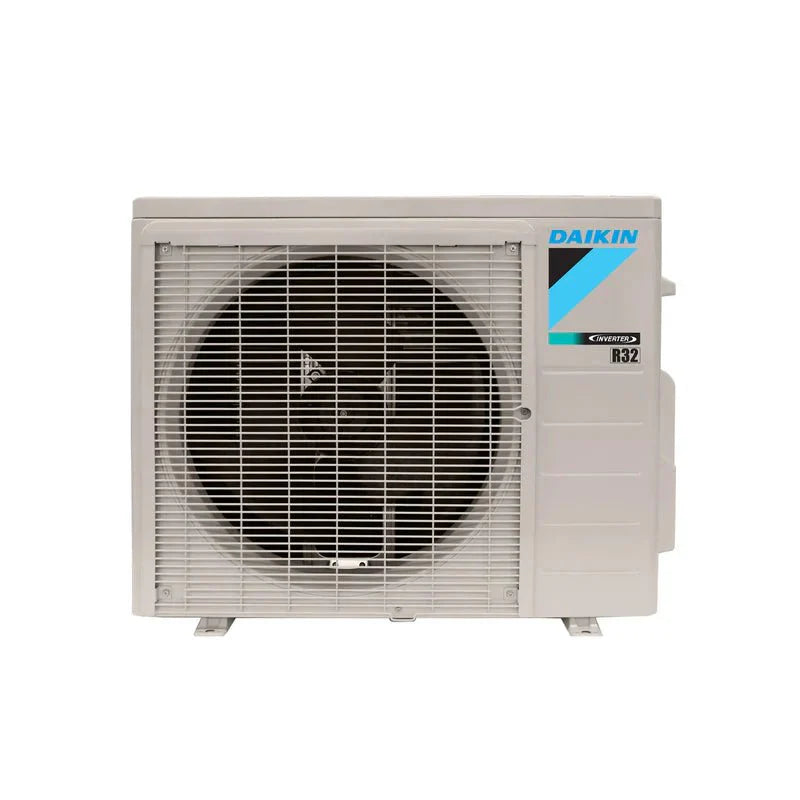

The Daikin RXC12AXVJU is an outdoor heat pump condenser unit designed for single-zone ductless mini-split systems. It uses R-32 refrigerant and an inverter-controlled compressor to deliver efficient year-round cooling and heating. This model is part of Daikin’s Entra Series / RXC-AXVJU lineup, offering reliable performance with energy-saving operation, quiet outdoor sound levels, and features such as auto-restart and self-diagnostics.

Specifications:

Capacity & Performance

• Nominal Cooling Capacity: ~12,000 BTU/h

• Cooling Capacity Range (Min–Max): ~4,400 – 13,300 BTU/h

• Rated Heating Capacity: ~11,300 BTU/h

• Heating Capacity Range (Min–Max): ~4,400 – 16,400 BTU/h

• Refrigerant: R-32

• Compressor: Inverter-driven swing compressor

• Application: Outdoor heat pump condenser for single-zone mini-split systems

• System Type: Ductless split heat pump

Operating Temperature Ranges:

• Cooling: ~50 °F to ~115 °F

• Heating: ~5 °F to ~65 °F

Efficiency Ratings

• SEER2 (Seasonal Energy Efficiency Ratio): ~18.0

• EER2 (Energy Efficiency Ratio): ~8.5

• HSPF2 (Heating Seasonal Performance Factor): ~9.0

Electrical

• Voltage: 208 – 230 V

• Phase: Single-phase

• Frequency: 60 Hz

• Minimum Circuit Ampacity (MCA): ~9.36 A

• Maximum Overcurrent Protection (Circuit Breaker): ~15 A

Weights and Dimensions

• Width (in.):26.5
• Depth (in.):11.188
• Height (in.):21.688
• Weight (lbs.):60
