Daikin Oterra 9000 BTU Single Zone Ductless Mini Split System R32 SEER2 21 FTKF09BVJU9 RKF09BVJU9

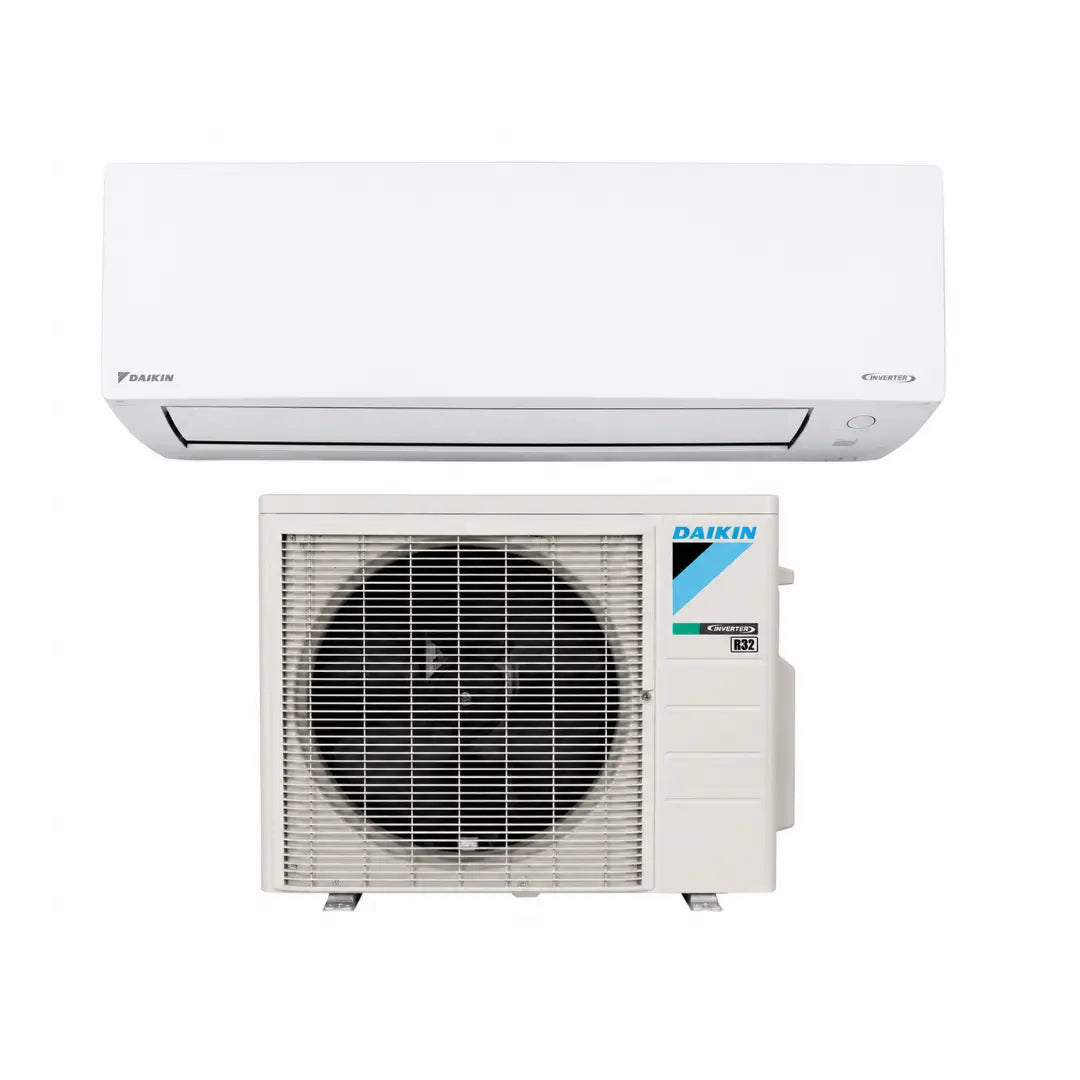

The Daikin Oterra 9,000 BTU Single Zone Ductless Mini Split System packages the FTKF09BVJU9 wall mount indoor air handler and RKF09BVJU9 outdoor inverter condenser into a complete, factory-matched cooling and heating solution for residential single-zone applications. Rated SEER2 21 and EER2 12.5 with ENERGY STAR certification, this R32 system delivers high-efficiency, whisper-quiet comfort with advanced air purification capabilities that go beyond what standard mini split systems offer at this price point.

Designed for bedrooms, home offices, living rooms, sunrooms, and other single-zone residential spaces, the Oterra 9K system combines inverter-driven efficiency, dual-stage air filtration, intuitive operation, and Daikin's proven R32 refrigerant platform into a wall-mount package that installs cleanly and operates reliably year-round.

SEER2 21 Inverter Efficiency

At the heart of the Oterra system is Daikin's variable-speed inverter compressor, which continuously modulates output to match the actual cooling or heating demand of the space. Rather than cycling fully on and off at fixed capacity like conventional single-stage systems, the inverter compressor ramps up during peak conditions and scales back during mild weather — maintaining precise target temperatures without the energy spikes and temperature swings of non-inverter equipment. The result is SEER2 21 rated seasonal efficiency and EER2 12.5 peak cooling efficiency, both among the stronger ratings available in the 9,000 BTU single-zone category.

Dual-Stage Air Purification

The Oterra indoor unit includes two dedicated air filtration technologies that set it apart from standard mini split air handlers. The Catechin Filter — derived from green tea extract — captures airborne particles while providing natural antibacterial and antiviral properties, reducing biological contaminants circulating through the indoor air supply. The Titanium Apatite Air-Purifying Filter provides a second stage of purification, adsorbing microscopic particles, odors, and chemical contaminants at the molecular level. Together these two filter technologies make the Oterra a meaningful upgrade for households with allergy sensitivities, pets, or indoor air quality concerns. Both filters are designed for easy removal and cleaning, keeping maintenance simple and filter replacement costs low.

Quiet Indoor Operation

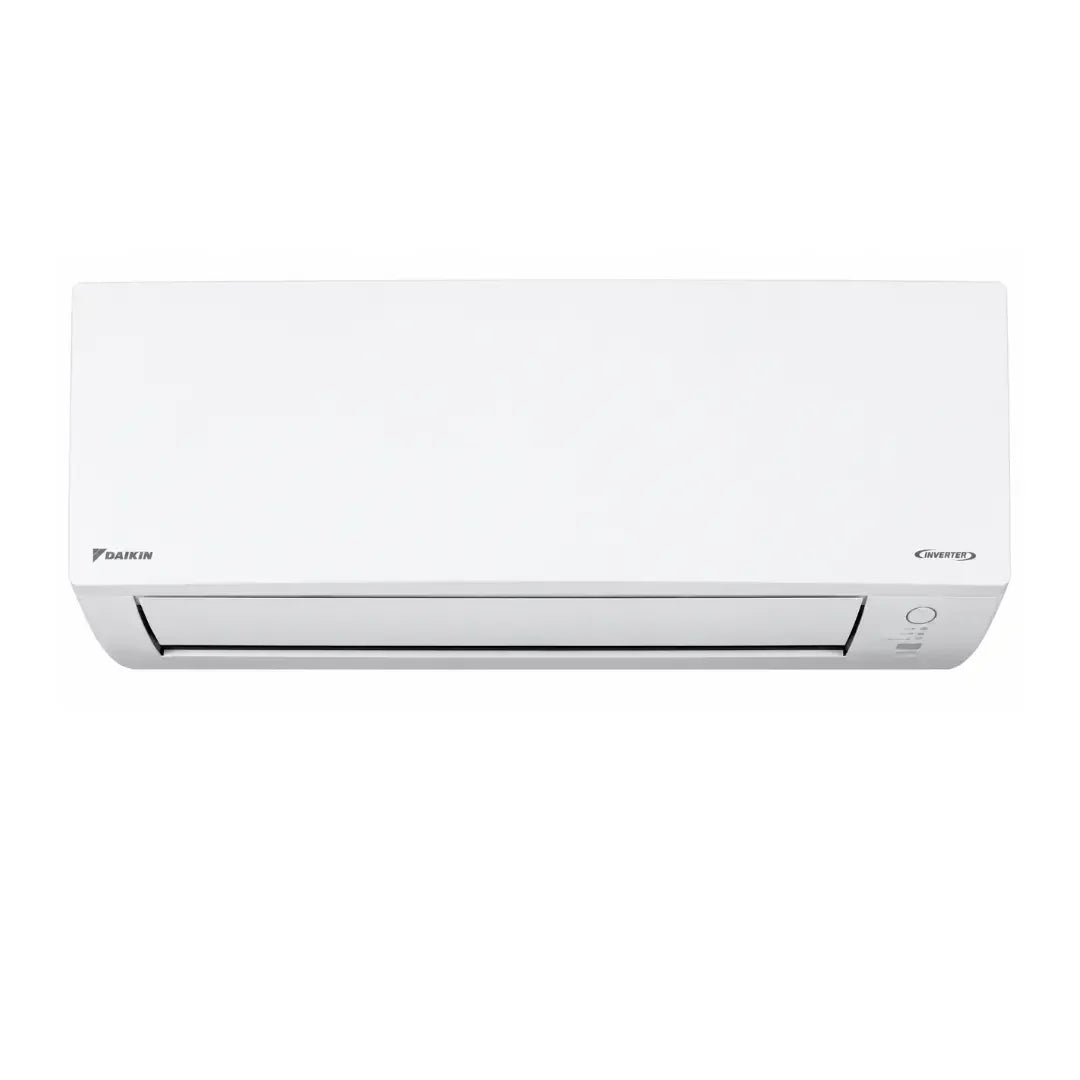

The FTKF09BVJU9 indoor unit is engineered for low-noise operation, making it well suited for bedrooms and home offices where HVAC sound during sleeping or focused work hours matters. Power-airflow dual flaps and wide-angle louvers work together with vertical auto-swing to distribute conditioned air uniformly throughout the space, eliminating hot and cold spots without directing airflow uncomfortably at occupants. Auto Fan Speed continuously adjusts airflow volume to maintain consistent comfort without manual intervention.

Comfort and Convenience Features

The Oterra system includes a full suite of comfort and convenience operating modes. Sleep Mode gradually adjusts temperature setpoints overnight to match natural sleep comfort preferences while reducing energy consumption during nighttime hours. Programme Dry Function removes excess indoor humidity independently of aggressive cooling — valuable during humid spring and summer shoulder seasons when latent loads are high but sensible cooling demand is modest. Fan Only Mode circulates air without conditioning for mild weather ventilation. Automatic Operation selects heating, cooling, or fan mode based on current room conditions without manual mode selection. Auto Defrosting maintains outdoor coil efficiency during cold weather operation automatically, and Auto Restart restores all previous settings following any power interruption without requiring manual reprogramming.

The included backlit remote controller with signal receiving indicator provides full system access from anywhere in the room. The wipe-clean flat panel indoor unit design simplifies routine surface cleaning and maintains a consistently clean appearance over years of use. Self-Diagnosis capability enables rapid fault identification during service calls, reducing diagnostic time and labor cost.

Outdoor Unit Durability and Extended Operation

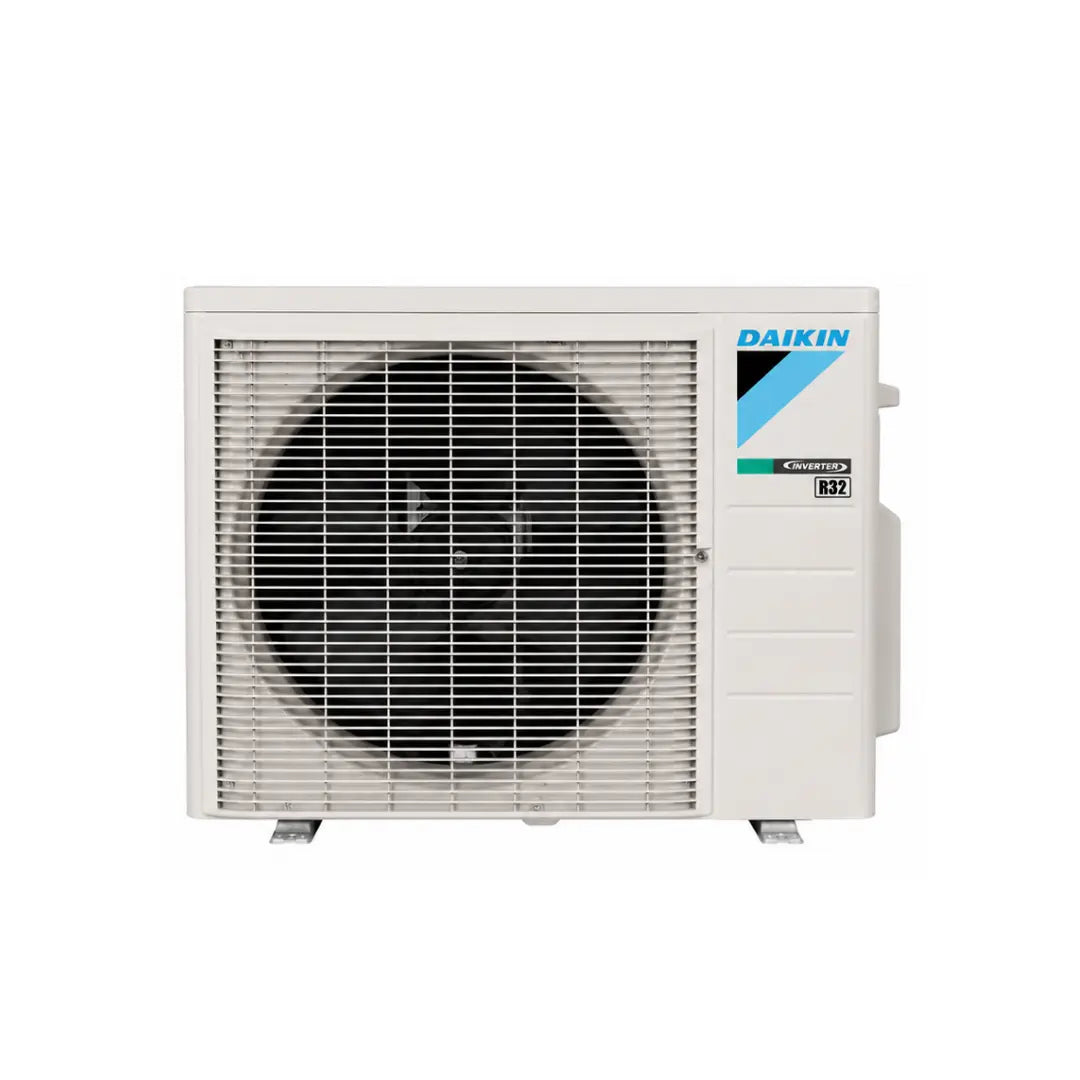

The RKF09BVJU9 outdoor condenser features anti-corrosion heat exchanger treatment for extended service life in humid, coastal, and high-particulate outdoor environments. Its whisper-quiet operation with a specially designed airflow pattern minimizes sound impact on outdoor living spaces and neighboring properties. Extended heating operation is available down to -4°F (-20°C) with facility setting and wind baffles installed, expanding the system's effective heating range for colder climate installations.

R32 Refrigerant

The Oterra system operates on R32 refrigerant, which delivers superior heat transfer efficiency compared to R410A and carries a global warming potential approximately 68% lower. R32 requires smaller refrigerant charge volumes to achieve the same capacity, reducing total refrigerant in the system and lowering environmental impact. As the HVAC industry continues its regulatory shift away from higher-GWP refrigerants, R32 systems like the Oterra are positioned for long-term compliance ahead of evolving EPA and DOE standards.

ENERGY STAR Certified

The Oterra 9K system carries ENERGY STAR certification, confirming it meets or exceeds federal energy efficiency standards for ductless mini split systems. Note: As of January 1, 2023, the U.S. Department of Energy implemented updated SEER2 measurement standards and established regional efficiency compliance requirements across three geographic zones (North, Southeast, and Southwest). Buyers should verify regional SEER2 compliance requirements for their installation location prior to purchase.

Warranty: 12-year limited parts warranty. Applies to both indoor and outdoor units as a factory-matched system package.

What's Included:

• FTKF09BVJU9 Wall Mount Indoor Air Handler
• RKF09BVJU9 Outdoor Inverter Condenser
• Backlit infrared remote controller
• Installation manual

Specifications at a Glance:
