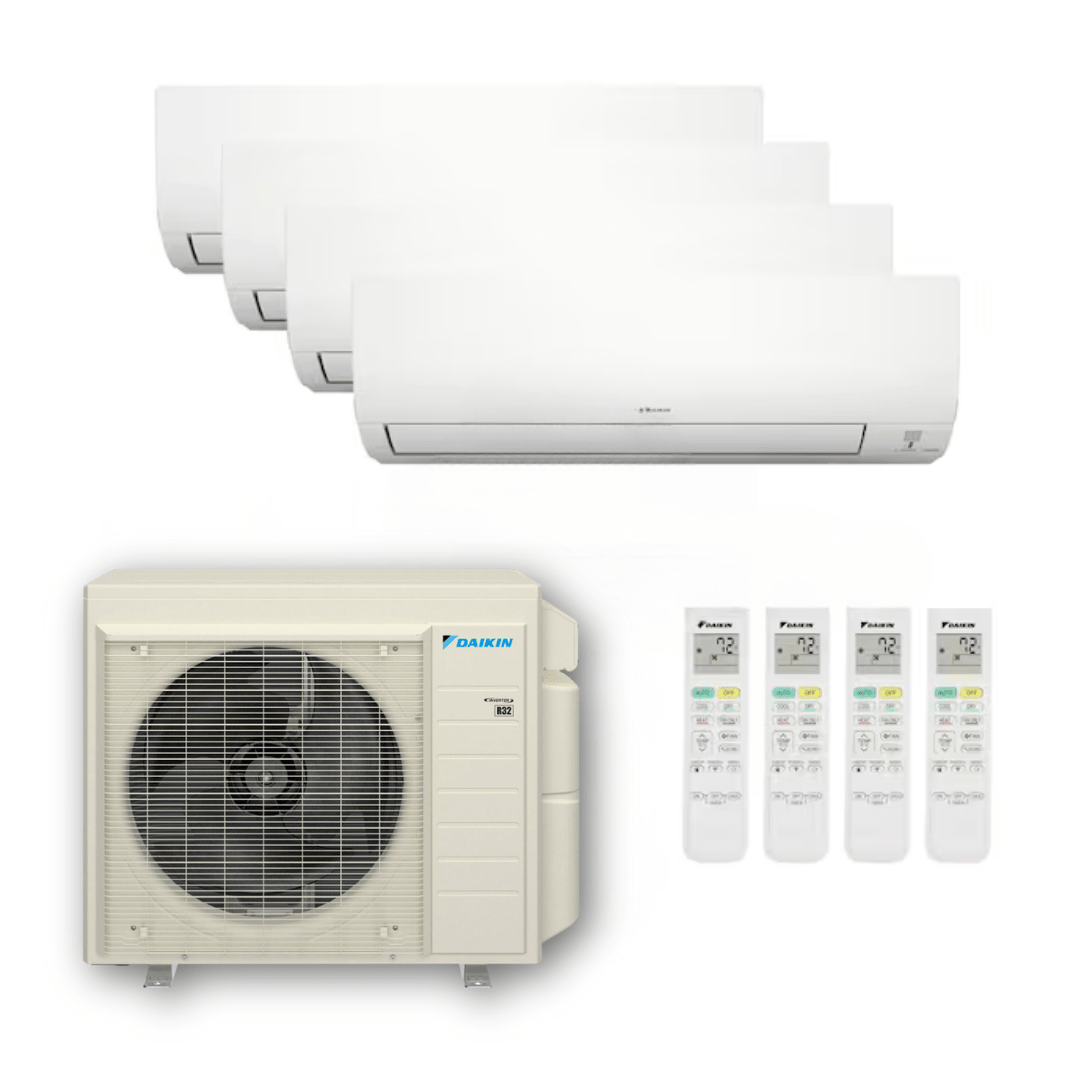

Daikin MXM Series 4 Zone Outdoor Multi Split Heat Pump 4MXM36AVJU9, FTXV09AVJU9 + FTXV09AVJU9 + FTXV15AVJU9 + FTXV15AVJU9

Model: 4MXM36AVJU9, FTXV09AVJU9 + FTXV09AVJU9 + FTXV15AVJU9 + FTXV15AVJU9

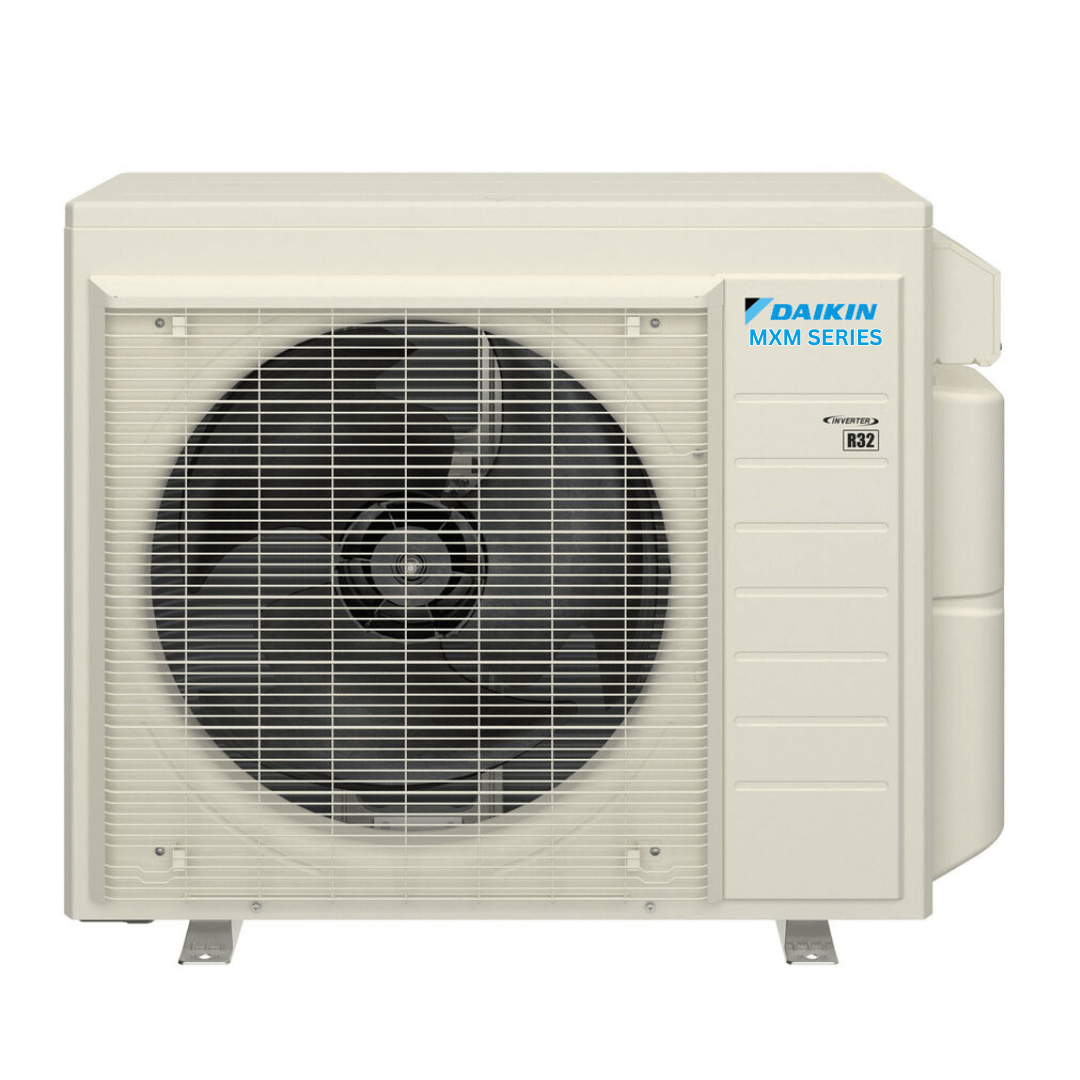

Outdoor Unit - 4MXM36AVJU9

Specifications:

• High-efficiency inverter driven swing compressor

Product Attributes:
Airflow Rate High Cooling: 896
Airflow Rate High Heating: 2518
Airflow Rate Low Cooling: 2055
Airflow Rate High Heating: 1070
Brand: Daikin
Class: Multi-Split Heat Pump
Compressor Stages: Inverter
Compressor Type: Swing
Cooling Capacity Rated: 34200
Unit Depth: 12-5/8
Unit Height: 29-1/2
Unit Width: 34-1/4
Family Description: 3.0 Ton R-32 4-Port Heat Pump
Heating Capacity Rated: 34600
keywords: 4MXM36AVJU9
Min. Circuit: 24.1
Power Frequency: 60
Power Phase: 1
Power Voltage: 208-230
Product Benefits: 12 Year limited parts warranty with online registration
Category: Multi-Split Heat Pump
Family: 4MXM_AVJU9
Product ID Bar Code: 4MXM36AVJU9
Prop65 Label Required: TRUE
Refrigerant: R-32
Tonnage: 3.0 tons
Unit Type: Outdoor
Unit Weight: 142

Warranty:
Standard warranties apply.
Standard parts, residential: ALL PARTS - 5 YEARS PARTS
Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
Registered parts, residential: ALL PARTS - 12 YEARS PARTS
Registered parts, multi-family: ALL PARTS - 12 YEARS PARTS
Registered parts, commercial: ALL PARTS - 5 YEARS PARTS

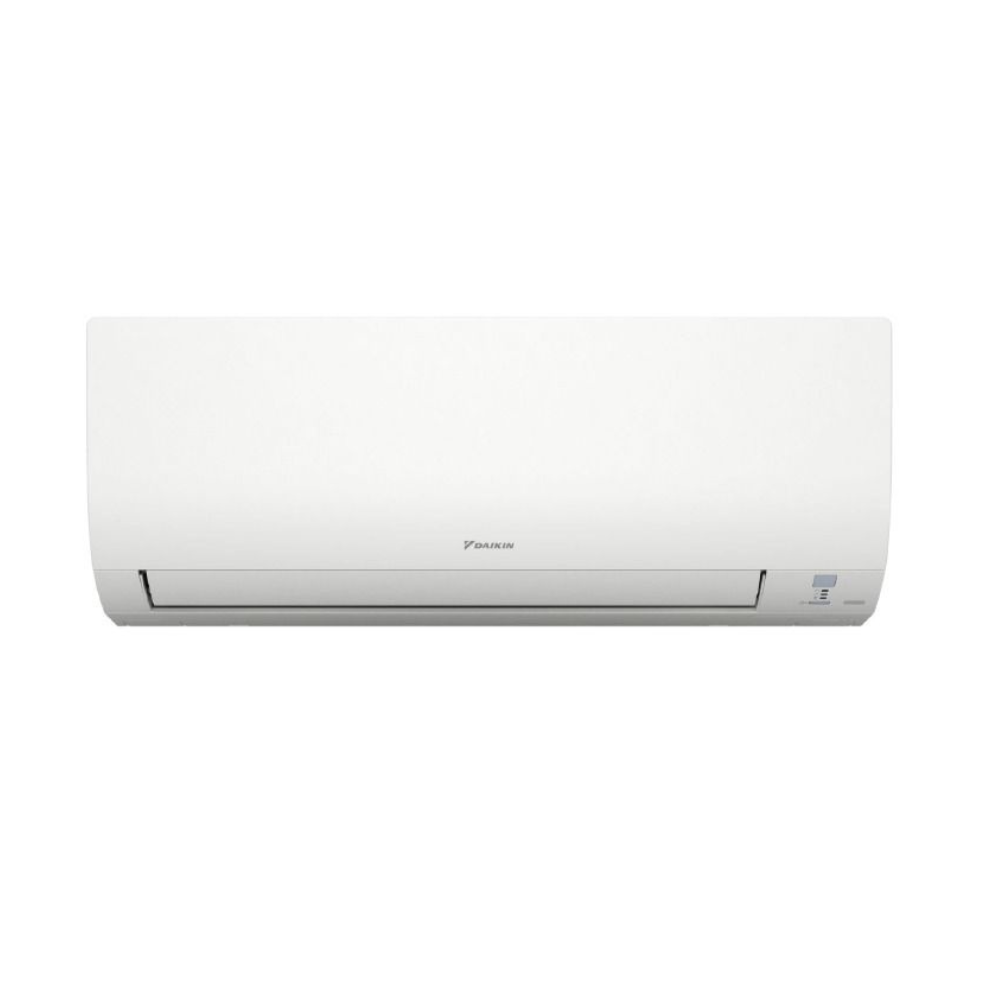

Indoor Unit (1+2) - FTXV09AVJU9

Specifications:

• 12 Year limited Warranty for Parts and Compressor

Product Attributes:

Airflow Rate High Cooling 381
Airflow Rate High Heating: 385
Airflow Rate Low Cooling: 230
Airflow Rate High Heating: 230
Brand: Daikin
Class: Multi-Split Fan Coil
Unit Depth: 8-3/4
Unit Height: 11-1/4
Unit Width: 30-5/16
Family Description: R-32 0.75 - 2.0 Ton Wall Mounted Unit
keywords: FTXV09AVJU9
Product Benefits: Quiet operation
Category: Multi-Split Fan Coil
Family: FTXV_AVJU9
Product ID Bar Code: FTXV09AVJU9
Prop65 Label Required: TRUE
Refrigerant: R-32
Tonnage: 0.75 tons
Unit Type: Indoor
Unit Weight: 19

Warranty:

• • Standard warranties apply.
  • Standard parts, residential: ALL PARTS - 5 YEARS PARTS
  • Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
  • Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
  • Registered parts, residential: ALL PARTS - 12 YEARS PARTS
  • Registered parts, multi-family: ALL PARTS - 12 YEARS PARTS
  • Registered parts, commercial: ALL PARTS - 5 YEARS PARTS

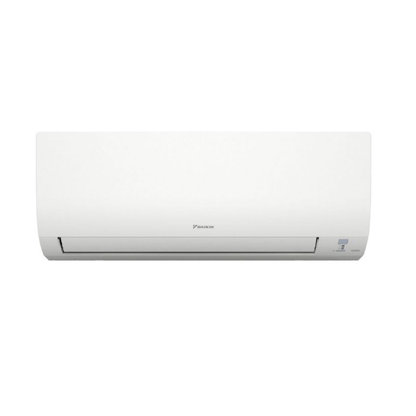

Indoor Unit (3+4) - FTXV15AVJU9

Specifications:

• 12 Year limited Warranty for Parts and Compressor

Product Attributes:

Airflow Rate High Cooling: 392
Airflow Rate High Heating: 438
Airflow Rate Low Cooling: 226
Airflow Rate High Heating: 240
Brand: Daikin
Class: Multi-Split Fan Coil
Unit Depth: 8-3/4
Unit Height: 11-1/4
Unit Width: 30-5/16
Family Description: R-32 0.75 - 2.0 Ton Wall Mounted Unit
keywords: FTXV12AVJU9
Product Benefits: Quiet operation
Category: Multi-Split Fan Coil
Family: FTXV_AVJU9
Product ID Bar Code: FTXV12AVJU9
Prop65 Label Required: TRUE
Refrigerant: R-32
Tonnage: 1.0 tons
Unit Type: Indoor
Unit Weight: 19

Warranty:

• • Standard warranties apply.
  • Standard parts, residential: ALL PARTS - 5 YEARS PARTS
  • Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
  • Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
  • Registered parts, residential: ALL PARTS - 12 YEARS PARTS
  • Registered parts, multi-family: ALL PARTS - 12 YEARS PARTS
  • Registered parts, commercial: ALL PARTS - 5 YEARS PARTS
