Daikin Mini Split | 4 Zone | 36000 BTU | 4MXL36WVJU9, FTXS12WVJU9+ FTXS15WVJU9 + FTXS15WVJU9
Daikin Mini Split | 4 Zone | 36000 BTU | 4MXL36WVJU9, FTXS12WVJU9+ FTXS15WVJU9 + FTXS15WVJU9

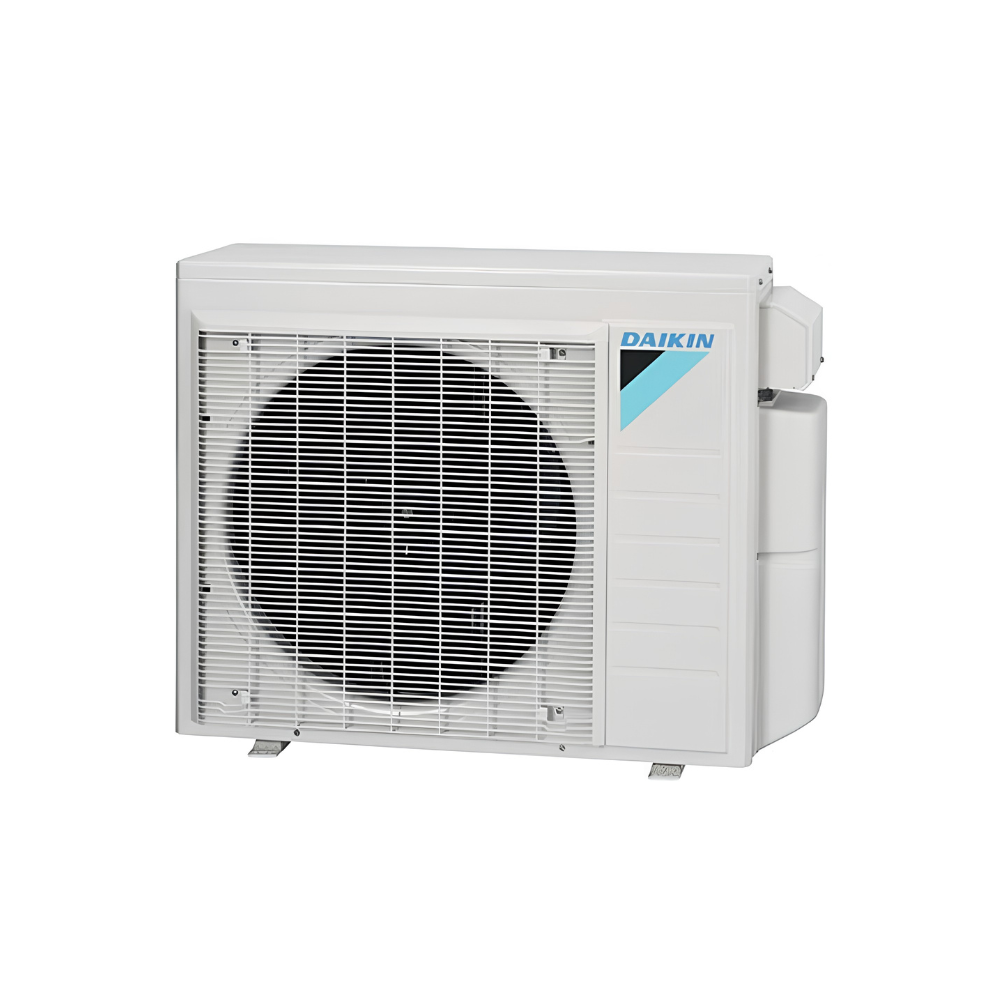

Outdoor Unit - 4MXL36WVJU9
Specifications:
High-efficiency inverter driven swing compressor
"4 Zone enhanced Capacity Multi-Zone Night Quiet Mode Automatic Defrost Quick Warming Function Automatic Defrosting Priority Room Setting Cool/Heat mode lock Self Diagnosis Wiring error check function Anti-corrosion treatment of outdoor heat exchanger"
Warranty:
- Standard warranties apply.
- Standard parts, residential: ALL PARTS - 5 YEARS PARTS
- Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
- Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
- Registered parts, residential: ALL PARTS - 12 YEARS PARTS
- Registered parts, multi-family: ALL PARTS - 12 YEARS PARTS
- Registered parts, commercial: ALL PARTS - 5 YEARS PARTS
Product Attributes:
Airflow Rate High Cooling: 3684
Airflow Rate High Heating: 3356
Airflow Rate Low Cooling: 2756
Airflow Rate High Heating: 1500
Brand: Daikin
Class: Multi-Split Heat Pump
Compressor Stages: Inverter
Compressor Type: Swing
Cooling Capacity Rated: 34400
Unit Depth: 18-1/8
Unit Height: 34-1/4
Unit Width: 43-5/16
Family Description: 3.0 Ton 4-Port Heat Pump
Heating Capacity Rated: 36600
Min. Circuit: 30.2
Power Frequency: 60
Power Phase: 1
Power Voltage: 208-230
Product Benefits:
12 Year limited parts warranty with online registration
PAM control Energy efficient operation Quiet outdoor unit operation Unit perfroms self diagnosis and indicates using LED lights"""
Category: Multi-Split Heat Pump
Family: 4MXL_WVJU9
Product ID Bar Code: 4MXL36WVJU9
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 3 tons
Unit Type: Outdoor
Unit Weight: 214
Documents:
Product Flyer
Service Manual
Parts Manual
Product Brochure
Submittal Data Sheet
Engineering Data Manual
Dimensional Drawing
Warranty Certificate
Written Guide Spec
Installation Manual

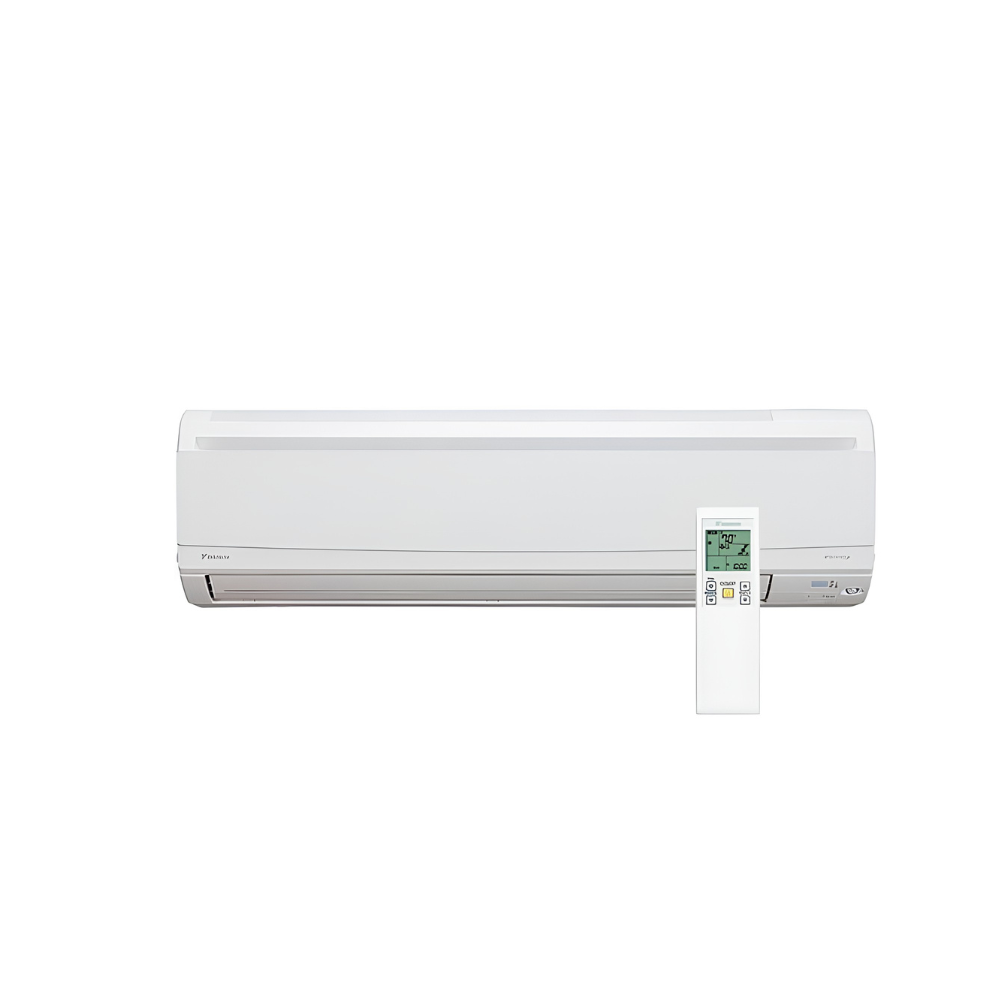

Indoor Unit (1): FTXS12WVJU9
Specifications:
- 12 Year limited Warranty for Parts and Compressor
Warranty:
- Standard warranties apply.
- Standard parts, residential: ALL PARTS - 5 YEARS PARTS
- Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
- Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
- Registered parts, residential: ALL PARTS - 12 YEARS PARTS
- Registered parts, multi-family: ALL PARTS - 12 YEARS PARTS
- Registered parts, commercial: ALL PARTS - 5 YEARS PARTS
Product Attributes:
Airflow Rate High Cooling: 403
Airflow Rate High Heating: 438
Airflow Rate Low Cooling: 205
Airflow Rate High Heating: 240
Brand: Daikin
Class: Multi-Split Fan Coil
Unit Depth: 8-7/16
Unit Height: 11-5/8
Unit Width: 31-1/2
Family Description: 0.75 - 2.0 Ton Wall Mounted Unit
Power Frequency: 60
Power Phase: 1
Power Voltage: 208-230
Product Benefits: Quiet operation
Category: Multi-Split Fan Coil
Family: FTXS_WVJU9
Product ID Bar Code: FTXS12WVJU9
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 1.0 tons
Unit Type: Indoor
Unit Weight: 21
Documents:
Dimensional Drawing
Engineering Data Manual
Installation Manual
Operation Manual
Product Flyer
Service Manual
Operation Manual
Primary Product Image
Parts Manual
Product Brochure
Written Guide Spec
Submittal Data Sheet
Warranty Certificate
Indoor Unit (2): FTXS15WVJU9
Specifications:
- 12 Year limited Warranty for Parts and Compressor
Warranty:
- Standard warranties apply.
- Standard parts, residential: ALL PARTS - 5 YEARS PARTS
- Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS
- Standard parts, commercial: ALL PARTS - 5 YEARS PARTS
- Registered parts, residential: ALL PARTS - 12 YEARS PARTS
- Registered parts, multi-family: ALL PARTS - 12 YEARS PARTS
- Registered parts, commercial: ALL PARTS - 5 YEARS PARTS
Product Attributes:
Airflow Rate High Cooling: 568
Airflow Rate High Heating: 593
Airflow Rate Low Cooling: 385
Airflow Rate High Heating: 417
Brand: Daikin
Class: Multi-Split Fan Coil
Unit Depth: 9-3/4
Unit Height: 13-3/8
Unit Width: 41-5/16
Family Description: 0.75 - 2.0 Ton Wall Mounted Unit
Power Frequency: 60
Power Phase: 1
Power Voltage: 208-230
Product Benefits: Quiet operation
Category: Multi-Split Fan Coil
Family: FTXS_WVJU9
Product ID Bar Code: FTXS15WVJU9
Prop65 Label Required: TRUE
Refrigerant: R-410A
Tonnage: 1.25 tons
Unit Type: Indoor
Unit Weight: 31
Documents:
Dimensional Drawing
Engineering Data Manual
Installation Manual
Operation Manual
Product Flyer
Service Manual
Operation Manual
Primary Product Image
Parts Manual
Product Brochure
Written Guide Spec
Submittal Data Sheet
Warranty Certificate
