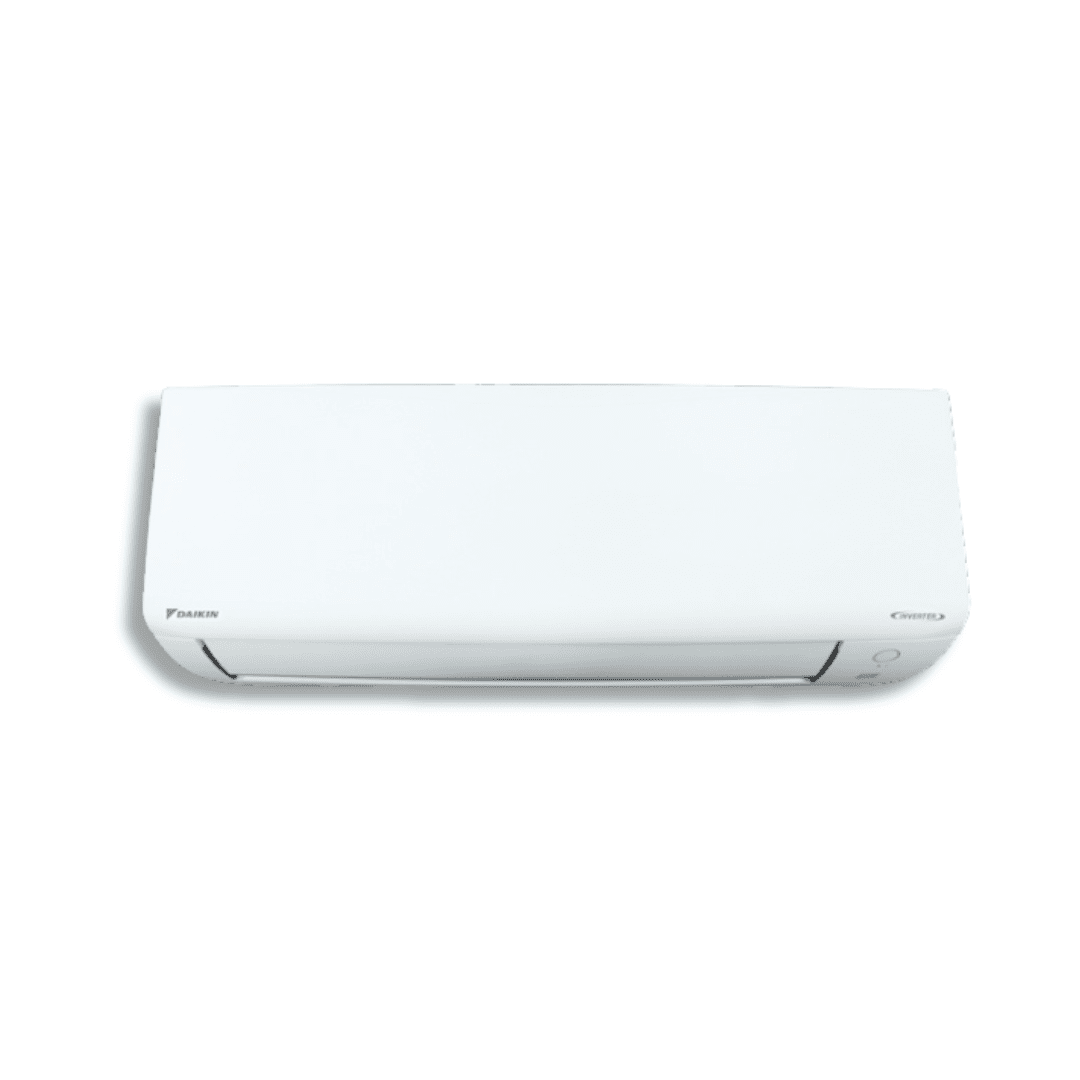

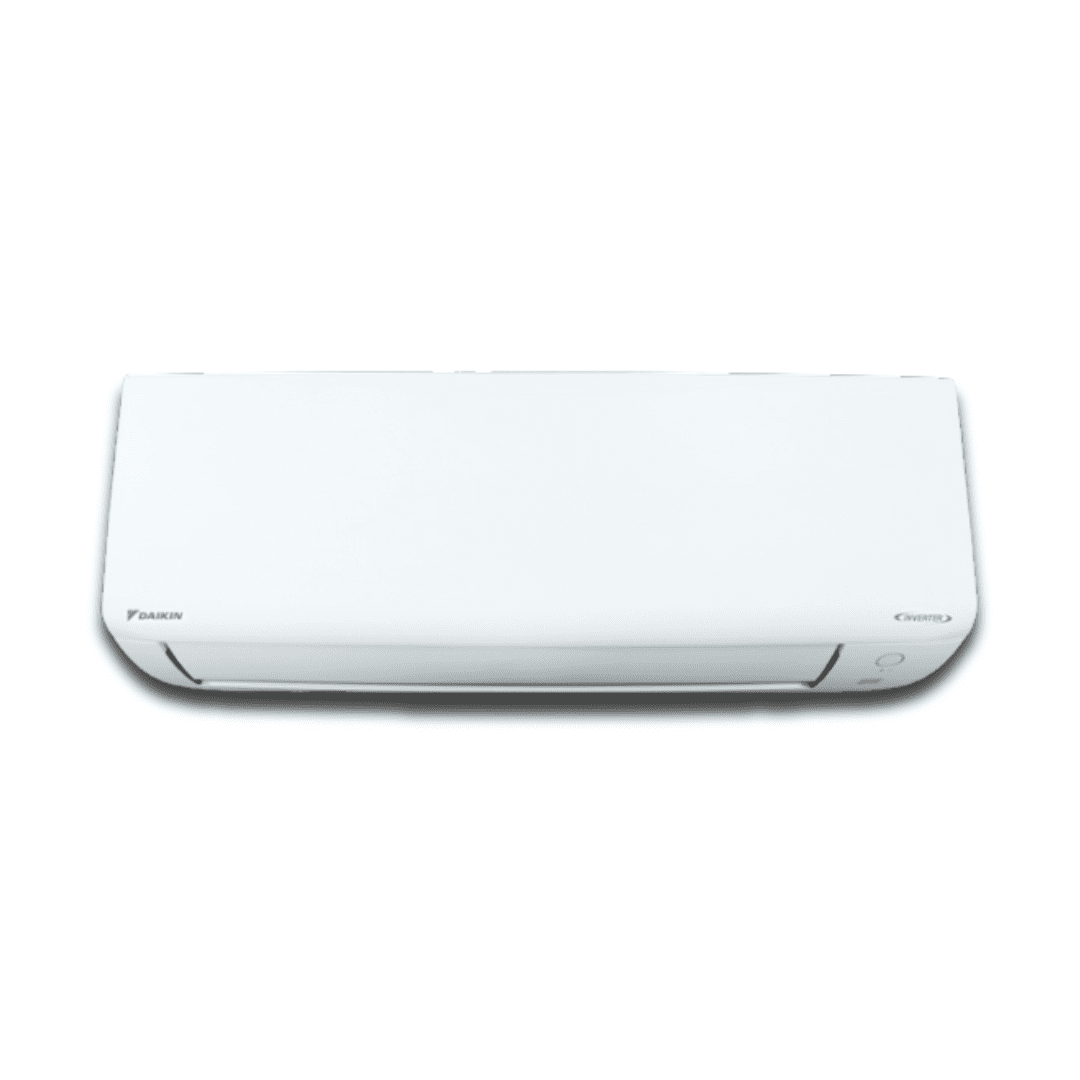

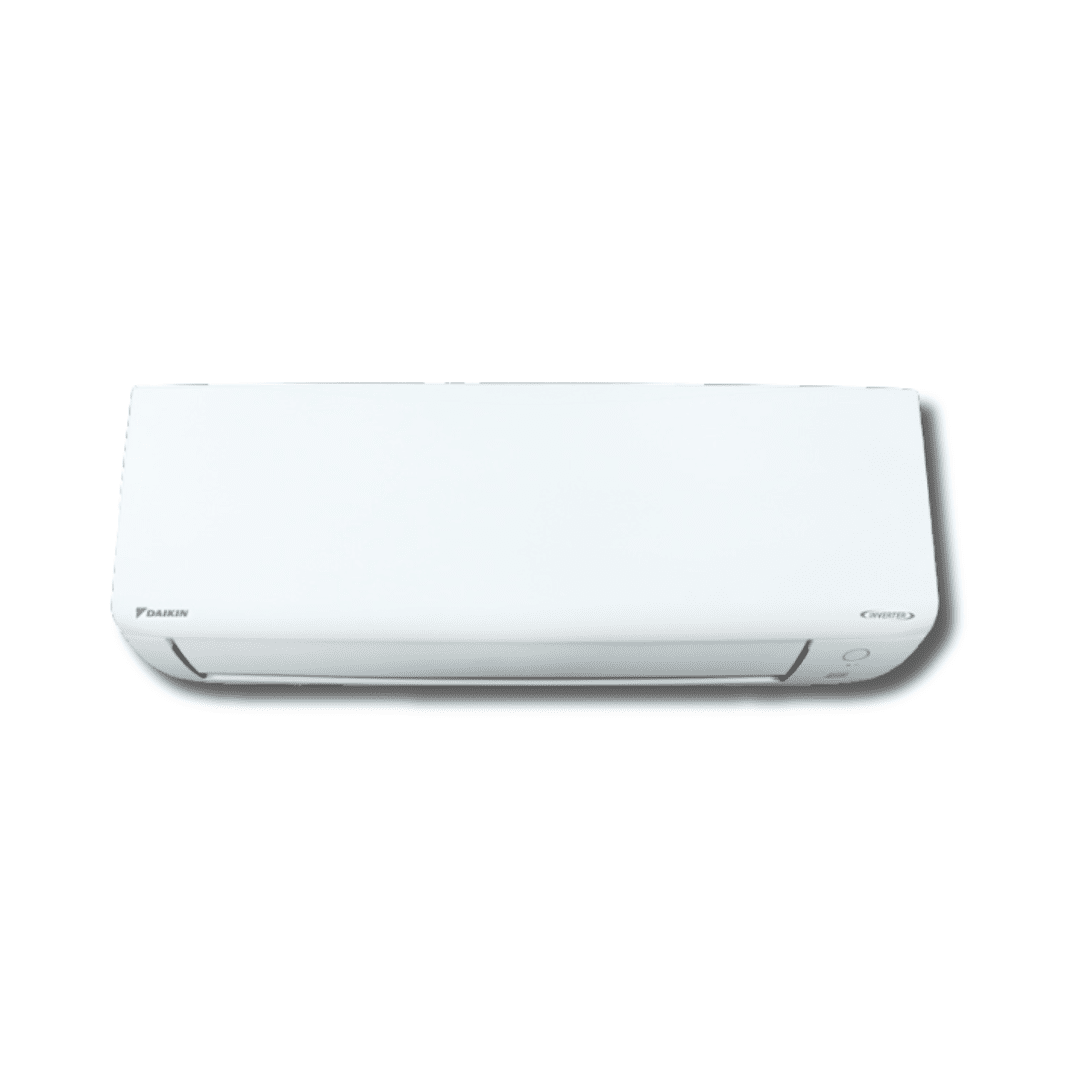

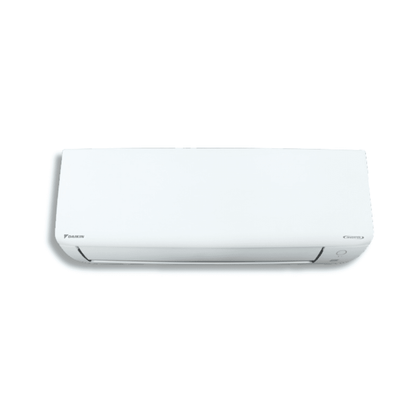

Daikin FTXQ12ASBU9 12,000 BTU Oterra Wall Mounted Indoor Unit (115V) - R32

Product: FTXQ12ASBU9

Description:

The Daikin FTXQ12ASBU9 is a high-efficiency indoor air handler for a single-zone mini-split heat pump system. It features inverter-driven compressor support, quiet operation, and advanced comfort functions suited for homes, bedrooms, offices, or medium-sized spaces. It uses the environmentally friendly R-32 refrigerant and is designed to operate on standard 115 V electrical supply.

Specifications:

General

• Model: FTXQ12ASBU9

• Type: Wall-mounted indoor unit for single-zone mini-split heat pump

• Series: Oterra (115 V, R-32 refrigerant)

• Refrigerant: R-32 (eco-friendly)

• Voltage / Phase: 115 V, 1 Phase, 60 Hz

Cooling & Heating Performance

(Rated in combination with the matched outdoor unit)

• Nominal Cooling Capacity: 12,000 BTU/h

• Cooling Capacity Range: About 3,600 – 12,800 BTU/h

• Rated Cooling Input: ~1.16 kW

• Nominal Heating Capacity: 13,500 BTU/h

• Rated Heating Input: ~1.30 kW

Efficiency Ratings

(System values with outdoor unit)

• SEER2 (Cooling Efficiency): 20.0

• EER2: 12.0

• HSPF2 (Heating Efficiency): 9.0

Airflow & Sound (Indoor Unit)

• Airflow (CFM):
  • Super-Low: ~124 CFM
  • Low: ~244 CFM
  • Medium: ~311 CFM
  • High: ~413 CFM

• Sound Pressure Levels (Indoor):
  • Super-Low: ~21 dB(A)
  • Low: ~31 dB(A)
  • Medium: ~38 dB(A)
  • High: ~46 dB(A)

Dimensions & Weight

• Width: ~30-5/16 in (≈ 770 mm)

• Height: ~11-1/4 in (≈ 286 mm)

• Depth: ~8-3/4 in (≈ 223 mm)

• Net Weight: ~19 lbs (≈ 8.6 kg)
