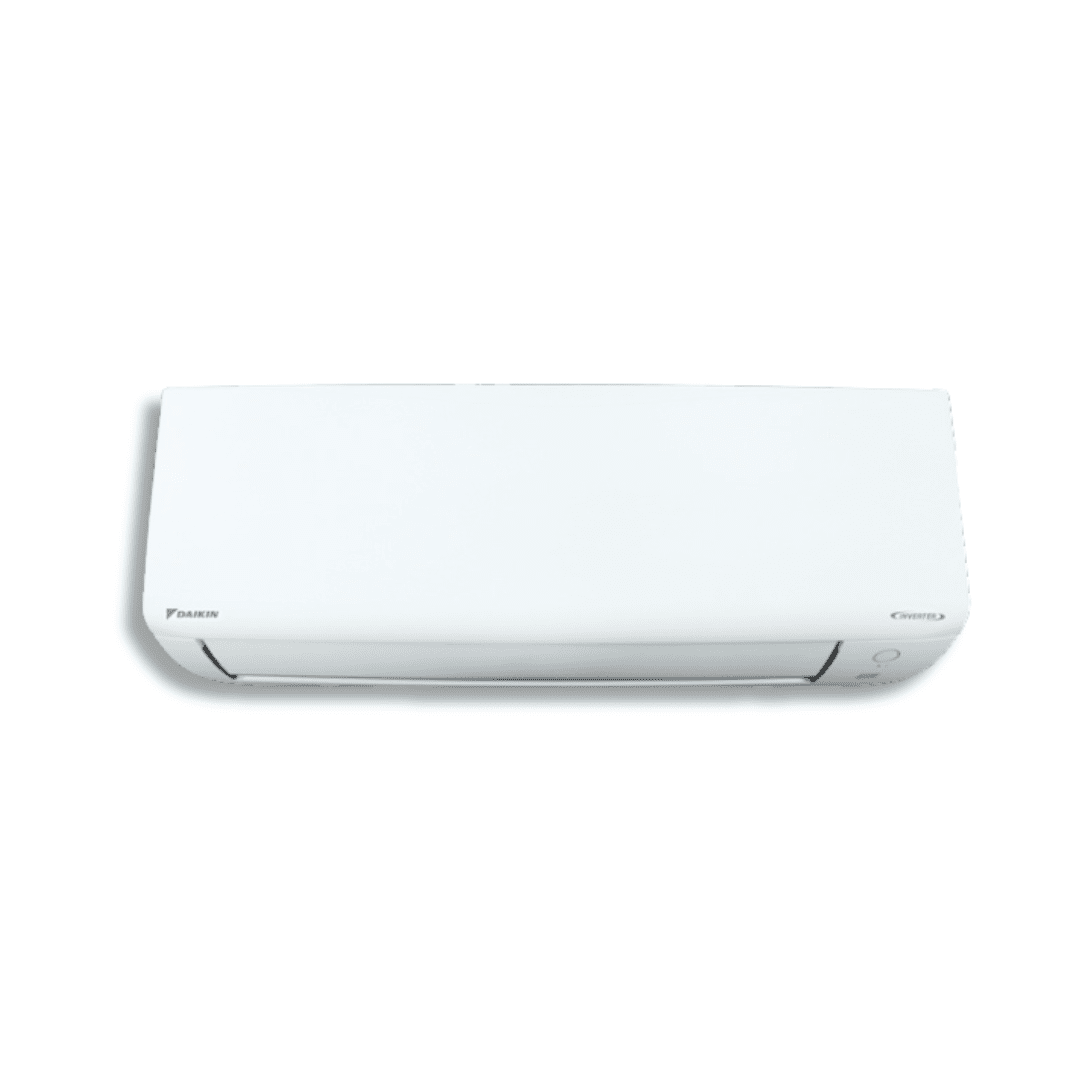

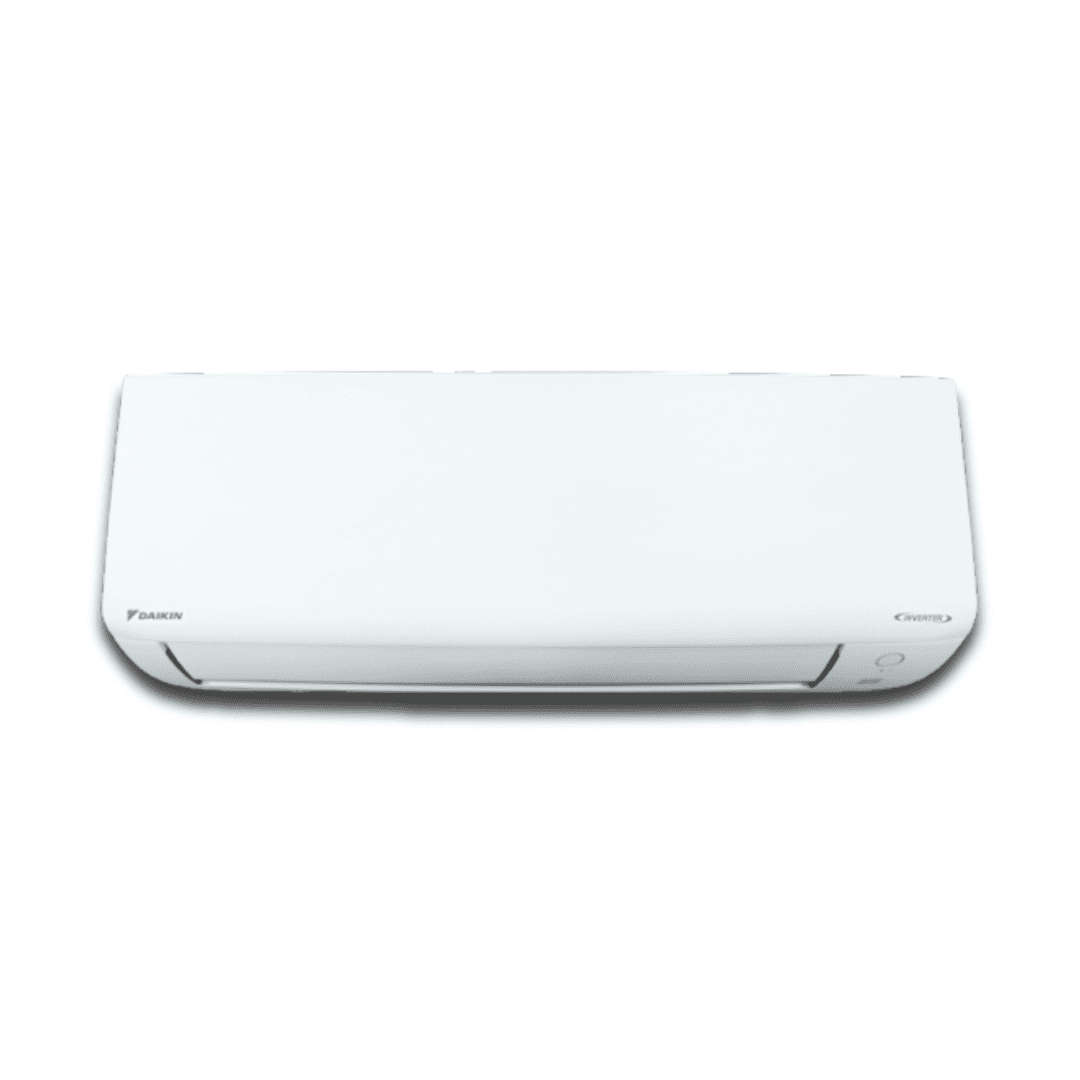

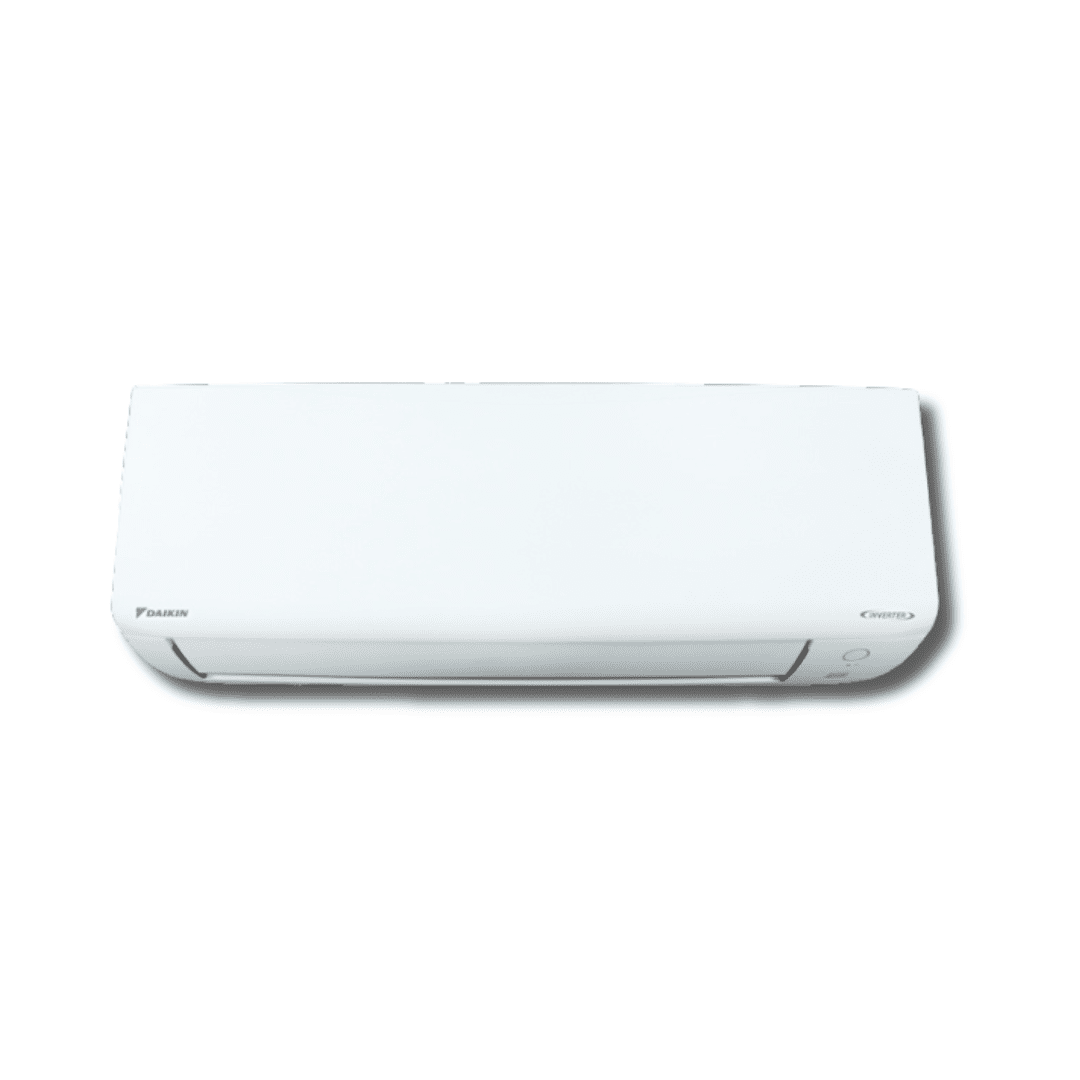

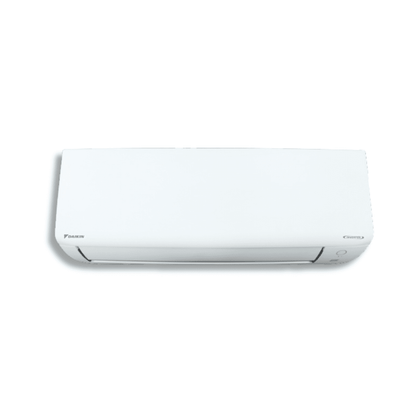

Daikin FTXQ09ASBU9 9,000 BTU Oterra Wall Mounted Indoor Unit (115V) - R32

Product: FTXQ09ASBU9

Descriptions:

The Daikin FTXQ09ASBU9 is a compact, energy-efficient wall-mounted indoor unit for single-zone comfort. It pairs with the RXQ09ASBU9 outdoor heat pump to form a complete 9,000 BTU (0.75 ton) ductless system with high SEER2 efficiency, quiet operation, and advanced comfort features suitable for bedrooms, home offices, or other moderate-sized spaces.

Specifications:

• Model: Daikin FTXQ09ASBU9

• Series: Daikin Oterra (115 V, R-32)

• Application: Mini-split heat pump indoor unit — single-zone

• Refrigerant: R-32 (environmentally friendly)

• Voltage: 115 V, 60 Hz, Single-Phase

• Warranty: 12 years (parts, with registration)

• Nominal Cooling Capacity: ~9,000 BTU/h

• Nominal Heating Capacity: ~10,900 BTU/h (as part of system)

• Cooling Range: up to ~10,500 BTU/h max, ~2,800 BTU/h min

• SEER2 (Cooling Efficiency): ~20

• EER2: ~12

• HSPF2 (Heating Efficiency): ~9

• Airflow (CFM):
  • High: ~424 CFM
  • Medium: ~307 CFM
  • Low: ~261 CFM
  • Super-Low (Quiet): ~134 CFM

  • Dimensions (Indoor Unit):
    • Width: ~30-5/16 in (≈ 770 mm)
    • Height: ~11-1/4 in (≈ 285 mm)
    • Depth: ~8-3/4 in (≈ 222 mm)

  • Weight (Indoor): ~18 lbs (≈ 8.2 kg)

• Sound Pressure Levels (Indoor):
  • ~21 dB(A) at lowest speed — very quiet operation
  • ~30–43 dB(A) at higher fan speeds
