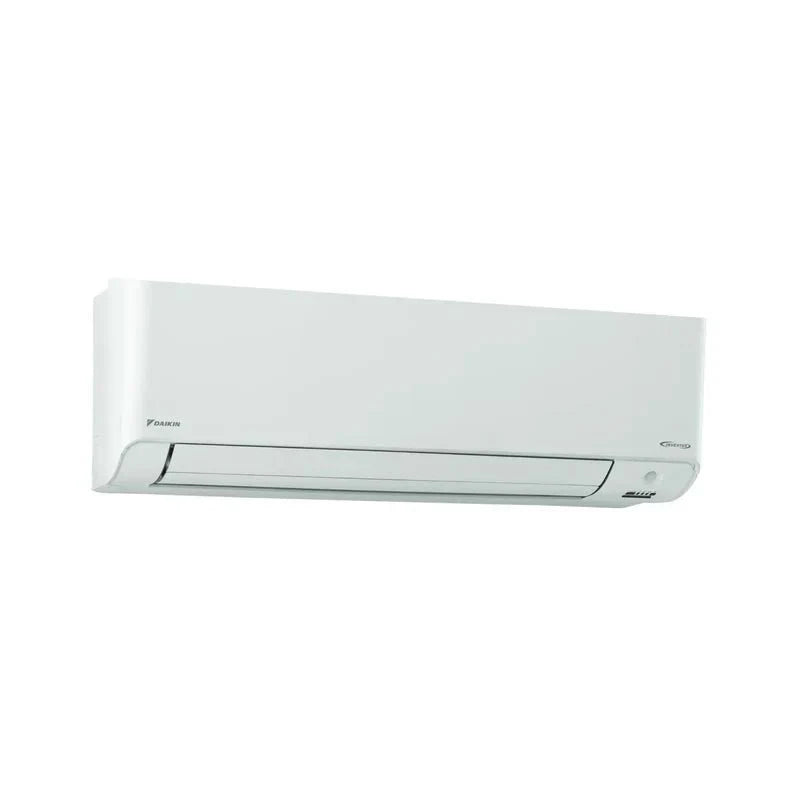

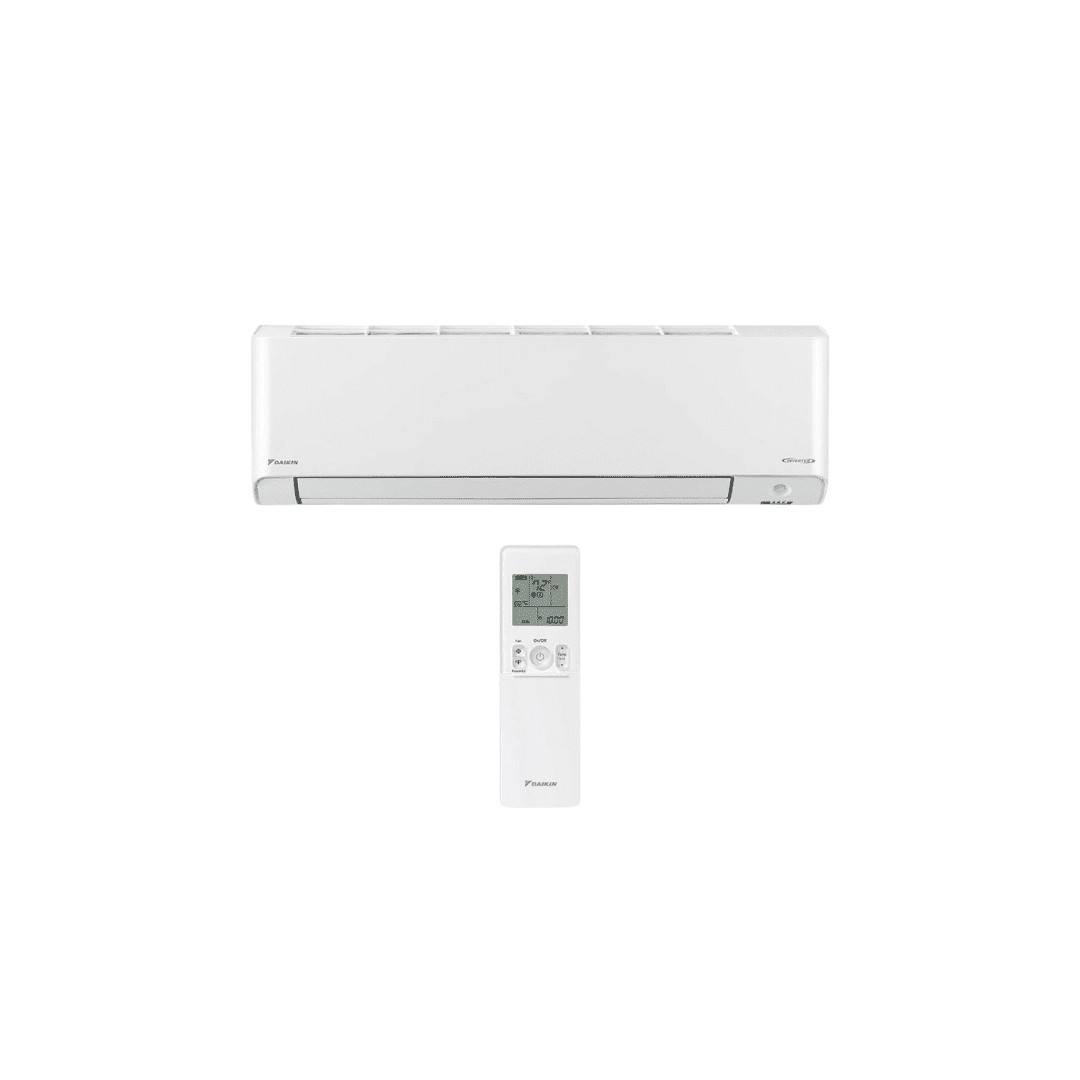

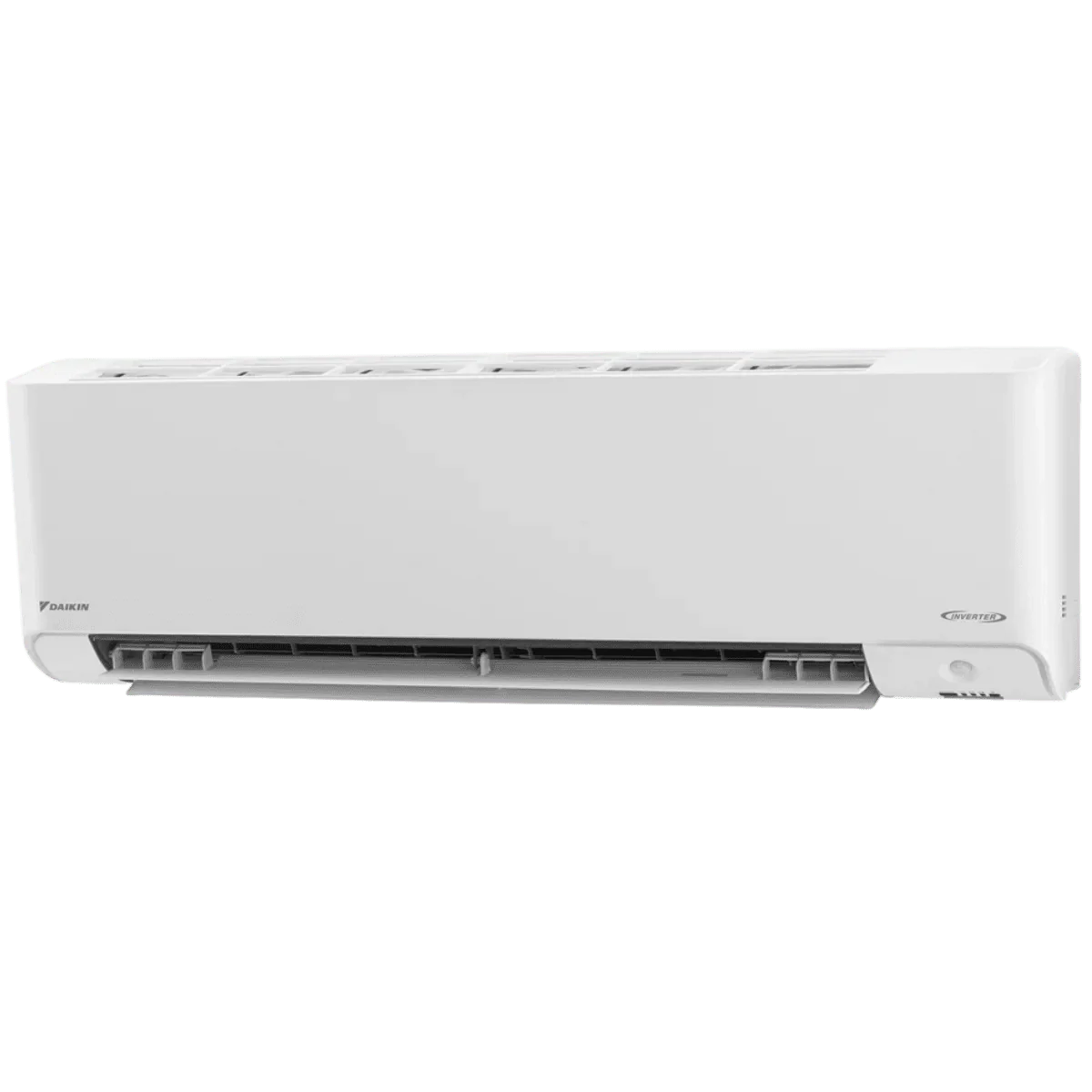

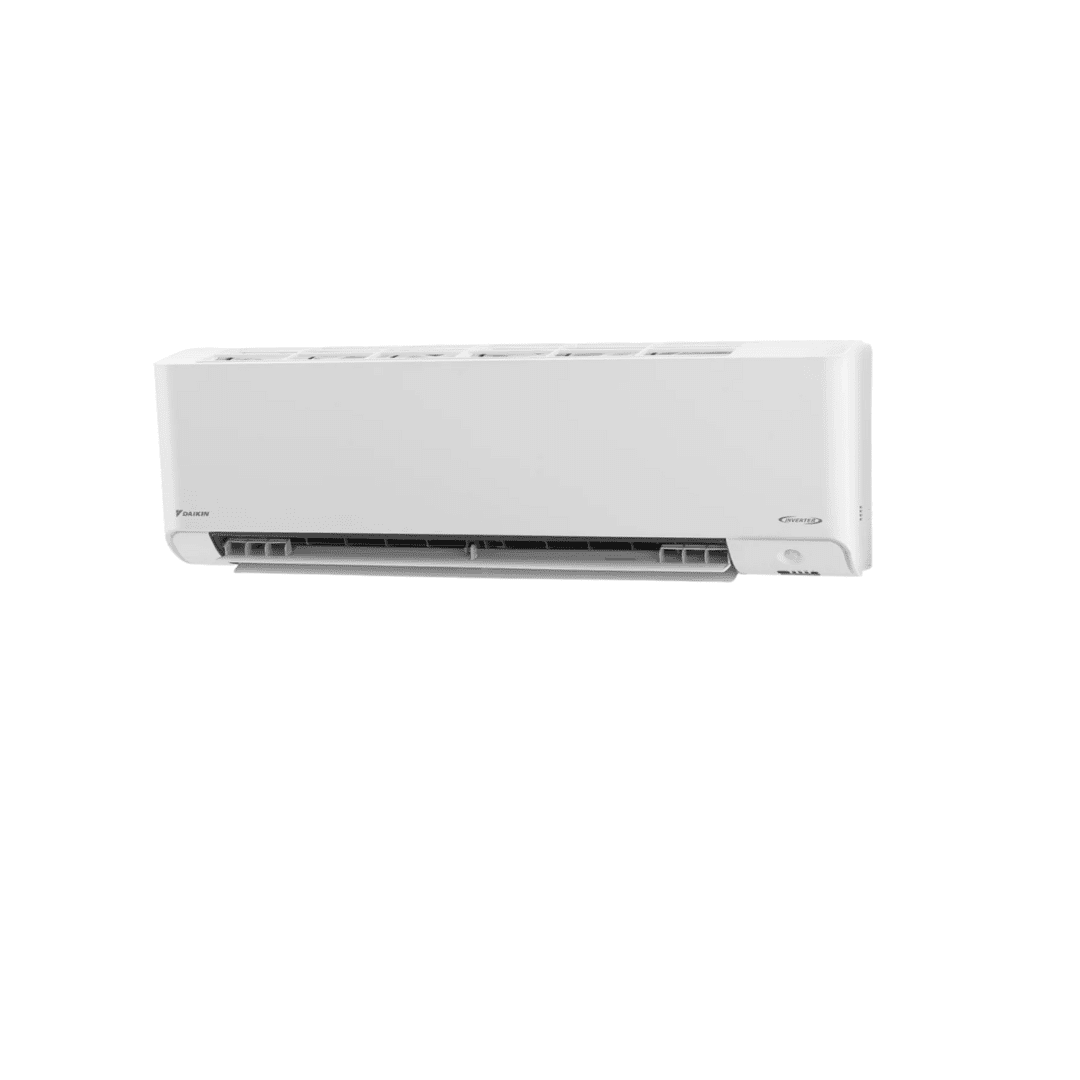

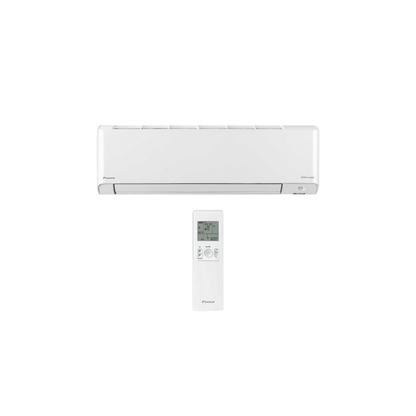

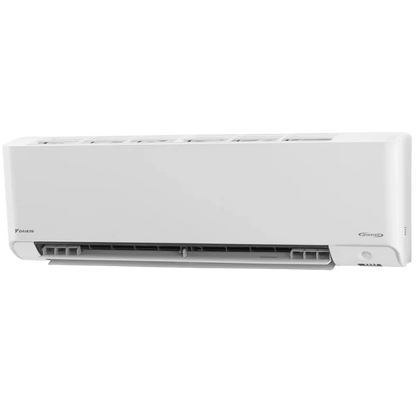

Daikin FTXM24WVJU9 24,000 BTU Atmosphera Single Zone Wall Mounted Indoor Unit - R32

Product: FTXM24WVJU9

Description:

The Daikin FTXM24WVJU9 is a wall‑mounted indoor air handler designed for single‑zone ductless mini‑split heating and cooling systems. It pairs with an outdoor heat pump unit like FTXM24WVJU9 to deliver efficient and comfortable temperature control year‑round. It uses R‑32 refrigerant, advanced inverter technology for energy‑efficient performance, and features like built‑in Wi‑Fi, hybrid cooling, and the CLEAN function for improved air quality and operation.

Specifications:

General

• Model: FTXM24WVJU9 (Indoor Unit)

• Series: Daikin Atmosphera R‑32 Wall‑Mounted Heat Pump

• Refrigerant: R‑32

• Application: Single‑zone ductless heat pump indoor unit

Capacity & Performance

• Rated Cooling Capacity: ~21,600 BTU/h

• Cooling Operating Range: ~9,000 – 26,000 BTU/h

• Rated Heating Capacity: ~24,000 BTU/h

• Heating Operating Range: ~9,000 – 32,200 BTU/h

• SEER2 (Cooling Seasonal Efficiency): ~22.0

• HSPF2 (Heating Seasonal Efficiency): ~10.0

• EER2 (Rated Cooling Efficiency): ~12.0 BTU/h·W

• COP2 (Heating Coefficient of Performance): ~3.54 W/W

Electrical

• Power Supply: 208 – 230 V, 60 Hz, Single‑Phase

• Approximate Power Consumption (Cooling): ~1,728 W

• Approximate Power Consumption (Heating): ~1,986 W

• Power Factor (Cooling): ~97.3 %

• Power Factor (Heating): ~99.0 %

Airflow

• Airflow Rate (High): ~844 CFM

• Fan Speeds: Multiple speeds including auto and quiet options

Indoor Sound Levels

• Sound Level Range: Approximately 22 – 34 dB(A) depending on fan mode and speed

Dimensions & Weight

• Height: ~11.75 in (~298 mm)

• Width: ~43.31 in (~1,100 mm)

• Depth: ~10.81 in (~275 mm)

• Weight (Indoor): ~33 lbs (~15 kg)

Piping & Connections

• Liquid Line Connection Size: 1/4 in

• Suction Line Connection Size: 5/8 in

• Maximum Piping Length (precharged): ~49 ft (~15 m)

• Maximum Total Piping Length: ~98.5 ft (~30 m)

• Maximum Height Difference (Indoor ↔ Outdoor): ~82 ft (~25 m)

Operating Conditions

• Cooling Ambient Operating Range: ~50 °F to ~114.8 °F

• Heating Ambient Operating Range: ~‑13 °F to ~64.4 °F

• Extended Cooling (with setup settings): ~‑4 °F to ~114.8 °F

Features

• Inverter Technology for efficient and smooth performance

• Hybrid Cooling for enhanced dehumidification

• CLEAN Function that helps reduce interior condensation

• Built‑in Wi‑Fi enabling remote control via app

• 3‑D Airflow & Intelligent Eye Sensor for optimized comfort

• Auto Restart to resume previous settings after power loss

• Self‑Diagnostics for easier troubleshooting

• Quiet Operation with low indoor sound levels
