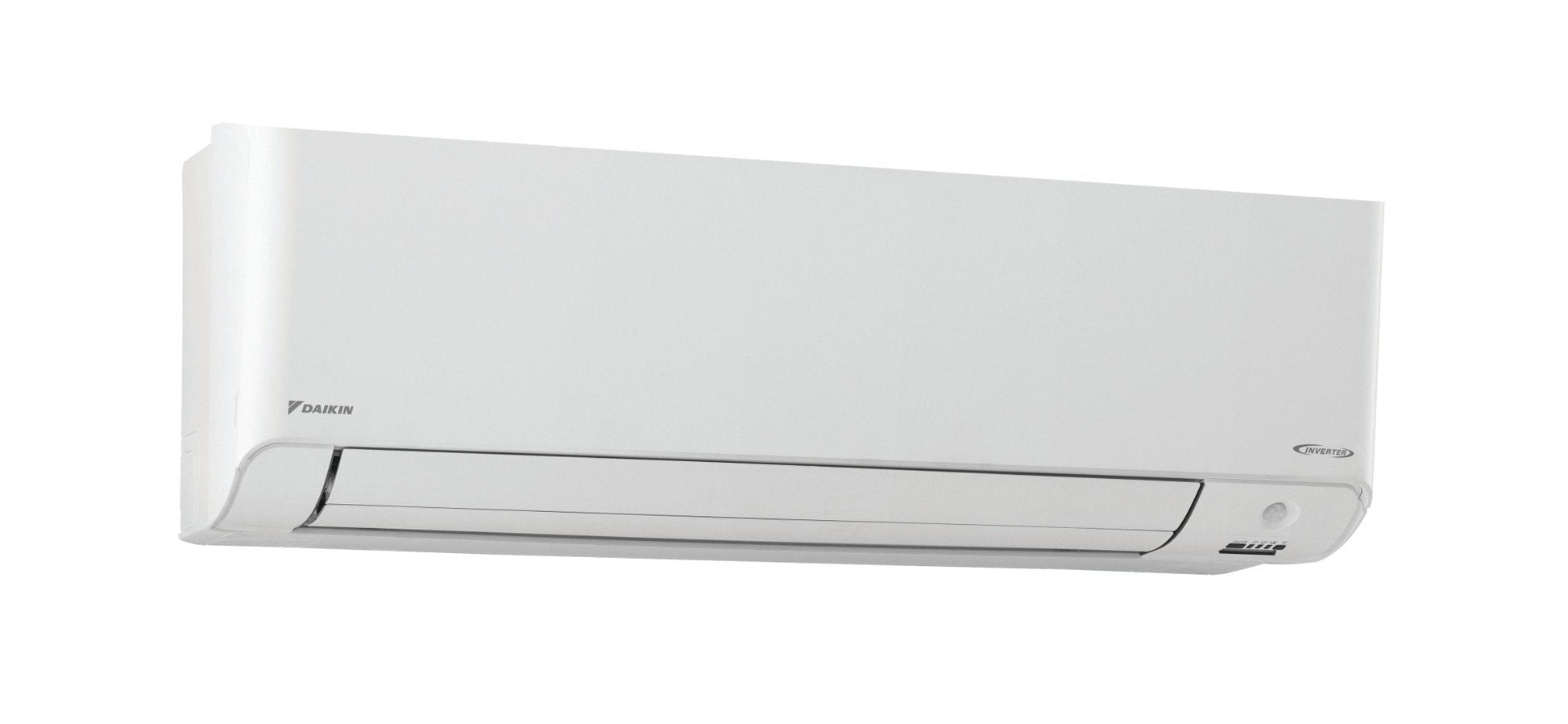

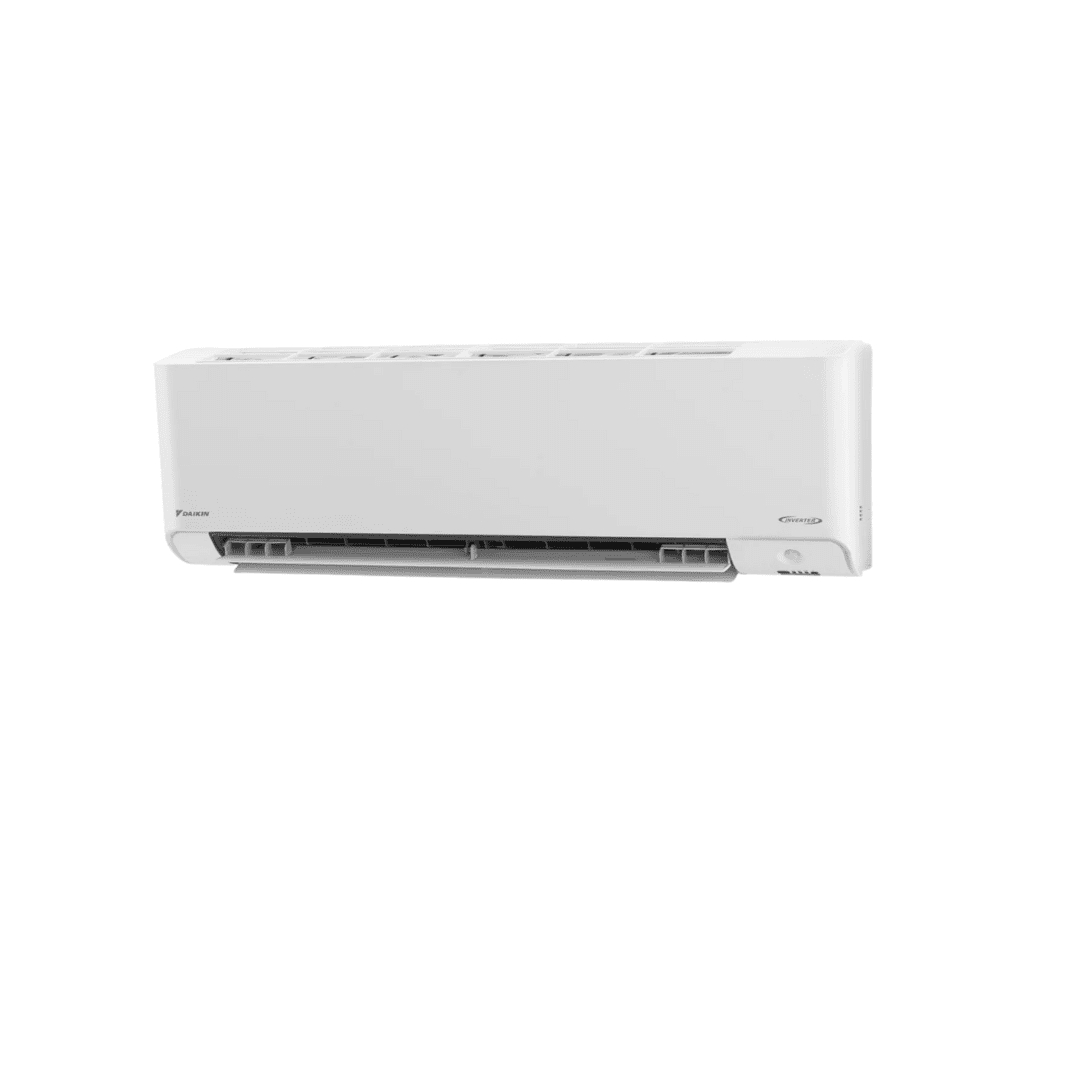

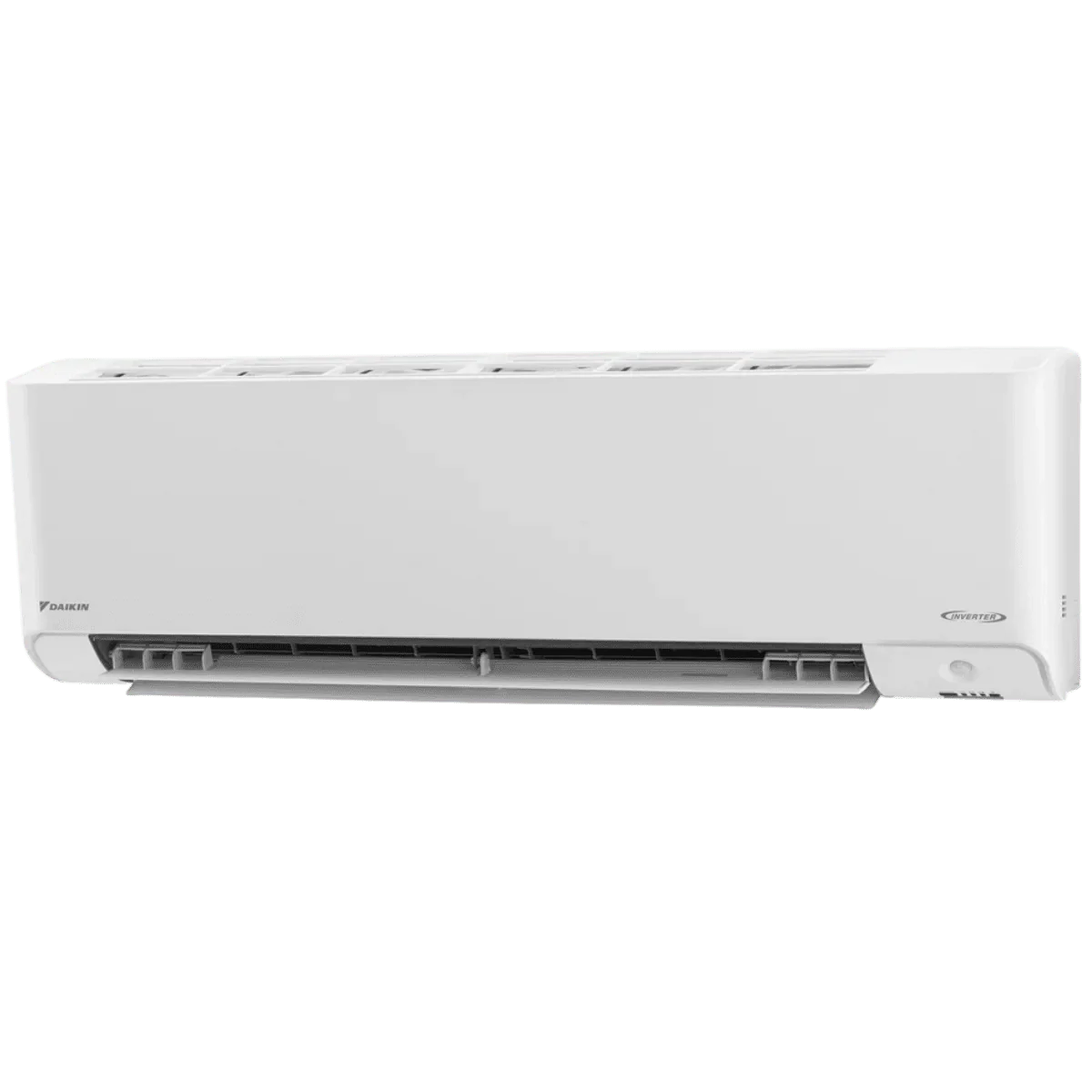

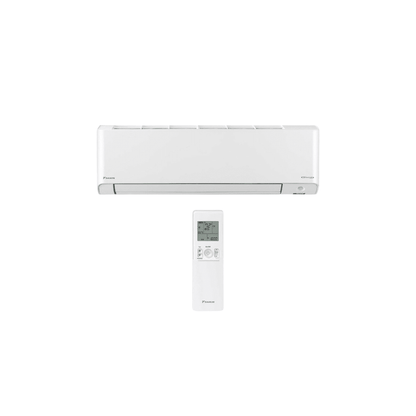

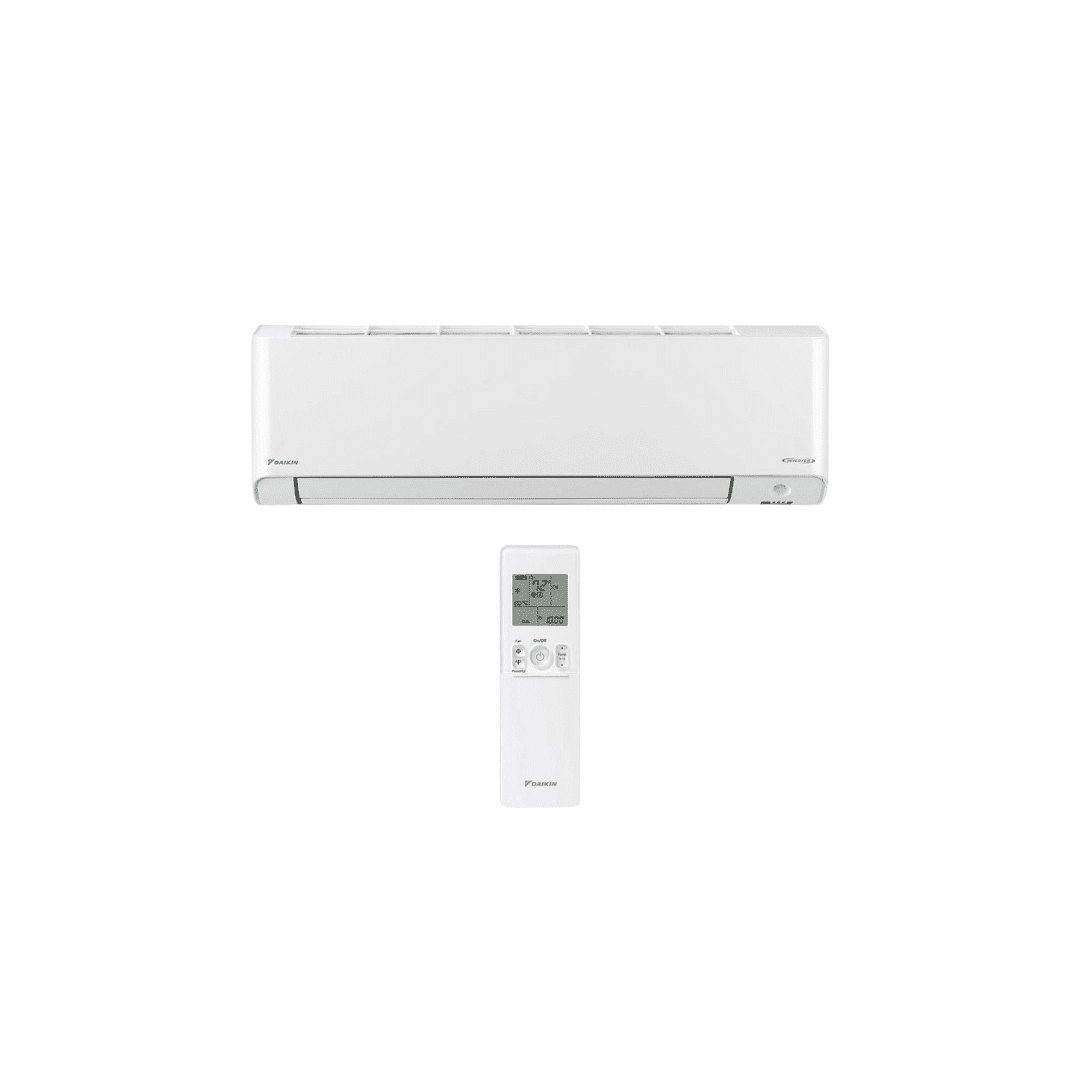

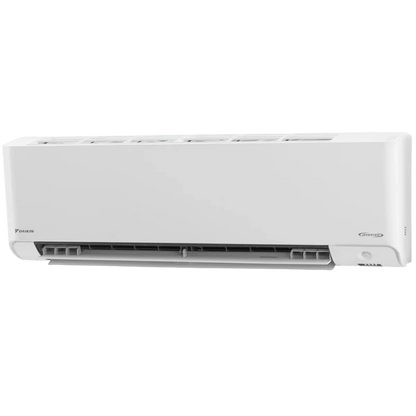

Daikin FTXM12WVJU9 12,000 BTU Atmosphera Single Zone Wall Mounted Indoor Unit - R32

Product: FTXM12WVJU9

Description:

The Daikin FTXM12WVJU9 is a wall‑mounted indoor air handler designed for single‑zone ductless mini‑split heating and cooling systems. It pairs with an outdoor heat pump unit like FTXM12WVJU9 to deliver efficient and comfortable temperature control year‑round. It uses R‑32 refrigerant, advanced inverter technology for energy‑efficient performance, and features like built‑in Wi‑Fi, hybrid cooling, and the CLEAN function for improved air quality and operation.

Specifications:

• General

  • Model: FTXM12WVJU9 (Indoor Unit)

  • Series: Daikin Atmosphera R‑32 Wall‑Mounted Heat Pump

  • Refrigerant: R‑32

  ---

  Capacity & Performance

  Parameter	Value (Indoor Unit paired with RXM12WVJU9)
  Rated Cooling Capacity	12,000 BTU/h (4,800 – 16,000 BTU/h)
  Rated Heating Capacity	13,600 BTU/h (4,800 – 22,600 BTU/h)
  Rated Power Consumption (Cooling)	~909 W
  Rated Power Consumption (Heating)	~906 W
  Power Factor (Cooling)	~96.3 %
  Power Factor (Heating)	~96.8 %
  SEER2 (Cooling Efficiency)	25.20
  HSPF2 (Heating Efficiency)	10.70
  EER2 (Rated Efficiency)	13.20 Btu/Wh
  COP2 (Heating Coefficient)	4.40 W/W
  👉 All values per Daikin spec sheet.

  ---

  ⚡ Electrical

  • Power Supply: 208 – 230 V, 60 Hz, Single‑Phase
