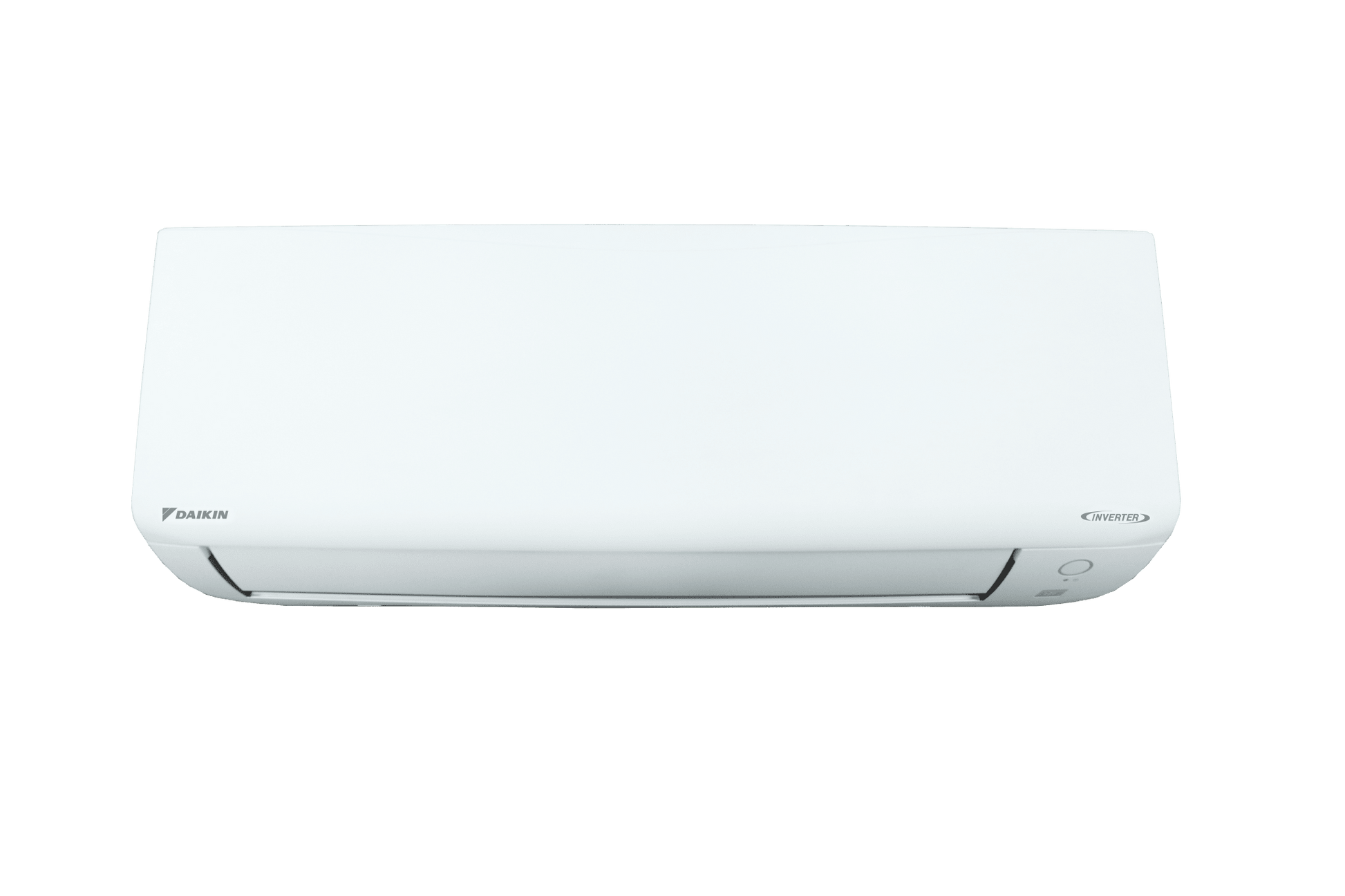

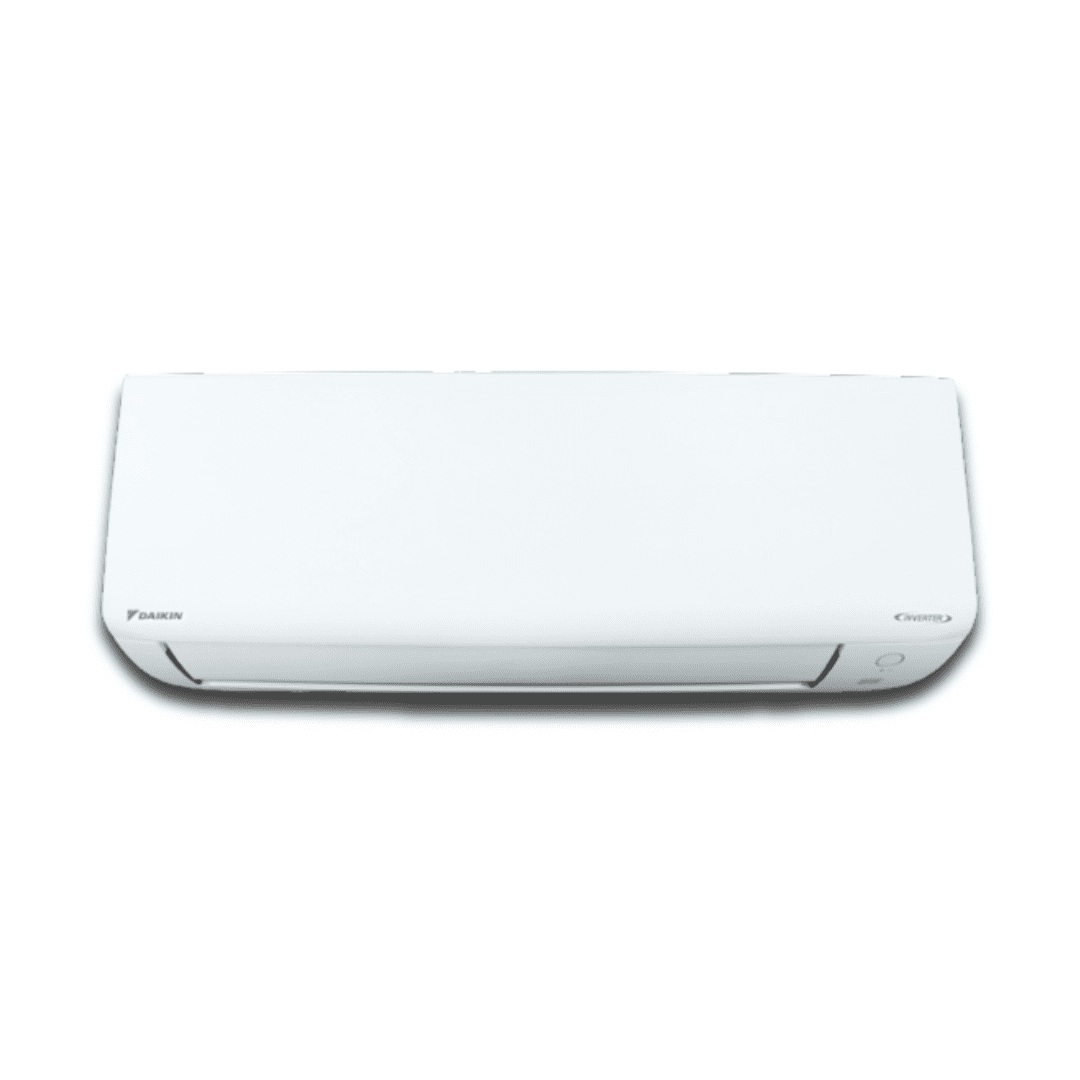

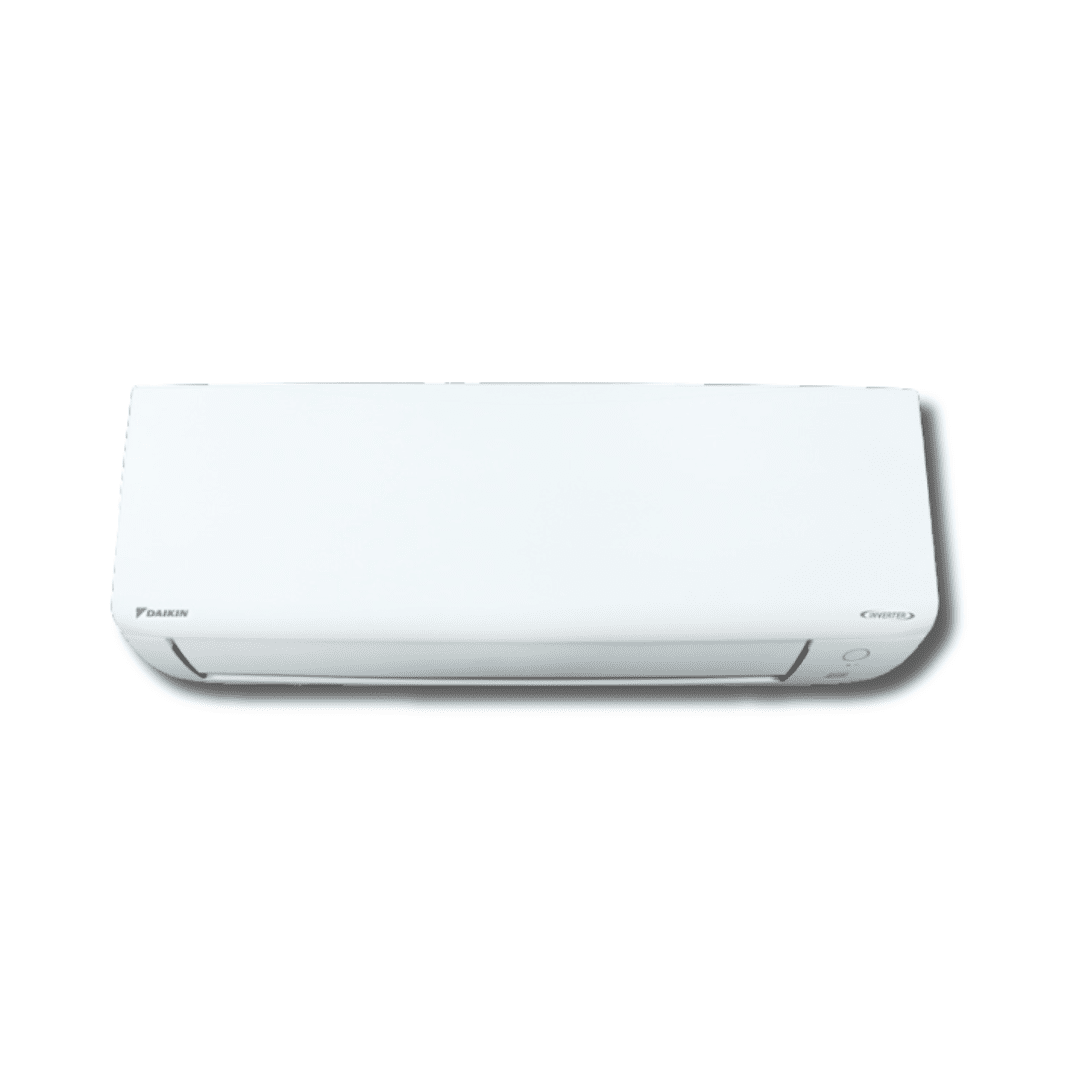

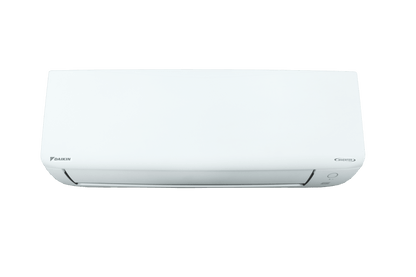

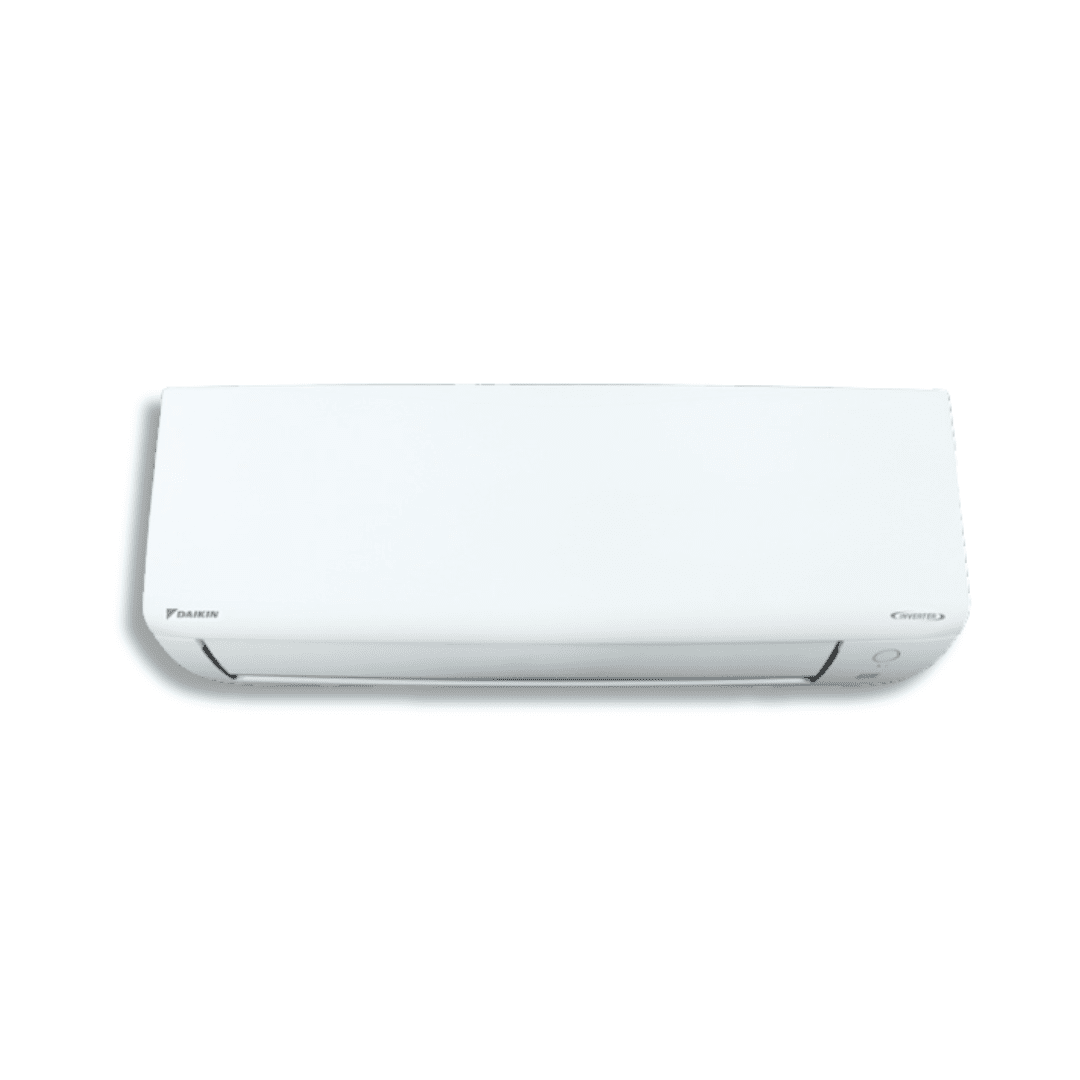

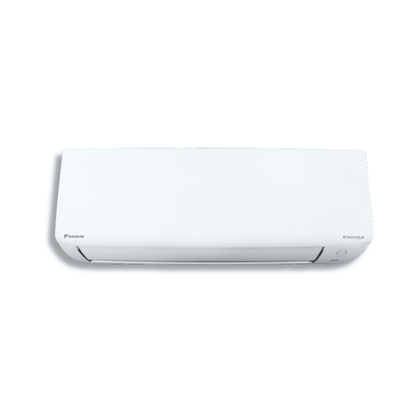

Daikin FTXF24AXVJU 24,000 BTU Oterra Mini Split Air Handler Single Zone Wall Mount R32

Product: FTXF24AXVJU

Description:

The Daikin FTXF24AXVJU is a wall-mounted indoor air handler designed for use in a single-zone ductless mini-split heat pump system. It pairs with a compatible outdoor heat pump condenser to provide efficient cooling and heating comfort throughout the year. This unit uses R-32 refrigerant, offers quiet operation, and incorporates modern features like inverter technology, multiple operating modes, self-diagnostics, and auto-restart for convenience and reliability. It’s suitable for small to medium spaces such as bedrooms, offices, and living areas.

Specifications:

• Capacity & Performance

  • Nominal Cooling Capacity: ~24,000 BTU/h

  • Nominal Heating Capacity: ~26,400 BTU/h

  • Cooling Operating Range: Approximate outdoor ambient 50 °F to 114 °F

  • Heating Operating Range: Approximate outdoor ambient 5 °F to 65 °F

  ---

  Efficiency (System Rated)

  • SEER2 (Seasonal Energy Efficiency Ratio): ~21.0

  • EER2 (Energy Efficiency Ratio): ~12.0

  • HSPF2 (Heating Seasonal Performance Factor): ~9.1

  ---

  Airflow & Noise

  • Airflow (CFM):
    • Quiet / Super-Low: ~395 CFM
    • Low: ~467 CFM
    • Medium: ~605 CFM
    • High: ~716 CFM
    • Turbo: ~754 CFM

  • Indoor Unit Sound Pressure Levels (dB[A]):
    • Quiet / Super-Low: ~34 dB(A)
    • Low: ~39 dB(A)
    • Medium: ~45 dB(A)
    • High: ~52 dB(A)

  ---

  Dimensions & Weight

  • Width: ~39-9/16 inches

  • Height: ~11-11/16 inches

  • Depth: ~10-3/4 inches

  • Net Weight: ~30 lbs

  ---

  Electrical

  • Voltage: 208 – 230 V

  • Phase: Single-Phase
